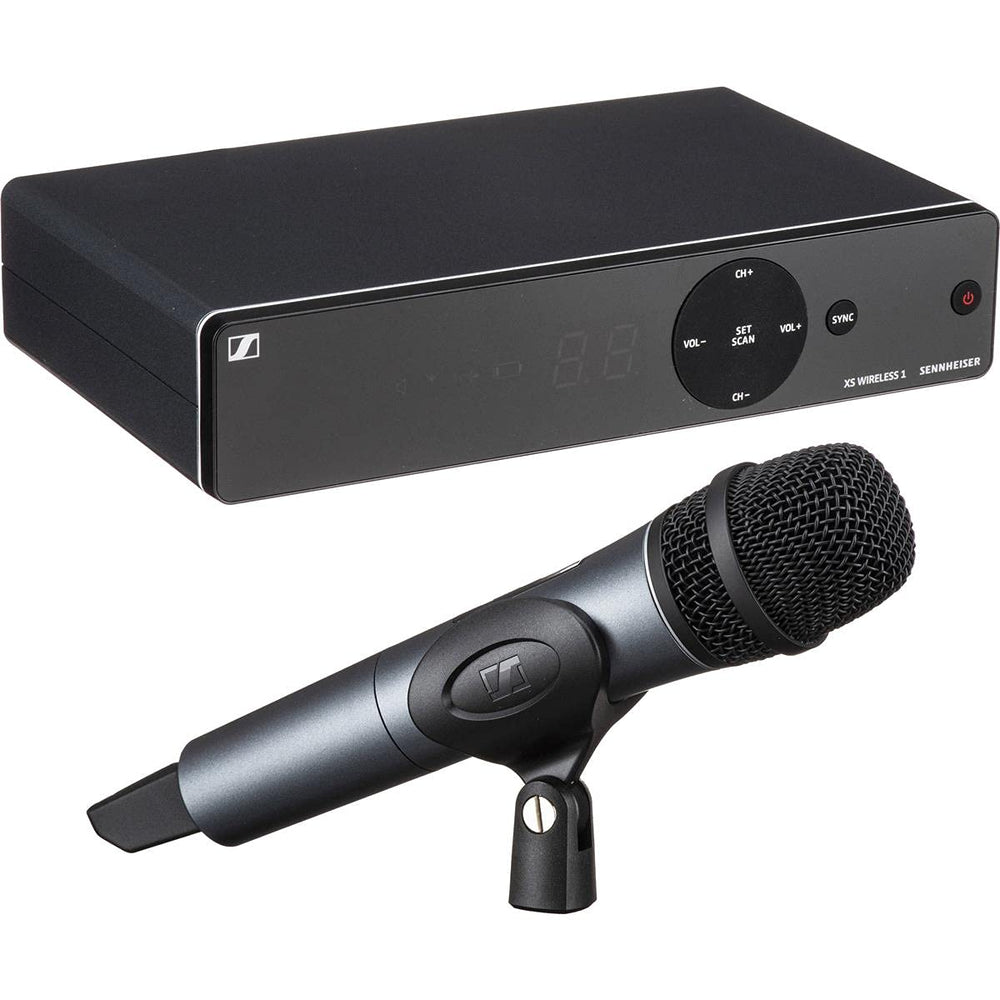

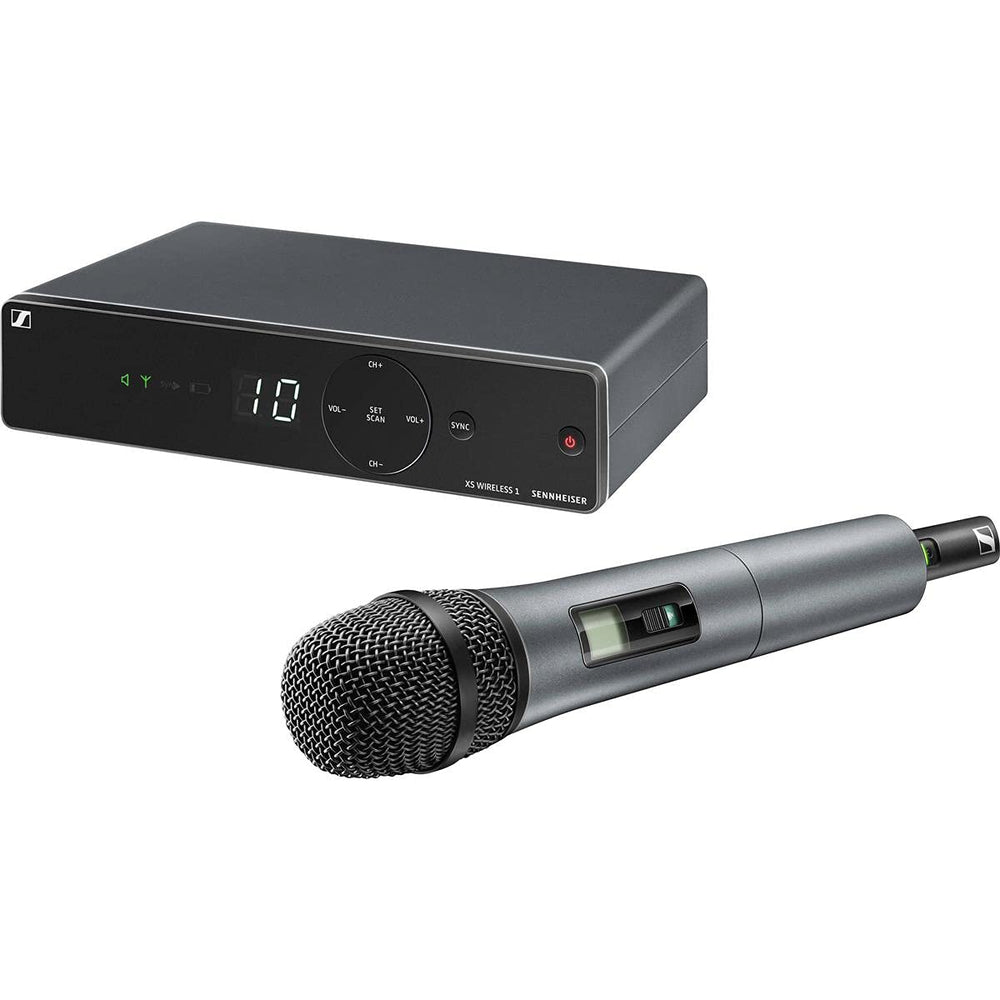

Sennheiser XSW 1-835-A Wireless Handheld Microphone System, A

Raise your voice with the Sennheiser XSW 1-835-A Wireless Handheld Microphone System. Engineered for performers and presenters, this all-in-one wireless system is perfect for live sound applications. Its easy-to-use setup and intuitive design allow for seamless operation, enabling you to focus on your performance. Featuring Sennheiser's renowned evolution microphone capsules, the XSW 1-835-A offers exceptional audio quality with the dynamic cardioid e835 capsule for superior sound.

This system ensures a solid wireless transmission in a stable UHF band, offering up to 10 compatible channels for interference-free performance. The stylish and compact receiver, integrated antennas, and automatic frequency management provide hassle-free handling and quick setup, making it ideal for both professionals and beginners alike. Whether you're on stage or in a presentation, the XSW 1-835-A system empowers you to deliver your message with crystal-clear sound and reliability.

Key Features

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

Specifications

• Dimensions: approx. 200 x 42 x 127 mm
• THD, total harmonic distortion: <= 0.9%
• Pick-up pattern: cardioid
• Signal-to-noise ratio: >= 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: wideband FM
• Output voltage: 1/4” (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: rugged ABS housing
• Dynamic range: dynamic
• Frequency range options: A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0°C to +40°C, storage: -20°C to +70°C
• Receiver Principle: double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas
• Receivers Weight: approx. 340g
• Power supply (Receiver): 12 V DC nom. / 300 mA
• AF frequency response (Receiver): 50 to 16,000 Hz (-3 dB)
• Microphone Weight: approx. 245g
• Power supply (Microphone): 2 AA size batteries, 1.5 V
• AF frequency response: SKM 825: 80-14,000 Hz, SKM 835: 80-16,000 Hz

Package Contents

• 1 receiver EM-XSW 1
• 1 handheld transmitter SKM 835-XSW 1
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries
