Sennheiser XSW 1-835 DUAL-A Wireless Dual Handheld Microphone System, A

Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

Key Features

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

Technical Specifications

Dimensions
approx. 200 x 42 x 127 mm
THD, total harmonic distortion
<= 0.9%
Pick-up pattern
cardioid
Signal-to-noise ratio
>= 103 dBA
RF output power
10 mW
Switching bandwidth
up to 24 MHz
Operating time
approx. 10 hrs
Modulation
wideband FM
Output voltage
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing
rugged ABS housing
Dynamic range
dynamic
Frequency
8 frequency banks, each with up to 10 factory-preset channels
Frequency range
A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
Sensitivity
< 3 μV at 52 dB(A)rms S/N
Squelch
adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization
2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity
1.5 mV / Pa
Adjustment Range Transmitter
0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range
45 dB, adjustable in 5-dB steps
Line / Mic level
20 dB, switchable
Temperature Range
operation: 0°C to +40°C, storage: -20°C to +70°C
Receiver Principle
double superheterodyne
Diversity principle
Antenna switching diversity via internal antennas

Receivers
Weight
approx. 340g
Power supply
Receiver: 12 V DC nom. / 300 mA
AF frequency response
Receiver: 50 to 16,000 Hz (-3 dB)

Microphone
Weight
approx. 245g
Power supply
Microphone: 2 AA size batteries, 1.5 V
AF frequency response
SKM 825: 80-14,000 Hz
SKM 835: 80-16,000 Hz

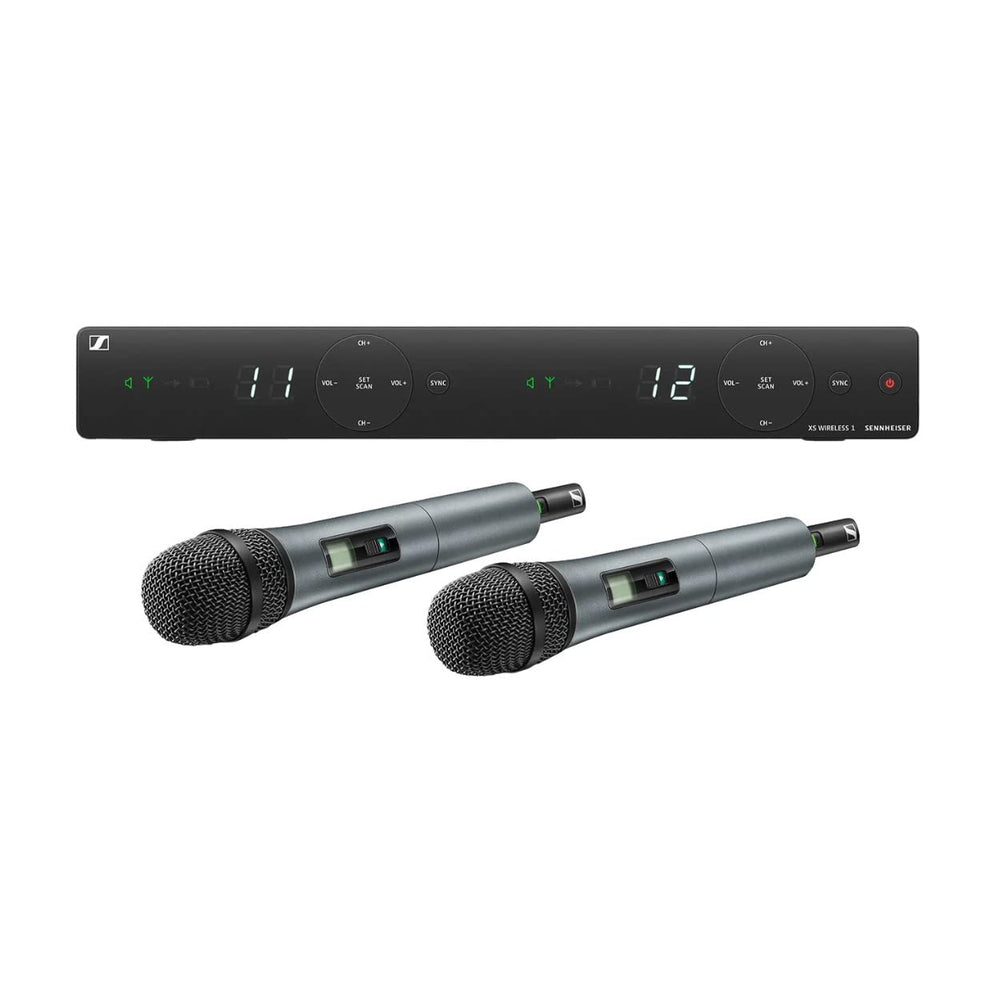

What's in the box?

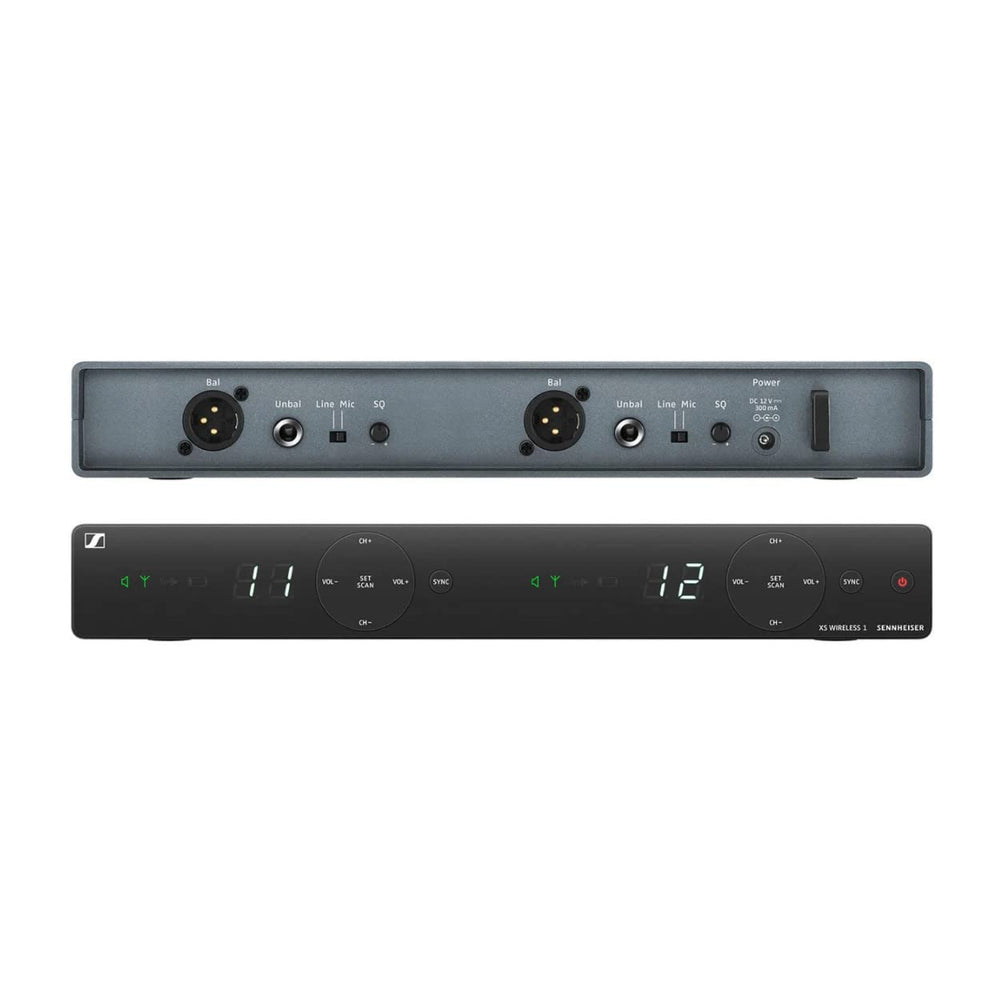

1 receiver EM-XSW 1 Dual Channel
2 handheld transmitter SKM 835-XSW
2 microphone clamp MZQ 1
1 power supply NT 12-5 CW
2 AA batteries
