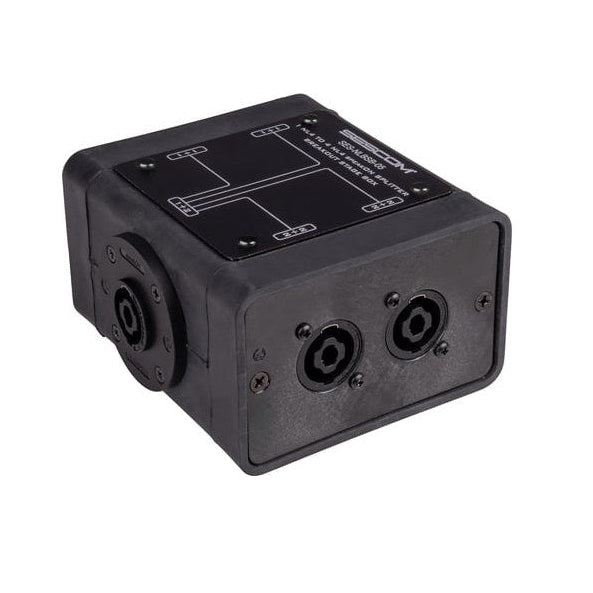

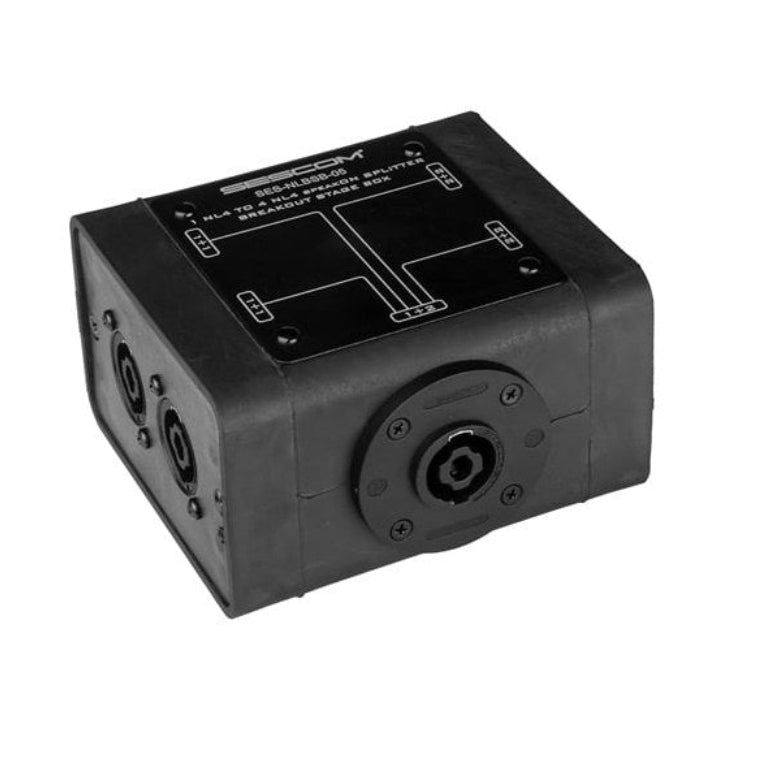

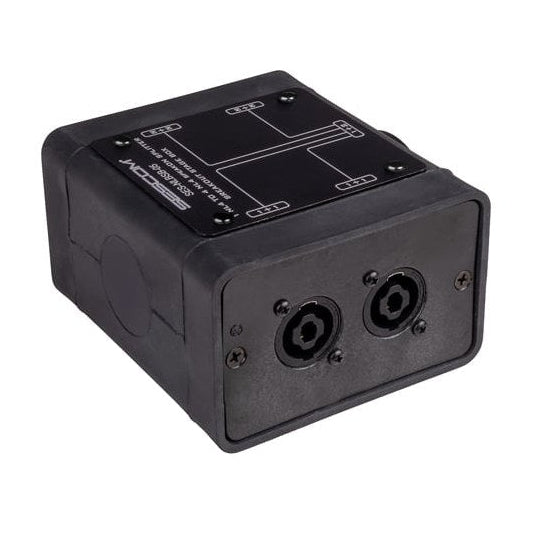

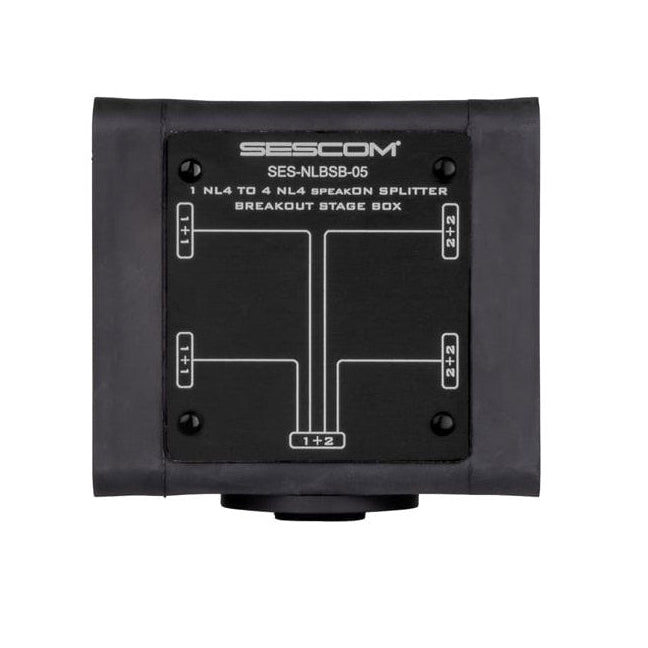

Sescom SES-NLBSB-05 1x4 speakON Parallel Splitter Stage Box
The Sescom SES-NLBSB-05 1x4 speakON Parallel Splitter Stage Box distributes one NL4 speakON speaker signal to four NL4 speakON outputs. It gives live sound technicians a compact, rugged way to split or break out amplifier-to-loudspeaker connections using high quality Neutrik speakON hardware.
Use this NL4 speaker splitter stage box for touring racks, installed audio systems, rental rigs, and multi-speaker deployments that need dependable parallel speaker distribution. It works well as a 1 NL4 to 4 NL4 breakout box, a professional speakON splitter, or a compact stage box for amplifier loudspeaker routing.
A rubberized 1-gang enclosure, rubber feet, and M10 threaded screw-mount support flexible placement on stage or in permanent installations. The NL4 chassis connectors support both 4-pole NL4 and 2-pole NL2 speakON connectors, while the precise keyway and twist-lock system help maintain secure connections.
1x4 speakON Splitter Stage Box Key Features
- 1:4 Distribution: Splits one NL4 speakON input to four NL4 speakON outputs for flexible speaker signal routing.
- Neutrik speakON Connectors: Uses high quality connector hardware for professional amplifier-to-loudspeaker applications.
- Rubberized 1-Gang Box: Provides a compact, rugged enclosure for stage, rack, and installation environments.
- Secure Twist-Lock Design: Includes a precise keyway and Quick Lock latching system for dependable connector mating.
- M10 Threaded Mount: Supports fixed mounting when the stage box needs a secure installation point.
- Rubber Feet: Helps stabilize the box on stage floors, amp racks, or work surfaces.
- NL4 and NL2 Compatibility: Chassis connectors support both 4-pole NL4 and 2-pole NL2 speakON connectors.
- Speaker Signal Use: Designed for heavy-duty amplifier-loudspeaker applications, not AC mains or power supply connections.
Technical Specifications
- Brand: Sescom
- Model: SES-NLBSB-05
- Manufacturer Part Number: SES-NLBSB-05
- Product Type: Neutrik speakON parallel splitter breakout stage box
- Configuration: 1 NL4 to 4 NL4
- Input: 1 male Neutrik NL4 speakON chassis connector
- Outputs: 4 male Neutrik NL4 speakON connectors
- Housing: Rubberized 1-gang box
- Mounting: M10 threaded screw-mount
- Feet: Rubber feet
- Connector Compatibility: 4-pole NL4 and 2-pole NL2 speakON connectors
- Connector Keying: Precise keyway with twist-lock latching system
- Locking Device: Quick Lock
- Contact Resistance: ≤2 mΩ
- NL4 Dielectric Strength: 2.8 kVac
- Insulation Resistance: >0.1 GΩ
- Rated Voltage: 250 V AC
- Connector Lifetime: >5000 mating cycles
- Dimensions: 3.38" x 2.5" x 3.9"
