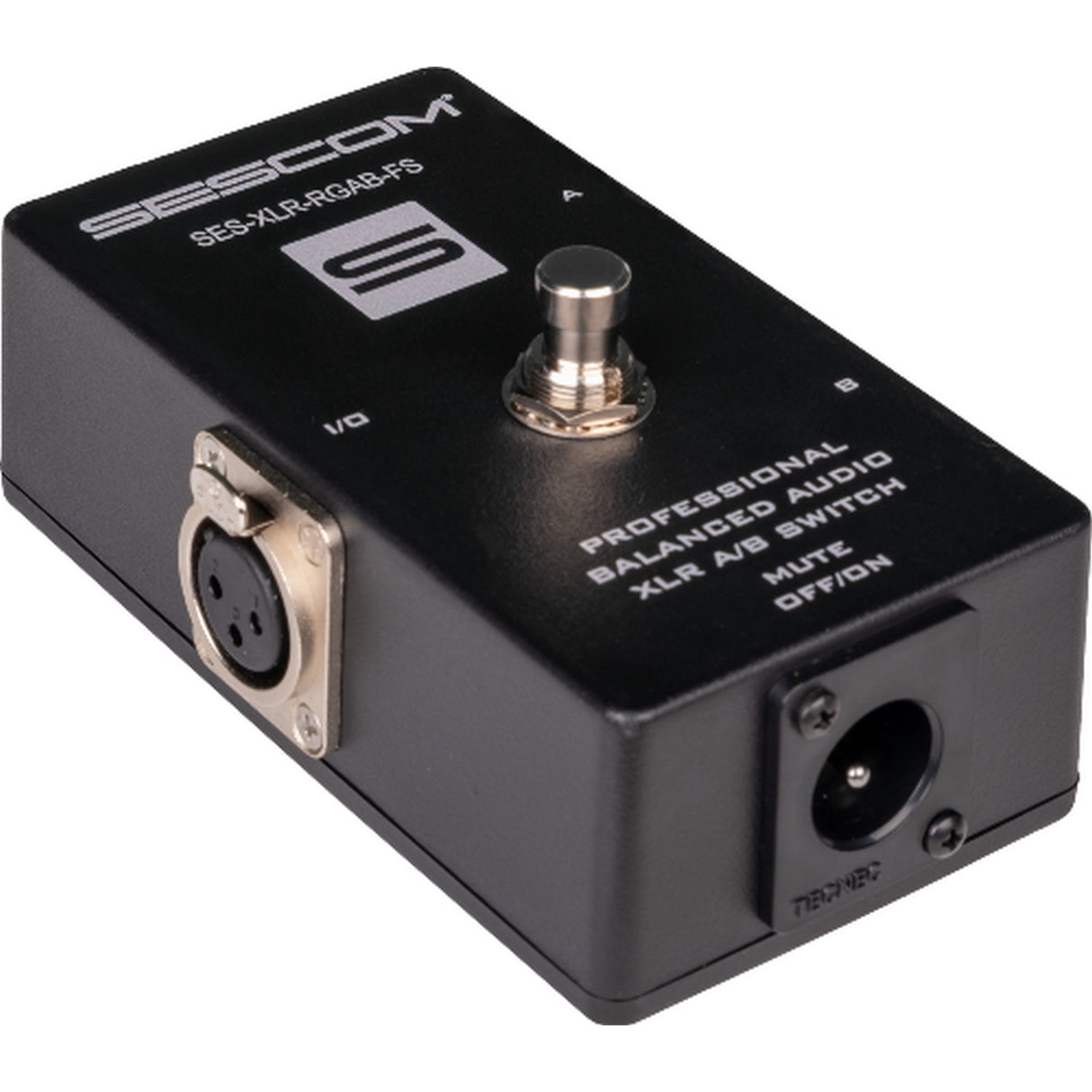

Sescom SES-XLR-RGAB-FS Passive Balanced Audio XLR A/B Reverse Gender Footswitch with Toggle Switch for Disconnect

Sescom SES-XLR-RGAB-FS Passive Balanced Audio XLR A-B Reverse Gender Footswitch

The Sescom Passive Balanced Audio XLR A-B Reverse Gender Footswitch is a bidirectional passive audio switch designed to route balanced XLR signals between one common connection and two selectable outputs. It enables hands-free signal routing for professional audio workflows where reliability and simplicity are required.

This passive XLR switch features a rugged footswitch for instant A-B selection and a built-in toggle switch that functions as a mute by disconnecting both A and B channels from the common path. High-quality Neutrik locking XLR connectors ensure secure connections while maintaining clean balanced audio performance.

With no power required and full duplex bidirectional operation, this switch is ideal for studios, PA systems, talkback routing, and live sound applications. Its compact enclosure and durable construction make it suitable for both portable rigs and permanent installations.

Key Features

• A-B switching: Routes one common balanced XLR connection to two selectable outputs
• Hands-free control: Footswitch-operated for convenient signal selection

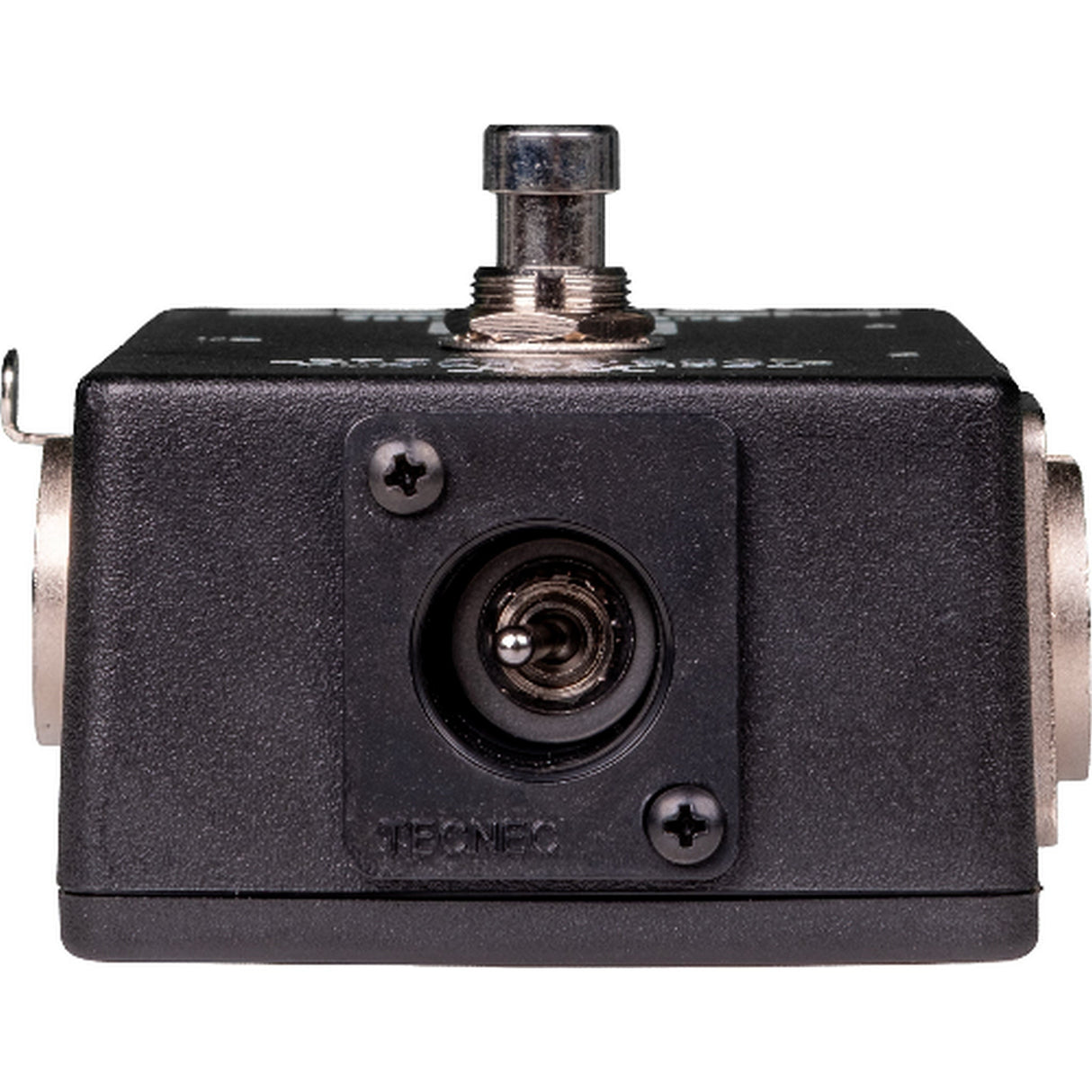

• Toggle mute switch: Disconnects both A and B signals from the common input or output
• Passive operation: Requires no external power and supports full duplex use
• Neutrik connectors: Locking XLR connectors for secure professional connections
• Versatile use: Suitable for studios, PA systems, talkback, and live sound

Technical Specifications

• Input I-O: 1
• Output A-B: 2
• Connector type: Neutrik XLR
• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1.5 kVdc
• Connector lifetime: > 1000 mating cycles
• Locking device: Latch lock
• Enclosure dimensions: 2.5 in x 4.625 in x 1.625 in
• Overall dimensions: 3 in x 5.25 in x 2.5 in
