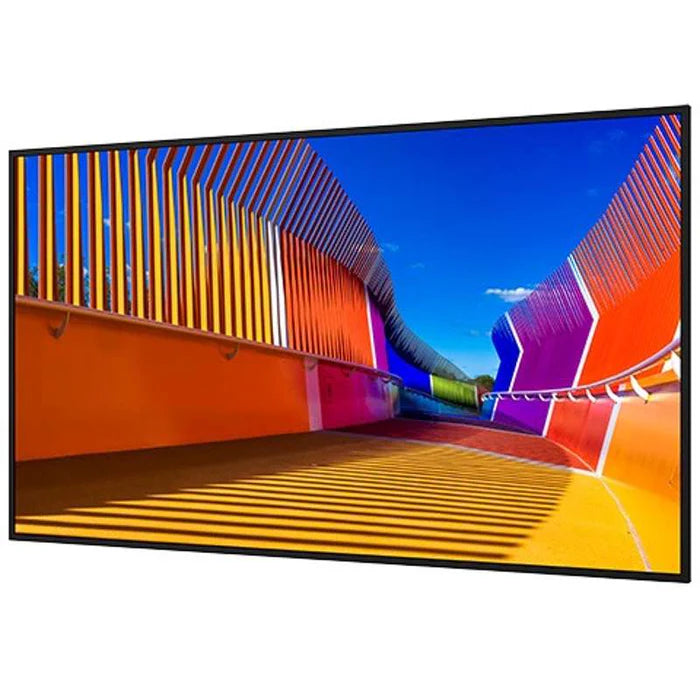

Sharp PN-E509 50-Inch 4K UHD Commercial Display
The Sharp PN-E509 50-inch 4K UHD commercial display delivers detailed visuals for meeting rooms, presentations, digital signage, and corporate communications. Its 3840 x 2160 VA panel combines 350 cd/m² brightness, a 4000:1 contrast ratio, wide 178° viewing angles, and a 25% haze treatment that reduces distracting reflections.
Businesses purchasing a 50-inch professional display with USB-C connectivity gain a streamlined solution for collaboration and entry-level signage. Dual HDMI 2.0 inputs and USB-C simplify source connections, while the integrated USB media player supports plug-and-play content without an external playback device. Landscape and portrait installation options suit offices, classrooms, retail spaces, hospitality venues, and public information displays.
The commercial-grade metal construction supports dependable 16/7 operation. Integrated LAN, RS-232C, infrared control, programmable scheduling, and NaViSet Administrator 2 compatibility help facilities teams manage professional display installations. Built-in 10W + 10W speakers, TileMatrix support, powered USB ports, and a three-year advanced replacement warranty further support long-term commercial AV deployment.
Key Features
- 50-Inch 4K UHD Display: Presents detailed professional content at a native 3840 x 2160 resolution.
- High-Contrast VA Panel: Produces a 4000:1 typical contrast ratio for defined dark and bright imagery.
- Anti-Reflective Screen: Uses a 25% haze treatment to reduce glare under ambient lighting.
- USB-C Connectivity: Accepts DisplayPort Alt Mode video and supplies up to 15W of device power.
- Integrated USB Media Player: Plays compatible image, video, and audio content directly from USB storage.
- Flexible Mounting: Supports landscape, portrait, and -20° to 20° tilted installations.
- Commercial Duty Cycle: Provides reliable 16-hour-per-day, seven-day-per-week operation.
- Remote Management: Supports network administration with LAN and NaViSet Administrator 2.
Technical Specifications
Display
- Product Type: 50-Inch 4K UHD Professional Commercial Display
- Panel Technology: VA with Direct LED Backlighting
- Viewable Image Size: 49.5"
- Native Resolution: 3840 x 2160
- Aspect Ratio: 16:9
- Brightness: 350 cd/m² Typical
- Contrast Ratio: 4000:1 Typical
- Viewing Angle: 178° Horizontal / 178° Vertical
- Color Gamut: 72%
- Displayable Colors: 1.07 Billion
- Refresh Rate: 60 Hz
- Panel Haze: 25% Anti-Reflective

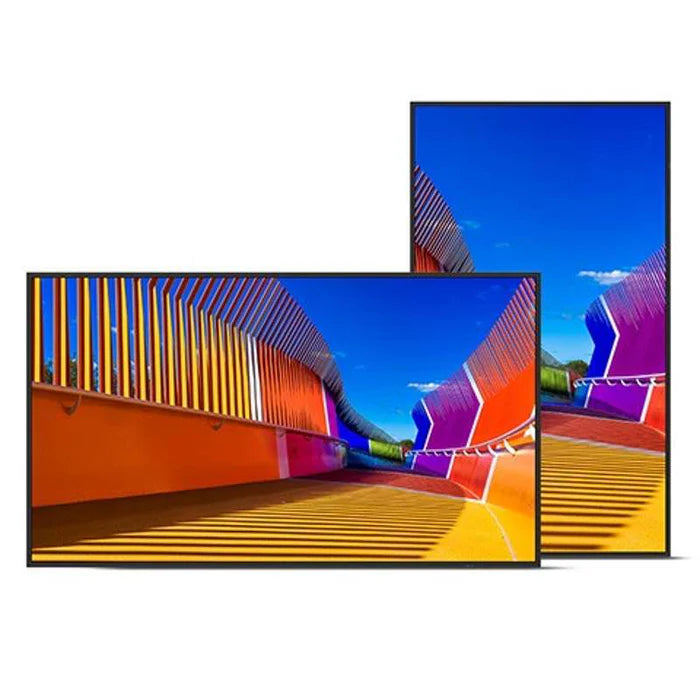

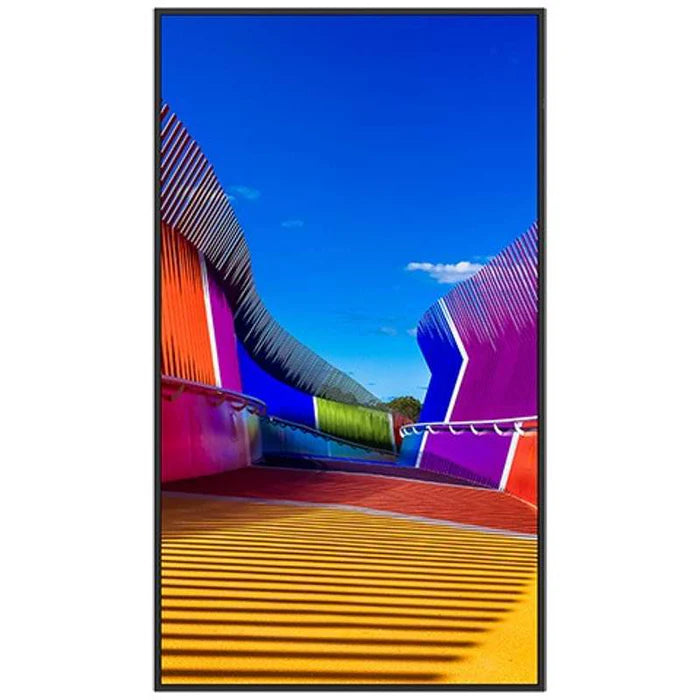

- Orientation: Landscape and Portrait with Counterclockwise Rotation
- Tilt Installation Range: -20° to 20°
- Operating Schedule: 16/7
Connectivity and Control
- HDMI Inputs: Two HDMI 2.0
- USB-C Input: One USB-C with DisplayPort Alt Mode
- USB-A Port: One USB-A, 5V/500mA
- USB-C Power Output: 5V/3000mA, Up to 15W
- Audio Output: 3.5mm Mini Jack
- Network Control: 100 Mbps LAN
- Serial Control: RS-232C Input via 9-Pin D-Sub
- Remote Control: Infrared Remote
- Remote Management: NaViSet Administrator 2 Compatible
- Input Detection: Automatic Source Detection and Switching
- Scheduling: 24-Hour On/Off Timer
- Multi-Display Function: TileMatrix Support
Audio and Media Playback
- Integrated Speakers: 10W + 10W
- Integrated Media Player: USB Image, Video, and Audio Playback
- Maximum Playback Resolution: Native 4K UHD
- Auto-Play: Supported
Power
- Typical Power Consumption: 99W
- Maximum Power Consumption: 135W
- Network Standby Consumption: 2W
- Normal Standby Consumption: Less Than 0.5W
- Input Current: 1.6A to 0.6A at 100–240V AC
- Power Supply: Built-In IEC Power Supply
Physical Specifications
- Dimensions: 44.09" x 25.24" x 2.36"
- Weight: 20.28 lbs
- Bezel Width: 0.43" on All Sides
- VESA Mounting Pattern: 7.87" x 7.87"
- Mounting Hardware: Four M6 x 14mm Mounting Holes
- Packaging Dimensions: 49.33" x 29.96" x 5.04"
- Packaging Weight: 28.66 lbs
- Construction: Commercial-Grade Metal Frame Bezel
Environmental and Warranty
- Operating Temperature: 32°F to 104°F
- Operating Humidity: 20% to 80%
- Maximum Operating Altitude: 16,404 ft
- Limited Warranty: Three-Year Advanced Replacement
What's In the Box
- Sharp PN-E509 Commercial Display
- 9.84' AC Power Cord
- Cord Clamp
- USB Cover
- Infrared Remote Control
- AAA Batteries
