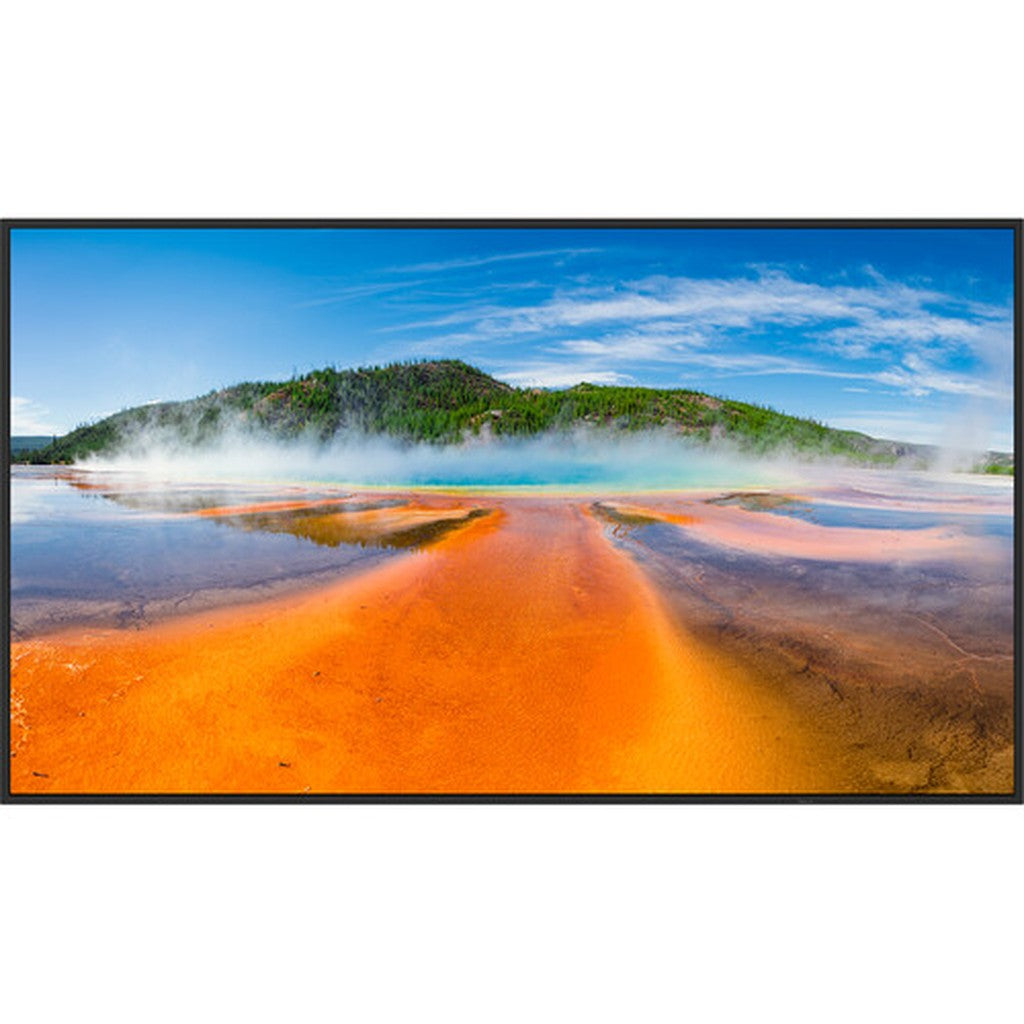

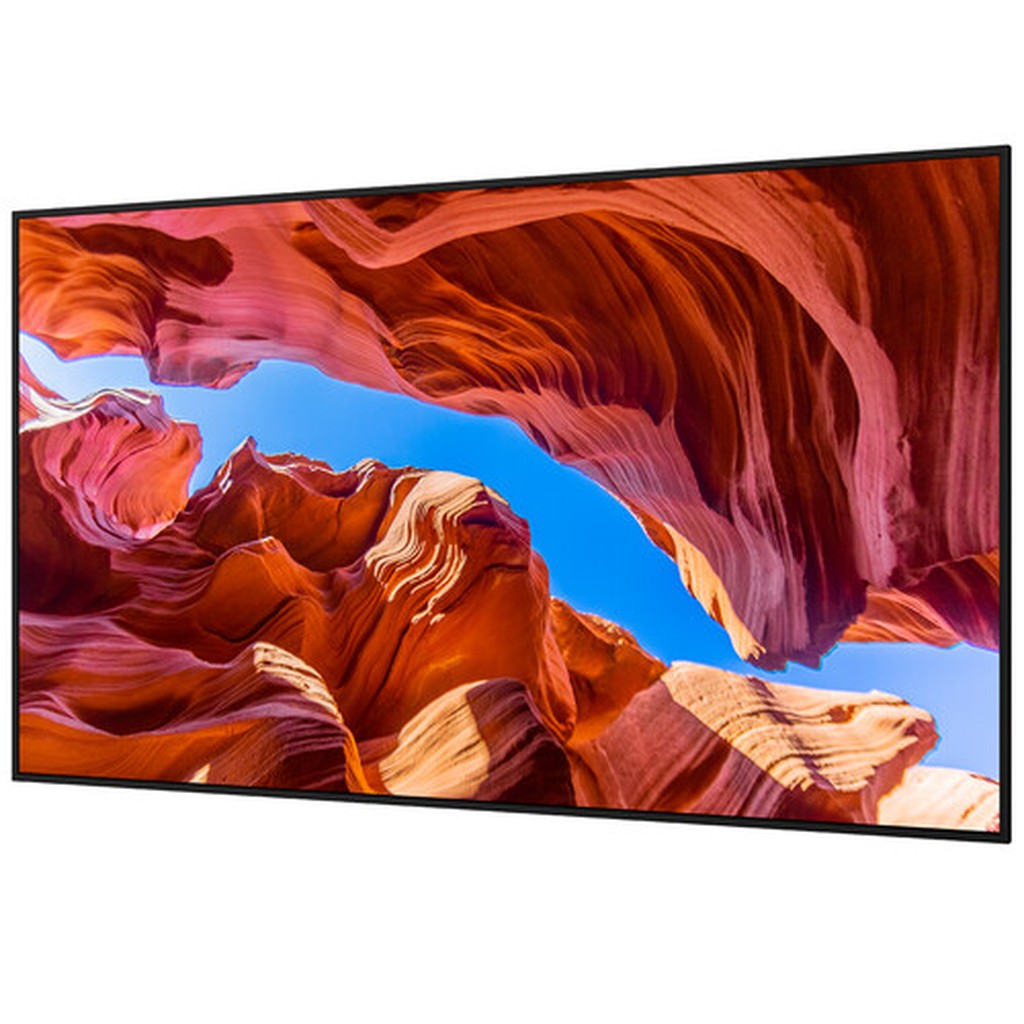

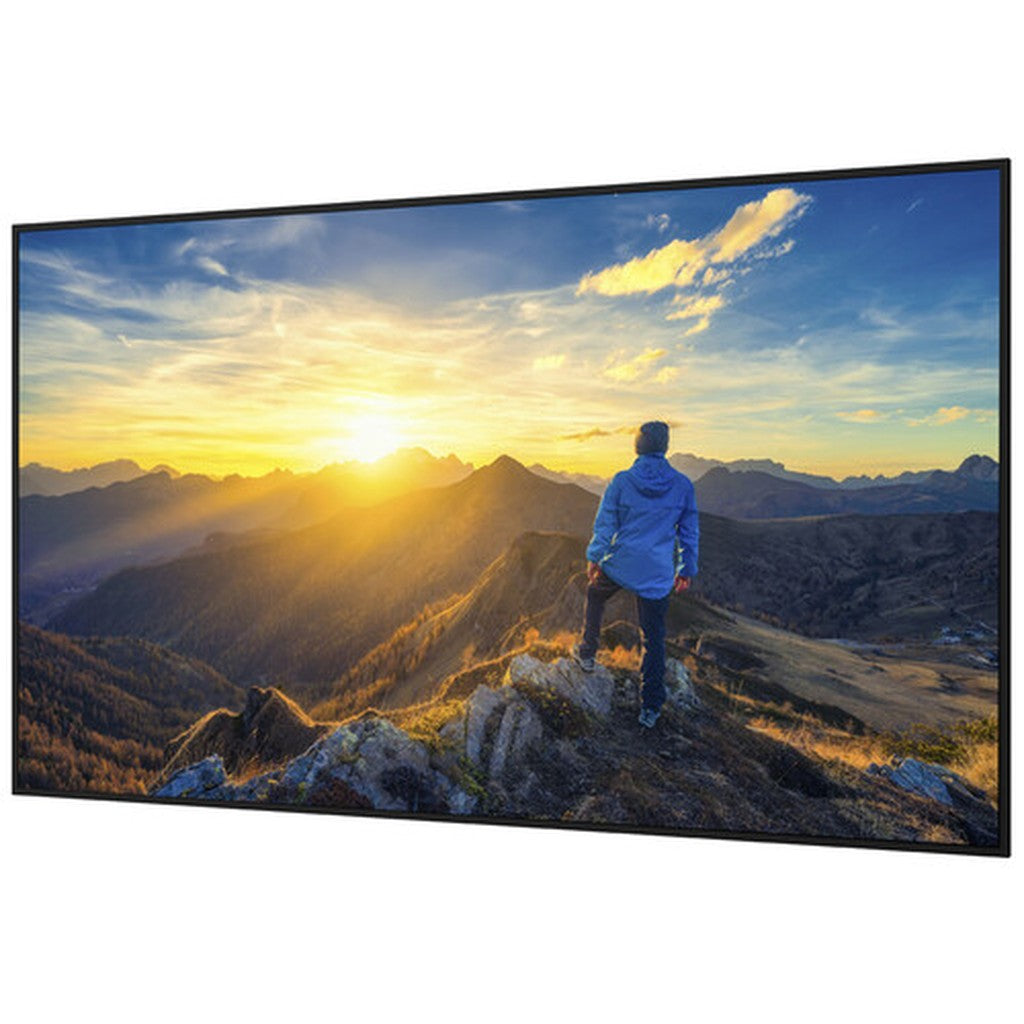

Sharp PN-E559 55-Inch 4K UHD Commercial Display
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Sharp PN-E559 55-Inch 4K UHD Commercial Display
The Sharp PN-E559 55-inch 4K UHD commercial display delivers detailed visuals for meeting rooms, digital signage, presentations, and corporate communications. Its 3840 x 2160 IPS panel combines 350 cd/m² brightness, a 1200:1 contrast ratio, wide 178° viewing angles, and a professional 25% haze treatment that reduces glare from ambient light.
Designed for organizations purchasing a 55-inch professional display with USB-C connectivity, the PN-E559 simplifies presentations and entry-level signage installations. Dual HDMI inputs and USB-C support make source connection straightforward, while the integrated USB media player handles compatible images, video, and audio without an external player. Landscape, portrait, and tilted mounting options support offices, classrooms, retail spaces, hospitality venues, and public information displays.
The industrial-strength metal structure supports dependable 16/7 operation in professional environments. Integrated LAN and RS-232C control, NaViSet Administrator 2 compatibility, programmable scheduling, and TileMatrix functionality help facilities teams manage single displays or larger deployments. Built-in 10W + 10W speakers, HDMI ARC, CEC control, powered USB ports, and Q-SYS plug-in compatibility provide practical integration for modern commercial AV systems.
Key Features
- 55-Inch 4K UHD Panel: Displays detailed commercial content at a native 3840 x 2160 resolution.
- Professional IPS Technology: Maintains consistent color and image clarity across wide viewing positions.
- High-Haze Screen: Uses a 25% anti-reflective treatment to reduce glare in bright environments.
- USB-C Connectivity: Carries UHD video, audio, USB 2.0 data, and up to 15W of device power.
- Integrated USB Media Player: Plays supported images, videos, and audio directly from USB storage.

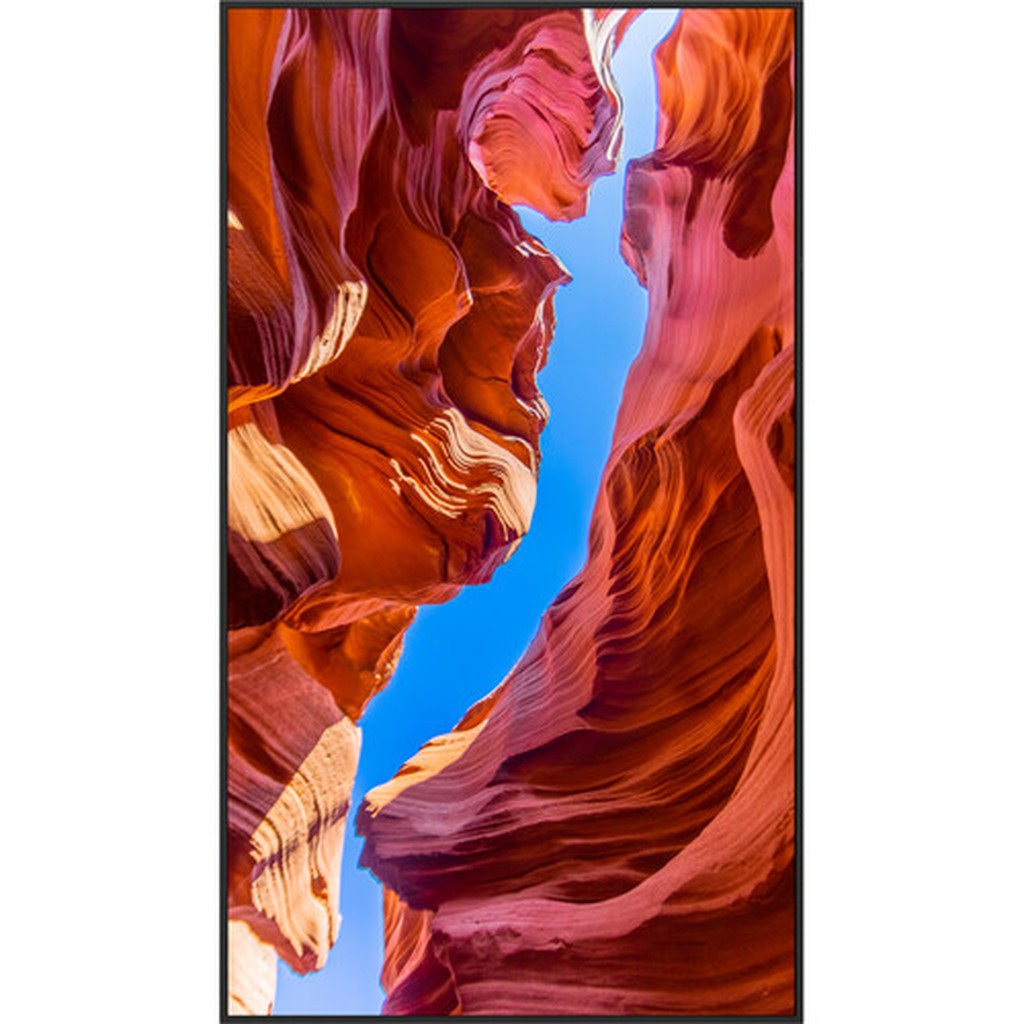

- Flexible Installation: Supports landscape, portrait, and -20° to 20° tilt configurations.
- Commercial Duty Cycle: Provides reliable 16-hour-per-day, seven-day-per-week operation.
- Centralized Management: Supports LAN control and NaViSet Administrator 2 for larger display installations.
Technical Specifications
Display
- Product Type: 55-Inch Essential Large-Format Commercial Display
- Panel Technology: IPS with Direct LED Backlighting
- Viewable Image Size: 54.6"
- Active Screen Area: 47.64" x 26.77"
- Aspect Ratio: 16:9
- Native Resolution: 3840 x 2160
- Pixel Pitch: 0.0124"
- Brightness: 350 cd/m²
- Contrast Ratio: 1200:1 Typical
- Viewing Angle: 178° Horizontal / 178° Vertical
- Color Depth: 1.073 Billion Colors, 8-Bit + FRC
- Color Gamut: 70%
- Response Time: 8 ms Typical
- Panel Refresh Rate: 60 Hz
- Haze Level: Professional, 25%
- Supported Orientation: Landscape and Portrait
- Tilt Installation Range: -20° to 20°
- Supported Resolutions: 640 x 480, 720 x 400, 720 x 480, 720 x 576, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1400 x 1050, 1440 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200, 3840 x 2160, and 4096 x 2160
- Horizontal Frequency: 31.5 to 135 kHz
- Vertical Frequency: 24 to 75 Hz
Connectivity and Control
- HDMI Input 1: UHD Video at 60 Hz, HDCP 2.2, Audio Input, ARC, and CEC
- HDMI Input 2: UHD Video at 60 Hz, HDCP 2.2, Audio Input, and CEC
- USB-A: USB 2.0, 4.5W Power, Peripheral Support, and USB Storage
- USB-C: UHD Video at 60 Hz, DisplayPort Alt Mode 1.2, HDCP 2.2, Audio Input, USB 2.0, and 15W Power
- Audio Output: 3.5mm Line Output
- LAN: 100 Mbps
- RS-232C: 9600 bps
- Remote Control: Infrared Remote
- Remote Management: NaViSet Administrator 2
- Scheduling: Full 24-Hour Scheduler
- Multi-Display Function: TileMatrix with 1 x 3, 2 x 2, and 3 x 1 Configurations
Audio
- Integrated Speakers: 10W + 10W
USB Media Player
- Storage Interface: USB 2.0
- Supported File Systems: FAT16 and FAT32
- Supported Image Formats: Baseline or Progressive JPG in RGB or CMYK
- Maximum Image Resolution: 15360 x 8640
- Supported Video Formats: MPG, MP4, TS, and WMV
- Supported Video Codecs: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, HEVC/H.265, and Windows Media Video 9
- Maximum Video Resolution: 3840 x 2160 at 60 Hz for Supported MP4 and TS Files
- Supported Audio Formats: MP3, LPCM, AAC, WMA 9, and WMA 10 Pro
- Maximum MP3 Bit Rate: 320 Kbps
Power and Environmental
- Typical Power Consumption: 100W
- Maximum Power Consumption: 140W
- Network Standby Consumption: Less Than 2W
- Normal Standby Consumption: Less Than 0.5W
- Power Supply: Internal 100–240V AC, 50/60 Hz
- Current Rating: 1.6A to 0.6A at 100–240V AC
- Operating Temperature: 32°F to 104°F
- Storage Temperature: -4°F to 140°F
- Operating Humidity: 20% to 80%
- Storage Humidity: 10% to 80%
- Maximum Operating Altitude: 16,404 ft
- Operating Hours: 16/7
Construction and Mounting
- Dimensions: 49.58" x 27.83" x 2.32"
- Weight: 26.46 lbs
- Bezel Width: 0.43", Symmetrical
- VESA Mounting Pattern: 15.75" x 7.87"
- Mounting Hardware: Four M6 x 14mm Mounting Holes
- Packaging Dimensions: 54.57" x 33.27" x 5.12"
- Packaging Weight: 37.48 lbs
- Construction: Metal Structure with Partial Plastic Covers
- Color: Black Front Bezel and Black Rear Cabinet
Compliance and Warranty
- Safety and Compliance: CE, ENERGY STAR 8.0, FCC Class B, RCM, UKCA, UL/C-UL or CSA, and VCCI
- Third-Party Integration: Q-SYS Plug-In
- Warranty: 3 Years Including Backlight
What's In the Box
- Sharp PN-E559 Commercial Display
- 9.84' AC Power Cord
- Cord Clamp
- USB Cover
- Infrared Remote Control
- Two AAA Batteries
- Setup Manual
