Description

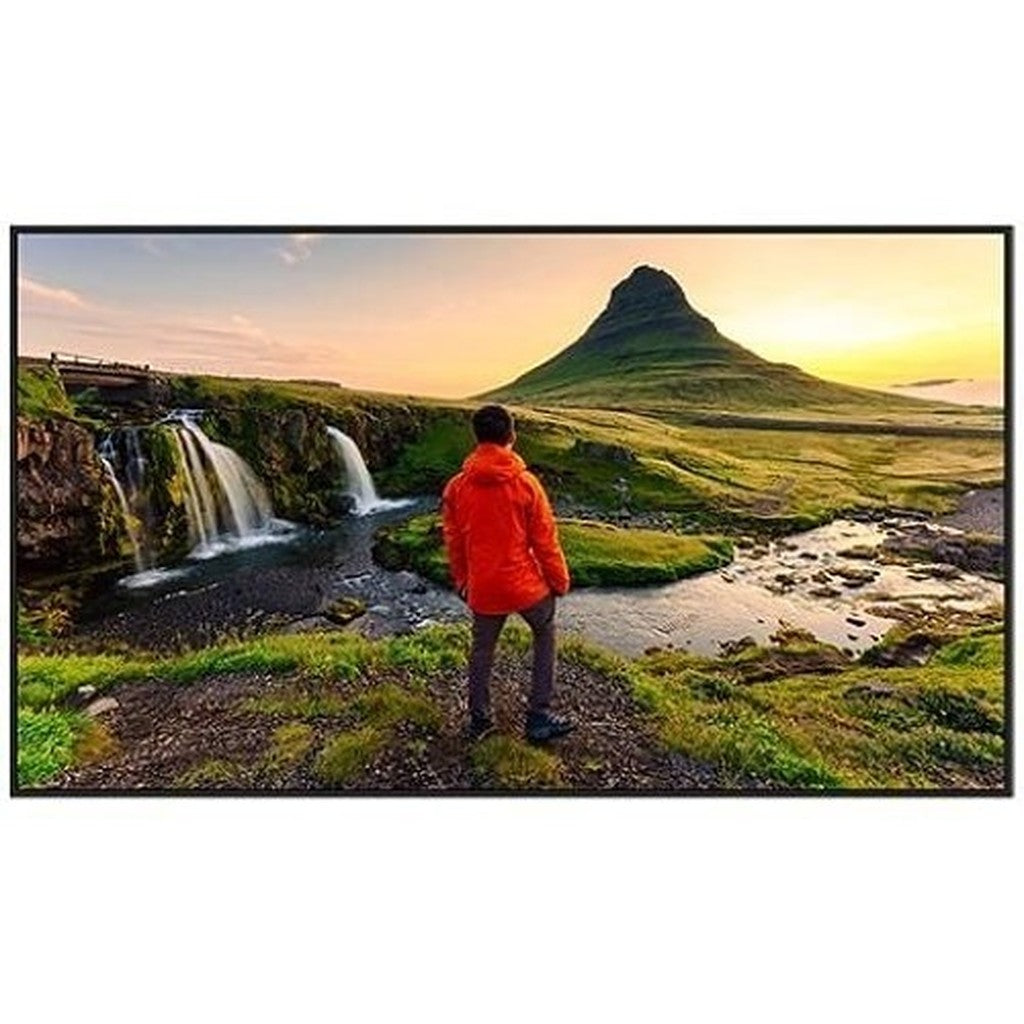

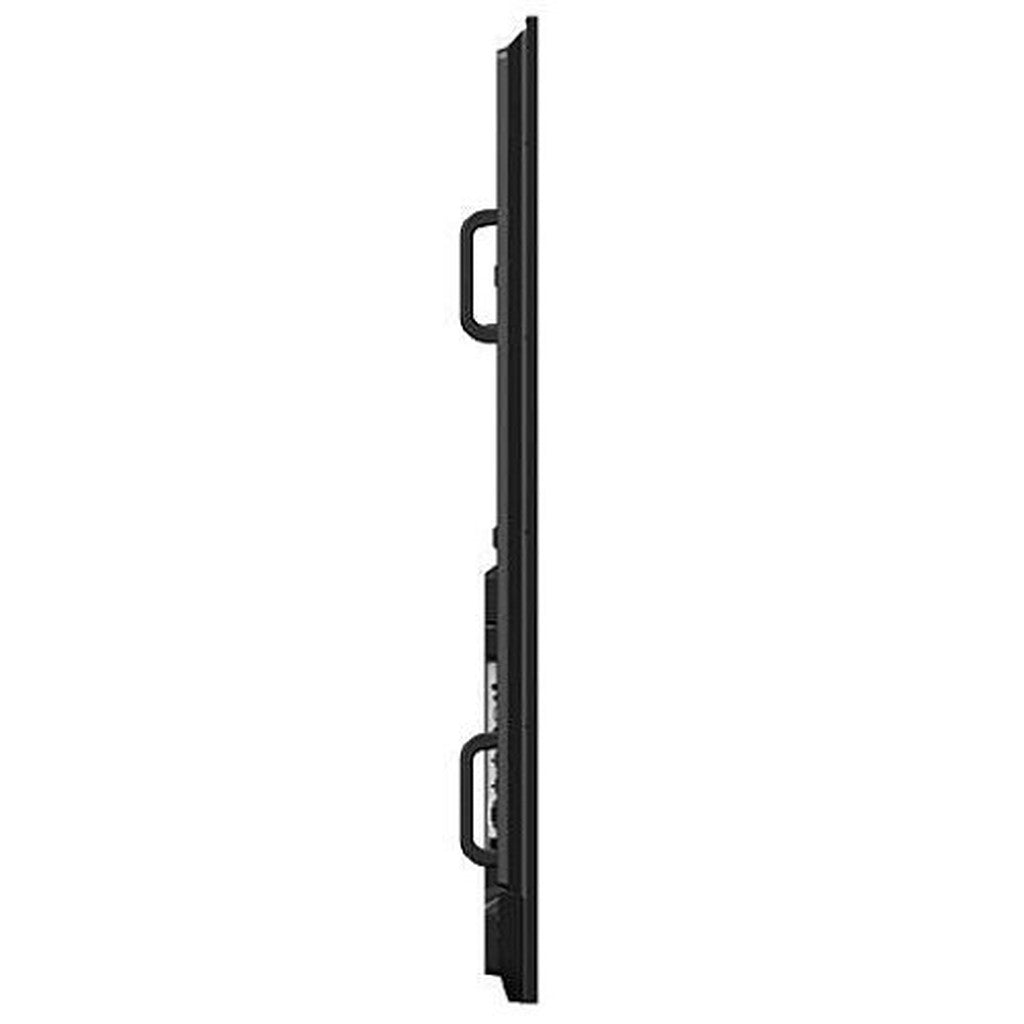

Sharp PN-E869 86-Inch 4K UHD Professional Commercial Display
The Sharp PN-E869 86-inch 4K UHD professional display delivers clear, large-format visuals for digital signage, presentations, classrooms, and corporate meeting spaces. Its 3840 x 2160 ADS panel combines 350 cd/m² brightness, wide 178° viewing angles, and a 25% anti-reflective haze treatment for dependable visibility under ambient lighting.
This 86-inch commercial display supports HDMI and USB-C sources for flexible collaboration and content sharing. The integrated USB media player can present compatible images, videos, and audio without an external playback device. Landscape and portrait installation support makes the PN-E869 suitable for conference rooms, education facilities, retail signage, hospitality environments, and public information systems.
Built for professional 16/7 operation, the PN-E869 features a durable metal structure, programmable scheduling, and remote management through LAN, RS-232C, and NaViSet Administrator 2. Integrated 10W + 10W speakers, HDMI ARC, CEC control, TileMatrix support, powered USB ports, and a three-year advanced replacement warranty provide reliable functionality for commercial AV deployments.
Key Features
- 86-Inch 4K UHD Panel: Displays detailed commercial content at a native 3840 x 2160 resolution.
- ADS Display Technology: Maintains consistent color and image clarity across wide viewing positions.
- High-Haze Screen: Uses a 25% anti-reflective treatment to reduce distracting glare in bright spaces.
- USB-C Connectivity: Carries video, audio, USB data, and up to 15W of connected-device power.
- Integrated Media Player: Plays compatible image, video, and audio files directly from USB storage.
- Flexible Orientation: Supports landscape, portrait, and -20° to 20° tilt installations.
- Professional Scheduling: Provides programmable 24-hour power scheduling for unattended operation.
- Remote Management: Supports LAN, RS-232C, IR remote, and NaViSet Administrator 2 control.
Technical Specifications
Display
- Product Type: 86-Inch 4K UHD Professional Commercial Display
- Panel Technology: ADS
- Backlight Type: Direct LED
- Viewable Image Size: 85.6"
- Native Resolution: 3840 x 2160
- Brightness: 350 cd/m² Typical
- Contrast Ratio: 1200:1 Typical
- Viewing Angle: 178° Horizontal / 178° Vertical
- Aspect Ratio: 16:9
- Color Gamut: 70%
- Displayable Colors: 1.07 Billion
- Panel Refresh Rate: 60 Hz
- Panel Haze: 25% Anti-Reflective

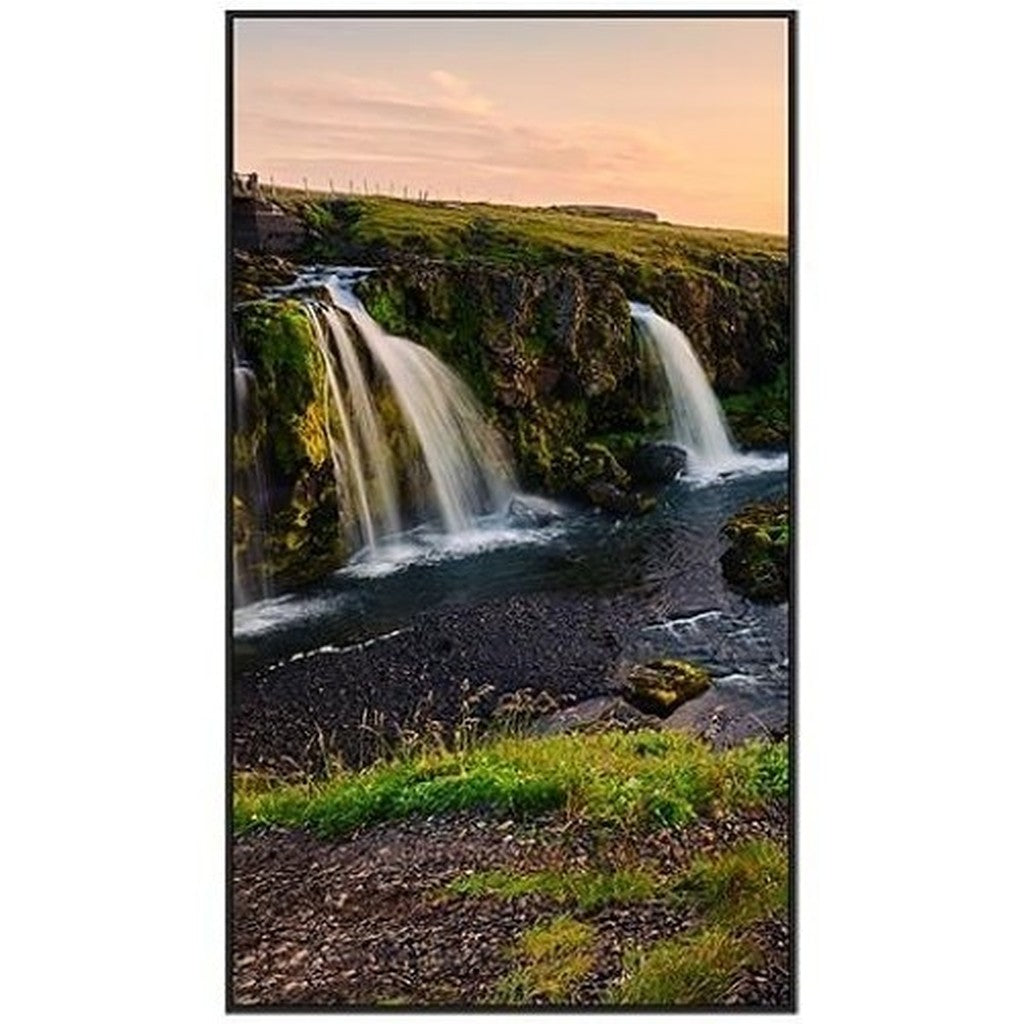

- Orientation: Landscape and Portrait with Counterclockwise Rotation
- Tilt Installation Range: -20° to 20°
Connectivity
- HDMI Inputs: Two HDMI 2.0
- USB-C Input: One USB-C with DisplayPort Alt Mode
- USB-A Port: One USB-A, 5V/500mA
- USB-C Power: 5V/3A, Up to 15W
- Audio Output: 3.5mm Mini Jack
- LAN Control: 100 Mbps RJ-45
- Serial Control: RS-232C Input via 9-Pin D-Sub
- Remote Control: Infrared Remote
- HDMI Features: CEC Through Both HDMI Inputs and ARC Through HDMI 1
Audio
- Integrated Speakers: 10W + 10W
Media Player and Control
- Integrated Media Player: USB Image, Video, and Audio Playback
- Scheduling: Full 24-Hour Scheduler
- Multi-Display Function: TileMatrix with 1 x 3, 2 x 2, and 3 x 1 Configurations
- Management Software: NaViSet Administrator 2 Compatible
- Control Locking: Key Lock and IR Remote Lock Settings
Power
- Typical Power Consumption: 245W
- Maximum Power Consumption: 320W
- Network Standby Consumption: 2W
- Normal Standby Consumption: Less Than 0.5W
- Current Rating: 3.6A to 1.4A at 100–240V AC
Physical Specifications
- Dimensions: 75.87" x 43.26" x 2.36"
- Weight: 71.65 lbs
- Bezel Width: 0.51" on All Sides
- Construction: Metal Structure with Partial Plastic Covers
- VESA Mounting Pattern: 23.62" x 15.75"
- Mounting Hardware: Four M8 x 14mm Mounting Holes
Environmental and Warranty
- Operating Schedule: 16/7
- Operating Temperature: 32°F to 104°F
- Operating Humidity: 20% to 80%
- Maximum Operating Altitude: 16,404 ft
- Energy Certification: Energy Star 8.0
- Limited Warranty: Three-Year Advanced Replacement
What's In the Box
- Sharp PN-E869 Professional Display
- 9.84' AC Power Cord
- Cord Clamp
- USB Cover
- IR Remote Control
- AAA Batteries
