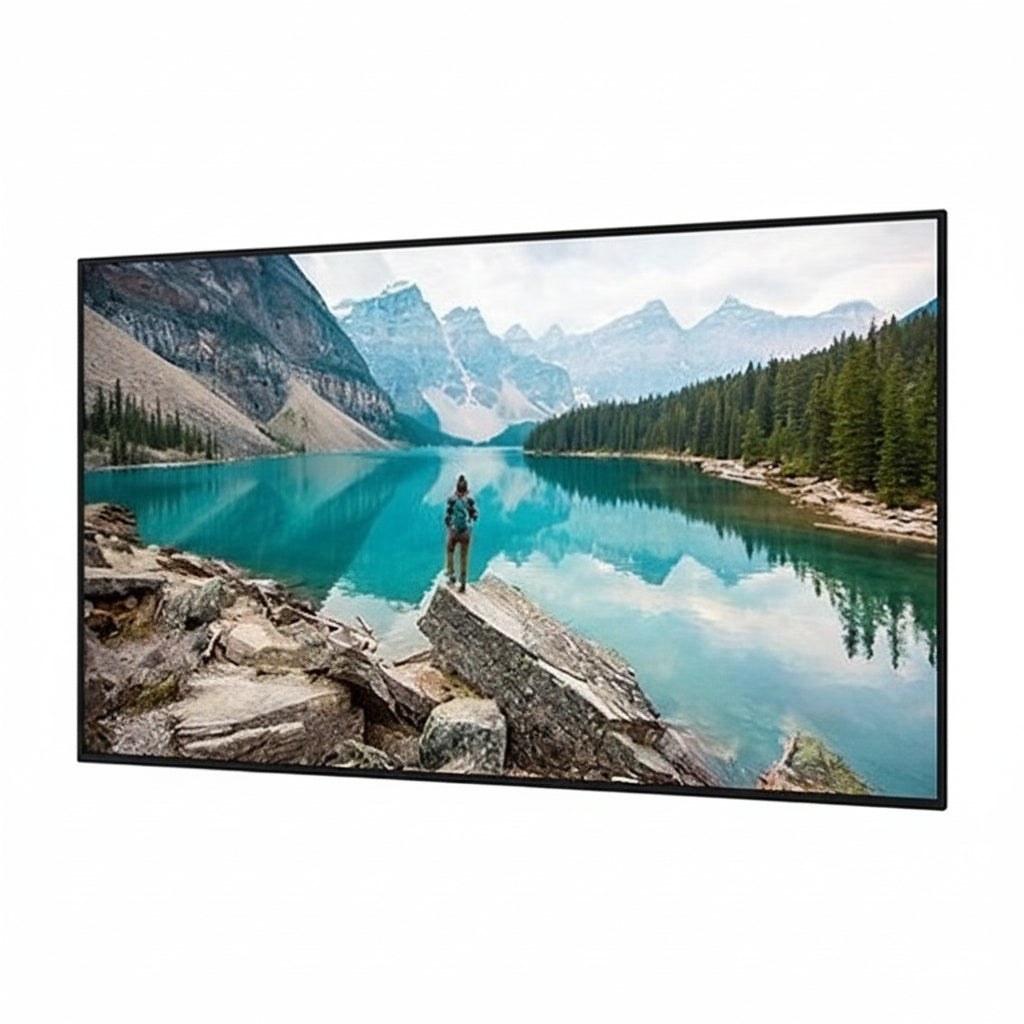

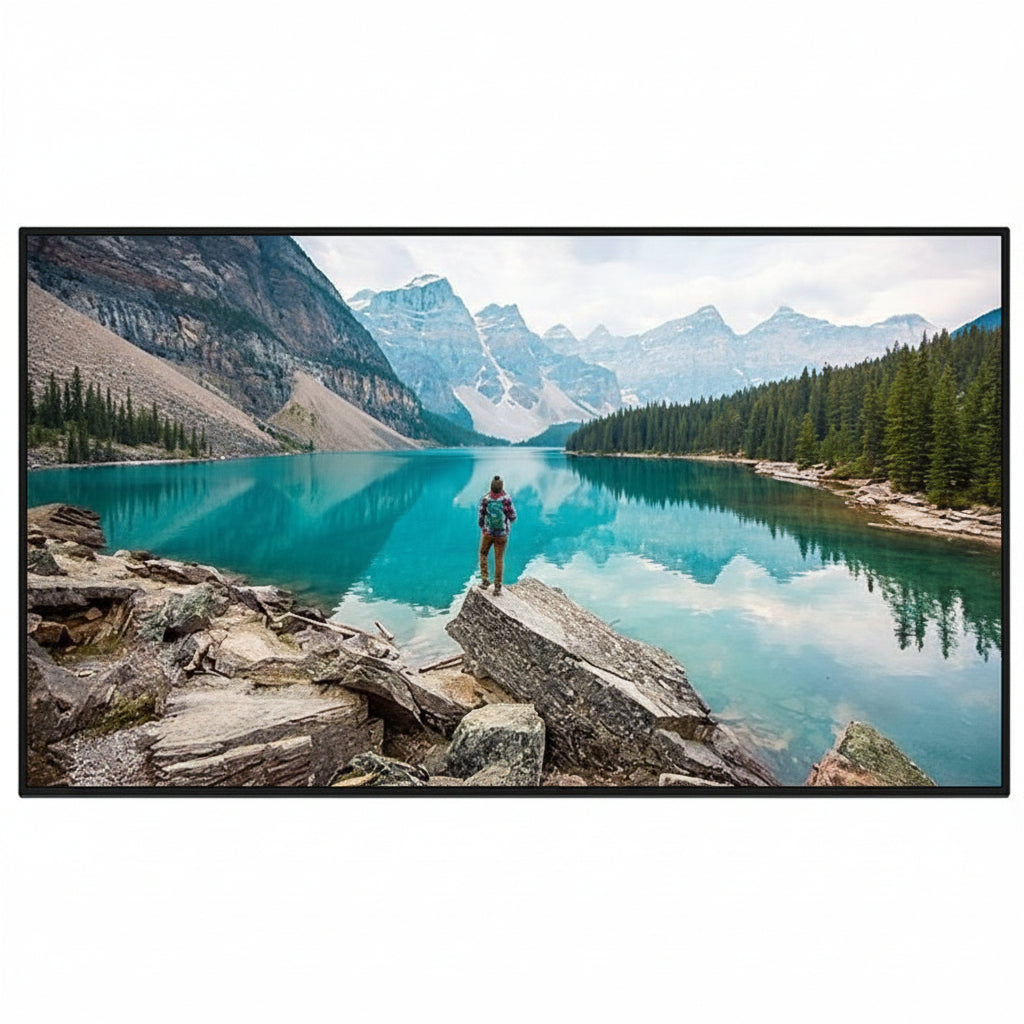

Sharp PN-M862 4K UHD Professional Display, 86 Inch

Sharp PN-M862 86-Inch 4K UHD Professional Display

The Sharp PN-M862 86-Inch 4K UHD Professional Display is a commercial large-format display designed for continuous digital signage, monitoring, and presentation applications. Its 85.6" IPS panel delivers 3840 x 2160 native resolution, 550 cd/m² brightness, direct LED backlighting, wide viewing angles, and a high-haze surface for dependable image visibility in professional environments.

Built for 24/7 operation, the PN-M862 fits control rooms, transportation facilities, corporate spaces, retail installations, healthcare environments, and public information systems. USB-C connectivity combines DisplayPort Alt Mode, hub functionality, and up to 65W Power Delivery, while HDMI and DisplayPort outputs support streamlined multi-display daisy chaining. Landscape and portrait installation options provide additional flexibility for permanent AV deployments.

Professional integration features include LAN and RS-232C control, IEEE 802.1X network authentication, Crestron Connected V2 support, SpectraView Engine color management, and an Intel SDM-ready expansion slot. Integrated 10W stereo speakers, programmable cooling, Energy Star 8.0 compliance, and support for modular computing solutions further equip the PN-M862 for enterprise-grade commercial display systems.

Key Features

• 86-Inch 4K UHD Display: Provides an 85.6" diagonal IPS panel with 3840 x 2160 native resolution.
• 550 cd/m² Brightness: Supports clear digital signage and presentation content in demanding commercial spaces.
• 24/7 Operation: Designed for continuous-duty professional installations requiring dependable display availability.
• USB-C with 65W Power Delivery: Supports video, USB hub functionality, and compatible-device charging through one connection.
• Display Daisy Chaining: HDMI and DisplayPort outputs simplify compatible multi-screen installations.
• SpectraView Engine: Provides professional control over color reproduction and image adjustment.
• Professional Control: LAN, RS-232C, Crestron Connected V2, and network-management capabilities support integrated AV systems.
• Modular Expansion: Intel SDM compatibility enables optional embedded computing and signal-processing configurations.

Technical Specifications

• Brand: Sharp
• Model: PN-M862
• Series: MultiSync M Series
• Product Type: Professional Large-Format Display
• Display Class: 86"
• Actual Screen Size: 85.6"
• Panel Technology: IPS
• Display Technology: LCD with LED Backlight
• Backlight Type: Direct-Lit LED
• Native Resolution: 3840 x 2160
• Maximum Supported Resolution: 4096 x 2160 at 60 Hz
• Aspect Ratio: 16:9
• Brightness: 550 cd/m²
• Contrast Ratio: 1200:1
• Refresh Rate: 60 Hz
• Response Time: 8 ms Gray-to-Gray
• Viewing Angle: 178° Horizontal / 178° Vertical
• Display Colors: More Than 1.07 Billion
• Color Temperature Range: 3000K to 15000K
• Dimming: Local Dimming
• Active Screen Area: 74.6" x 42"
• Top Bezel: 0.6"
• Left Bezel: 0.6"
• Right Bezel: 0.6"
• Bottom Bezel: 0.6"

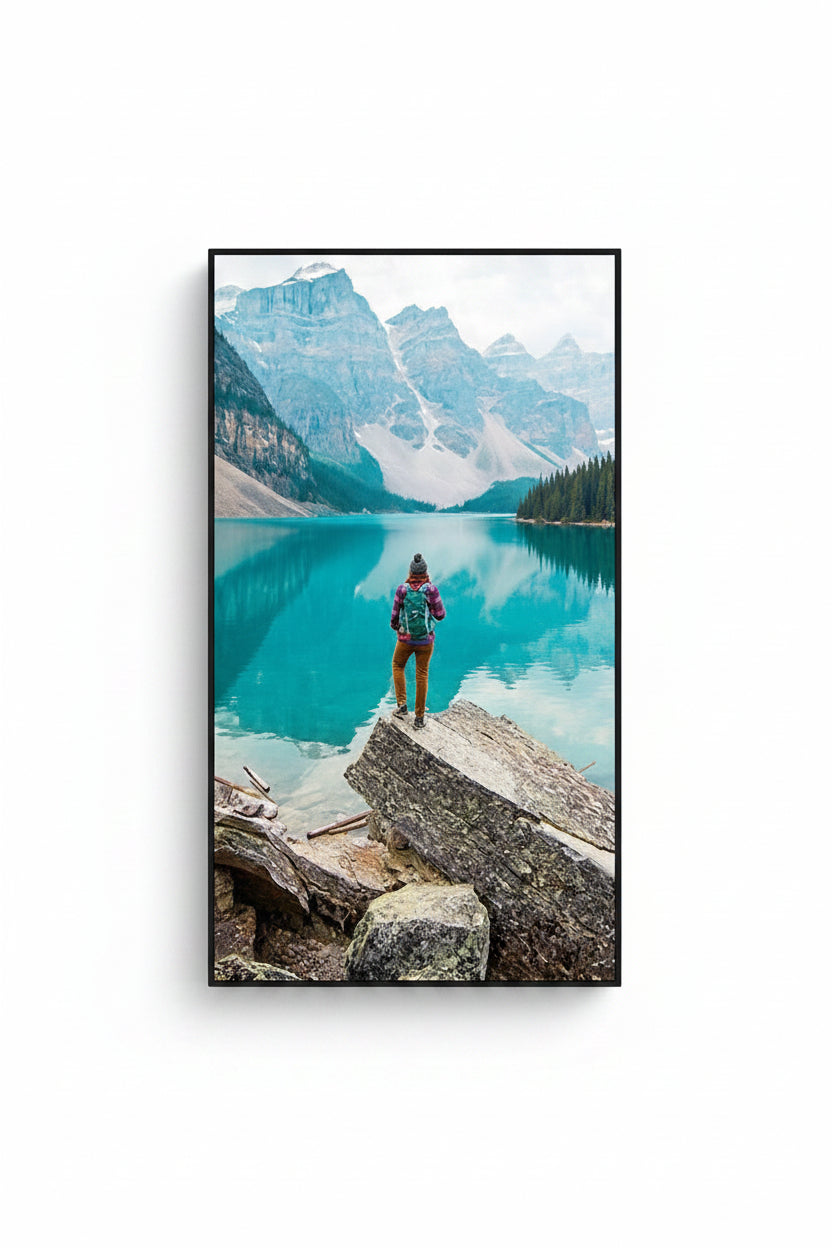

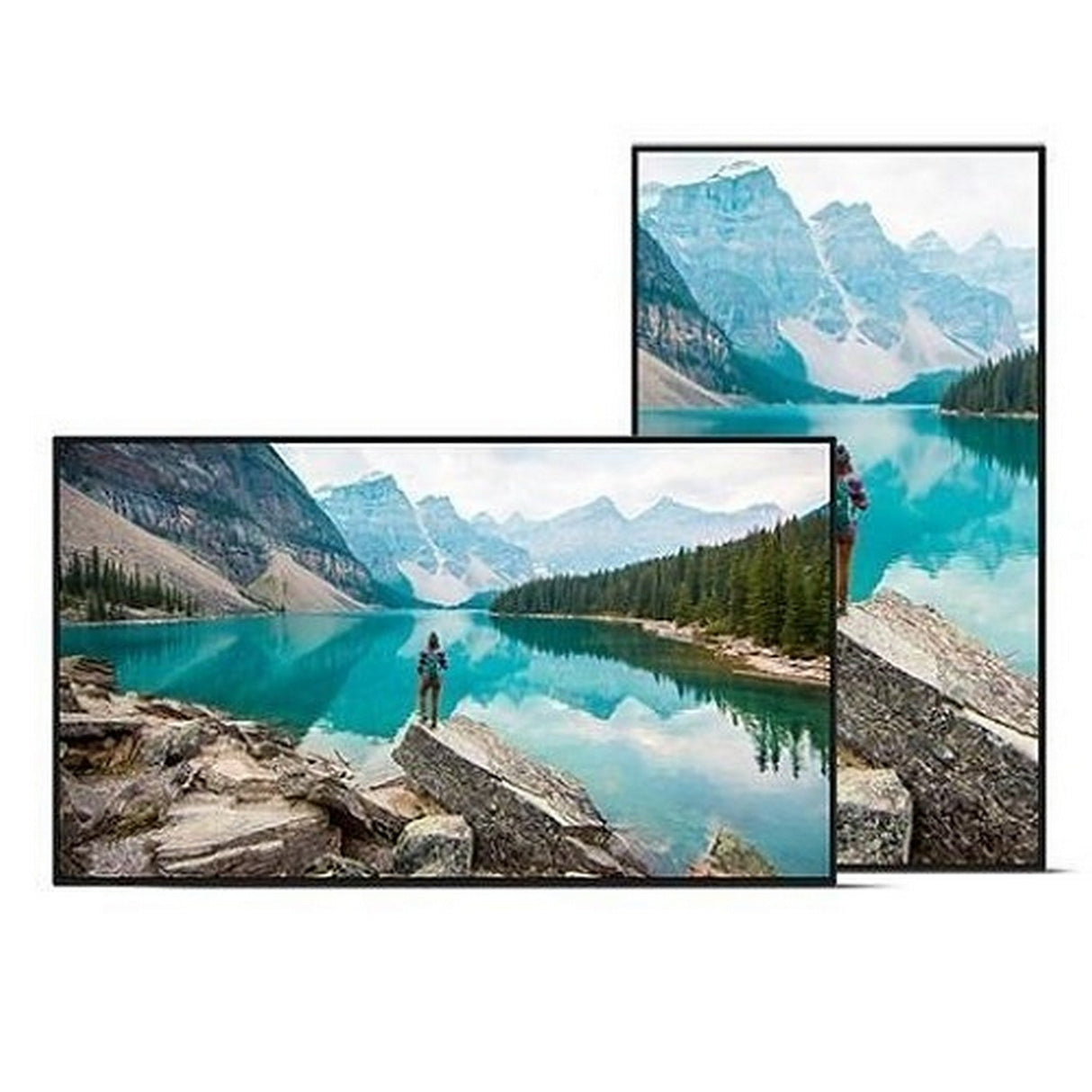

• Orientation: Landscape and Portrait with Counterclockwise Rotation
• Operating Duty: 24/7
• Video Inputs: 2 x HDMI 2.0, 1 x DisplayPort 1.4, 1 x USB-C with DisplayPort Alt Mode
• Video Outputs: 1 x HDMI, 1 x DisplayPort
• USB-C Power Delivery: Up to 65W
• USB Connections: USB-C Upstream, USB-C Downstream, USB-A 3.2 Downstream, USB-A 2.0 Service
• Audio Output: 3.5 mm Mini Jack
• Integrated Speakers: 10W x 2
• External Control Inputs: LAN, RS-232C, 3.5 mm IR Remote
• External Control Output: LAN with RS-232C and IR Transport
• Network: 100 Mbit LAN
• Network Authentication: IEEE 802.1X
• Control Compatibility: AMX Support, HDMI CEC, Crestron Connected V2 with XiO Cloud
• Security Features: SSH, Administrator Login, IP Address Filtering, MAC Address Filtering, Signed Firmware Support
• Expansion: Intel SDM-Ready
• Cooling: Integrated Programmable Cooling Linked to Internal Fans
• Typical Power Consumption: 190W
• Maximum Power Consumption: 525W
• Network Standby Power: 0.5W
• Power-Saving Mode: 2W
• Normal Standby: 2W
• Power Supply: Built-In IEC
• Power Requirements: 100-240V AC
• Operating Temperature: 32°F to 104°F
• Operating Humidity: 20% to 80%
• Operating Altitude: Up to 9,843 ft
• Storage Temperature: -4°F to 140°F
• Storage Humidity: 10% to 80%
• Storage Altitude: Up to 40,000 ft
• VESA Mount Pattern: 23.6" x 15.7", 4 x M8
• Dimensions Without Stand: 75.9" W x 43.3" H x 3.3" D
• Shipping Dimensions: 82.3" W x 48.2" H x 8.9" D
• Weight Without Stand: 103.6 lb
• Shipping Weight: 141.1 lb
• Environmental Compliance: Energy Star 8.0

What's In the Box

• Sharp PN-M862 Professional Display
• 9.8' AC Power Cord
• 6.6' HDMI Cable
• IR Remote Control
• AAA Batteries
