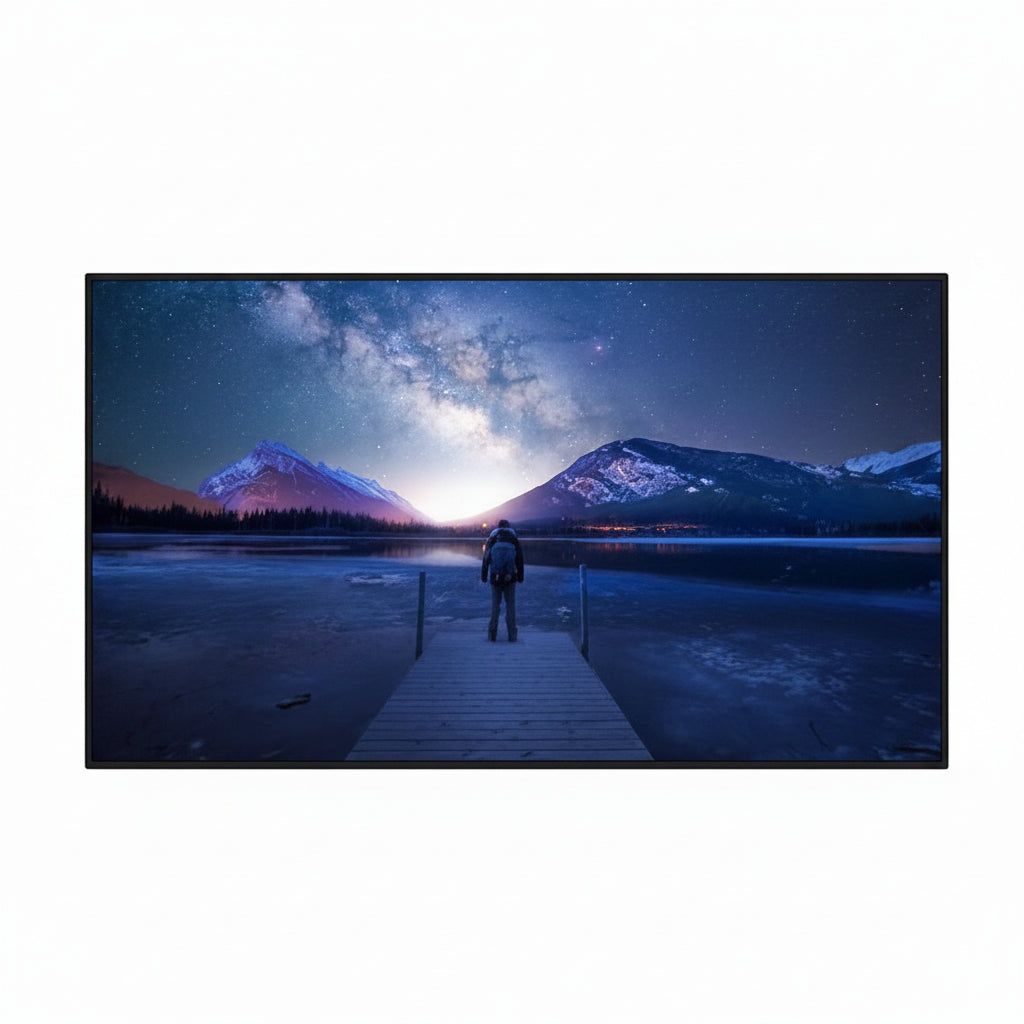

Sharp PN-M982 4K UHD Professional Display, 98-Inch

Sharp PN-M982 98-Inch 4K UHD Professional Display

The Sharp PN-M982 98-Inch 4K UHD Professional Display is a commercial large-format display built for 24/7 digital signage, presentation, and monitoring environments. Its 3840 x 2160 IPS panel combines 550 cd/m² brightness, direct LED backlighting, wide viewing angles, and a high-haze surface to maintain clear, detailed images in demanding professional spaces.

This 98-inch commercial display suits control rooms, transportation facilities, corporate meeting spaces, retail signage, public information systems, and other installations requiring a large 4K professional monitor. USB-C connectivity with 65W Power Delivery supports streamlined laptop connections, while HDMI and DisplayPort outputs enable simplified multi-display daisy-chain configurations.

The PN-M982 supports professional AV integration through LAN and RS-232C control, Intel SDM expansion, Raspberry Pi Compute Module compatibility, SpectraView Engine color management, and IEEE 802.1X network authentication. Integrated 10W stereo speakers, programmable temperature monitoring, 24/7 operation, Energy Star 8.0 compliance, and compatibility with enterprise control platforms make it suitable for permanent commercial installations.

Key Features

• 98-Inch 4K UHD Display: Delivers a 3840 x 2160 native image across a 97.5" diagonal viewing area.
• 550 cd/m² Brightness: Provides strong visibility for digital signage, presentations, and professional monitoring environments.
• 24/7 Commercial Operation: Designed for continuous-duty installations where dependable display availability is essential.
• USB-C with 65W Power Delivery: Carries video, data, and laptop charging through a streamlined single-cable connection.
• Multi-Display Daisy Chaining: HDMI and DisplayPort outputs simplify distribution across compatible display installations.
• SpectraView Engine: Provides advanced control over color, gamma, white point, and image uniformity.
• Modular Expansion: Supports Intel SDM modules and compatible Raspberry Pi Compute Module solutions for integrated computing.
• Enterprise AV Integration: Supports LAN, RS-232C, IEEE 802.1X authentication, Crestron integration, and Cisco collaboration environments.

Technical Specifications

• Brand: Sharp
• Model: PN-M982
• Series: MultiSync M Series
• Product Type: Professional large-format commercial display
• Screen Size: 98" class, 97.5" diagonal
• Native Resolution: 3840 x 2160
• Maximum Supported Resolution: 4096 x 2160 at 60 Hz
• Aspect Ratio: 16:9
• Panel Technology: IPS
• Backlight: Direct-lit LED
• Brightness: 550 cd/m²
• Contrast Ratio: 1200:1
• Local Dimming: Supported
• Display Colors: More than 1.07 billion
• Color Temperature Range: 3000K to 15000K
• Refresh Rate: 60 Hz
• Response Time: 8 ms gray-to-gray
• Viewing Angle: 178° horizontal / 178° vertical
• Surface: High-haze anti-glare panel
• Active Screen Area: 84.99" x 47.81"
• Bezel Width: 0.63" on all sides

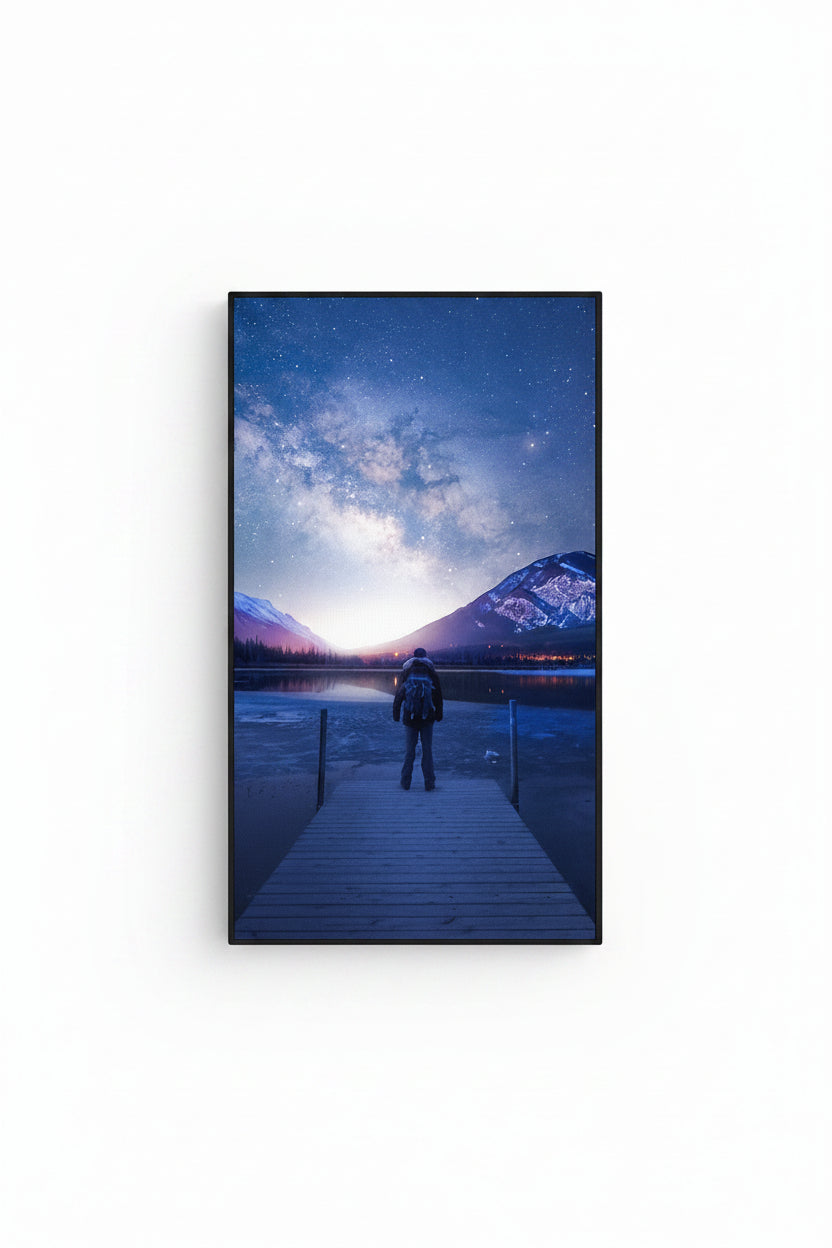

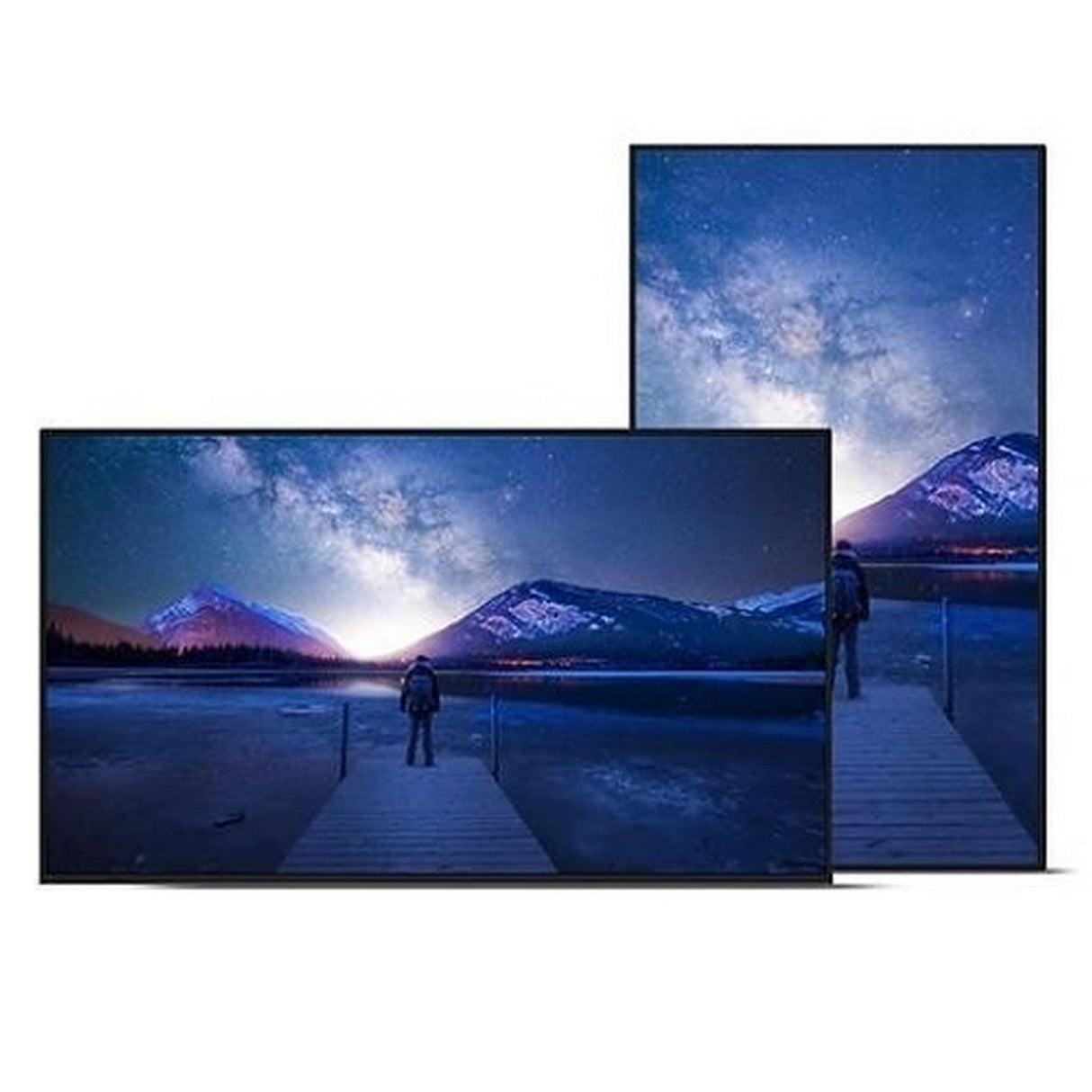

• Orientation: Landscape and portrait with counterclockwise rotation
• Operating Duty: 24/7
• Gamma Modes: Native, 2.2, 2.4, S Gamma, DICOM Simulation, HDR-ST2084 PQ, HDR Hybrid Log, and programmable modes
• Video Inputs: 2 x HDMI 2.0, 1 x DisplayPort 1.4, 1 x USB-C with DisplayPort Alt Mode
• Video Outputs: 1 x HDMI, 1 x DisplayPort
• USB-C Power Delivery: Up to 65W
• USB Connectivity: USB-C upstream, USB-C downstream, USB-A 3.2 downstream, USB-A 2.0 service
• Audio Output: 3.5 mm mini jack
• Integrated Speakers: 10W + 10W
• Network: 100 Mbit LAN
• Serial Control: RS-232C
• Remote Input: 3.5 mm IR remote connection
• External Control: LAN, RS-232C, AMX support, HDMI CEC, Crestron Connected V2 with XiO Cloud
• Network Security: IEEE 802.1X authentication, administrator login, IP address filtering, MAC address filtering, SSH, signed firmware support
• Modular Expansion: Intel SDM-ready
• Compute Module Support: Compatible Raspberry Pi Compute Module solutions with appropriate interface hardware
• Ambient Light Sensor: Integrated
• Temperature Monitoring: Integrated programmable temperature sensors with cooling-fan control
• Typical Power Consumption: 210W
• Maximum Power Consumption: 595W
• Network Standby: 0.5W
• Power Savings Mode: 2W
• Power Supply: Internal
• Power Input: 100-240V AC, 50/60 Hz
• Operating Temperature: 32°F to 104°F
• Operating Humidity: 20% to 80%
• Operating Altitude: Up to 9,843 ft
• Storage Temperature: -4°F to 140°F
• Storage Humidity: 10% to 80%
• Storage Altitude: Up to 40,000 ft
• Dimensions Without Stand: 86.4" W x 49.2" H x 3.3" D
• Weight Without Stand: 149.9 lb
• Shipping Dimensions: 92.5" W x 55.1" H x 12.2" D
• Shipping Weight: 218.3 lb
• VESA Mount: 23.6" x 15.7", 4 x M8
• Color: Black
• Energy Compliance: Energy Star 8.0

What's In the Box

• Sharp PN-M982 Professional Display
• 9.8' AC Power Cord
• 6.6' HDMI Cable
• IR Remote Control
• AAA Batteries
