Sharp XP-P601Q-W / XP-P721Q-W 4K UHD Laser DLP Projectors - 6000 Lumens

Sharp XP-P601Q-W / XP-P721Q-W 4K UHD Laser DLP Projectors

The Sharp XP-P601Q-W / XP-P721Q-W 4K UHD Laser DLP Projectors combine 4K UHD presentation, laser-phosphor illumination, and professional installation controls in 6,000- and 7,200-lumen configurations. Both models use a 0.65" DMD imaging system, a filter-free DLP design, and a motorized standard-throw lens for commercial projection environments.

Choose the XP-P601Q-W for 6,000-lumen applications or the brighter XP-P721Q-W when additional output is required for larger screens or rooms with more ambient light. Both support projection sizes from 60" to 300", a 1.25-2.0:1 throw ratio, motorized zoom, focus, and lens shift, plus 360-degree installation flexibility and portrait-oriented content. These capabilities suit corporate meeting spaces, higher education, museums, simulation rooms, and professional digital presentation systems.

HDBaseT carries compatible video, audio, Ethernet, and control signals over structured cabling, while dual HDMI inputs support 4K UHD sources. RS-232, LAN, IR, wired remote control, Crestron, AMX, and PJLink support simplify integration into managed AV systems. Both projectors share the same chassis, connectivity, lens system, power specifications, 32 lb weight, and long-life laser platform.

Key Features

• Two Brightness Options: Select the 6,000-lumen XP-P601Q-W or 7,200-lumen XP-P721Q-W for the required installation environment.
• 4K UHD Imaging: Produces 3840 x 2160 viewable resolution using a 0.65" DMD system with pixel-shift technology.
• Laser DLP Platform: Combines a laser-phosphor light source with filter-free DLP technology to reduce recurring maintenance.
• Motorized Lens Controls: Motorized 1.6x zoom, focus, and horizontal and vertical lens shift simplify remote image alignment.
• HDBaseT Integration: Supports compatible video, audio, Ethernet, and control transmission through a single infrastructure connection.
• Flexible Installation: Supports landscape, portrait, ceiling, front, rear, and tilt-free 360-degree mounting applications.
• Professional Control: Integrates through RS-232, IR, LAN, HDBaseT, wired remote, Crestron, AMX, and PJLink systems.
• Wide Screen Range: Supports projected image sizes from 60" to 300" with a 1.25-2.0:1 throw ratio.

Technical Specifications

Variant Options

• XP-P601Q-W: 6,000 lumens; UPC 074000703568
• XP-P721Q-W: 7,200 lumens; UPC 074000703551

Display and Light Source

• Series: Sharp P Series
• Product Type: Professional Installation Laser DLP Projector
• Color: White
• Display Technology: 0.65" DMD DLP
• Display Resolution: 4K UHD, 3840 x 2160 viewable resolution
• Light Source: Laser/Phosphor
• Brightness, XP-P601Q-W: 6,000 lumens
• Brightness, XP-P721Q-W: 7,200 lumens
• ECO Light Output: Approximately 50% of full output
• Contrast Ratio: Up to 3,000,000:1 dynamic
• Aspect Ratio: 16:9 native; supports 4:3, 16:10, and 21:9
• Laser Life, ECO Off: 20,000 hours
• Laser Life, ECO Mode: 30,000 hours
• Supported Screen Size: 60" to 300" diagonal

Lens and Projection

• Projection Distance: 5.2' to 42.3'
• Zoom: Motorized
• Zoom Ratio: 1.6x
• Throw Ratio: 1.25-2.0:1
• Focus: Motorized
• Lens Shift: Motorized
• Horizontal Lens Shift: ±25%
• Vertical Lens Shift: 0% to +55%
• Lens: F2.0-2.4
• Focal Length: 18.7-29.6 mm
• Keystone Correction: Manual horizontal and vertical
• Installation Flexibility: Tilt-free 360-degree positioning and portrait orientation
• Installation Orientation: Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear

Signal Compatibility

• Horizontal Synchronization: 15-140 kHz
• Vertical Synchronization: 24-120 Hz, 240 Hz
• Video Signal Compatibility: 720p, 1080i, 1080p, 4K UHD, 4K
• Maximum 4K Signal: 3840 x 2160 at 60 Hz via HDMI or HDBaseT
• 3D Signal Support: Up to 1920 x 1080 at 24 Hz

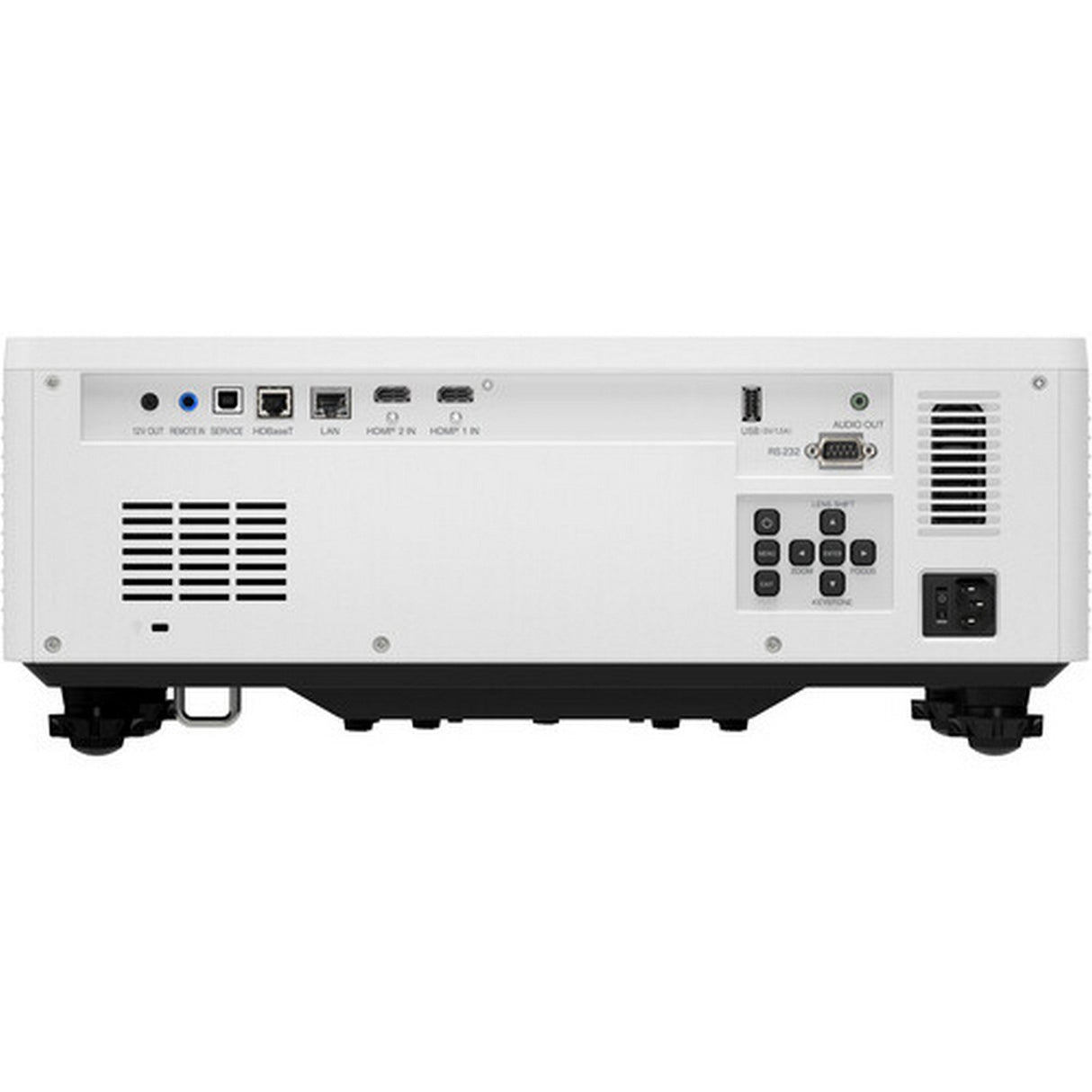

Inputs, Outputs, and Control

• HDMI Inputs: 2 x HDMI with HDCP 1.4/2.2
• HDBaseT Input: 1 x HDBaseT
• Audio Output: Stereo mini jack
• Screen Trigger: 12V stereo mini jack
• Wired LAN: RJ45, 100BASE-TX/10BASE-T
• USB Type-A: 1.5A power output
• USB Type-B: Service
• External Control: RS-232, IR, LAN, HDBaseT, wired remote
• Wired Remote Input: Stereo mini jack
• Control System Support: Crestron, AMX, PJLink
• Built-In Speakers: 10W x 2

Power and Environmental

• Power Requirements: 100-240V AC, 50/60 Hz
• Input Current: 6.5-2.6A
• Power Consumption, ECO Off: 530W
• Power Consumption, ECO Mode: 285W
• Network Standby: 2W
• Normal Standby: 0.5W
• Fan Noise, ECO Off: 36 dB
• Fan Noise, ECO Mode: 34 dB
• Operating Temperature: 32°F to 113°F
• Storage Temperature: 14°F to 140°F
• Humidity: 10% to 85%, non-condensing
• US Regulations: cTUV UL 62368-1 3rd Edition, FCC Part 15 Class B
• Canadian Regulations: CAN/CSA 62368-1:19 3rd Edition, ICES-003 Issue 7

Physical Specifications

• Dimensions: 19.1" W x 7.3" H x 17" D
• Weight: 32 lb
• Shipping Dimensions: 25.9" W x 14.7" H x 22.2" D
• Shipping Weight: 41.7 lb

What's In the Box

• Sharp XP-P601Q-W or XP-P721Q-W Projector
• Remote Control
• Batteries
• Power Cord
• Quick Start Guide
• Product Registration Card
