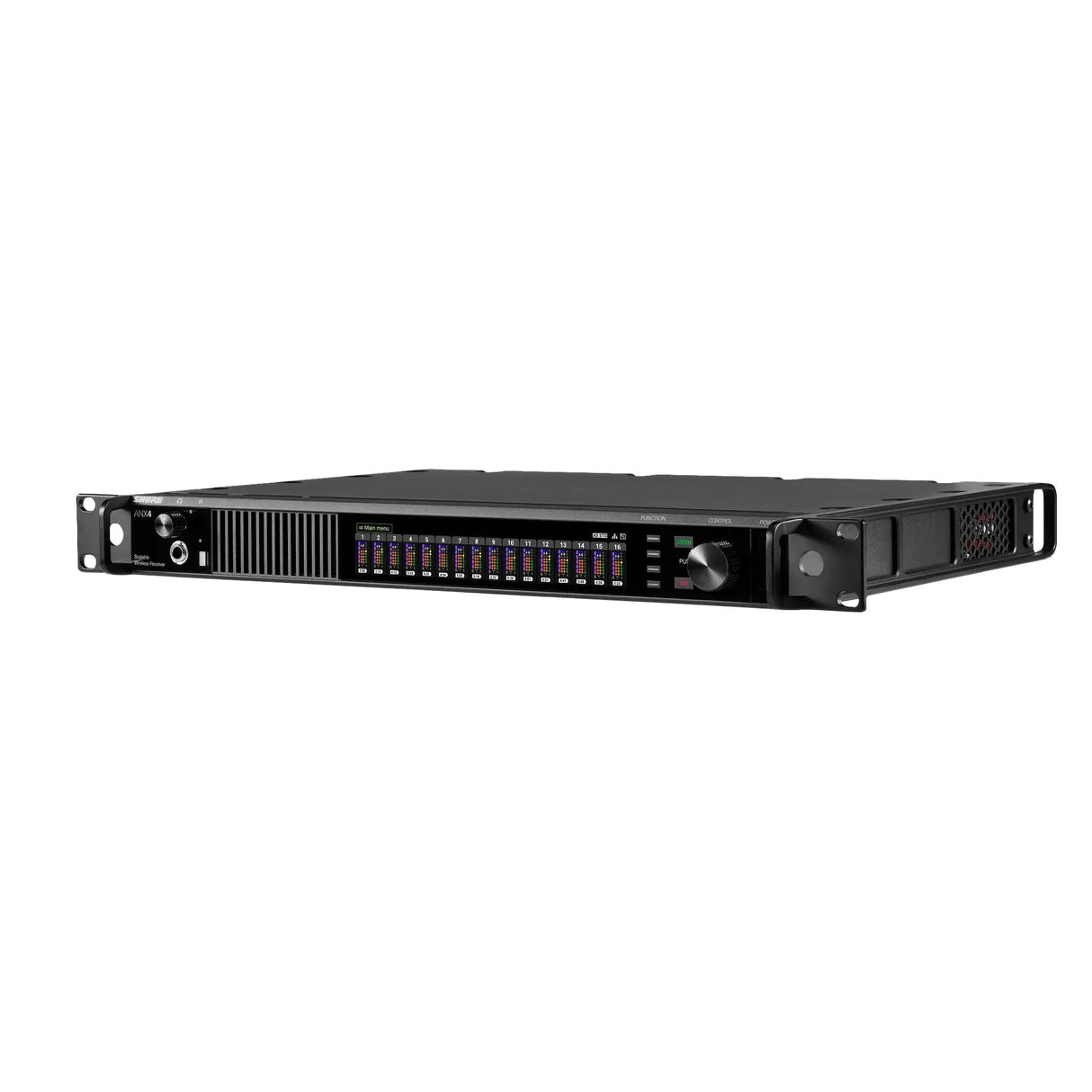

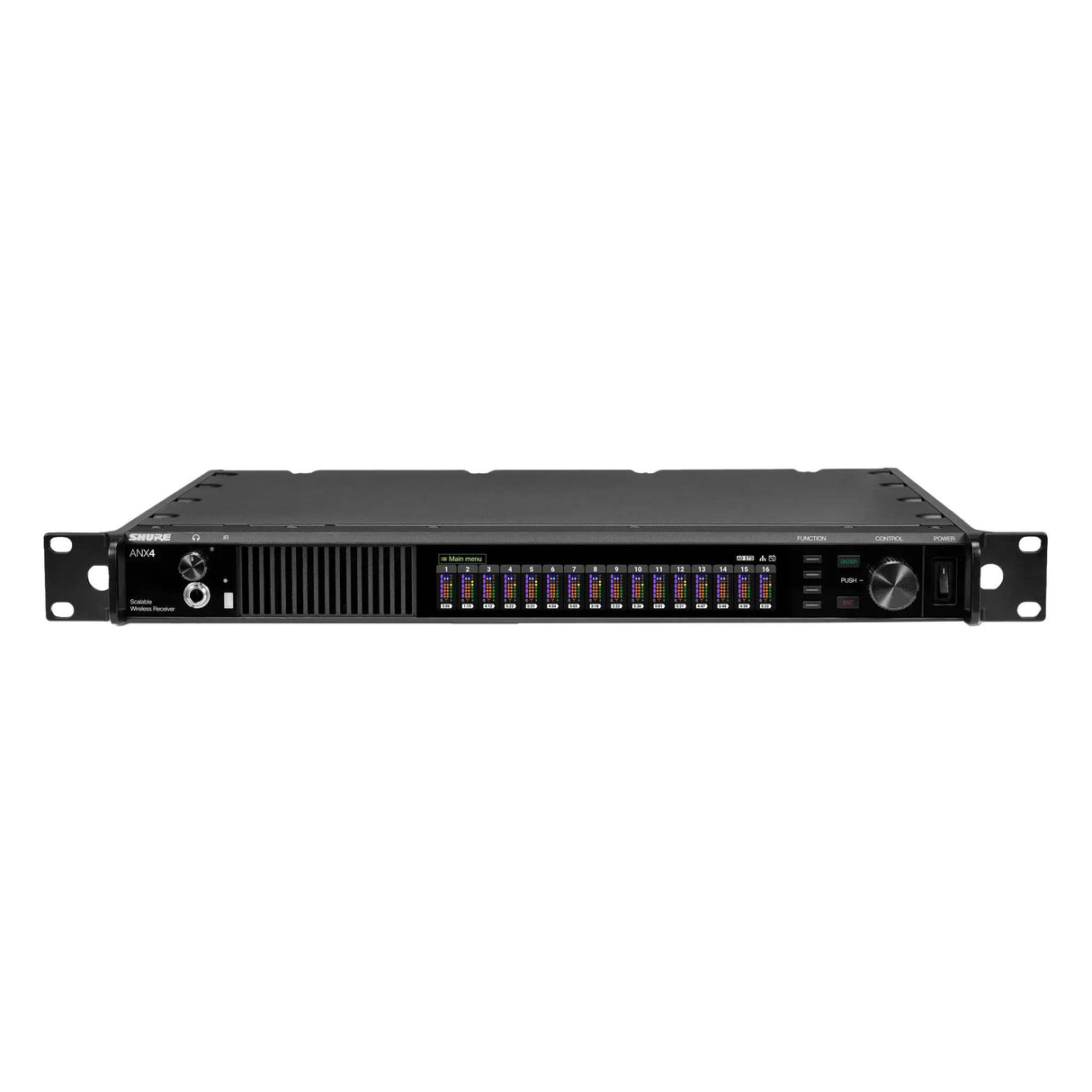

Shure ANX4 Multi-Channel Wireless Receiver, 174 MHz-2 GHz

Shure ANX4 Multi-Channel Wireless Receiver, 174 MHz-2 GHz

The Shure ANX4 Wireless Receiver is a cutting-edge, high-density digital wireless solution engineered for professional audio environments that demand flexibility, scalability, and uncompromising performance. Designed to support a wide range of applications—from live touring and broadcast to corporate installations and large-scale productions—the ANX4 delivers exceptional spectral efficiency and advanced control capabilities. With its ability to accommodate multiple channels in a single rack unit, it is an ideal choice for users looking to streamline complex wireless setups without sacrificing reliability or audio quality.

At the core of the ANX4 system is its advanced digital wireless technology operating across a broad RF frequency range. This enables seamless coordination in even the most congested RF environments, ensuring stable and interference-resistant performance. The system supports True Diversity reception, enhancing signal reliability by minimizing dropouts and maintaining consistent audio transmission. Additionally, built-in AES 256 encryption ensures secure signal transmission, making it suitable for applications where privacy and data protection are critical.

The ANX4 receiver is designed with integration and usability in mind. Its rackmountable 1U form factor allows for efficient installation in professional racks, while multiple network connectivity options—including Ethernet and Dante—enable seamless integration into modern audio workflows. With support for up to 24 audio channels and intuitive front-panel LED metering, users can easily monitor and manage their wireless systems in real time. Built for demanding environments, the Shure ANX4 is a powerful and future-ready solution for high-performance wireless audio systems.

Key Features

• High-density digital wireless receiver supporting up to 24 audio channels
• Operates across a wide RF frequency range for flexible deployment
• True Diversity reception for enhanced signal stability and reduced dropouts
• AES 256 encryption for secure wireless audio transmission
• Rackmountable 1U design with included mounting hardware
• Dual Ethernet and Dante network connectivity for advanced system integration
• Multiple BNC antenna ports for flexible antenna configurations

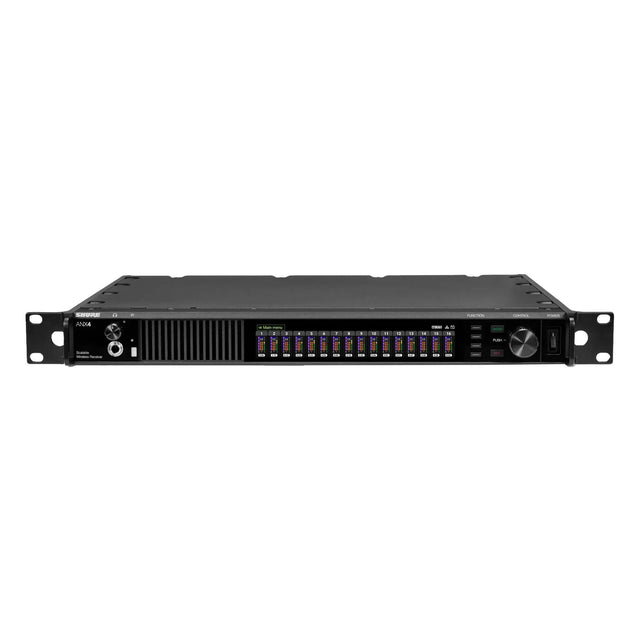

• Front-panel multi-segment LED meters for real-time monitoring
• USB-A connectivity for system interfacing and updates
• Ideal for live sound, broadcast, and large-scale installed systems

Technical Specifications

Wireless Technology: Digital 1.9 GHz / Digital VHF
Diversity: Yes, True Diversity
Receiver Type: 1x Rackmount (19")
Number of Audio Channels: 24
Included Transmitters: No Transmitters Included
Microphone Type: No Microphone Included
Included Charging Case: No

System - Wireless Technology: Digital 1.9 GHz / Digital VHF
System - Diversity: Yes, True Diversity
System - RF Frequency Band: 174 to 2000 MHz
System - Encryption: AES 256
System - Built-In Recorder: No
System - Timecode Support: No
System - Mobile App Compatible: No

Receiver Type: 1x Rackmount (19")
Mounting Options: Rackmount (with Included Hardware, 1 U)

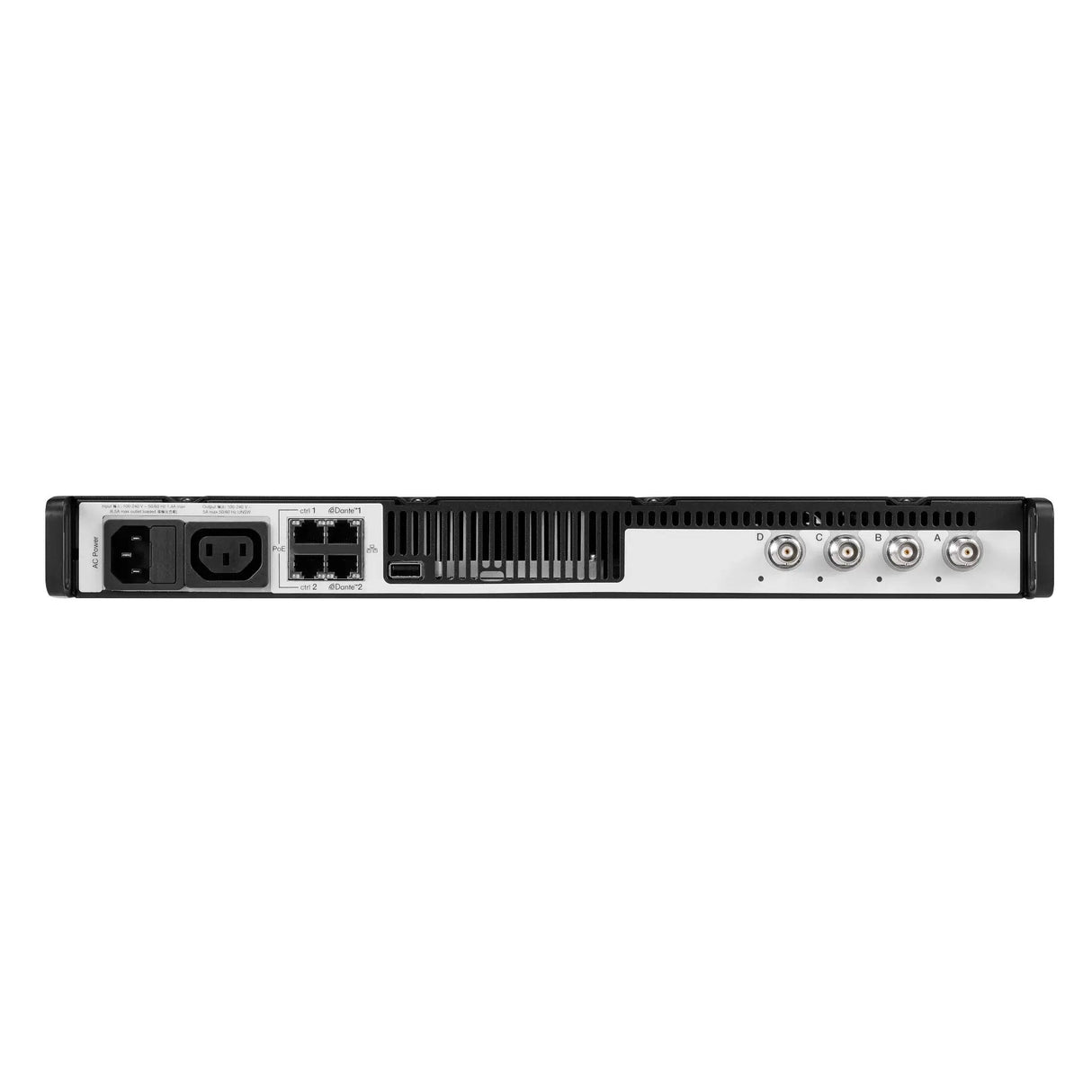

Antenna: 4x BNC Port (No Antenna Included)
Number of Audio Channels: 24
Audio I/O: 1x 1/4" TRS Headphone Output
Slot-Mount I/O Adapters: No
Network I/O: 2x RJ45 (Ethernet)
2x RJ45 (Dante)
USB/Lightning Connectivity: 1x USB-A Female
Display: Multi-Segment LED Meters
Power Requirements: AC Input

Included Transmitters: No Transmitters Included

Microphone Type: No Microphone Included

Included Charging Case: No
AC/DC Power Adapter: No

Environmental Resistance: No
