Shure MXA901B-R-GM-V Black Ceiling Array Microphone with Suspension Kit

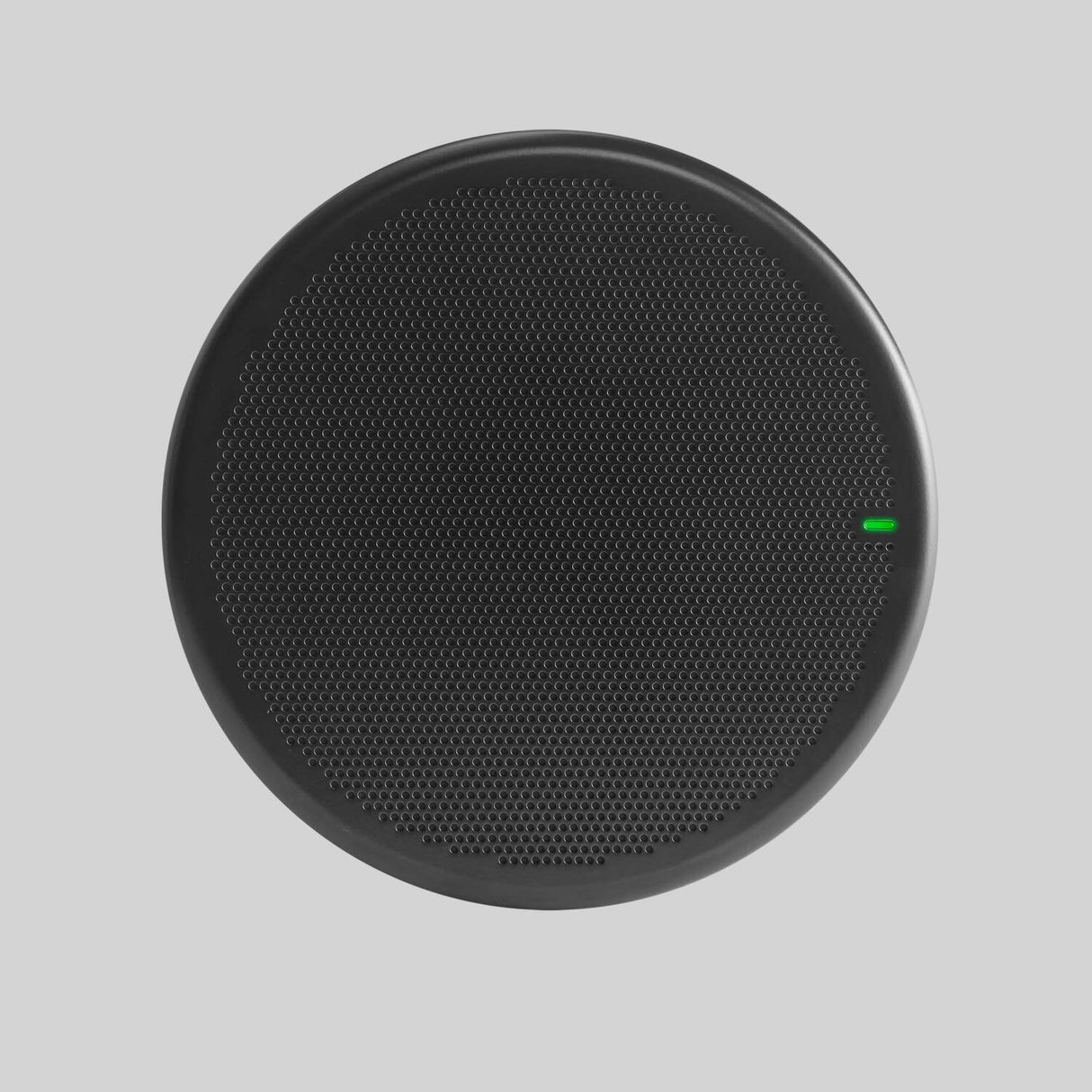

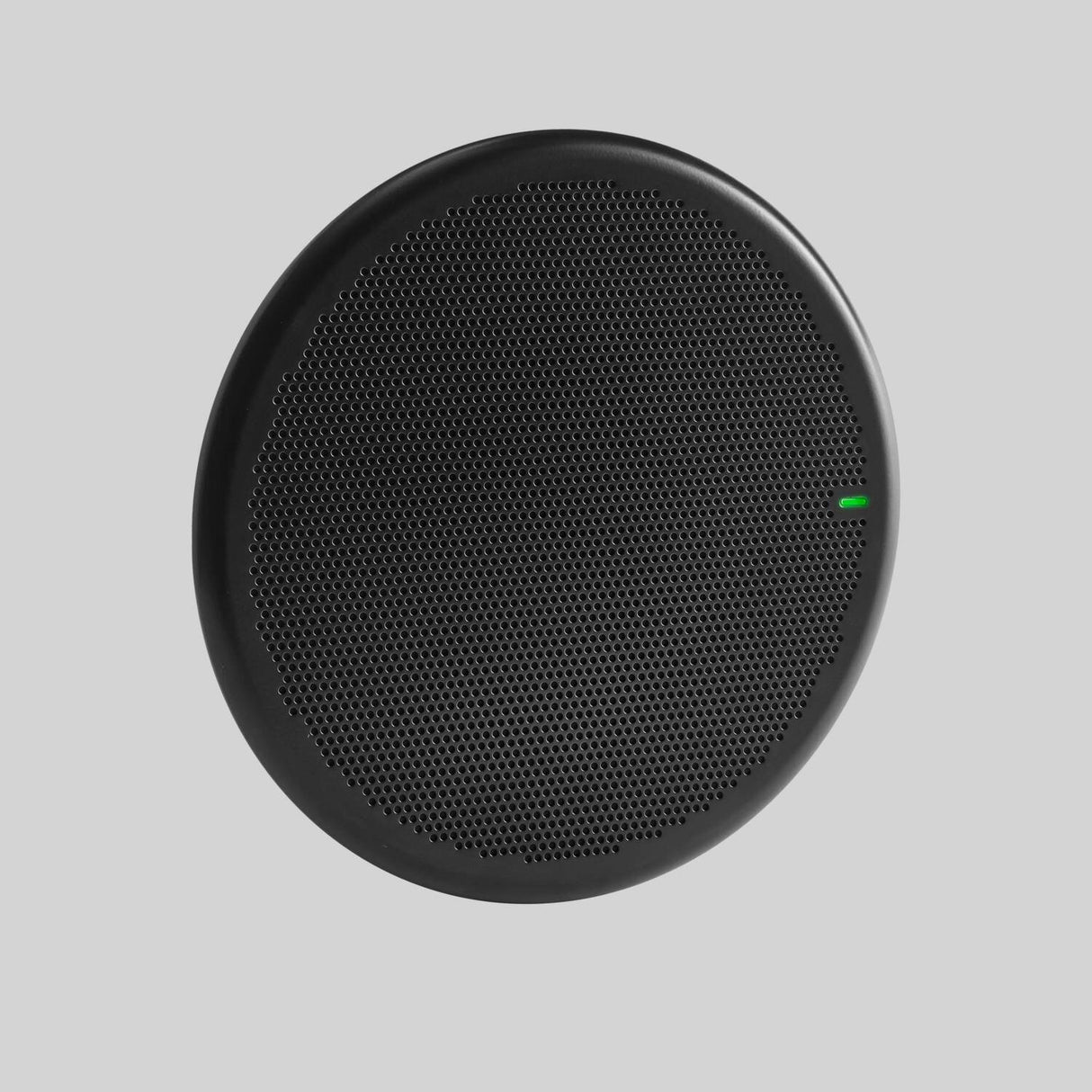

The Shure MXA901-R is the sleekest ceiling array microphone Shure builds: a 13.5-inch round, 1.64-inch deep disc holding 85 MEMS elements, onboard IntelliMix DSP and Dante networking, all powered over a single PoE Ethernet run. Single-Zone Automatic Coverage captures every talker in a space up to 20 x 20 feet with no aiming or tuning, and the coverage area can be tightened to as little as 10 x 10 feet when you want to reject an adjacent corridor or glass wall. When an installation calls for precise control, the automatic mode can be switched off and up to eight independent pickup lobes positioned by hand in Shure Designer.

This order code is Shure's factory bundle of the black MXA901B-R array microphone with the A901B-R-GM Gripple suspension mount kit in matching black. The suspension kit is the answer for open, exposed or very high ceilings, where there is no drywall or tile plane to mount into and the microphone has to be dropped down to a useful listening height. Three Gripple Angel Side Hook connectors and three 10-foot steel cables let you set the drop anywhere along the cable length and re-adjust it later by squeezing the connector, and a black back cover clips over the rear of the microphone so the underside of the array reads as one clean black disc from the floor.

Black is the finish specifiers reach for in dark-painted open plenums, exposed-structure boardrooms, broadcast and lecture spaces, and any room where the ceiling is intentionally dark and a white microphone would draw the eye. Paired with a Shure IntelliMix Foundation System the MXA901 becomes a Microsoft Teams Rooms or Zoom Rooms certified solution, and command string support lets it drive third-party cameras and room control systems for talker-based camera tracking.

Features

• Includes the A901B-R-GM Gripple suspension mount kit in black for suspending the array from open, exposed or high ceilings
• Three 10 ft steel suspension cables with Gripple Angel Side Hook connectors; drop height is set and re-adjusted by squeezing the connector, no re-cutting
• Black back cover snaps over the rear of the microphone for a finished look from the floor
• Eight cable ties are supplied to dress the Ethernet cable along the suspension cable
• Single-Zone Automatic Coverage picks up the whole room with no setup, and adjusts from 10 x 10 ft (3 x 3 m) up to 20 x 20 ft (6.1 x 6.1 m) to match the seating
• Steerable coverage mode places up to 8 independent pickup lobes when automatic coverage is switched off
• 85 MEMS microphone elements in a next-generation array for natural, directional speech capture
• Onboard IntelliMix DSP: acoustic echo cancellation, noise reduction, automatic mixing, automatic gain control, compressor, delay and 4-band parametric EQ
• Dante and AES67 audio networking over a single Cat 5e or better cable, powered by PoE
• Certified for Microsoft Teams and Zoom Rooms, and compatible with leading collaboration platforms
• Standards-based security including 802.1x, secure boot and storage, and AES encryption of control and audio data
• Configurable LED status bar with adjustable color and brightness, plus command strings for third-party camera and room control integration
• Set up and managed with Shure Designer software or the microphone's embedded web application
• UL2043 plenum rated and IP5X dust protected for air-handling spaces

Technical Specifications

• Model: Shure MXA901-R Microflex Advance ceiling array microphone
• Microphone elements: 85 MEMS
• Coverage area: 20 x 20 ft (6.1 x 6.1 m), single-zone automatic; adjustable down to 10 x 10 ft (3 x 3 m)
• Steerable lobes: up to 8 independent lobes in steerable coverage mode
• Frequency response: 100 Hz to 20 kHz
• Sensitivity (at 1 kHz): -4.4 dBFS/Pa
• Maximum SPL (relative to 0 dBFS overload): 98.4 dB SPL
• Signal-to-noise ratio: 67.1 dB A-weighted (ref. 94 dB SPL at 1 kHz)
• Self noise: 26.9 dB SPL-A
• Dynamic range: 71.5 dB
• Latency: 33.5 ms (excluding Dante latency)
• Digital output: Dante or AES67, 2 total channels (1 automix output, 1 AEC reference input)
• Sampling rate / bit depth: 48 kHz / 24-bit
• Acoustic echo cancellation tail length: up to 250 ms
• Power: Power over Ethernet (PoE) Class 0, 10.1 W maximum
• Connector: RJ45; Cat 5e or higher (shielded cable recommended)
• Control software: Shure Designer or embedded web application
• Plenum rating: UL2043 (suitable for air handling spaces)
• Dust protection: IEC 60529 IP5X
• Operating temperature: -6.7 C (20 F) to 40 C (104 F)

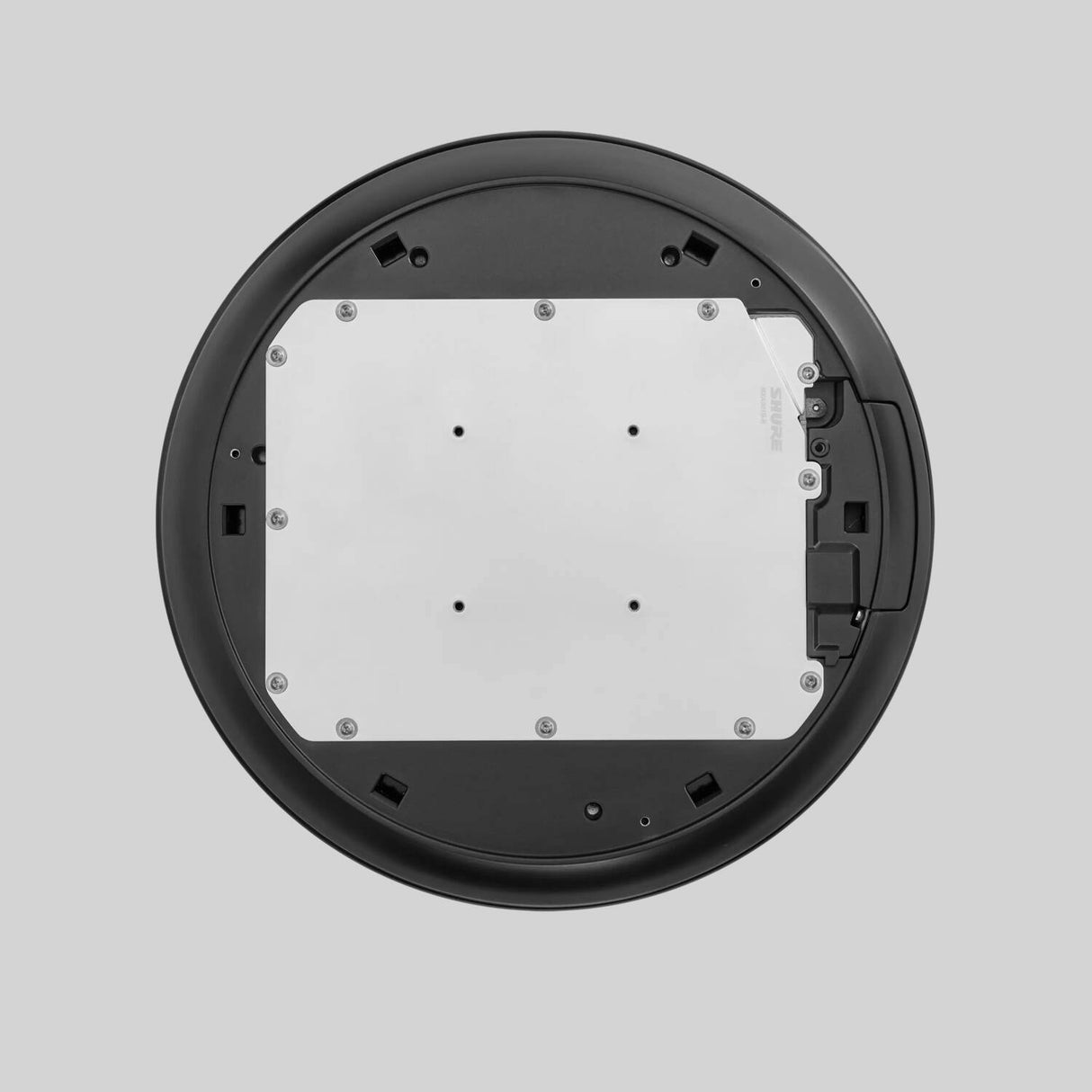

• Microphone dimensions: 13.5 in (342.9 mm) diameter x 1.64 in (41.66 mm) high
• Microphone weight: 5 lb (2.3 kg)
• Maximum recommended mounting height: 12 ft (3.7 m)
• Mount supplied: A901B-R-GM Gripple suspension mount kit, black cover
• Suspension cable: 3 x 10 ft (3 m) steel cables with Gripple Angel Side Hook connectors
• Gripple working load limit at vertical: 33 lb (15 kg)
• Microphone finish: black
• Note: hardware to attach the suspension cables to the building structure is not included

What's Included

• Shure MXA901-R Microflex Advance ceiling array microphone (black)
• RPM901-R-Install Kit: network port cover, surface mount, round VESA bracket and 4 M4 screws

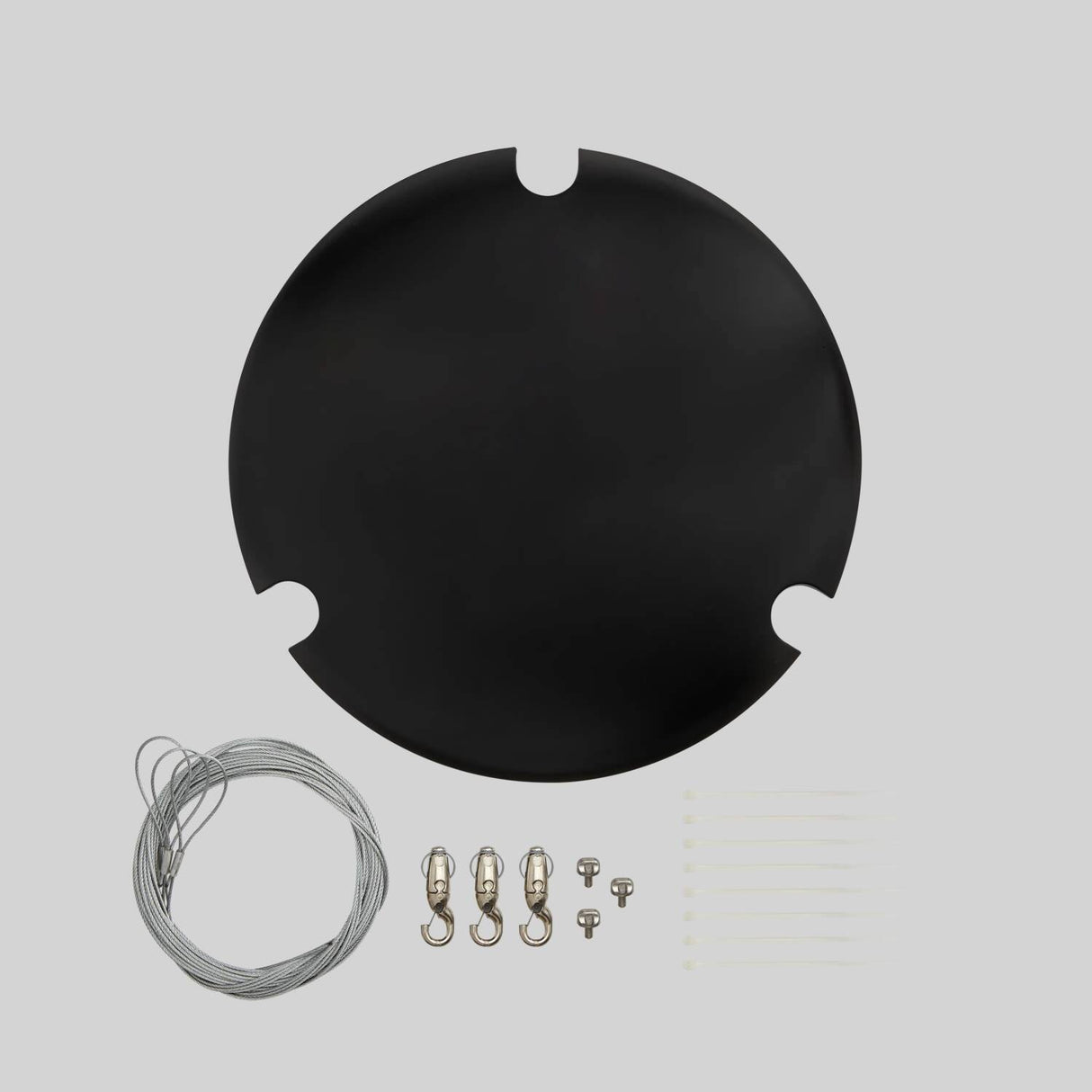

• A901B-R-GM Gripple suspension mount kit (black), containing:
• 3 x Gripple Angel Side Hook connectors
• 3 x 10 ft steel cables
• 3 x M4 eyelet screws
• 8 x cable ties
• 1 x black back cover
