Shure MXA901B-R-PM-1.5-V Black Ceiling Array Mic 1.5 in Pole Mount Kit

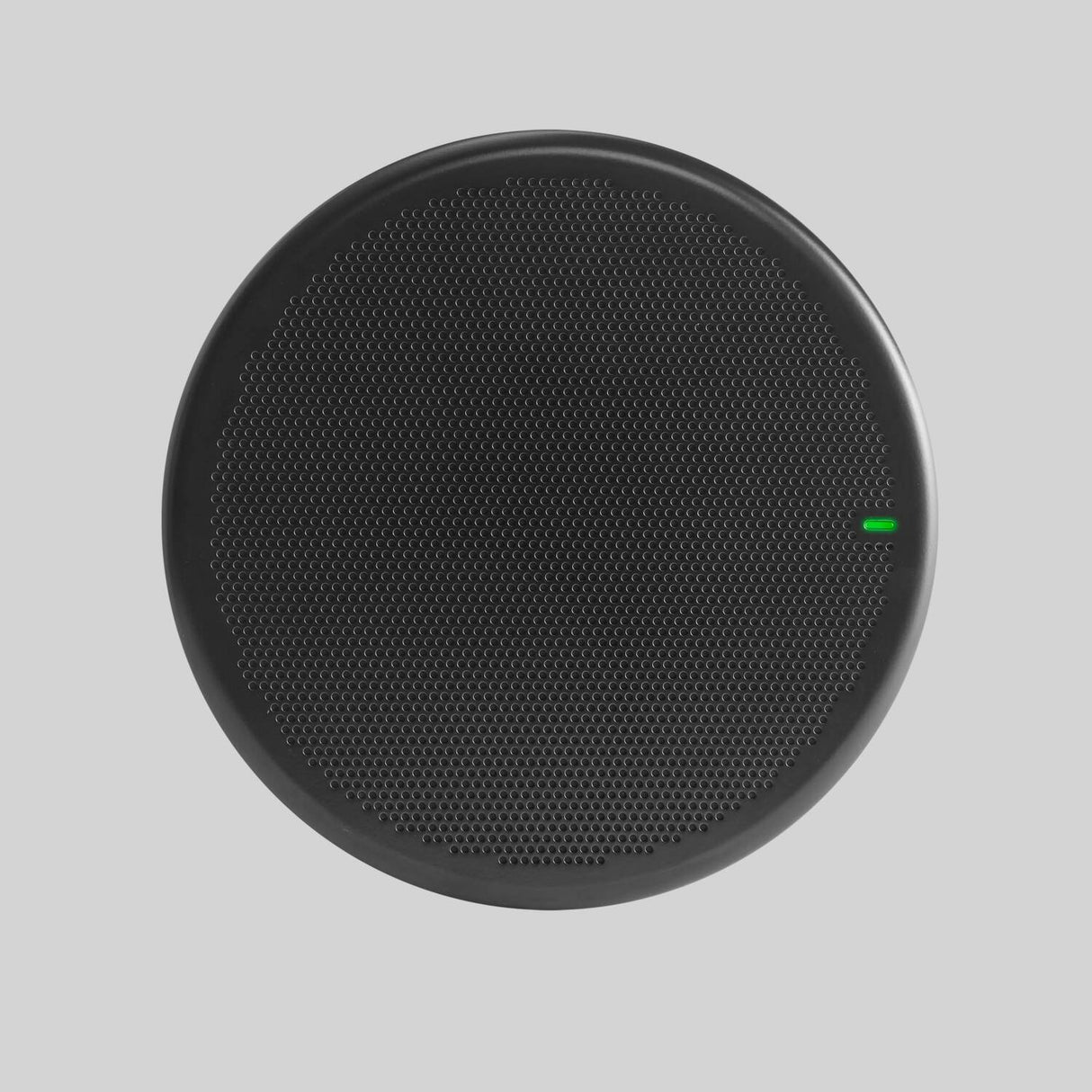

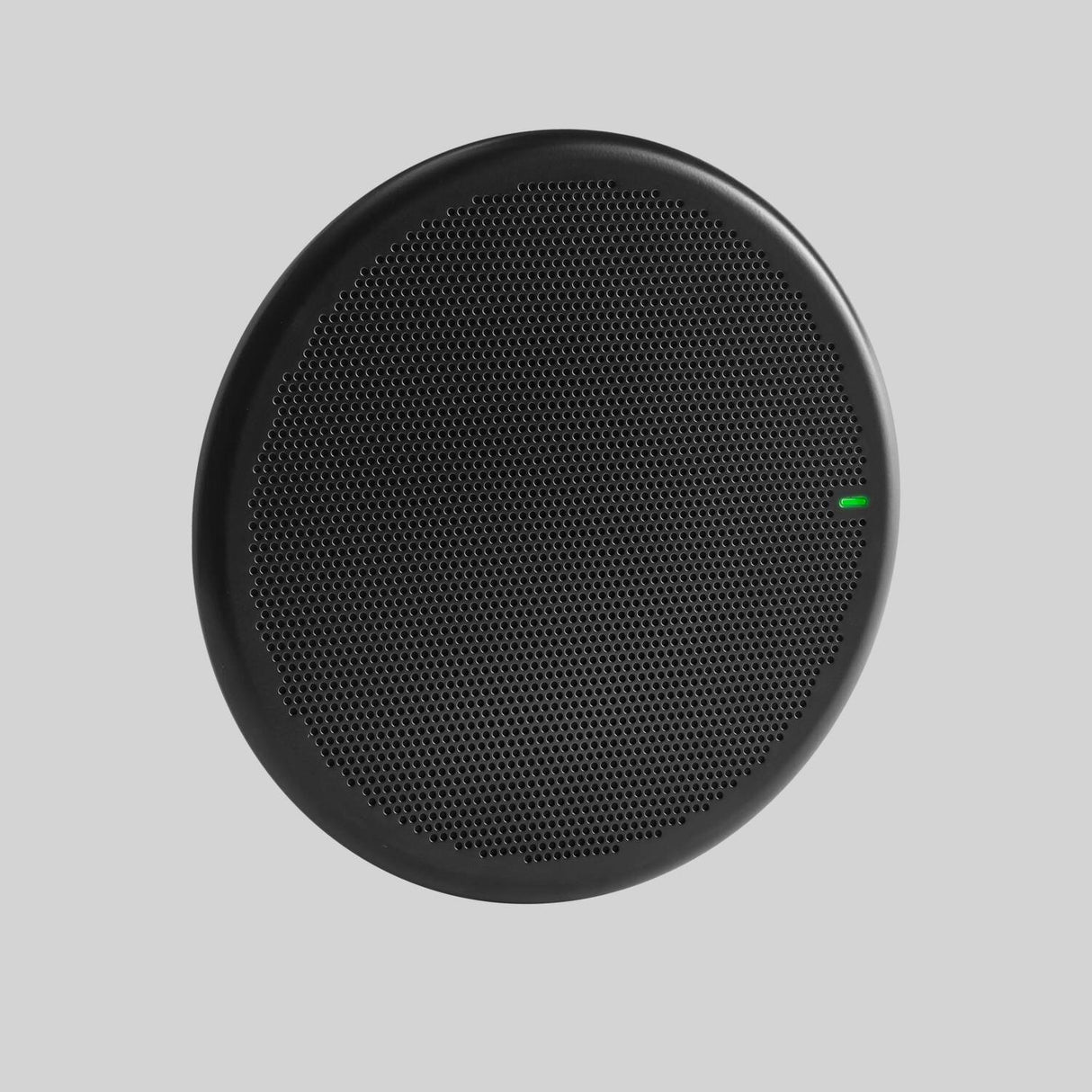

The Shure MXA901-R is a 13.5-inch round ceiling array microphone with 85 MEMS elements, onboard IntelliMix DSP and Dante networking, drawing a maximum of 10.1 watts over PoE. Single-Zone Automatic Coverage captures a 20 x 20 foot room straight out of the box and can be narrowed to 10 x 10 feet, while steerable coverage mode gives an integrator up to eight independently positioned pickup lobes for rooms with unusual geometry or problem noise sources.

This order code is Shure's factory bundle of the black MXA901B-R array microphone with the A901B-R-PM-1.5IN pole mount kit in matching black, which hangs the array from a 1.5-inch diameter threaded NPT pole. A rigid pole is what you want in a high open-structure ceiling where a suspended microphone would swing or spin, or where the drop has to line up precisely with a lighting or truss grid. The VESA bracket threads straight onto the pole, four thumb screws lock the microphone to it, and a set screw tightened with the supplied M4 hex key holds the rotational position so the LED status bar faces the way you intend.

The black cover conceals the pole termination and matches the black microphone body, so the whole assembly disappears into a dark-painted plenum or exposed-structure ceiling. Note that the pole itself and its ceiling plate are not supplied and must include a cable exit for the Ethernet run; adjustable extension poles with a larger bottom diameter may not fit inside the cover.

Features

• Includes the A901B-R-PM-1.5IN pole mount kit in black for mounting the array on a 1.5-inch threaded NPT pole
• Rigid pole mounting holds the microphone at a fixed height and orientation, unlike a suspended drop
• VESA bracket set screw locks rotation so the mute status LED bar faces the direction you choose
• Four thumb screws secure the microphone to the bracket by hand; M4 hex key supplied
• Black pole mount cover conceals the pole termination and matches the black microphone body
• Single-Zone Automatic Coverage picks up the whole room with no setup, and adjusts from 10 x 10 ft (3 x 3 m) up to 20 x 20 ft (6.1 x 6.1 m) to match the seating
• Steerable coverage mode places up to 8 independent pickup lobes when automatic coverage is switched off
• 85 MEMS microphone elements in a next-generation array for natural, directional speech capture
• Onboard IntelliMix DSP: acoustic echo cancellation, noise reduction, automatic mixing, automatic gain control, compressor, delay and 4-band parametric EQ
• Dante and AES67 audio networking over a single Cat 5e or better cable, powered by PoE
• Certified for Microsoft Teams and Zoom Rooms, and compatible with leading collaboration platforms
• Standards-based security including 802.1x, secure boot and storage, and AES encryption of control and audio data
• Configurable LED status bar with adjustable color and brightness, plus command strings for third-party camera and room control integration
• Set up and managed with Shure Designer software or the microphone's embedded web application
• UL2043 plenum rated and IP5X dust protected for air-handling spaces

Technical Specifications

• Model: Shure MXA901-R Microflex Advance ceiling array microphone
• Microphone elements: 85 MEMS
• Coverage area: 20 x 20 ft (6.1 x 6.1 m), single-zone automatic; adjustable down to 10 x 10 ft (3 x 3 m)
• Steerable lobes: up to 8 independent lobes in steerable coverage mode
• Frequency response: 100 Hz to 20 kHz
• Sensitivity (at 1 kHz): -4.4 dBFS/Pa
• Maximum SPL (relative to 0 dBFS overload): 98.4 dB SPL
• Signal-to-noise ratio: 67.1 dB A-weighted (ref. 94 dB SPL at 1 kHz)
• Self noise: 26.9 dB SPL-A
• Dynamic range: 71.5 dB
• Latency: 33.5 ms (excluding Dante latency)
• Digital output: Dante or AES67, 2 total channels (1 automix output, 1 AEC reference input)
• Sampling rate / bit depth: 48 kHz / 24-bit
• Acoustic echo cancellation tail length: up to 250 ms
• Power: Power over Ethernet (PoE) Class 0, 10.1 W maximum
• Connector: RJ45; Cat 5e or higher (shielded cable recommended)
• Control software: Shure Designer or embedded web application
• Plenum rating: UL2043 (suitable for air handling spaces)
• Dust protection: IEC 60529 IP5X
• Operating temperature: -6.7 C (20 F) to 40 C (104 F)
• Microphone dimensions: 13.5 in (342.9 mm) diameter x 1.64 in (41.66 mm) high
• Microphone weight: 5 lb (2.3 kg)
• Maximum recommended mounting height: 12 ft (3.7 m)
• Mount supplied: A901B-R-PM-1.5IN pole mount kit, black cover
• Pole compatibility: 1.5 in diameter threaded NPT pole (pole not included, must include a cable exit)

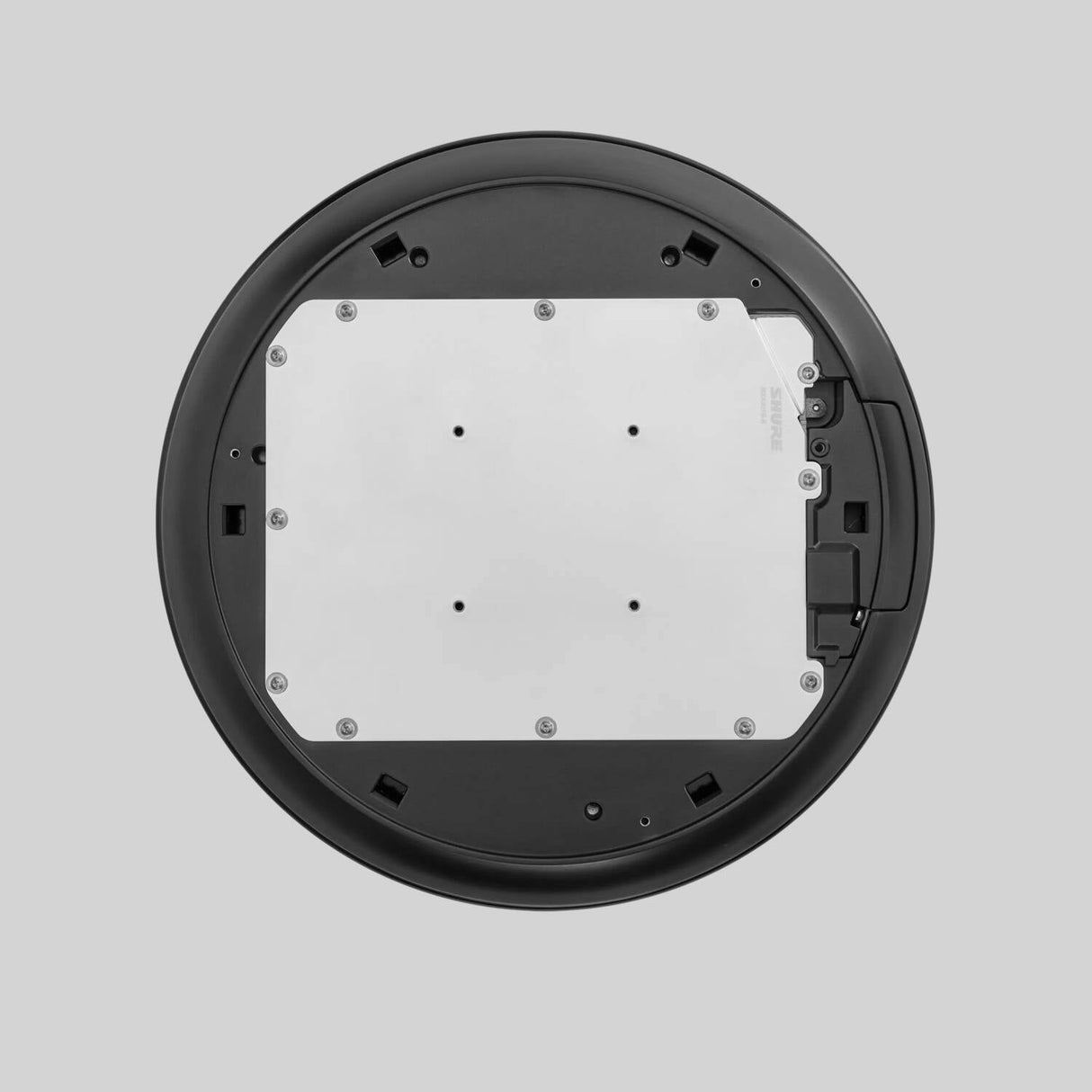

• Microphone attachment: VESA MIS-D, 75 mm square hole spacing, M4 thread (hole depth 9.15 mm)
• Microphone finish: black
• Note: adjustable extension poles with a larger bottom diameter may not fit the pole mount cover

What's Included

• Shure MXA901-R Microflex Advance ceiling array microphone (black)
• RPM901-R-Install Kit: network port cover, surface mount, round VESA bracket and 4 M4 screws

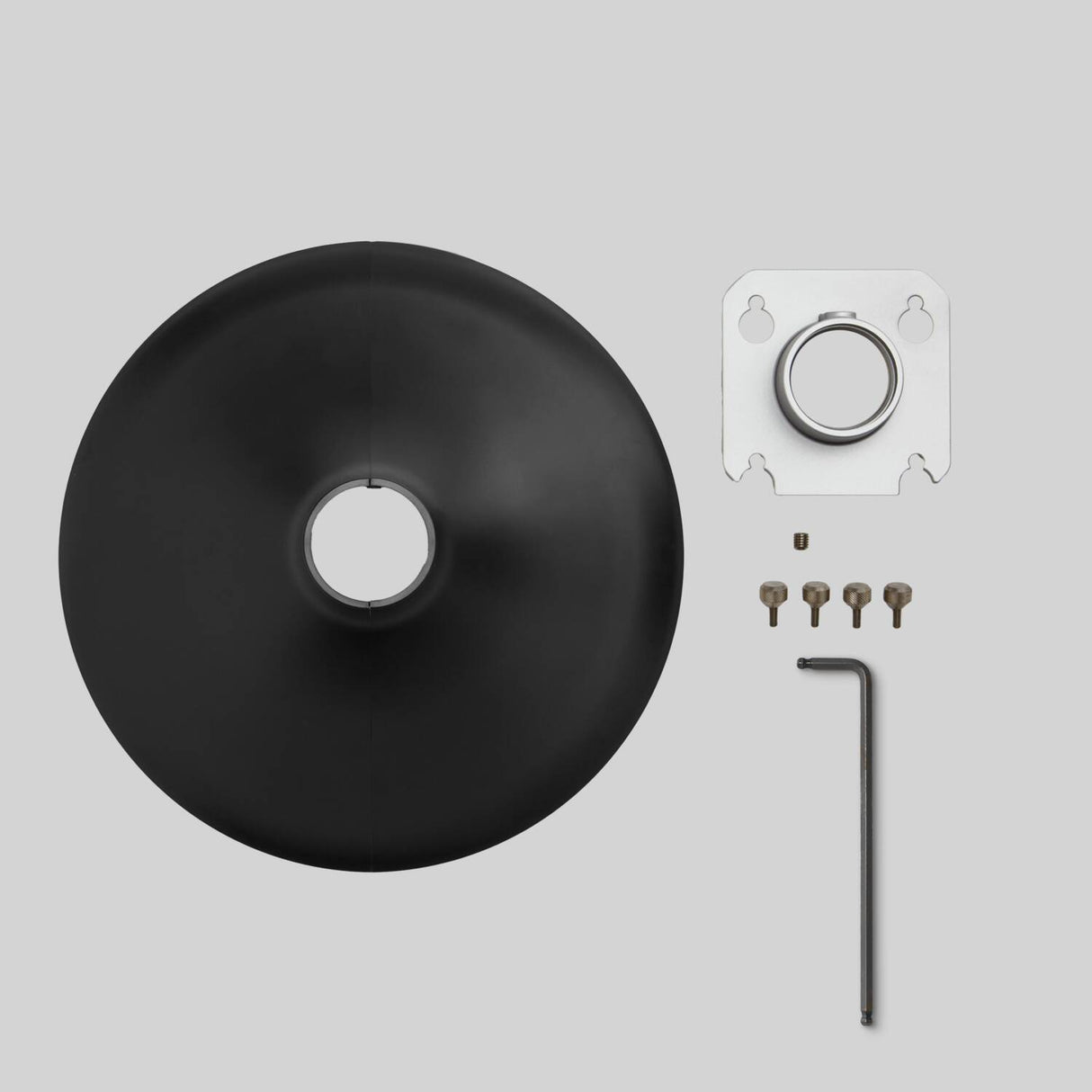

• A901B-R-PM-1.5IN pole mount kit (black), containing:
• 1 x pole mount cover (black)
• 1 x VESA bracket with set screw
• 4 x thumb screws
• 1 x M4 hex key
