Shure MXA901B-R-PM-3/8-V Black Ceiling Array Mic 3/8 in Rod Mount Kit

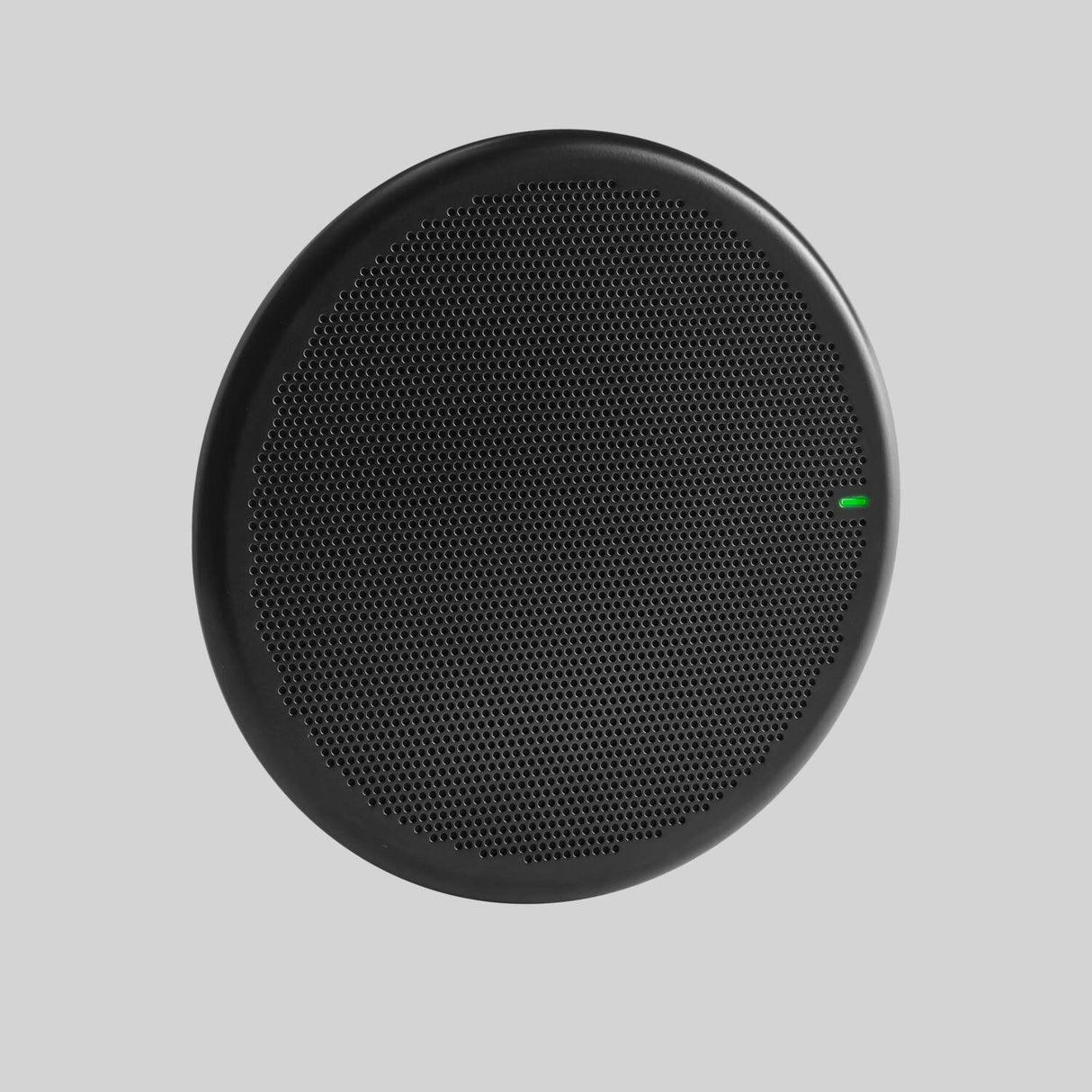

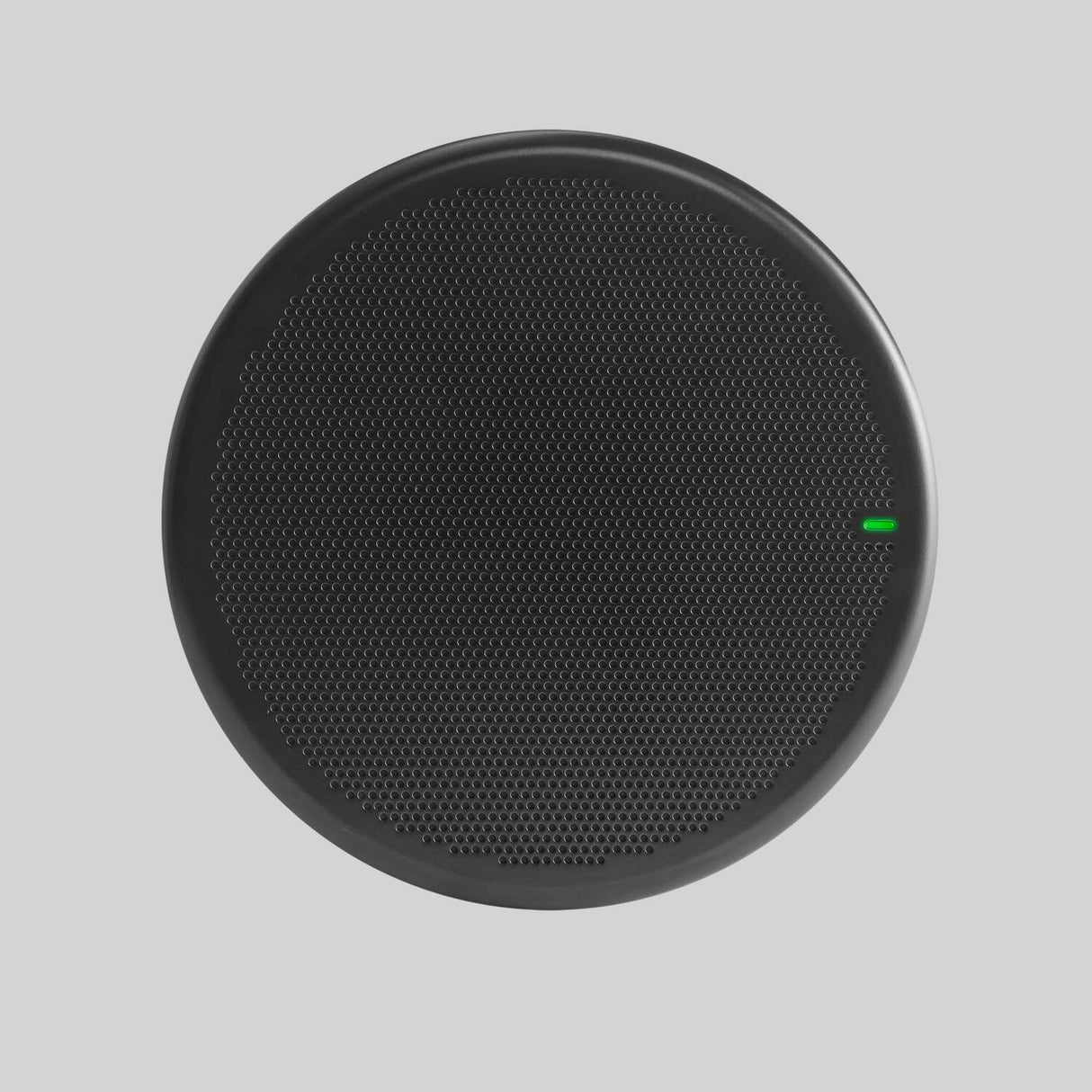

The Shure MXA901-R is Shure's slimmest ceiling array microphone, a 13.5-inch round disc just 1.64 inches deep containing 85 MEMS elements, IntelliMix DSP and Dante audio networking on a single PoE cable. Single-Zone Automatic Coverage handles a room up to 20 x 20 feet with no configuration, adjusts down to 10 x 10 feet, and gives way to up to eight steerable pickup lobes when a room needs hand-placed coverage.

This order code is Shure's factory bundle of the black MXA901B-R array microphone with the A901B-R-PM-3/8IN pole mount kit in matching black, which mounts the array on 3/8-inch diameter threaded rod. Threaded rod is the slimmest rigid drop available for this microphone and is often the easier install in a plenum already full of rod-hung services, since the same stock and the same anchors used for trays and hangers carry the microphone. The kit adds a 3/8-inch adapter and jam nut on top of the standard pole mount hardware, plus eight cable ties for dressing the Ethernet cable along the rod.

As with all the rigid mounts, the VESA bracket set screw locks the microphone's rotation so the LED status bar ends up facing the room rather than the wall. The black cover and black microphone body keep the assembly visually quiet in dark, exposed-structure ceilings. Threaded rod and its ceiling anchor are not included.

Features

• Includes the A901B-R-PM-3/8IN pole mount kit in black for mounting the array on 3/8-inch threaded rod
• Threaded rod gives the slimmest rigid drop for this microphone and suits plenums already hung with rod
• 3/8-inch adapter and jam nut supplied in addition to the standard pole mount hardware
• VESA bracket set screw locks rotation so the mute status LED bar faces the direction you choose
• Eight cable ties supplied to dress the Ethernet cable along the rod; M4 hex key included
• Black threaded rod cover conceals the rod termination and matches the black microphone body
• Single-Zone Automatic Coverage picks up the whole room with no setup, and adjusts from 10 x 10 ft (3 x 3 m) up to 20 x 20 ft (6.1 x 6.1 m) to match the seating
• Steerable coverage mode places up to 8 independent pickup lobes when automatic coverage is switched off
• 85 MEMS microphone elements in a next-generation array for natural, directional speech capture
• Onboard IntelliMix DSP: acoustic echo cancellation, noise reduction, automatic mixing, automatic gain control, compressor, delay and 4-band parametric EQ
• Dante and AES67 audio networking over a single Cat 5e or better cable, powered by PoE
• Certified for Microsoft Teams and Zoom Rooms, and compatible with leading collaboration platforms
• Standards-based security including 802.1x, secure boot and storage, and AES encryption of control and audio data
• Configurable LED status bar with adjustable color and brightness, plus command strings for third-party camera and room control integration
• Set up and managed with Shure Designer software or the microphone's embedded web application
• UL2043 plenum rated and IP5X dust protected for air-handling spaces

Technical Specifications

• Model: Shure MXA901-R Microflex Advance ceiling array microphone
• Microphone elements: 85 MEMS
• Coverage area: 20 x 20 ft (6.1 x 6.1 m), single-zone automatic; adjustable down to 10 x 10 ft (3 x 3 m)
• Steerable lobes: up to 8 independent lobes in steerable coverage mode
• Frequency response: 100 Hz to 20 kHz
• Sensitivity (at 1 kHz): -4.4 dBFS/Pa
• Maximum SPL (relative to 0 dBFS overload): 98.4 dB SPL
• Signal-to-noise ratio: 67.1 dB A-weighted (ref. 94 dB SPL at 1 kHz)
• Self noise: 26.9 dB SPL-A
• Dynamic range: 71.5 dB
• Latency: 33.5 ms (excluding Dante latency)
• Digital output: Dante or AES67, 2 total channels (1 automix output, 1 AEC reference input)
• Sampling rate / bit depth: 48 kHz / 24-bit
• Acoustic echo cancellation tail length: up to 250 ms
• Power: Power over Ethernet (PoE) Class 0, 10.1 W maximum
• Connector: RJ45; Cat 5e or higher (shielded cable recommended)
• Control software: Shure Designer or embedded web application
• Plenum rating: UL2043 (suitable for air handling spaces)
• Dust protection: IEC 60529 IP5X
• Operating temperature: -6.7 C (20 F) to 40 C (104 F)
• Microphone dimensions: 13.5 in (342.9 mm) diameter x 1.64 in (41.66 mm) high
• Microphone weight: 5 lb (2.3 kg)
• Maximum recommended mounting height: 12 ft (3.7 m)
• Mount supplied: A901B-R-PM-3/8IN pole mount kit, black cover
• Rod compatibility: 3/8 in diameter threaded rod (rod not included)

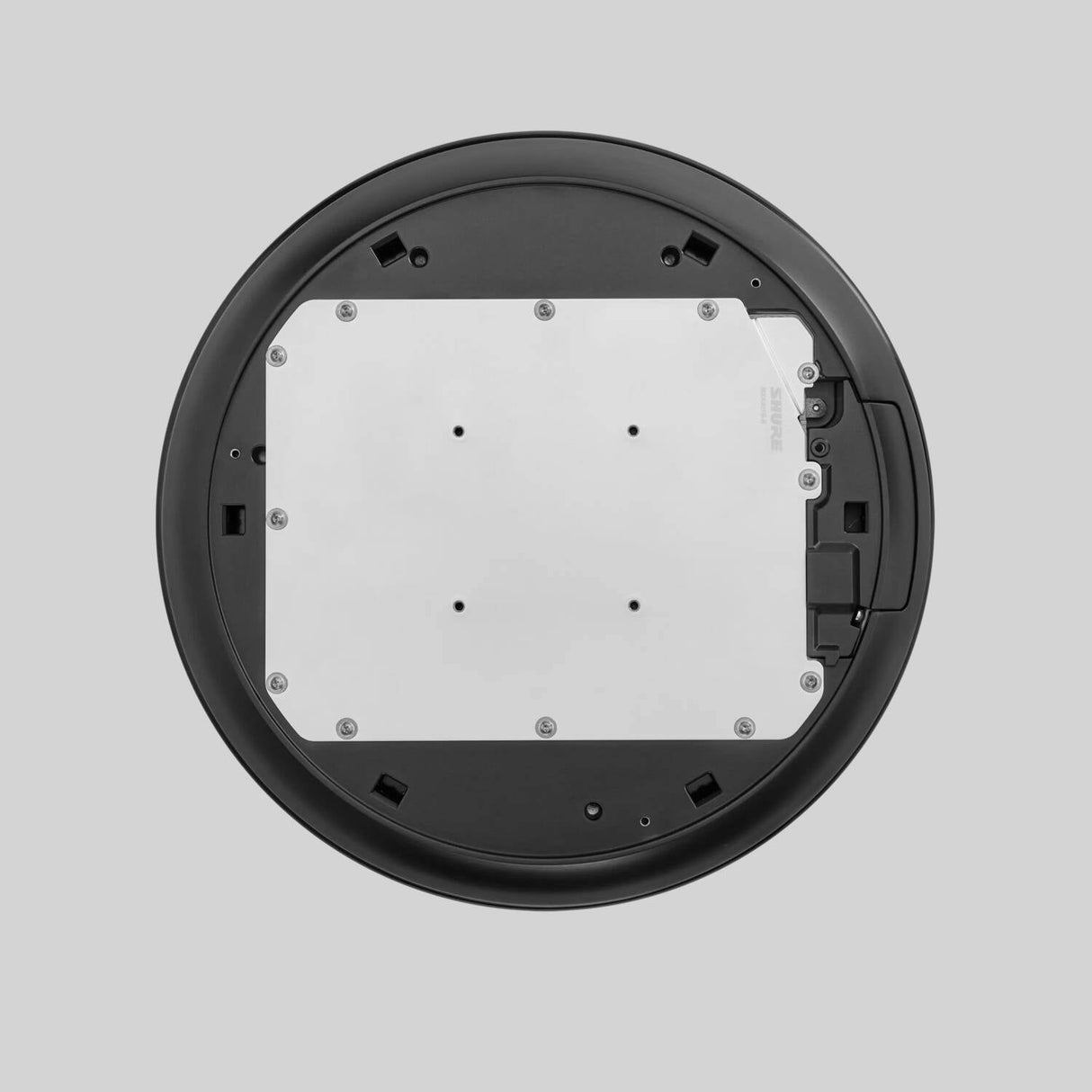

• Microphone attachment: VESA MIS-D, 75 mm square hole spacing, M4 thread (hole depth 9.15 mm)
• Microphone finish: black

What's Included

• Shure MXA901-R Microflex Advance ceiling array microphone (black)
• RPM901-R-Install Kit: network port cover, surface mount, round VESA bracket and 4 M4 screws

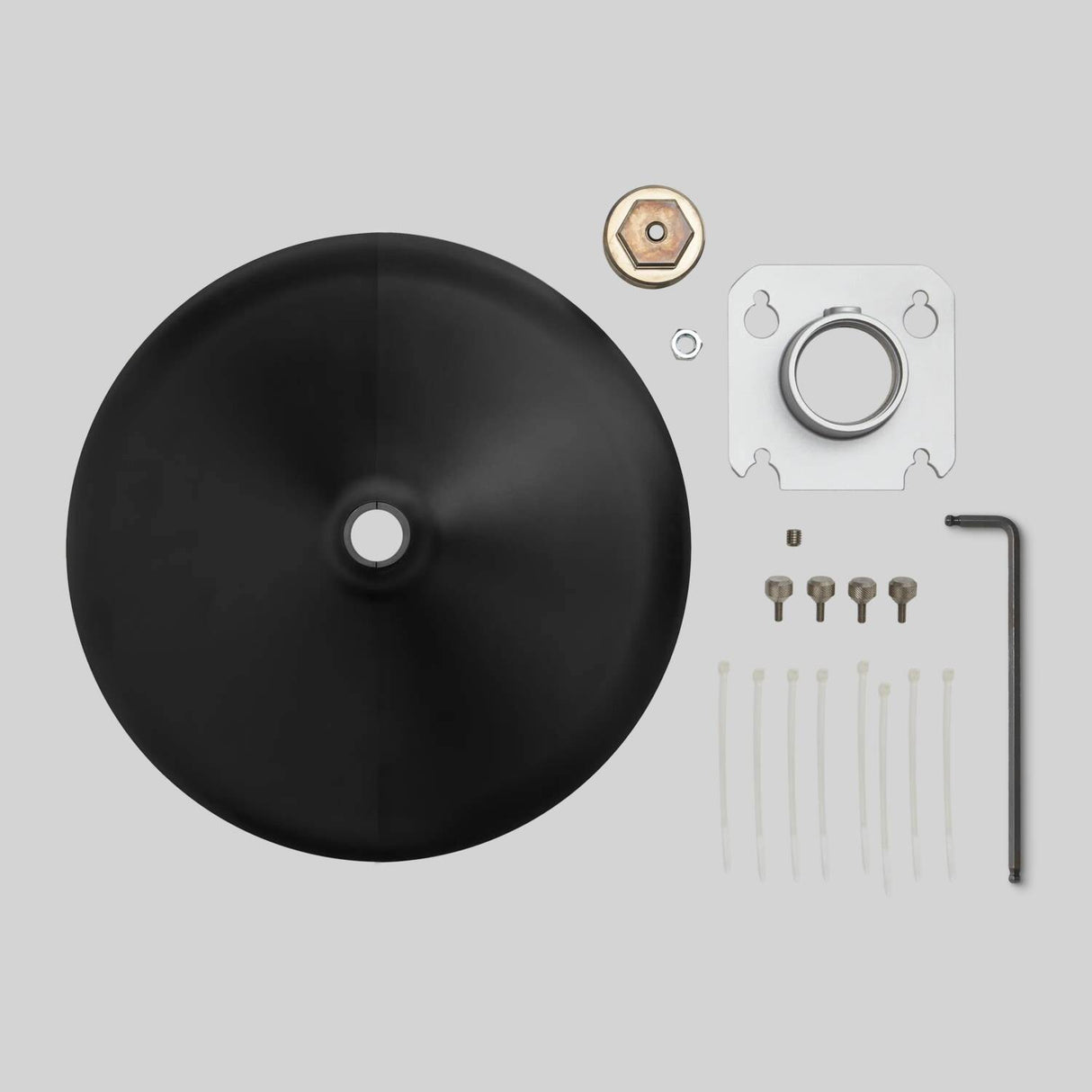

• A901B-R-PM-3/8IN pole mount kit (black), containing:
• 1 x threaded rod cover (black)
• 1 x VESA bracket with set screw
• 4 x thumb screws
• 1 x M4 hex key
• 1 x 3/8 in adapter
• 1 x jam nut
• 8 x cable ties
