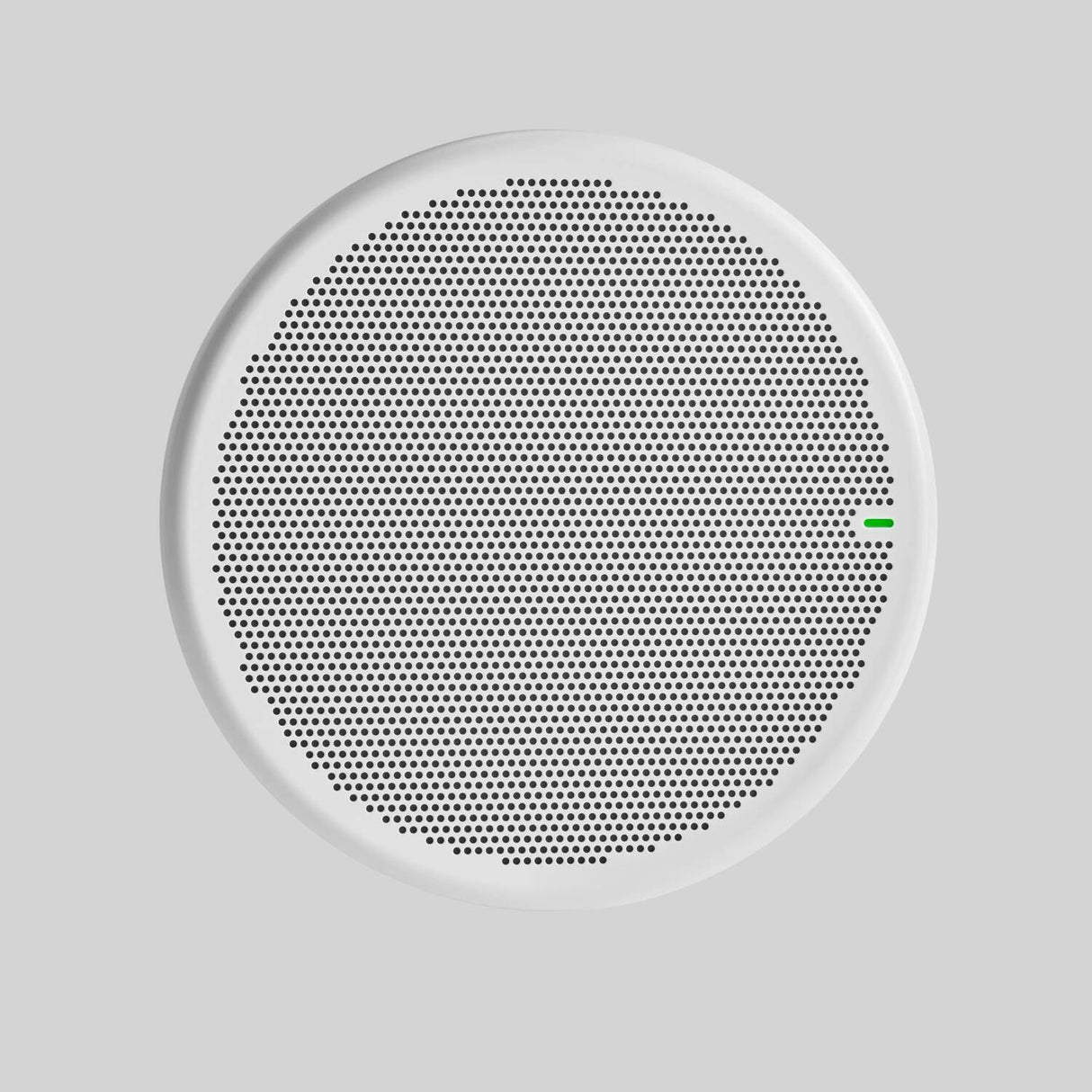

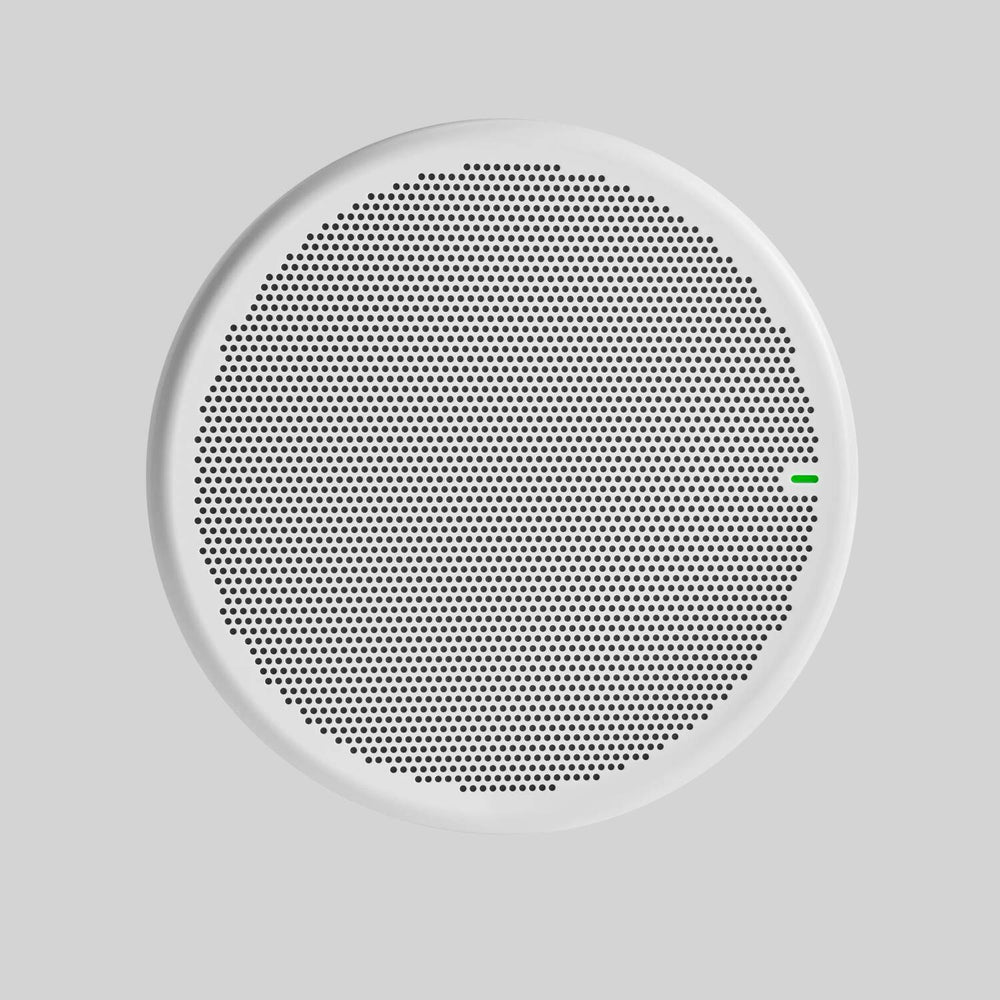

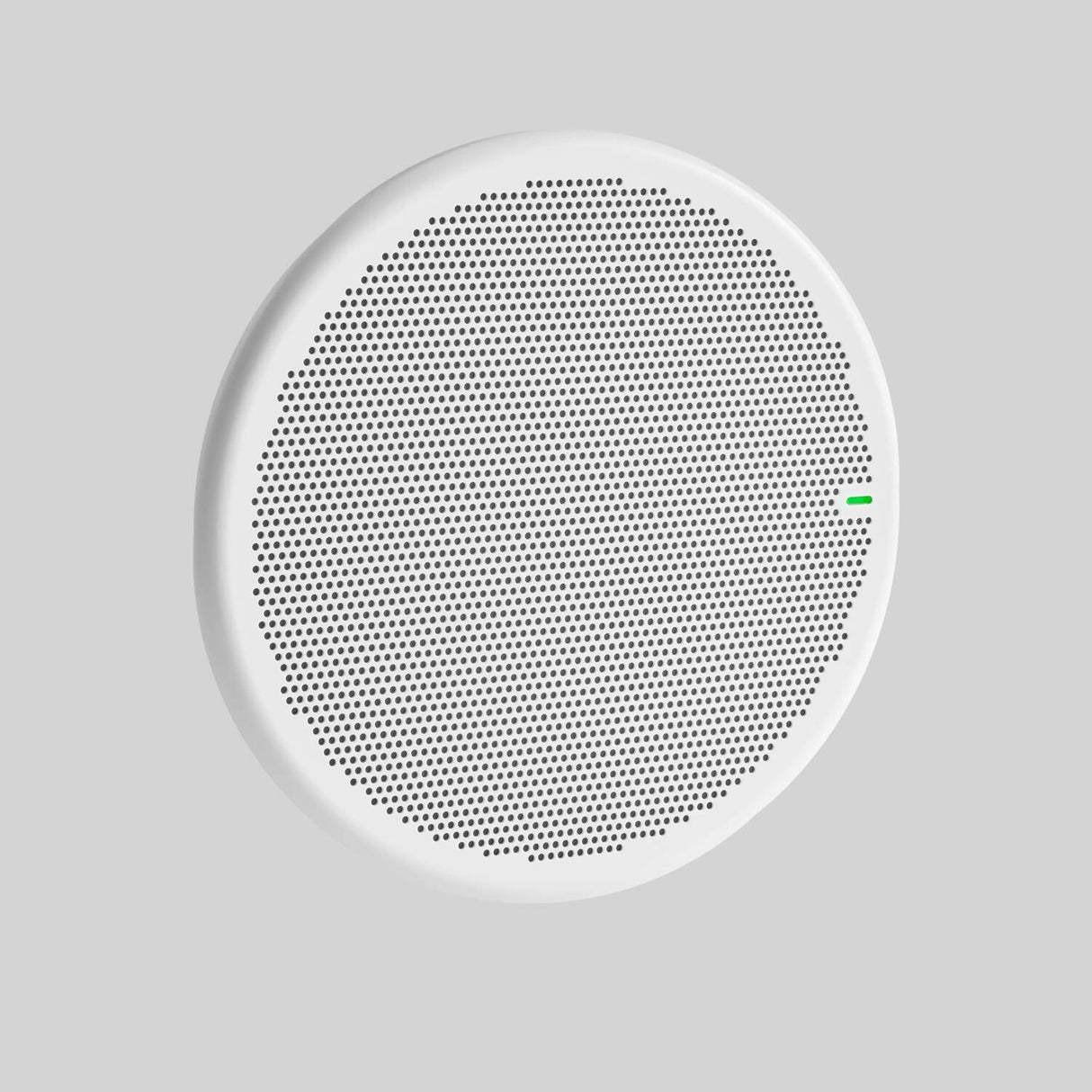

Shure MXA901W-R-GM-V White Ceiling Array Microphone with Suspension Kit

The Shure MXA901-R packs 85 MEMS microphone elements, IntelliMix DSP and Dante audio networking into a 13.5-inch round disc only 1.64 inches deep, running on a single PoE Ethernet cable. Single-Zone Automatic Coverage picks up the entire room out to 20 x 20 feet with no setup at all, and narrows to 10 x 10 feet when the room is smaller or you need to keep an adjacent space out of the mix. Turn automatic coverage off and you can steer up to eight independent lobes exactly where the seats are.

This order code is Shure's factory bundle of the white MXA901W-R array microphone with the A901W-R-GM Gripple suspension mount kit in matching white. Suspension is the right answer when there is no ceiling plane to mount into, or when the structure sits well above the 12-foot maximum recommended mounting height and the microphone needs to come down to the talkers. Three Gripple Angel Side Hook connectors ride on three 10-foot steel cables, so the drop can be dialled in on site and changed later without re-cutting cable, and a white back cover clips over the rear of the array to finish it.

White is the default choice under painted drywall, white open plenums and light-toned architectural ceilings, where a white microphone visually recedes instead of reading as a dark spot overhead. Paired with a Shure IntelliMix Foundation System the MXA901 forms a Microsoft Teams Rooms or Zoom Rooms certified solution, and its command string support lets it feed talker position to third-party cameras and room control systems.

Features

• Includes the A901W-R-GM Gripple suspension mount kit in white for suspending the array from open, exposed or high ceilings
• Three 10 ft steel suspension cables with Gripple Angel Side Hook connectors; drop height is set and re-adjusted by squeezing the connector, no re-cutting
• White back cover snaps over the rear of the microphone for a finished look from the floor
• Eight cable ties are supplied to dress the Ethernet cable along the suspension cable
• Single-Zone Automatic Coverage picks up the whole room with no setup, and adjusts from 10 x 10 ft (3 x 3 m) up to 20 x 20 ft (6.1 x 6.1 m) to match the seating
• Steerable coverage mode places up to 8 independent pickup lobes when automatic coverage is switched off
• 85 MEMS microphone elements in a next-generation array for natural, directional speech capture
• Onboard IntelliMix DSP: acoustic echo cancellation, noise reduction, automatic mixing, automatic gain control, compressor, delay and 4-band parametric EQ
• Dante and AES67 audio networking over a single Cat 5e or better cable, powered by PoE
• Certified for Microsoft Teams and Zoom Rooms, and compatible with leading collaboration platforms
• Standards-based security including 802.1x, secure boot and storage, and AES encryption of control and audio data
• Configurable LED status bar with adjustable color and brightness, plus command strings for third-party camera and room control integration
• Set up and managed with Shure Designer software or the microphone's embedded web application
• UL2043 plenum rated and IP5X dust protected for air-handling spaces

Technical Specifications

• Model: Shure MXA901-R Microflex Advance ceiling array microphone
• Microphone elements: 85 MEMS
• Coverage area: 20 x 20 ft (6.1 x 6.1 m), single-zone automatic; adjustable down to 10 x 10 ft (3 x 3 m)
• Steerable lobes: up to 8 independent lobes in steerable coverage mode
• Frequency response: 100 Hz to 20 kHz
• Sensitivity (at 1 kHz): -4.4 dBFS/Pa
• Maximum SPL (relative to 0 dBFS overload): 98.4 dB SPL
• Signal-to-noise ratio: 67.1 dB A-weighted (ref. 94 dB SPL at 1 kHz)
• Self noise: 26.9 dB SPL-A
• Dynamic range: 71.5 dB
• Latency: 33.5 ms (excluding Dante latency)
• Digital output: Dante or AES67, 2 total channels (1 automix output, 1 AEC reference input)
• Sampling rate / bit depth: 48 kHz / 24-bit
• Acoustic echo cancellation tail length: up to 250 ms
• Power: Power over Ethernet (PoE) Class 0, 10.1 W maximum
• Connector: RJ45; Cat 5e or higher (shielded cable recommended)
• Control software: Shure Designer or embedded web application
• Plenum rating: UL2043 (suitable for air handling spaces)
• Dust protection: IEC 60529 IP5X
• Operating temperature: -6.7 C (20 F) to 40 C (104 F)
• Microphone dimensions: 13.5 in (342.9 mm) diameter x 1.64 in (41.66 mm) high
• Microphone weight: 5 lb (2.3 kg)
• Maximum recommended mounting height: 12 ft (3.7 m)
• Mount supplied: A901W-R-GM Gripple suspension mount kit, white cover
• Suspension cable: 3 x 10 ft (3 m) steel cables with Gripple Angel Side Hook connectors
• Gripple working load limit at vertical: 33 lb (15 kg)
• Microphone finish: white
• Note: hardware to attach the suspension cables to the building structure is not included

What's Included

• Shure MXA901-R Microflex Advance ceiling array microphone (white)
• RPM901-R-Install Kit: network port cover, surface mount, round VESA bracket and 4 M4 screws

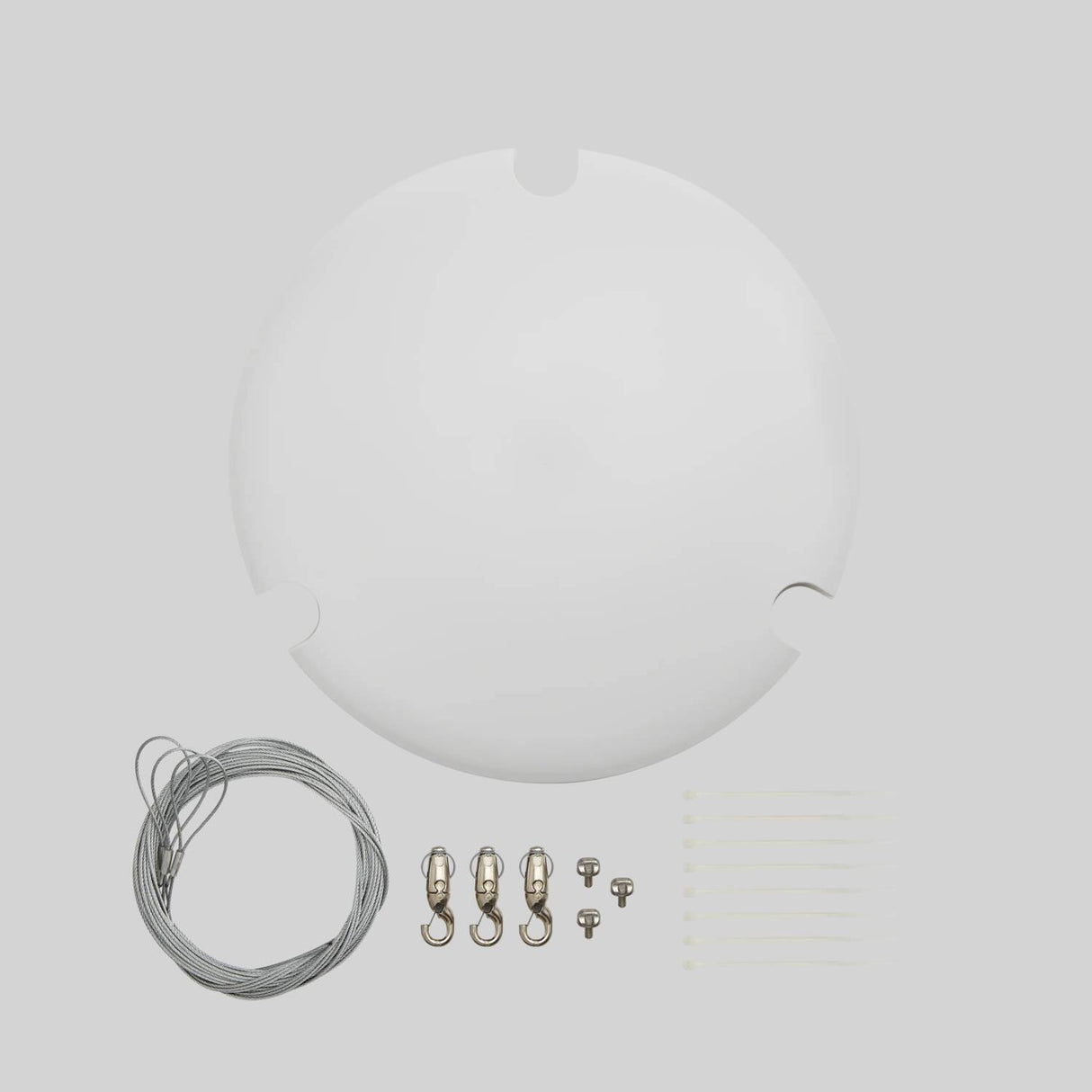

• A901W-R-GM Gripple suspension mount kit (white), containing:
• 3 x Gripple Angel Side Hook connectors
• 3 x 10 ft steel cables
• 3 x M4 eyelet screws
• 8 x cable ties
• 1 x white back cover
