Shure MXA901W-R-HCM-V White Ceiling Array Mic Drywall Flush Mount Kit

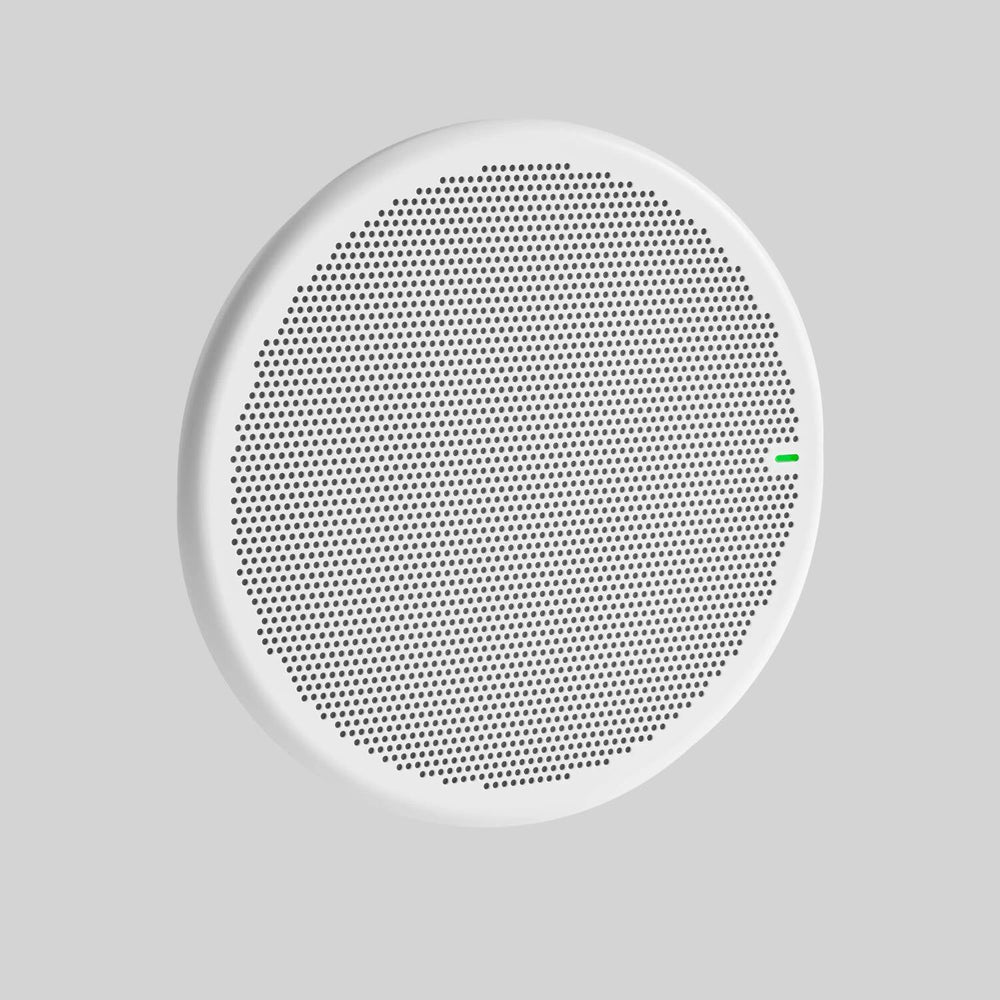

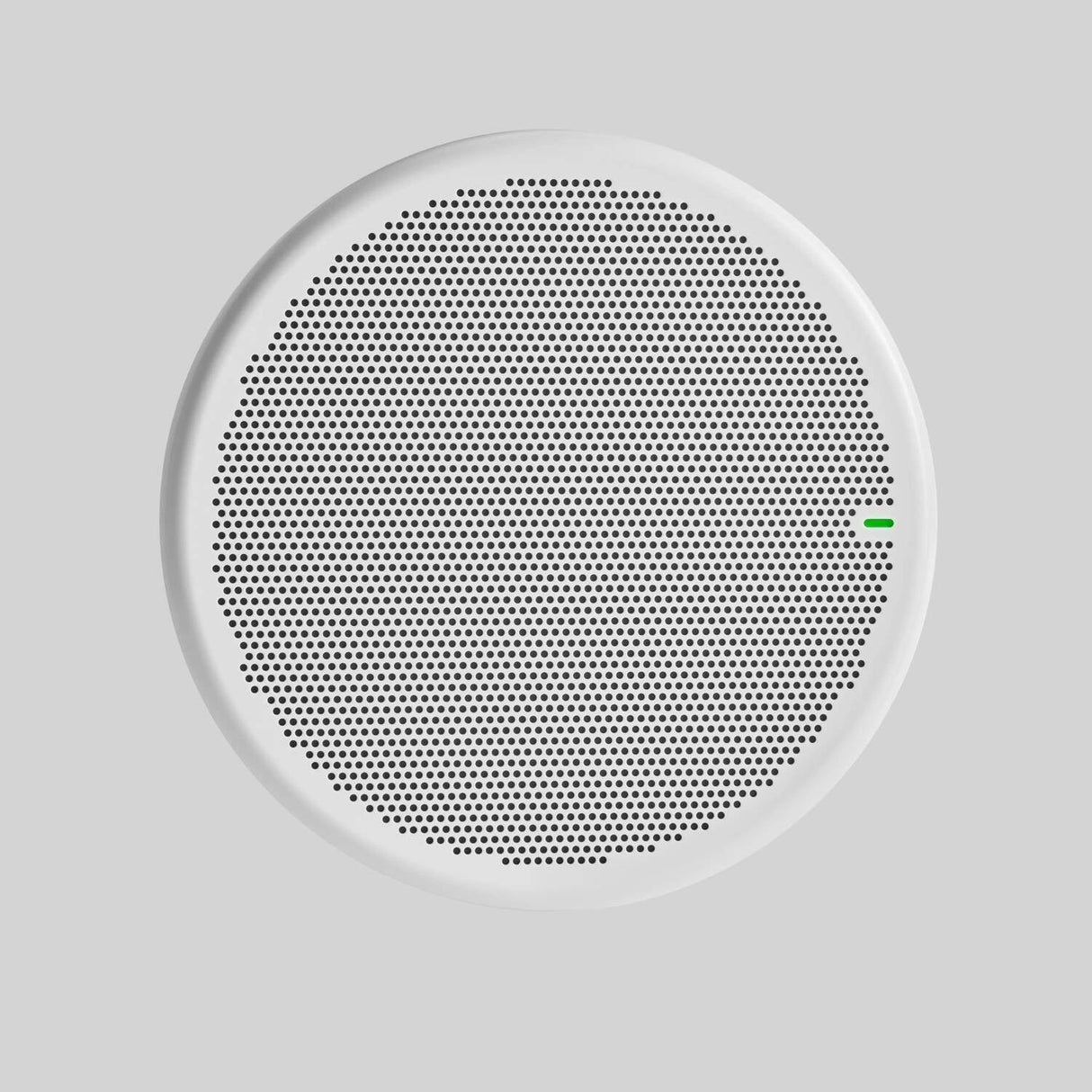

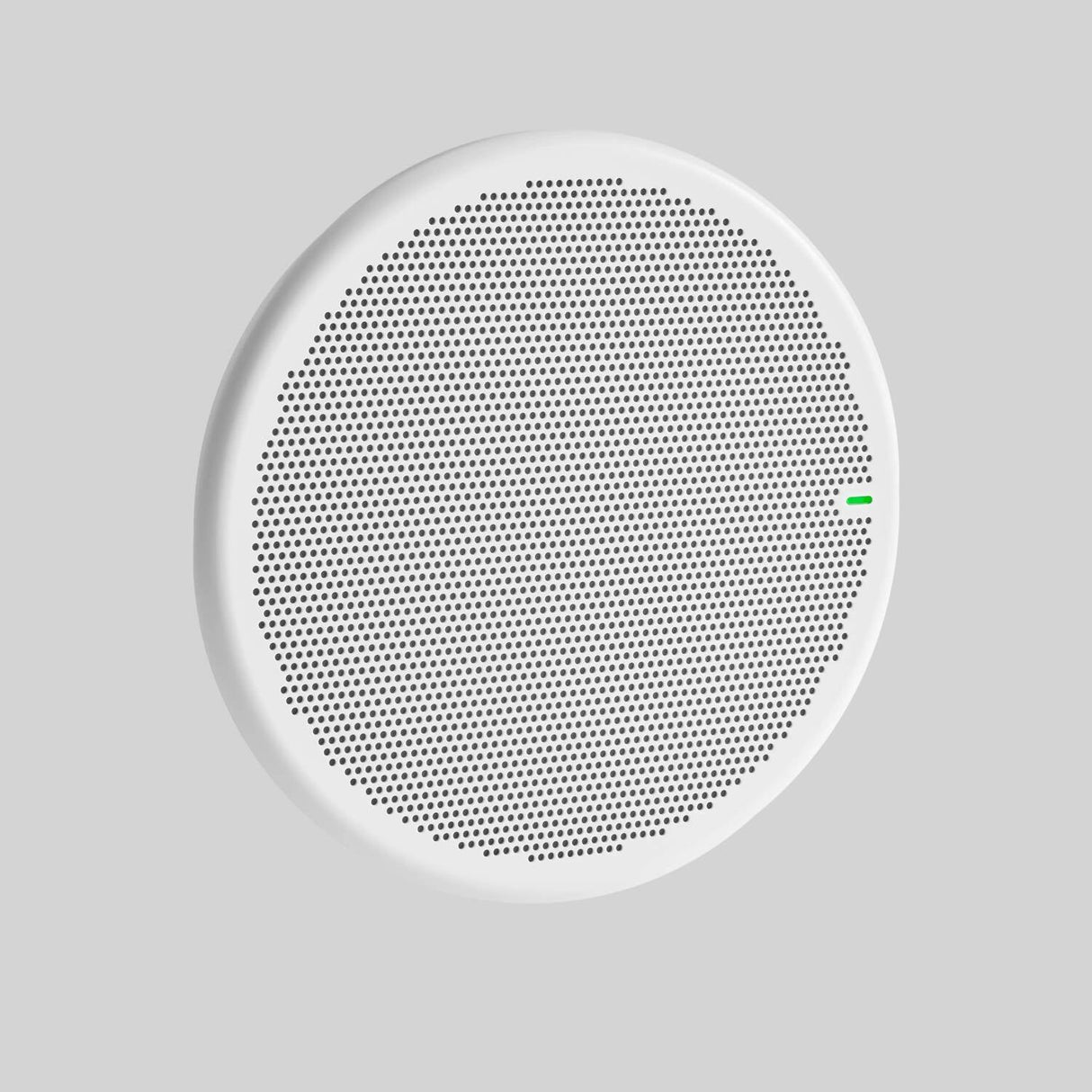

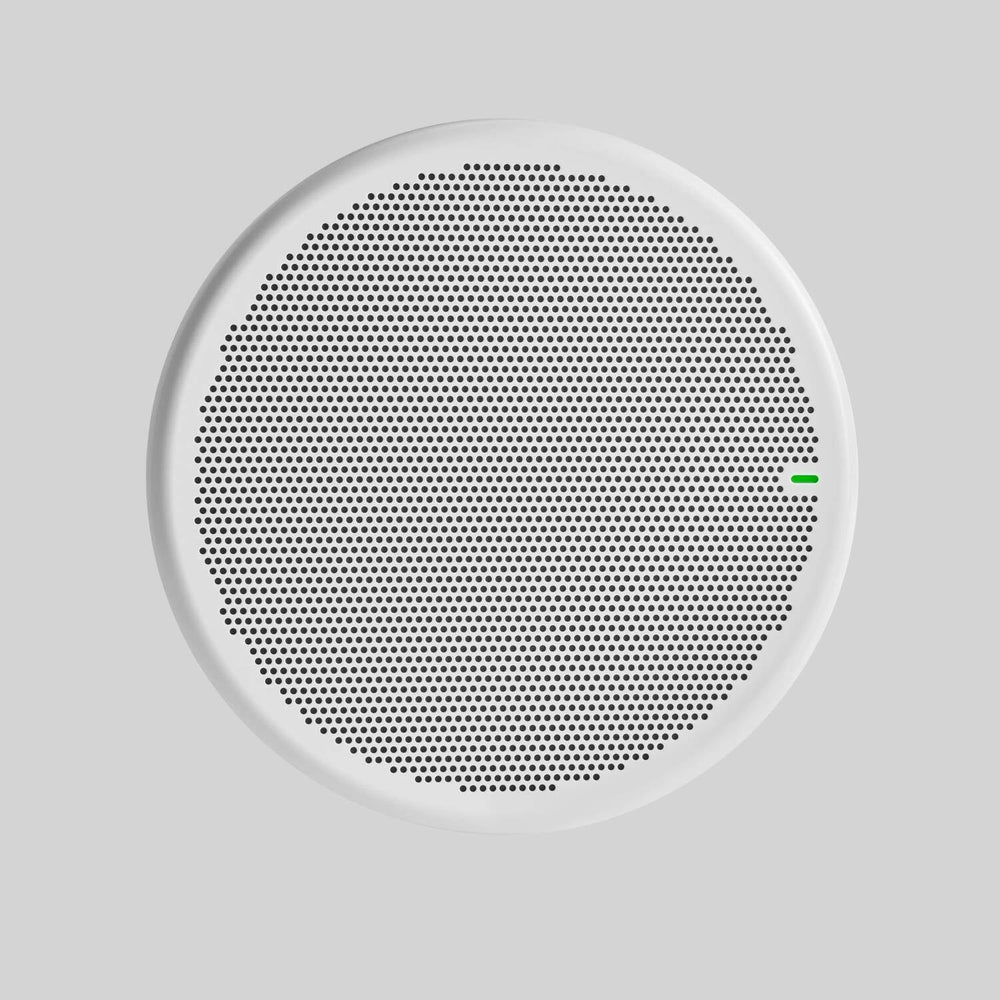

The Shure MXA901-R is a 13.5-inch round ceiling array microphone containing 85 MEMS elements, onboard IntelliMix DSP and Dante audio networking, all fed by one PoE Ethernet cable. Single-Zone Automatic Coverage captures talkers across a 20 x 20 foot room with no aiming or tuning and can be narrowed to 10 x 10 feet, and when a room needs manual control the automatic mode gives way to up to eight steerable pickup lobes placed in Shure Designer.

This order code is Shure's factory bundle of the white MXA901W-R array microphone with the A901-R-HCM hard ceiling mount kit, the option for installing the array into a solid drywall ceiling. Rather than hanging below the ceiling, the microphone sits nearly flush with the surrounding surface: you cut a 13.85-inch (352 mm) hole using the supplied template, drop the mount in, and tighten three screws that swing three support arms up to grip the back of the drywall. The result is the most architecturally discreet way to deploy an MXA901, which is why it is specified for executive boardrooms, courtrooms, training rooms and any finished space where visible hardware is unwelcome.

The mount's trim is white to match the white MXA901W-R, and it can be painted if the ceiling is a different color. Before ordering, confirm the ceiling is between 0.375 and 1.25 inches thick and that there is at least 2.5 inches of clear space above it. If the ceiling is a suspended tile grid rather than drywall, the A901-R-TB tile bridge kit is the correct accessory instead.

Features

• Includes the A901-R-HCM hard ceiling mount kit for installing the array in a drywall ceiling
• Microphone sits nearly flush with the surrounding ceiling for the most discreet appearance of any MXA901 mounting option
• Three support arms clamp the mount to the back of the drywall by tightening three screws from below
• Mounting template supplied for cutting the ceiling opening accurately
• Seismic tie-off point provided for a safety tether where local regulations require one
• White trim matches the white MXA901W-R and can be painted to suit the ceiling
• Single-Zone Automatic Coverage picks up the whole room with no setup, and adjusts from 10 x 10 ft (3 x 3 m) up to 20 x 20 ft (6.1 x 6.1 m) to match the seating
• Steerable coverage mode places up to 8 independent pickup lobes when automatic coverage is switched off
• 85 MEMS microphone elements in a next-generation array for natural, directional speech capture
• Onboard IntelliMix DSP: acoustic echo cancellation, noise reduction, automatic mixing, automatic gain control, compressor, delay and 4-band parametric EQ
• Dante and AES67 audio networking over a single Cat 5e or better cable, powered by PoE
• Certified for Microsoft Teams and Zoom Rooms, and compatible with leading collaboration platforms
• Standards-based security including 802.1x, secure boot and storage, and AES encryption of control and audio data
• Configurable LED status bar with adjustable color and brightness, plus command strings for third-party camera and room control integration
• Set up and managed with Shure Designer software or the microphone's embedded web application
• UL2043 plenum rated and IP5X dust protected for air-handling spaces

Technical Specifications

• Model: Shure MXA901-R Microflex Advance ceiling array microphone
• Microphone elements: 85 MEMS
• Coverage area: 20 x 20 ft (6.1 x 6.1 m), single-zone automatic; adjustable down to 10 x 10 ft (3 x 3 m)
• Steerable lobes: up to 8 independent lobes in steerable coverage mode
• Frequency response: 100 Hz to 20 kHz
• Sensitivity (at 1 kHz): -4.4 dBFS/Pa
• Maximum SPL (relative to 0 dBFS overload): 98.4 dB SPL
• Signal-to-noise ratio: 67.1 dB A-weighted (ref. 94 dB SPL at 1 kHz)
• Self noise: 26.9 dB SPL-A
• Dynamic range: 71.5 dB
• Latency: 33.5 ms (excluding Dante latency)
• Digital output: Dante or AES67, 2 total channels (1 automix output, 1 AEC reference input)
• Sampling rate / bit depth: 48 kHz / 24-bit
• Acoustic echo cancellation tail length: up to 250 ms
• Power: Power over Ethernet (PoE) Class 0, 10.1 W maximum
• Connector: RJ45; Cat 5e or higher (shielded cable recommended)
• Control software: Shure Designer or embedded web application
• Plenum rating: UL2043 (suitable for air handling spaces)
• Dust protection: IEC 60529 IP5X
• Operating temperature: -6.7 C (20 F) to 40 C (104 F)
• Microphone dimensions: 13.5 in (342.9 mm) diameter x 1.64 in (41.66 mm) high
• Microphone weight: 5 lb (2.3 kg)
• Maximum recommended mounting height: 12 ft (3.7 m)
• Mount supplied: A901-R-HCM hard ceiling mount kit (white trim, paintable)
• Ceiling opening required: 13.85 in (352 mm) diameter
• Compatible ceiling thickness: 0.375 to 1.25 in (9.5 to 31.75 mm)
• Clearance required above ceiling: minimum 2.5 in (63.5 mm)
• Installation tools required (not included): drywall saw or other cutting tool, Torx T20 screwdriver, Ethernet cable
• Microphone finish: white

What's Included

• Shure MXA901-R Microflex Advance ceiling array microphone (white)
• RPM901-R-Install Kit: network port cover, surface mount, round VESA bracket and 4 M4 screws

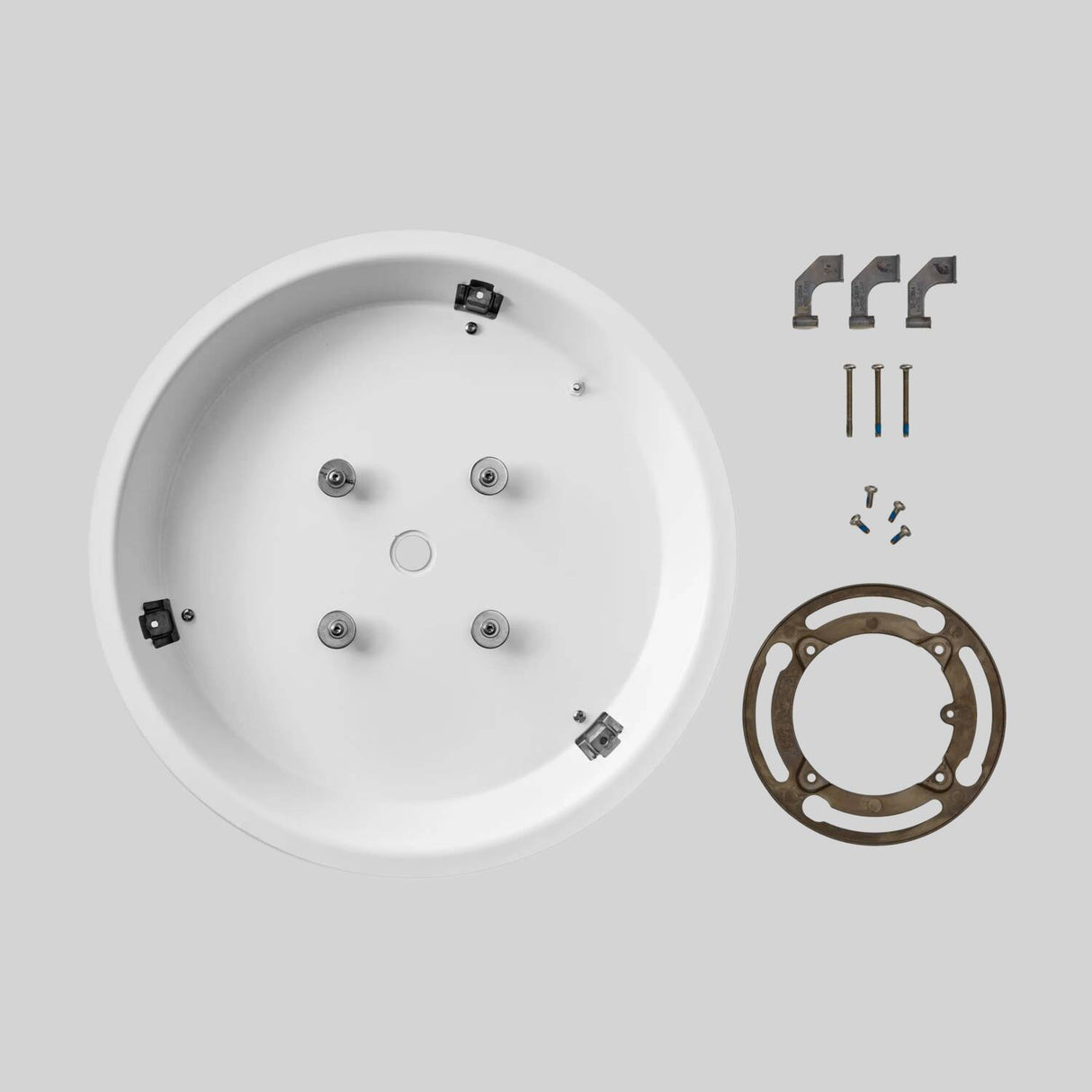

• A901-R-HCM hard ceiling mount kit, containing:
• 1 x ceiling mount
• 1 x round VESA bracket
• 4 x M4 screws
• 3 x support arms
• 3 x M4x40 screws
• 1 x mounting template
