Shure MXA901W-R-PM-3/8-V White Ceiling Array Mic 3/8 in Rod Mount Kit

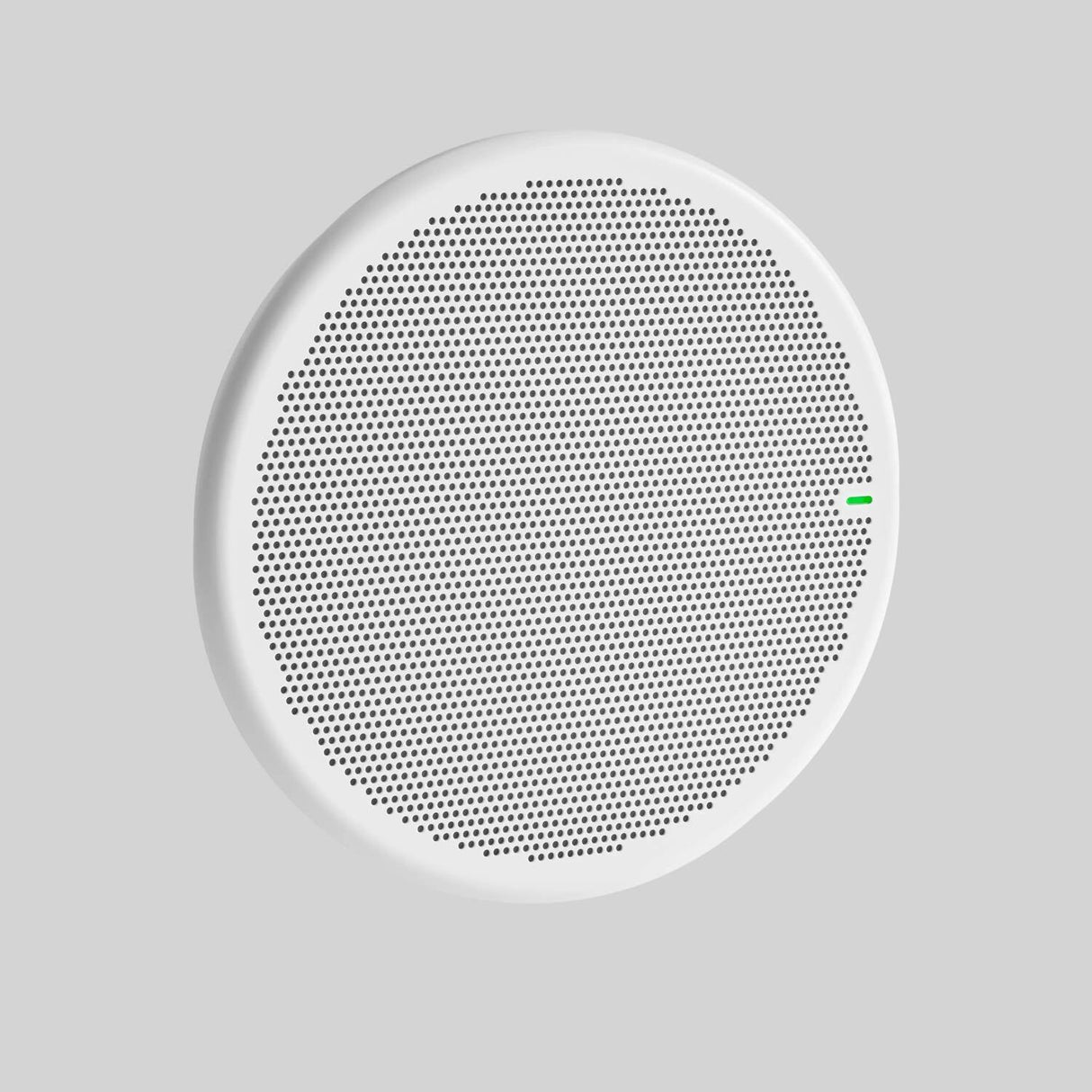

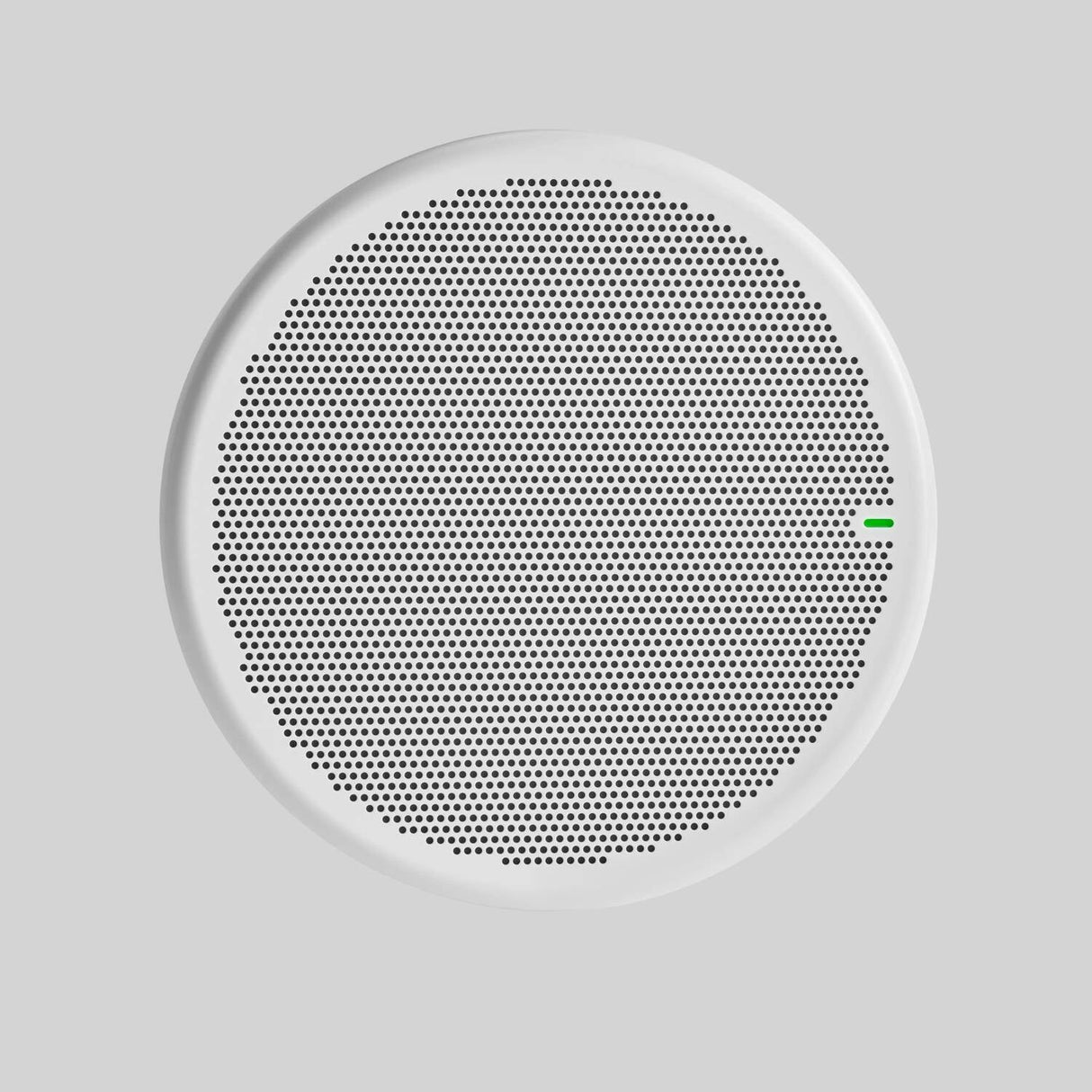

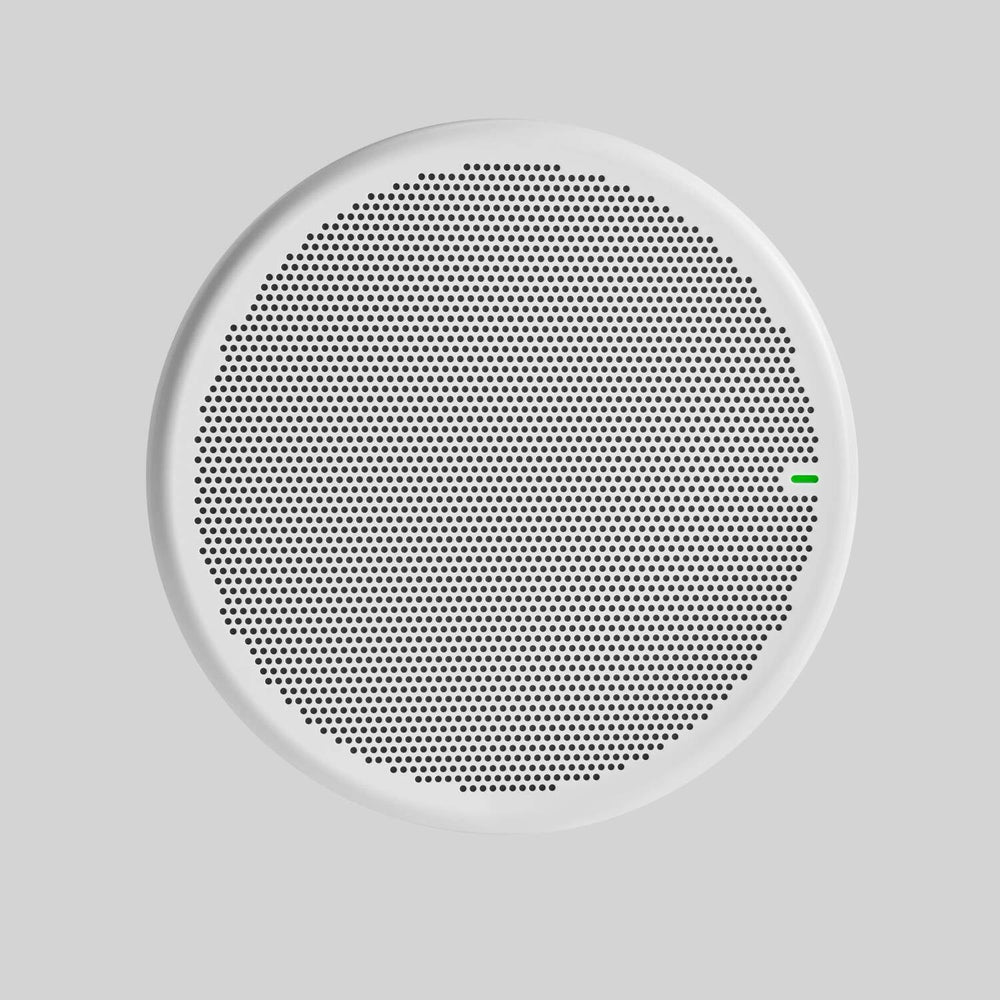

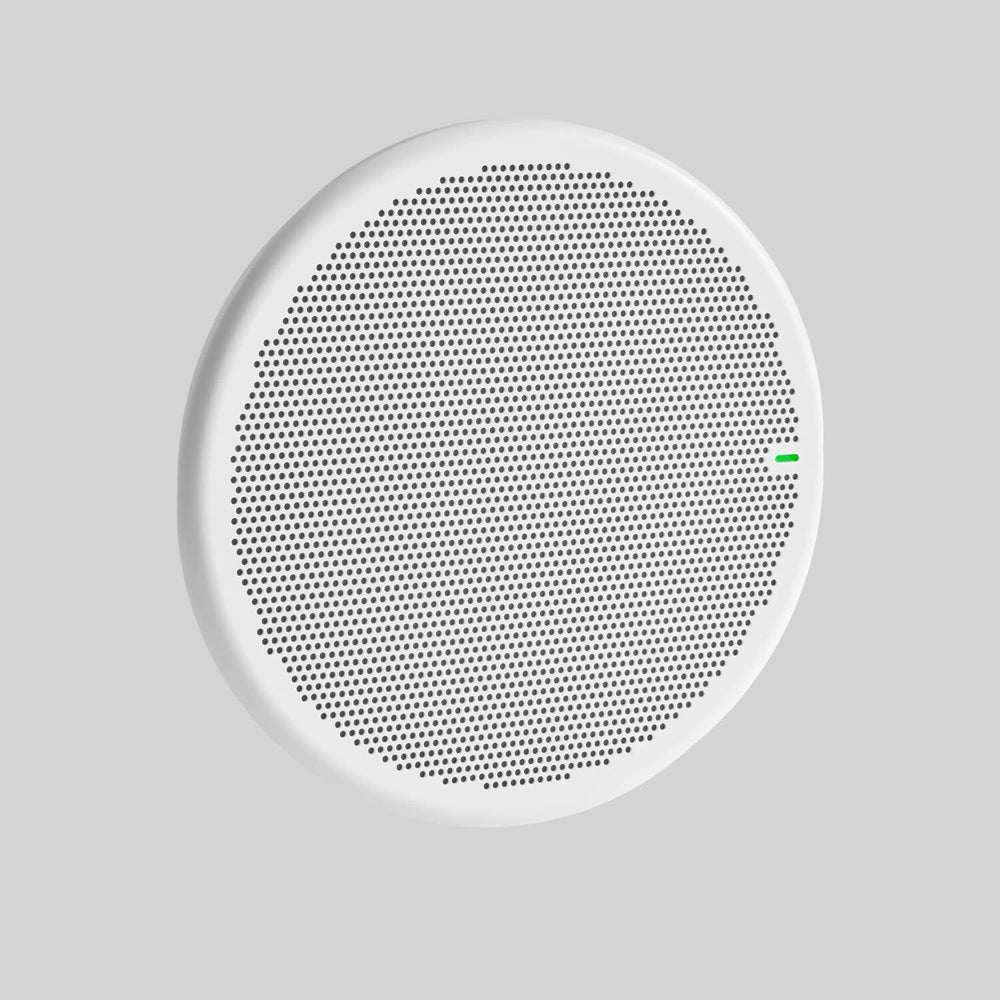

The Shure MXA901-R is a 13.5-inch round ceiling array microphone built around 85 MEMS elements, with IntelliMix DSP and Dante or AES67 networking on board and a maximum draw of 10.1 watts over PoE. Single-Zone Automatic Coverage picks up a 20 x 20 foot room with no setup and can be tightened to 10 x 10 feet, while steerable coverage mode offers up to eight independently placed pickup lobes for rooms that need them.

This order code is Shure's factory bundle of the white MXA901W-R array microphone with the A901W-R-PM-3/8IN pole mount kit in matching white, which mounts the array on 3/8-inch diameter threaded rod. Threaded rod is the least visually intrusive rigid drop for this microphone and is frequently the fastest install in a plenum that is already hung with rod, because the same stock, anchors and seismic practice already in use overhead carry the array. The kit supplies a 3/8-inch adapter and jam nut on top of the standard pole mount hardware, plus eight cable ties for dressing the Ethernet cable neatly along the rod.

The VESA bracket set screw locks rotation, so the mute status LED bar can be aimed at the room during commissioning and stays there. White cover and white microphone body keep the drop quiet under light-toned ceilings. Threaded rod and its ceiling anchor are not included.

Features

• Includes the A901W-R-PM-3/8IN pole mount kit in white for mounting the array on 3/8-inch threaded rod
• Threaded rod gives the slimmest rigid drop for this microphone and suits plenums already hung with rod
• 3/8-inch adapter and jam nut supplied in addition to the standard pole mount hardware
• VESA bracket set screw locks rotation so the mute status LED bar faces the direction you choose
• Eight cable ties supplied to dress the Ethernet cable along the rod; M4 hex key included
• White threaded rod cover conceals the rod termination and matches the white microphone body
• Single-Zone Automatic Coverage picks up the whole room with no setup, and adjusts from 10 x 10 ft (3 x 3 m) up to 20 x 20 ft (6.1 x 6.1 m) to match the seating
• Steerable coverage mode places up to 8 independent pickup lobes when automatic coverage is switched off
• 85 MEMS microphone elements in a next-generation array for natural, directional speech capture
• Onboard IntelliMix DSP: acoustic echo cancellation, noise reduction, automatic mixing, automatic gain control, compressor, delay and 4-band parametric EQ
• Dante and AES67 audio networking over a single Cat 5e or better cable, powered by PoE
• Certified for Microsoft Teams and Zoom Rooms, and compatible with leading collaboration platforms
• Standards-based security including 802.1x, secure boot and storage, and AES encryption of control and audio data
• Configurable LED status bar with adjustable color and brightness, plus command strings for third-party camera and room control integration
• Set up and managed with Shure Designer software or the microphone's embedded web application
• UL2043 plenum rated and IP5X dust protected for air-handling spaces

Technical Specifications

• Model: Shure MXA901-R Microflex Advance ceiling array microphone
• Microphone elements: 85 MEMS
• Coverage area: 20 x 20 ft (6.1 x 6.1 m), single-zone automatic; adjustable down to 10 x 10 ft (3 x 3 m)
• Steerable lobes: up to 8 independent lobes in steerable coverage mode
• Frequency response: 100 Hz to 20 kHz
• Sensitivity (at 1 kHz): -4.4 dBFS/Pa
• Maximum SPL (relative to 0 dBFS overload): 98.4 dB SPL
• Signal-to-noise ratio: 67.1 dB A-weighted (ref. 94 dB SPL at 1 kHz)
• Self noise: 26.9 dB SPL-A
• Dynamic range: 71.5 dB
• Latency: 33.5 ms (excluding Dante latency)
• Digital output: Dante or AES67, 2 total channels (1 automix output, 1 AEC reference input)
• Sampling rate / bit depth: 48 kHz / 24-bit
• Acoustic echo cancellation tail length: up to 250 ms
• Power: Power over Ethernet (PoE) Class 0, 10.1 W maximum
• Connector: RJ45; Cat 5e or higher (shielded cable recommended)
• Control software: Shure Designer or embedded web application
• Plenum rating: UL2043 (suitable for air handling spaces)
• Dust protection: IEC 60529 IP5X
• Operating temperature: -6.7 C (20 F) to 40 C (104 F)
• Microphone dimensions: 13.5 in (342.9 mm) diameter x 1.64 in (41.66 mm) high
• Microphone weight: 5 lb (2.3 kg)
• Maximum recommended mounting height: 12 ft (3.7 m)
• Mount supplied: A901W-R-PM-3/8IN pole mount kit, white cover
• Rod compatibility: 3/8 in diameter threaded rod (rod not included)

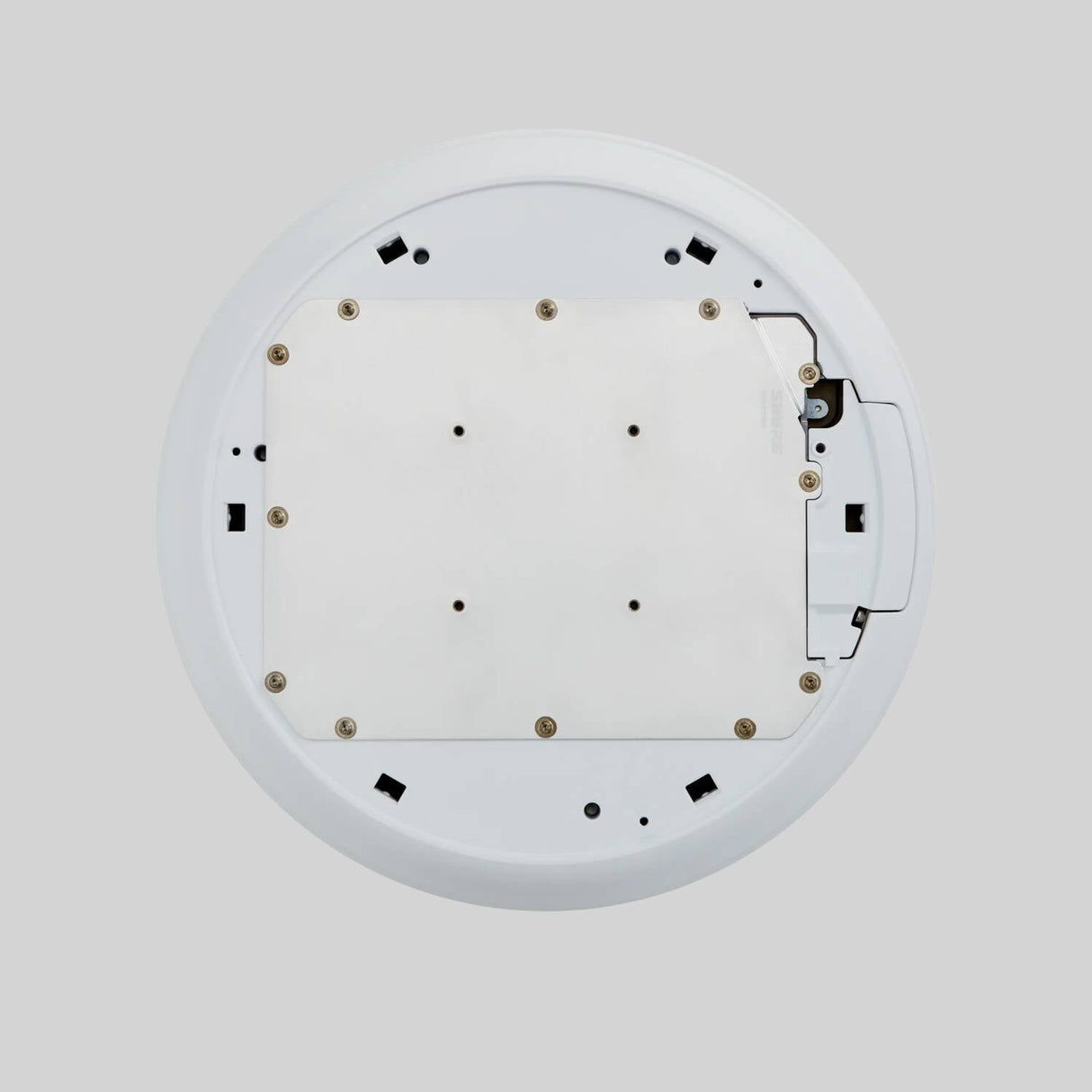

• Microphone attachment: VESA MIS-D, 75 mm square hole spacing, M4 thread (hole depth 9.15 mm)
• Microphone finish: white

What's Included

• Shure MXA901-R Microflex Advance ceiling array microphone (white)
• RPM901-R-Install Kit: network port cover, surface mount, round VESA bracket and 4 M4 screws

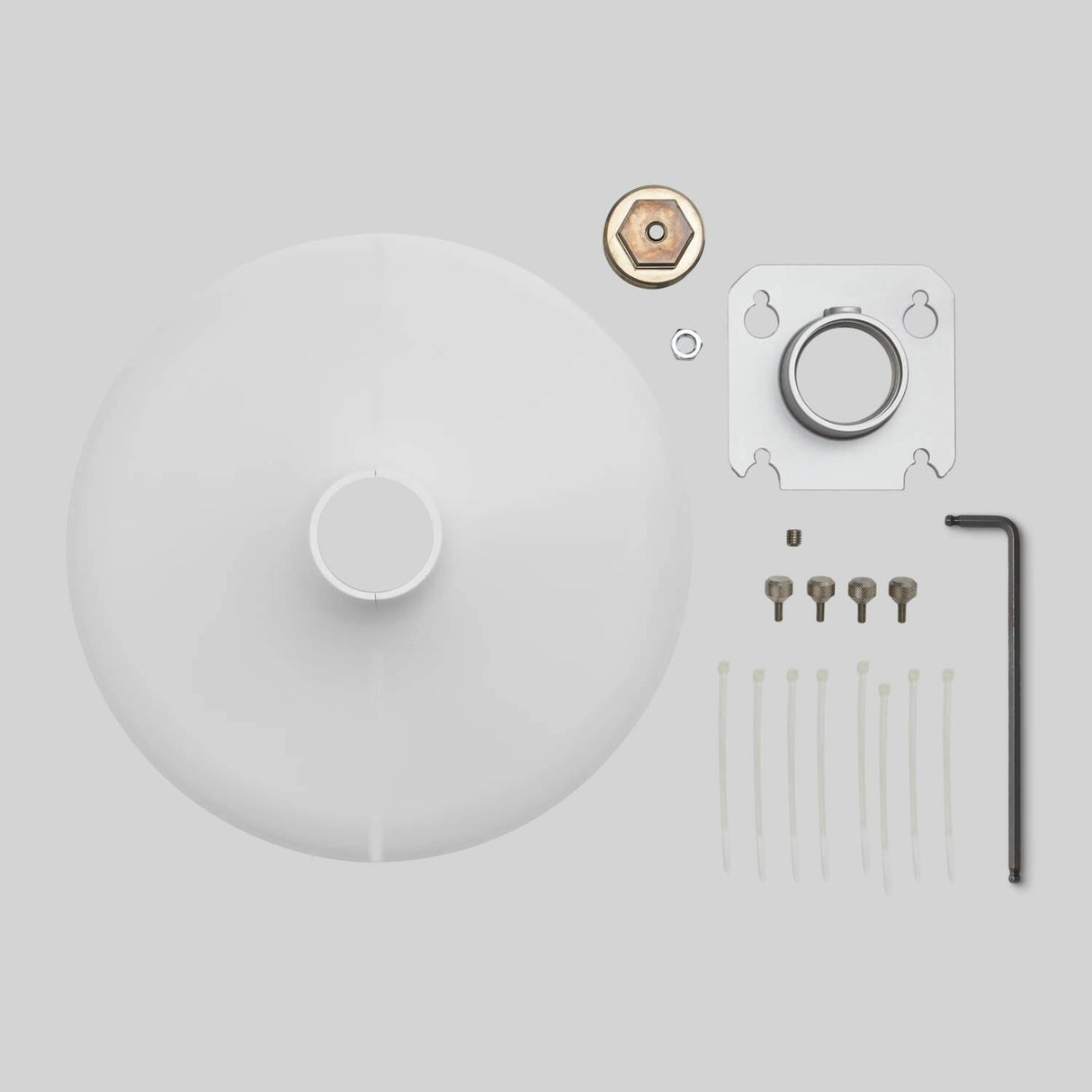

• A901W-R-PM-3/8IN pole mount kit (white), containing:
• 1 x threaded rod cover (white)
• 1 x VESA bracket with set screw
• 4 x thumb screws
• 1 x M4 hex key
• 1 x 3/8 in adapter
• 1 x jam nut
• 8 x cable ties
