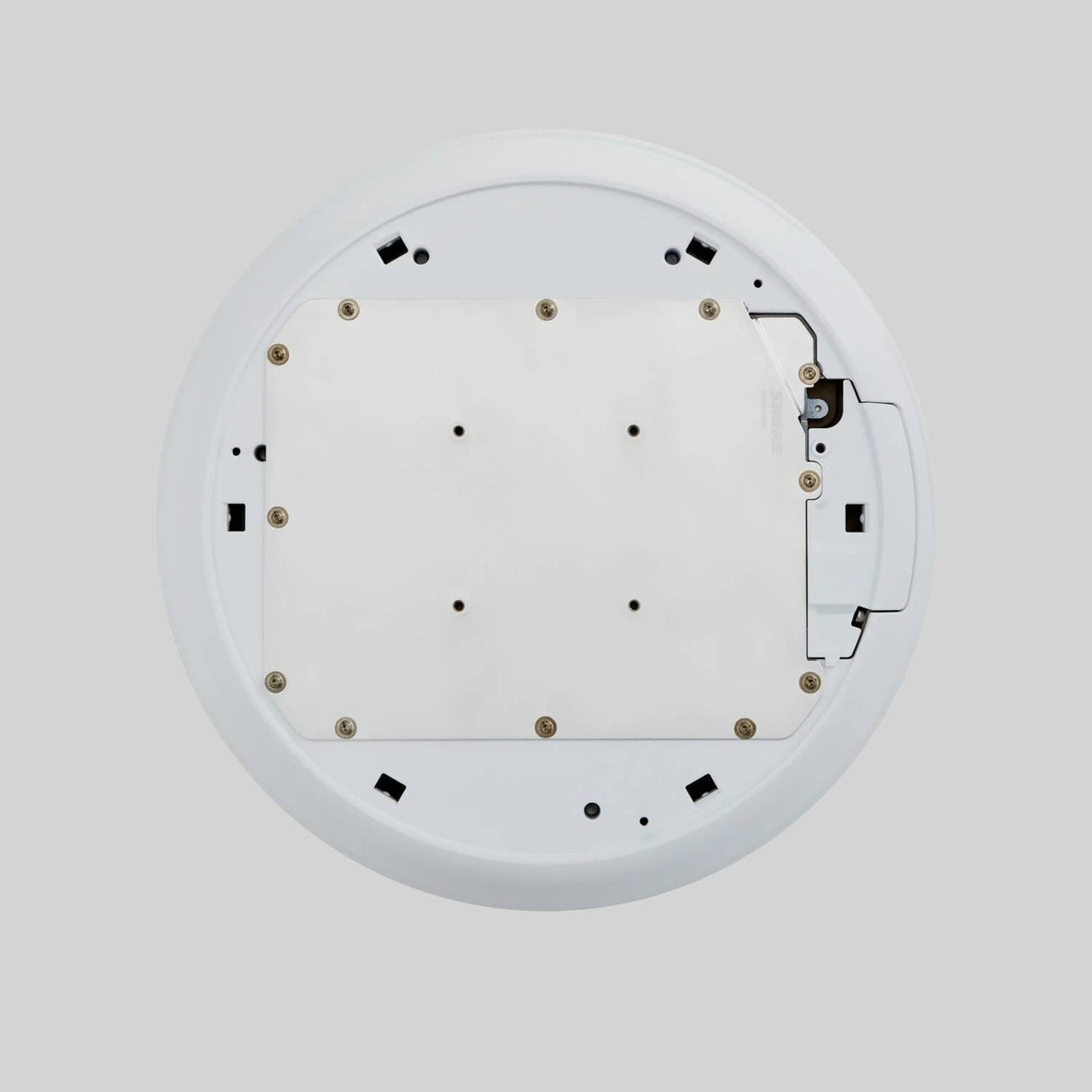

Shure MXA901W-R-TB-V White Ceiling Array Mic Ceiling Tile Bridge Kit

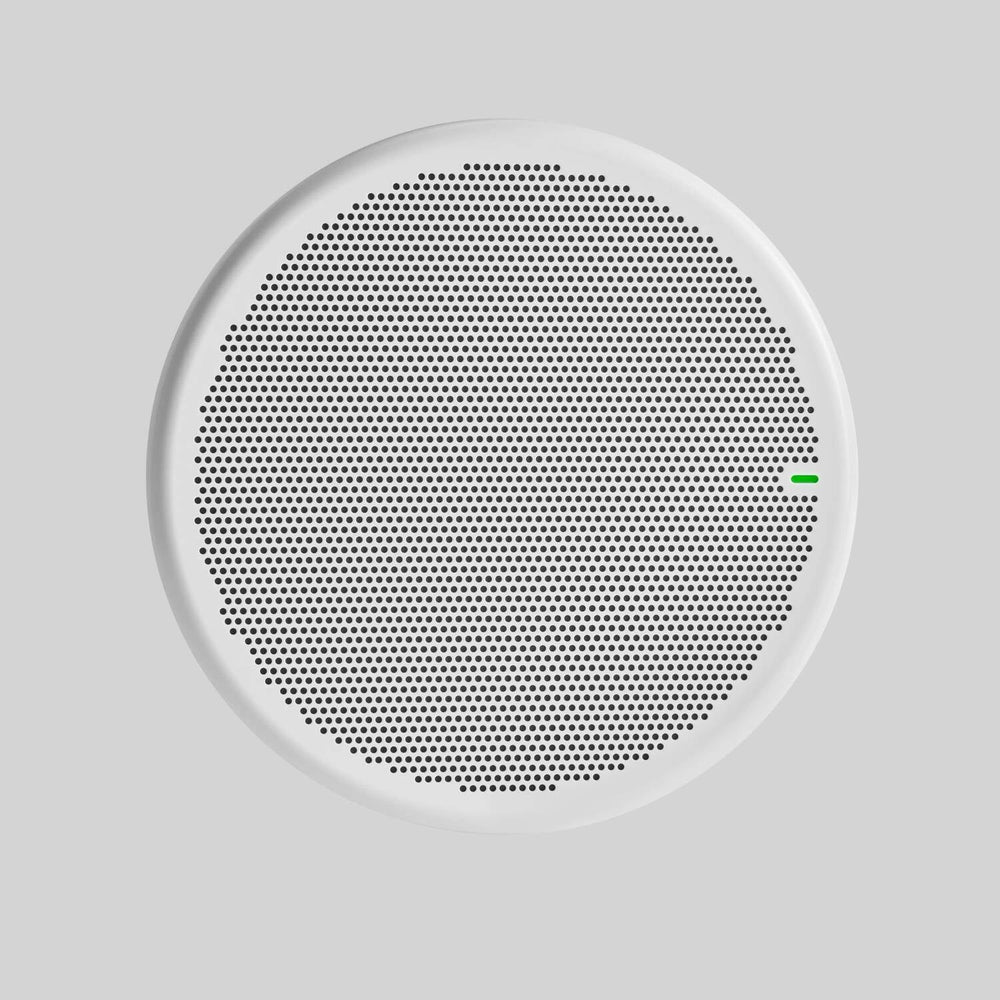

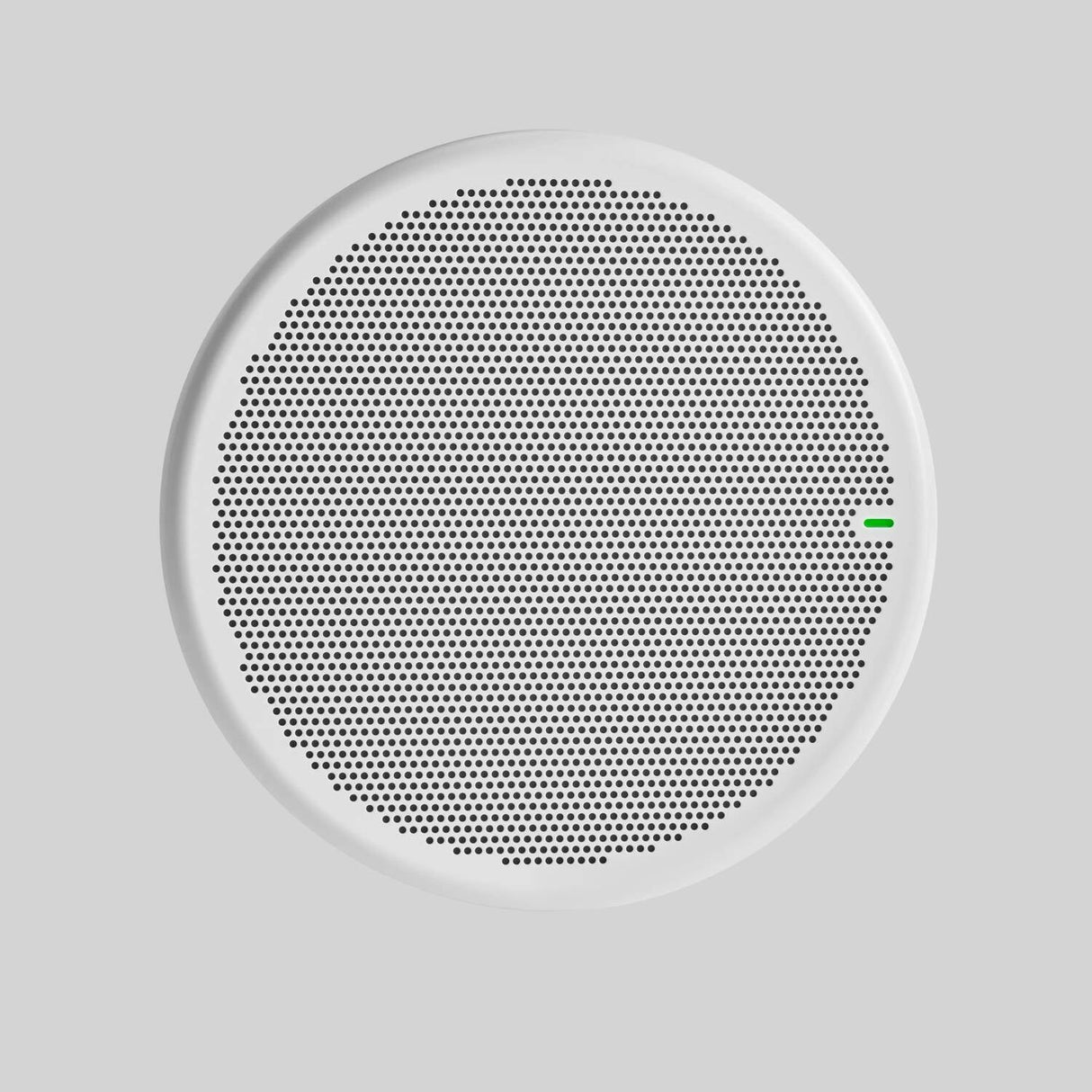

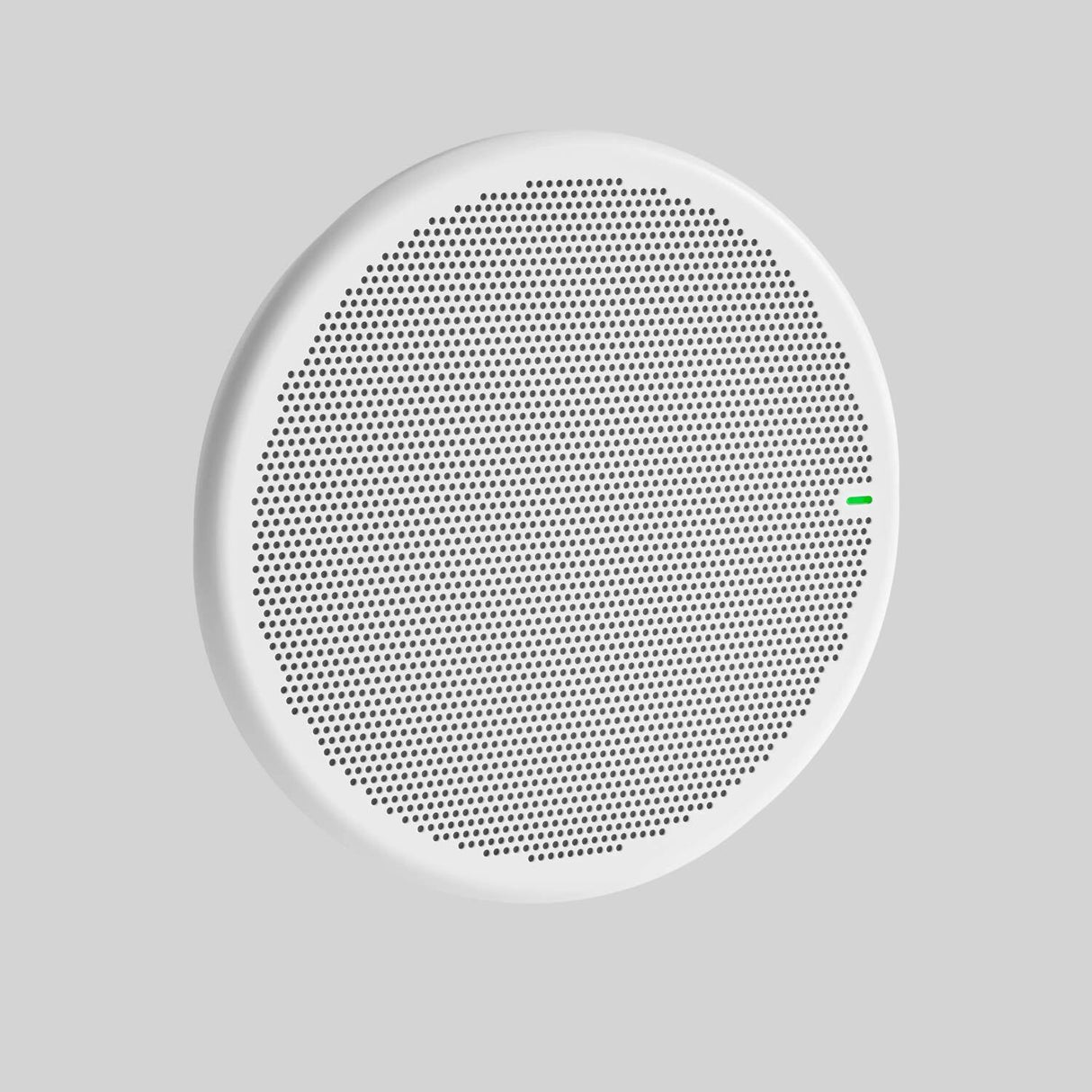

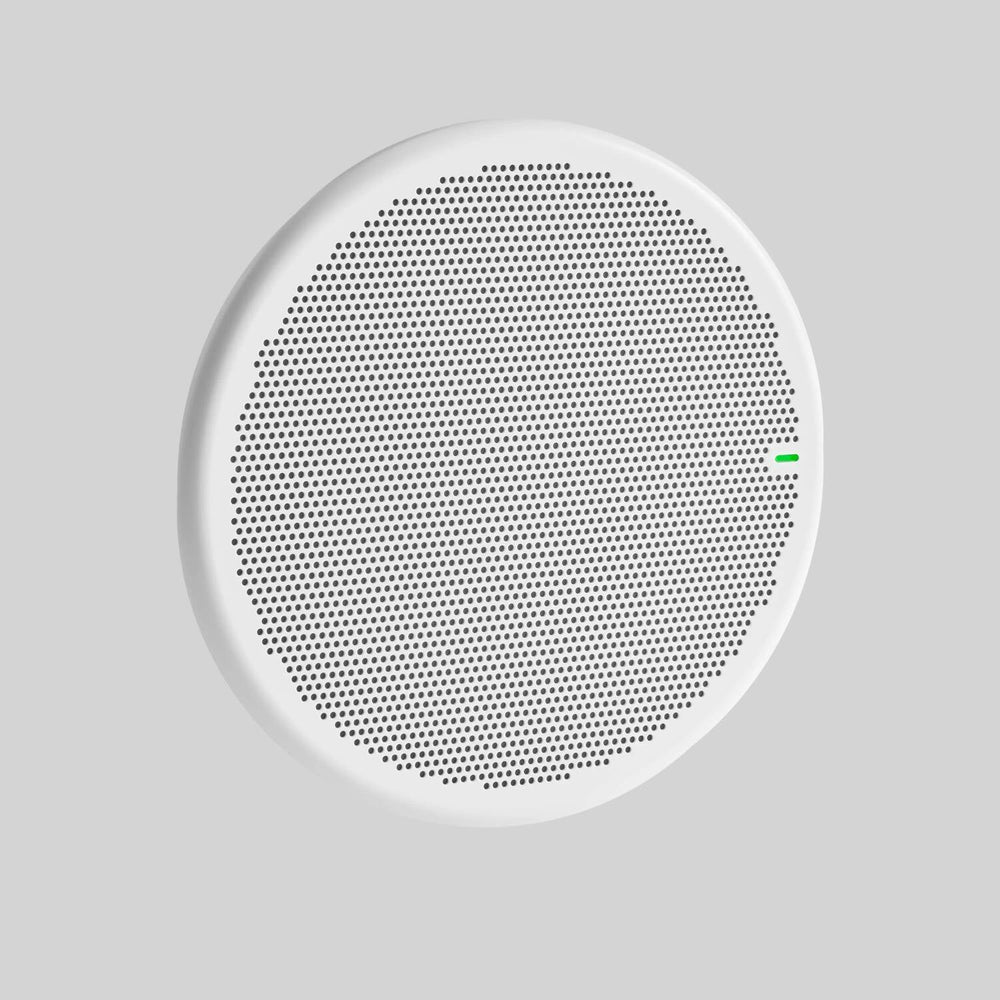

The Shure MXA901-R brings 85 MEMS microphone elements, IntelliMix DSP and Dante networking together in a 13.5-inch round disc only 1.64 inches deep, powered and connected by one PoE Ethernet run. Single-Zone Automatic Coverage handles a room up to 20 x 20 feet with no setup, adjusts down to 10 x 10 feet to keep an adjacent space out of the mix, and can be replaced with up to eight hand-steered pickup lobes when the room calls for it.

This order code is Shure's factory bundle of the white MXA901W-R array microphone with the A901-R-TB tile bridge kit, the option for installing the array into a standard suspended tile grid ceiling. The tile bridge rests on the grid's T-bars above the tile and carries the weight of the microphone off the ceiling tile itself, and the ceiling mount then installs into the bridge so the array finishes nearly flush with the tile. It fits both 24-inch and 60 cm tile grids, and the bridge position is adjustable horizontally and vertically so the microphone can be centred properly in the tile.

This is the most common architectural install for corporate meeting rooms, training rooms and classrooms, where a flush white disc in a white tile ceiling is far less conspicuous than a suspended or pole-mounted array. The mount's trim is white to match the white MXA901W-R and can be painted. Confirm the tile is between 0.375 and 1.25 inches thick with at least 2.5 inches of clear space above it before ordering; for a solid drywall ceiling, use the A901-R-HCM hard ceiling mount instead.

Features

• Includes the A901-R-TB tile bridge kit for installing the array in a standard suspended tile grid ceiling
• Tile bridge rests on the ceiling grid T-bars so the microphone's weight is carried by the grid, not the tile
• Fits both 24 in and 60 cm tile grids, with horizontal and vertical adjustment to centre the microphone in the tile
• Microphone finishes nearly flush with the ceiling tile for a discreet architectural appearance
• Seismic tie-off point provided for a safety tether where local regulations require one
• White trim matches the white MXA901W-R and can be painted to suit the ceiling
• Single-Zone Automatic Coverage picks up the whole room with no setup, and adjusts from 10 x 10 ft (3 x 3 m) up to 20 x 20 ft (6.1 x 6.1 m) to match the seating
• Steerable coverage mode places up to 8 independent pickup lobes when automatic coverage is switched off
• 85 MEMS microphone elements in a next-generation array for natural, directional speech capture
• Onboard IntelliMix DSP: acoustic echo cancellation, noise reduction, automatic mixing, automatic gain control, compressor, delay and 4-band parametric EQ
• Dante and AES67 audio networking over a single Cat 5e or better cable, powered by PoE
• Certified for Microsoft Teams and Zoom Rooms, and compatible with leading collaboration platforms
• Standards-based security including 802.1x, secure boot and storage, and AES encryption of control and audio data
• Configurable LED status bar with adjustable color and brightness, plus command strings for third-party camera and room control integration
• Set up and managed with Shure Designer software or the microphone's embedded web application
• UL2043 plenum rated and IP5X dust protected for air-handling spaces

Technical Specifications

• Model: Shure MXA901-R Microflex Advance ceiling array microphone
• Microphone elements: 85 MEMS
• Coverage area: 20 x 20 ft (6.1 x 6.1 m), single-zone automatic; adjustable down to 10 x 10 ft (3 x 3 m)
• Steerable lobes: up to 8 independent lobes in steerable coverage mode
• Frequency response: 100 Hz to 20 kHz
• Sensitivity (at 1 kHz): -4.4 dBFS/Pa
• Maximum SPL (relative to 0 dBFS overload): 98.4 dB SPL
• Signal-to-noise ratio: 67.1 dB A-weighted (ref. 94 dB SPL at 1 kHz)
• Self noise: 26.9 dB SPL-A
• Dynamic range: 71.5 dB
• Latency: 33.5 ms (excluding Dante latency)
• Digital output: Dante or AES67, 2 total channels (1 automix output, 1 AEC reference input)
• Sampling rate / bit depth: 48 kHz / 24-bit
• Acoustic echo cancellation tail length: up to 250 ms
• Power: Power over Ethernet (PoE) Class 0, 10.1 W maximum
• Connector: RJ45; Cat 5e or higher (shielded cable recommended)
• Control software: Shure Designer or embedded web application
• Plenum rating: UL2043 (suitable for air handling spaces)
• Dust protection: IEC 60529 IP5X
• Operating temperature: -6.7 C (20 F) to 40 C (104 F)
• Microphone dimensions: 13.5 in (342.9 mm) diameter x 1.64 in (41.66 mm) high
• Microphone weight: 5 lb (2.3 kg)
• Maximum recommended mounting height: 12 ft (3.7 m)
• Mount supplied: A901-R-TB tile bridge kit (white trim, paintable)
• Grid compatibility: 24 in and 60 cm ceiling tile grids
• Tile opening required: 13.85 in (352 mm) diameter
• Compatible tile thickness: 0.375 to 1.25 in (9.5 to 31.75 mm)
• Clearance required above ceiling: minimum 2.5 in (63.5 mm)
• Installation tools required (not included): tile cutting tool, Torx T20 screwdriver, Ethernet cable
• Microphone finish: white

What's Included

• Shure MXA901-R Microflex Advance ceiling array microphone (white)
• RPM901-R-Install Kit: network port cover, surface mount, round VESA bracket and 4 M4 screws

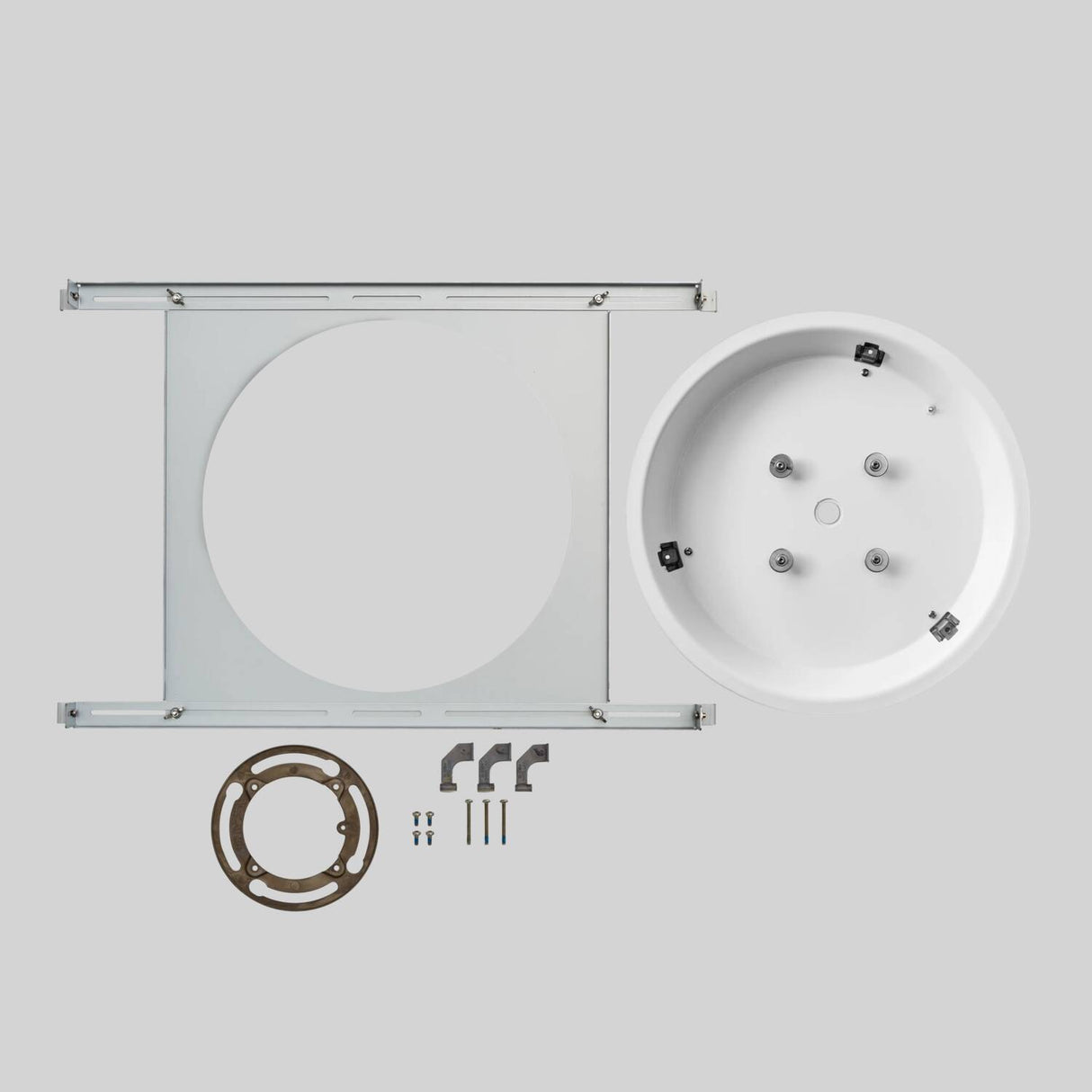

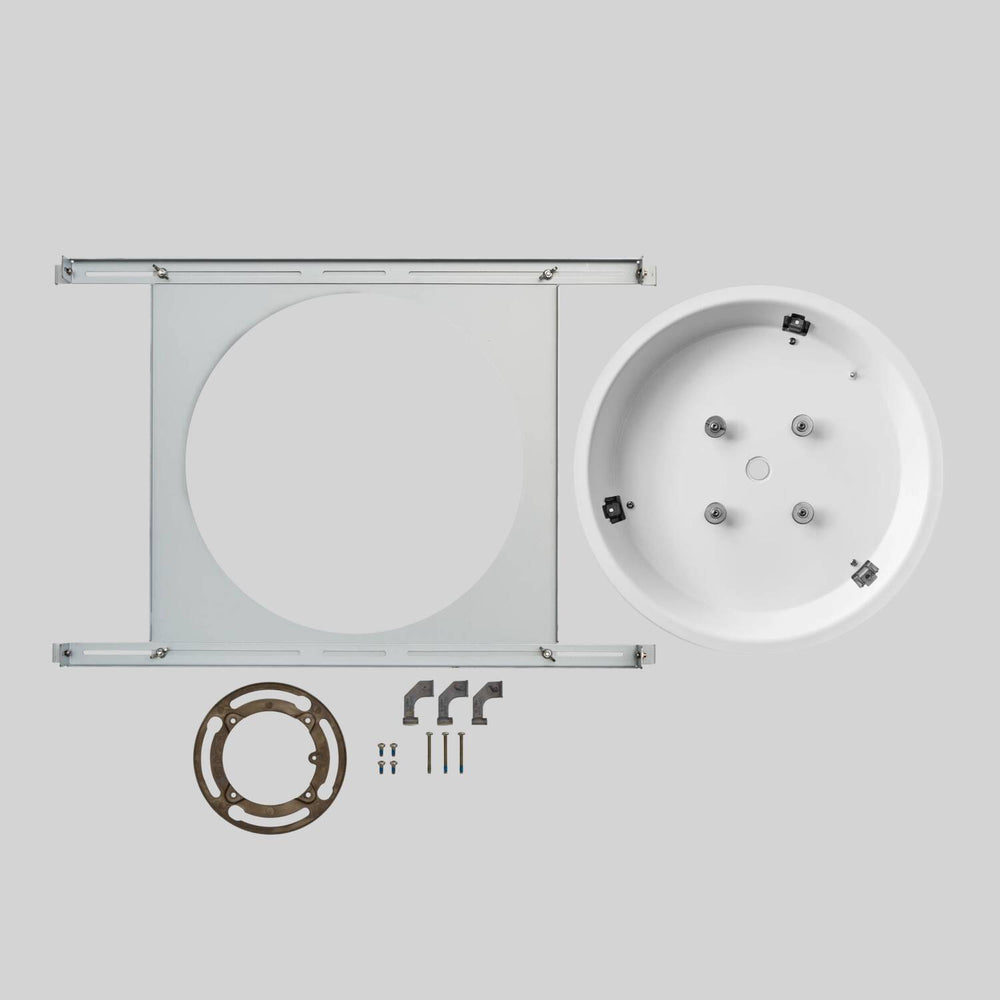

• A901-R-TB tile bridge kit, containing:
• 1 x tile bridge
• 1 x ceiling mount
• 1 x round VESA bracket
• 4 x M4 screws
• 3 x support arms
• 3 x M4x40 screws
