Shure MXA925 Ceiling Array Microphone, Round - Black

Shure MXA925-R Round Ceiling Array Microphone, Round

The Shure MXA925-R Round Ceiling Array Microphone delivers AI-enhanced voice capture for professional conferencing, camera tracking, voice lift, and sound reinforcement. Automatic Coverage captures a default 30' x 30' area, while onboard IntelliMix DSP reduces acoustic echo, background noise, and room reverberation to maintain clear, natural speech.

Available as the white MXA925W-R and black MXA925B-R, this round ceiling microphone integrates cleanly into boardrooms, lecture halls, training rooms, and multipurpose collaboration spaces. Its paintable finish allows AV integrators to coordinate the microphone with surrounding ceiling surfaces, architectural elements, and interior color schemes.

Dual RJ45 ports carry Dante or AES67 digital audio, control data, and PoE through flexible network configurations. Enterprise-ready features include 802.1X authentication, secure boot, Shure Audio Encryption, ShureCloud monitoring, and remote firmware management. Microsoft Teams Rooms and Zoom Rooms certification supports reliable deployment across standardized professional meeting environments.

Available Round Variants

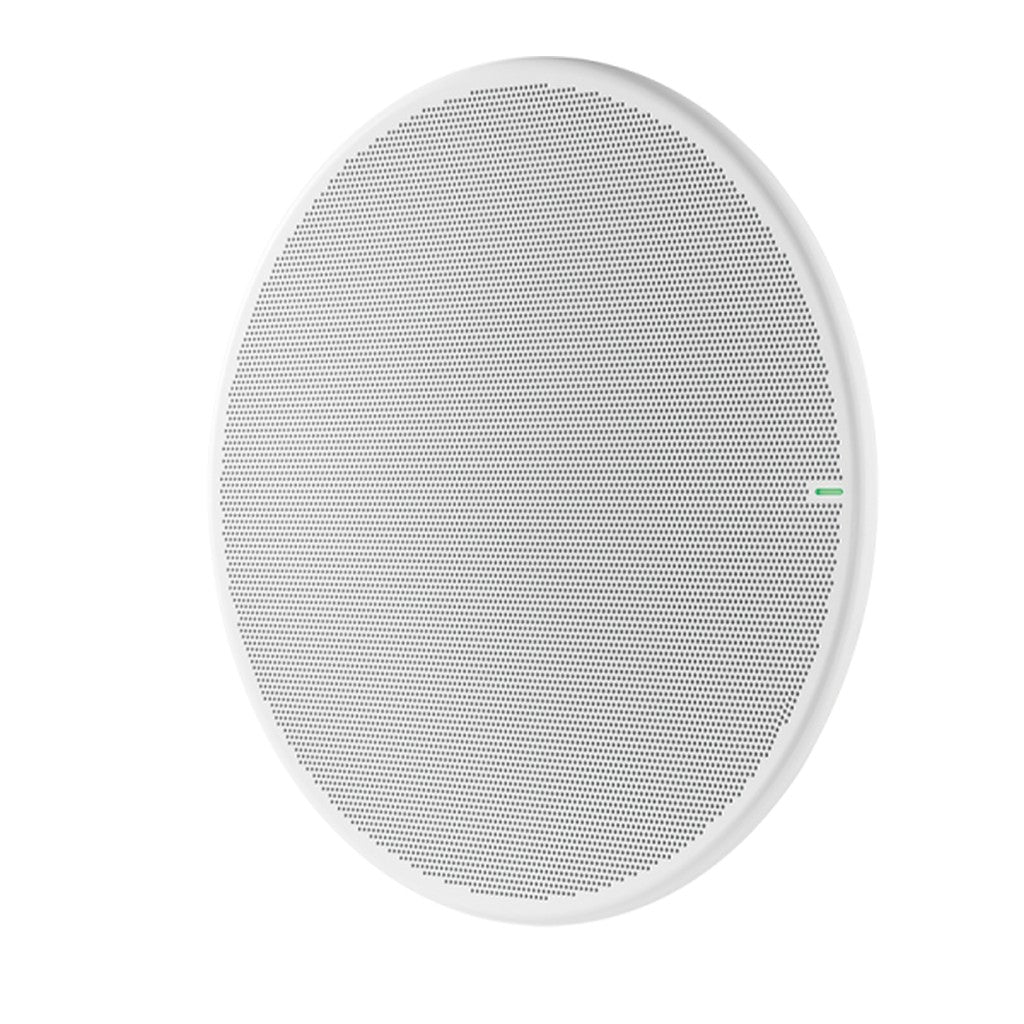

• MXA925W-R: Round ceiling array microphone with a paintable white finish

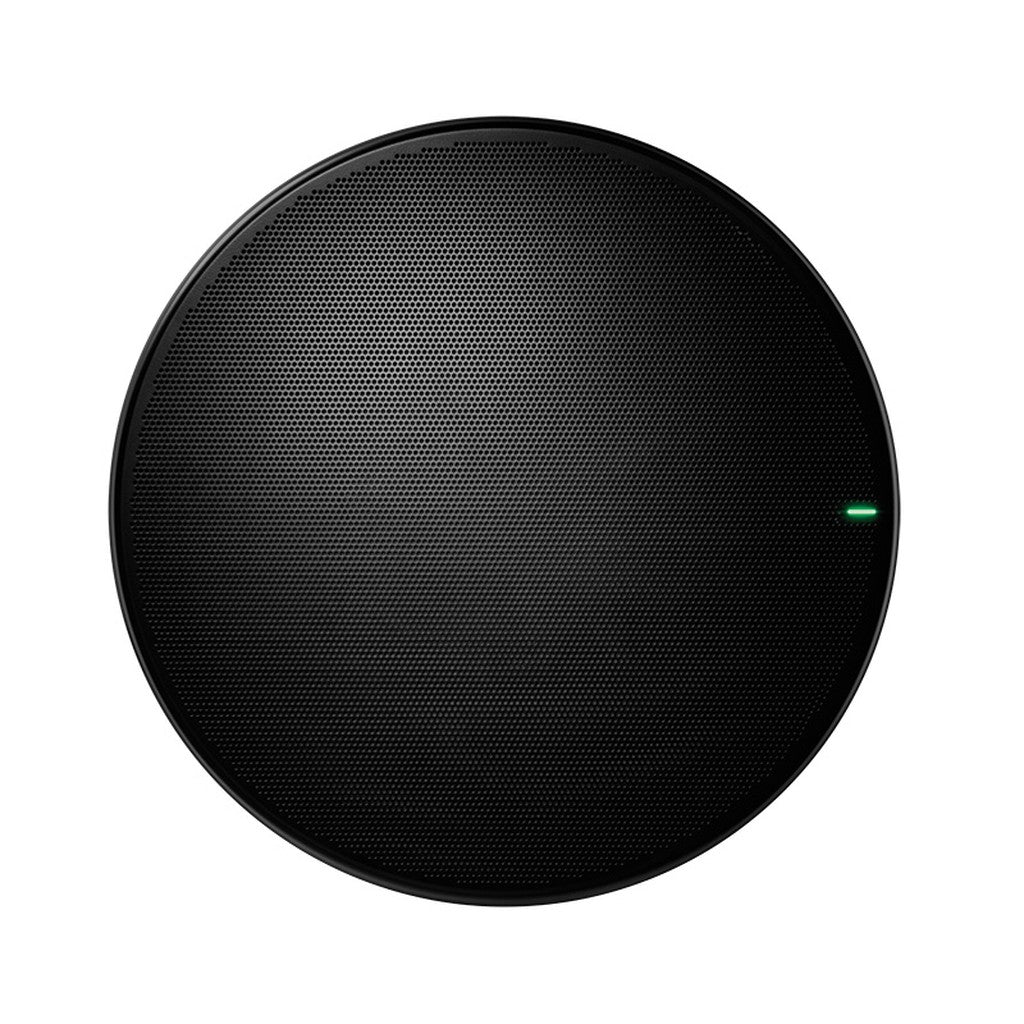

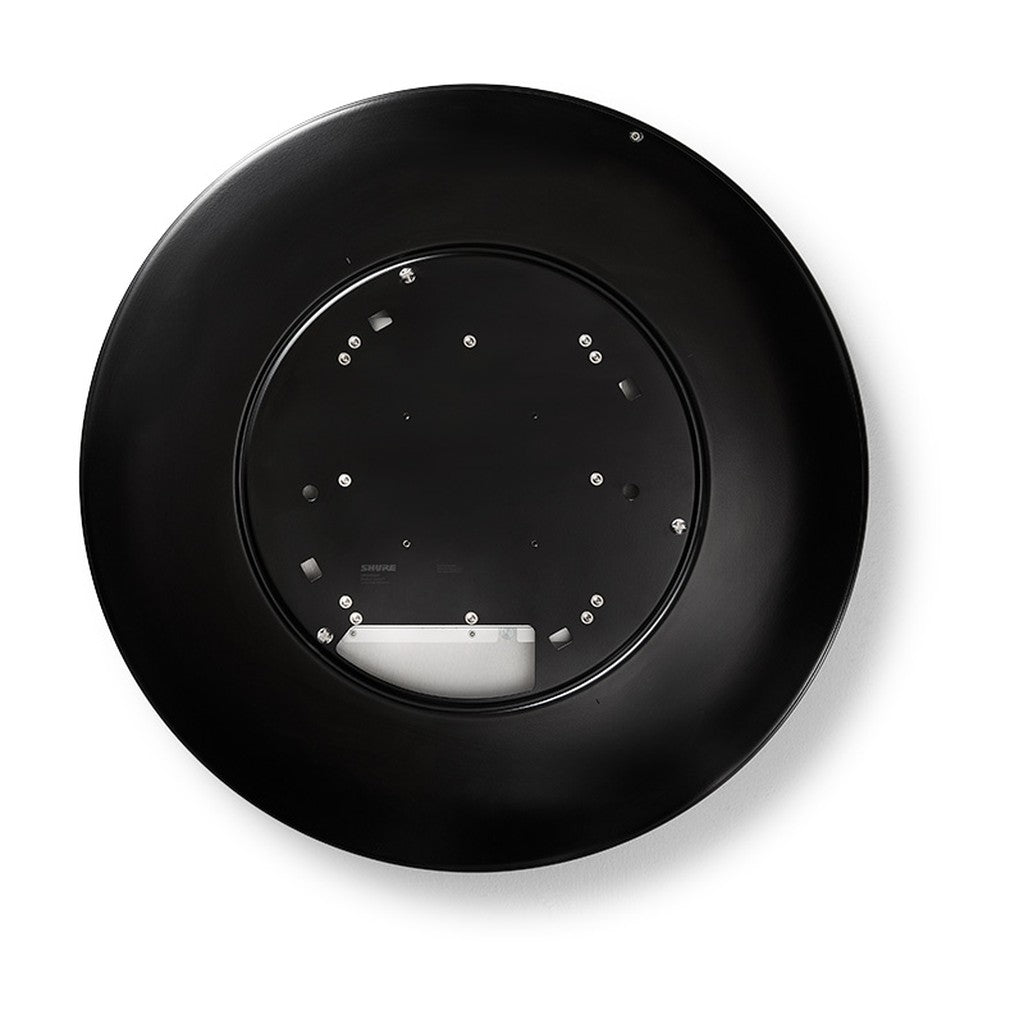

• MXA925B-R: Round ceiling array microphone with a paintable black finish

Key Features

• Automatic Coverage: Captures participants throughout a default 30' x 30' seating area without manually aiming pickup lobes.
• AI-Enabled IntelliMix DSP: Reduces acoustic echo, background noise, and room reverberation directly within the microphone.
• Eight Configurable Areas: Creates focused pickup zones for conference tables, presentation areas, and complex room layouts.
• Camera Tracking Support: Provides precise talker-location data for integration with compatible automated camera systems.
• Dual RJ45 Connectivity: Supports Dante, AES67, control, and PoE network configurations through two Ethernet ports.
• Enterprise Security: Protects networked audio with 802.1X authentication, secure boot, and Shure Audio Encryption.
• Paintable Round Enclosure: Blends into architectural ceilings with black or white finish options.
• Remote Management: Enables device monitoring and firmware administration through ShureCloud.

Technical Specifications

• Product Type: Round networked ceiling array microphone
• Models: MXA925W-R and MXA925B-R
• Applications: AV conferencing, camera tracking, voice lift, and sound reinforcement
• Microphone Elements: 113 MEMS elements
• Polar Pattern: Array
• Frequency Response: 125 Hz to 20 kHz
• Coverage Type: Automatic Coverage or Steerable Coverage
• Default Coverage Area: 30' x 30'
• Configurable Coverage Areas: Up to 8
• Digital Audio Networking: Dante and AES67
• Automatic Coverage Channel Count: 2 total channels, including 1 output and 1 AEC reference input
• Steerable Coverage Channel Count: 10 total channels, including 8 independent transmit channels, 1 automix output, and 1 AEC reference input
• Sampling Rate: 48 kHz
• Bit Depth: 24-bit
• Sensitivity: -1.74 dBFS/Pa at 1 kHz
• Maximum SPL: 95.74 dB SPL relative to 0 dBFS overload
• Signal-to-Noise Ratio: 75.76 dB A-weighted, referenced to 94 dB SPL at 1 kHz
• Self-Noise: 18.24 dB SPL-A
• Dynamic Range: 77.5 dB
• Direct Output Latency: 13 ms with Automatic Coverage disabled, excluding Dante latency
• Automix Output Latency: 47 ms with IntelliMix processing, excluding Dante latency
• Digital Signal Processing: Automatic mixing, AI acoustic echo cancellation, noise reduction, AI denoising, automatic gain control, compression, delay, AI de-reverberation, 4-band parametric equalization, mute, and gain adjustment
• Gain Range: 140 dB
• Network Connectors: Dual RJ45
• Power Requirements: Power over Ethernet, Class 0
• Maximum Power Consumption: 12.5W
• Control Software: Shure Designer or built-in web application
• Cable Requirements: Cat5e or higher, with shielded cable recommended
• Network Security: 802.1X authentication, Shure Audio Encryption, and secure boot
• Remote Management: ShureCloud monitoring and firmware management
• Room Platform Certifications: Microsoft Teams Rooms and Zoom Rooms
• Status Indicator: LED status bar with adjustable colors and brightness
• Dust Protection: IEC 60529 IP5X
• Operating Temperature: 20°F to 104°F
• Storage Temperature: -20°F to 165°F
• Available Finishes: Paintable black or white
• Mounting Compatibility: Compatible with MXA920 mounting accessories
• Dimensions: 25" diameter x 2.4" high
• Weight: 12.7 lbs
