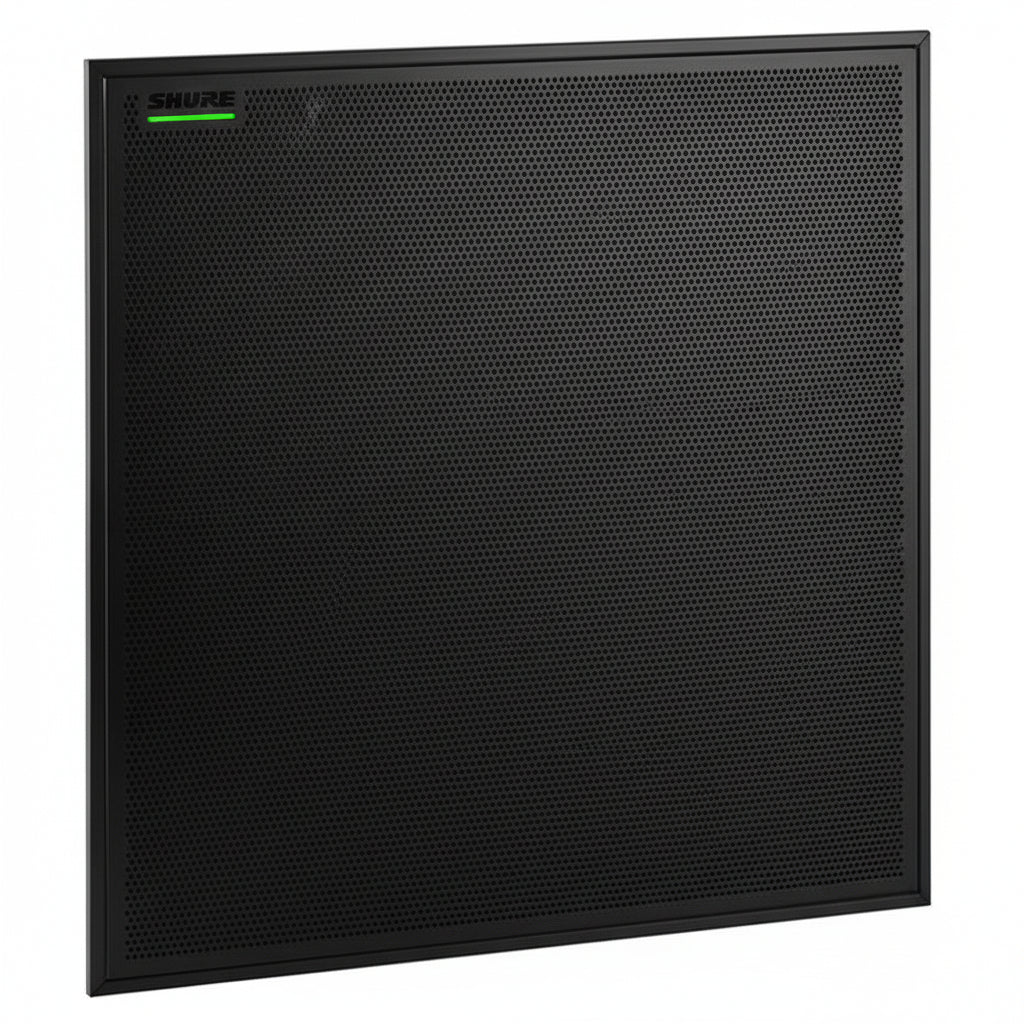

Shure MXA925-S-60CM Ceiling Array Microphone, 60cm Square Cut - Black

Shure MXA925-S-60CM Square Ceiling Array Microphone, 60cm Square Cut

The Shure MXA925-S-60CM Square Ceiling Array Microphone delivers AI-enhanced voice capture for professional conferencing, camera tracking, voice lift, and sound reinforcement. Its 23.38" square enclosure fits compatible 60 cm ceiling grids, while Automatic Coverage captures a default 30' x 30' area without requiring manual microphone lobe configuration.

Available as the white MXA925W-S-60CM and black MXA925B-S-60CM, this networked ceiling microphone suits boardrooms, classrooms, training facilities, and multipurpose collaboration spaces. The paintable enclosure supports discreet architectural integration, while eight configurable coverage areas let integrators focus pickup on conference tables, presentation zones, and other important listening areas.

Onboard IntelliMix DSP uses AI Acoustic Echo Cancellation, AI Denoiser, and AI Deverb processing to maintain clear, natural speech in acoustically challenging rooms. Dual RJ45 ports support Dante or AES67 audio, control data, and PoE connectivity. Enterprise security, ShureCloud management, and Microsoft Teams Rooms and Zoom Rooms certifications simplify standardized professional deployments.

Available 60 cm Square Variants

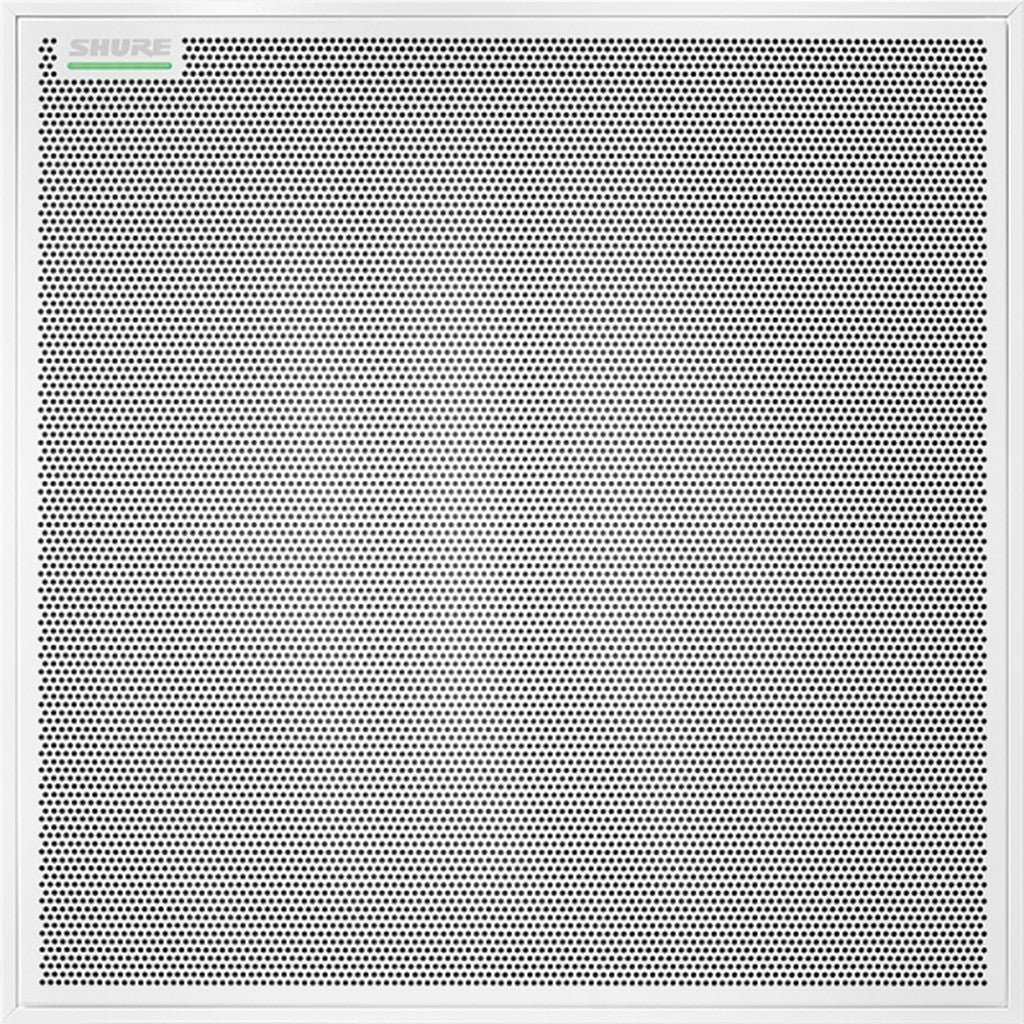

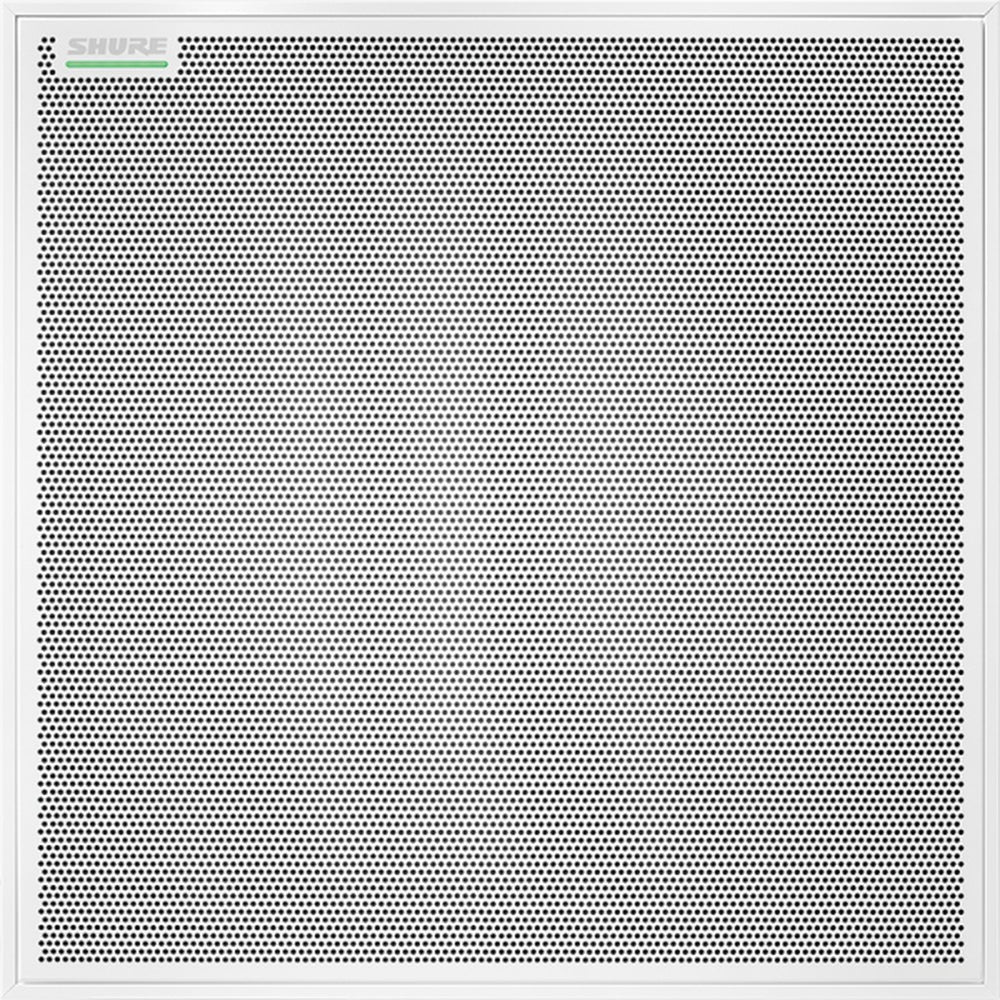

• MXA925W-S-60CM: 60 cm square ceiling array microphone with a paintable white finish

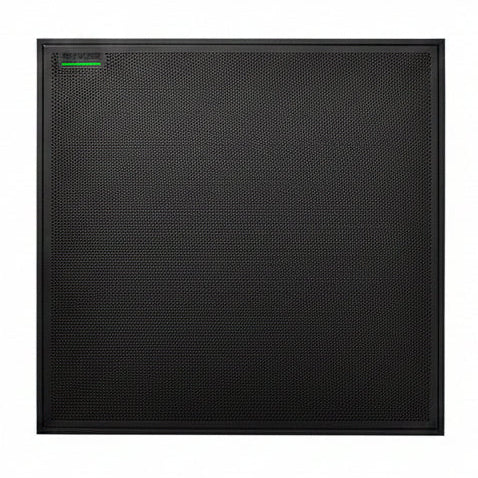

• MXA925B-S-60CM: 60 cm square ceiling array microphone with a paintable black finish

Key Features

• 60 cm Ceiling-Grid Design: The 23.38" square enclosure integrates with compatible 60 cm ceiling-grid installations.
• Automatic Coverage: Captures participants throughout a default 30' x 30' seating area without manually aiming pickup lobes.
• AI-Enabled IntelliMix DSP: Reduces acoustic echo, background noise, and room reverberation directly within the microphone.
• Eight Configurable Areas: Creates focused pickup zones for meeting tables, presentation spaces, and complex room layouts.
• Camera Tracking Support: Provides precise talker-location data for integration with compatible automated camera systems.
• Dual RJ45 Connectivity: Supports Dante, AES67, control, and PoE through flexible Ethernet network configurations.
• Enterprise Security: Protects networked audio with 802.1X authentication, secure boot, and Shure Audio Encryption.
• Paintable Enclosure: Blends into architectural ceilings with black or white finish options.

Technical Specifications

• Product Type: 60 cm square networked ceiling array microphone
• Models: MXA925W-S-60CM and MXA925B-S-60CM
• Applications: AV conferencing, camera tracking, voice lift, and sound reinforcement
• Microphone Elements: 113 MEMS elements
• Polar Pattern: Array
• Frequency Response: 125 Hz to 20 kHz
• Coverage Type: Automatic Coverage or Steerable Coverage
• Default Coverage Area: 30' x 30'
• Configurable Coverage Areas: Up to 8
• Digital Audio Networking: Dante and AES67
• Automatic Coverage Channel Count: 2 total channels, including 1 output and 1 AEC reference input
• Steerable Coverage Channel Count: 10 total channels, including 8 independent transmit channels, 1 automix output, and 1 AEC reference input
• Sampling Rate: 48 kHz
• Bit Depth: 24-bit
• Sensitivity: -1.74 dBFS/Pa at 1 kHz
• Maximum SPL: 95.74 dB SPL relative to 0 dBFS overload
• Signal-to-Noise Ratio: 75.76 dB A-weighted, referenced to 94 dB SPL at 1 kHz
• Self-Noise: 18.24 dB SPL-A
• Dynamic Range: 77.5 dB
• Direct Output Latency: 13 ms with Automatic Coverage disabled, excluding Dante latency
• Automix Output Latency: 47 ms with IntelliMix processing, excluding Dante latency
• Digital Signal Processing: Automatic mixing, AI acoustic echo cancellation, noise reduction, AI denoising, automatic gain control, compression, delay, AI de-reverberation, 4-band parametric equalization, mute, and gain adjustment
• Gain Range: 140 dB
• Network Connectors: Dual RJ45
• Power Requirements: Power over Ethernet, Class 0
• Maximum Power Consumption: 12.5W
• Control Software: Shure Designer or built-in web application
• Cable Requirements: Cat5e or higher, with shielded cable recommended
• Network Security: 802.1X authentication, Shure Audio Encryption, and secure boot
• Remote Management: ShureCloud monitoring and firmware management
• Room Platform Certifications: Microsoft Teams Rooms and Zoom Rooms
• Status Indicator: LED status bar with adjustable colors and brightness
• Dust Protection: IEC 60529 IP5X
• Operating Temperature: 20°F to 104°F
• Storage Temperature: -20°F to 165°F
• Plenum Rating: UL2043
• Available Finishes: Paintable black or white
• Mounting Compatibility: Compatible with MXA920 mounting accessories
• Dimensions: 23.38" x 23.38" x 2.15"
• Weight: 11.8 lbs
