Description
Shure MXA925 Ceiling Array Microphone, Square
The Shure MXA925 Ceiling Array Microphone delivers AI-enhanced voice capture for conferencing, camera tracking, voice lift, and sound reinforcement. Automatic Coverage provides a 30' x 30' default pickup area, while onboard IntelliMix DSP uses AI Acoustic Echo Cancellation, AI Denoiser, and AI Deverb to preserve clear, natural speech in challenging rooms.
Designed for boardrooms, training rooms, lecture spaces, and multipurpose meeting environments, the MXA925 supports standard square, 60 cm square, and round configurations. Each form factor is offered in paintable black or white, allowing integrators to match ceiling grids and architectural finishes. A white square TAA-compliant configuration supports procurement-sensitive installations.
Dual RJ45 ports carry Dante or AES67 audio, control, and PoE while supporting flexible or separated network designs. Enterprise features include 802.1X authentication, Shure Audio Encryption, secure boot, ShureCloud monitoring, and remote firmware management. Microsoft Teams Rooms and Zoom Rooms certification helps AV and IT teams deploy consistent collaboration systems at scale.
Available Shure MXA925 Variants

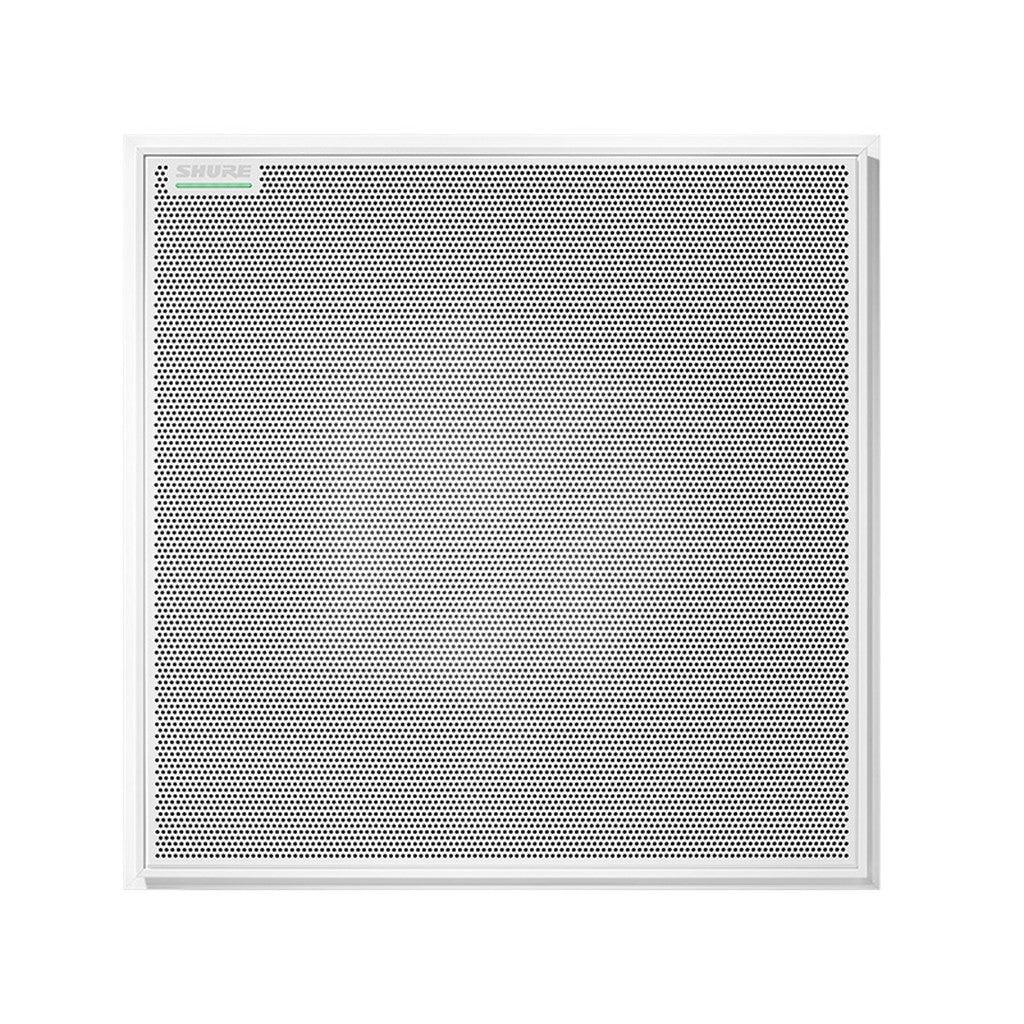

- MXA925W-S: Standard square ceiling array microphone in white

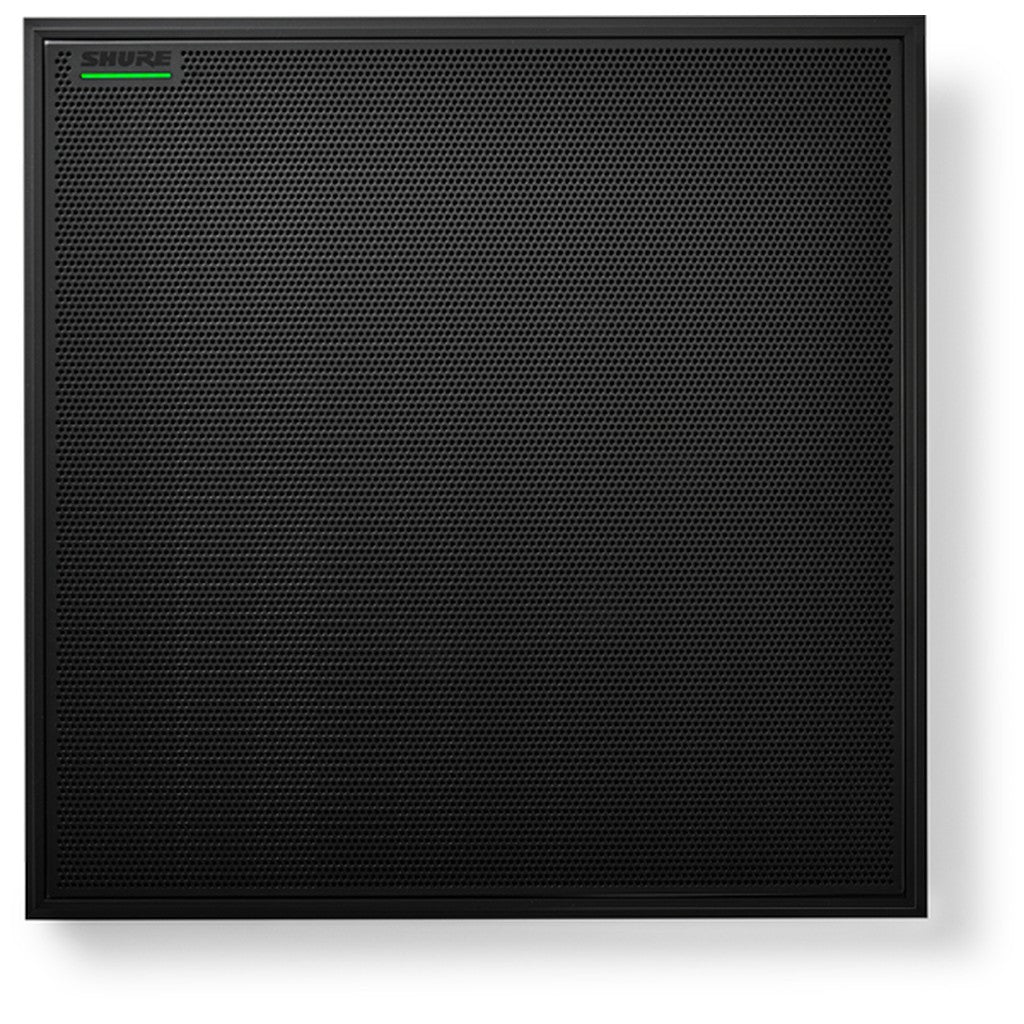

- MXA925B-S: Standard square ceiling array microphone in black
Key Features
- AI-Enabled IntelliMix DSP: Reduces acoustic echo, background noise, and room reverberation directly within the microphone.
- Automatic Coverage: Captures participants throughout a default 30' x 30' seating area without manually aiming pickup lobes.
- Eight Configurable Areas: Defines focused pickup zones for complex tables, divided rooms, presentation areas, and custom layouts.
- Camera Tracking Support: Reports precise talker location data for integration with compatible automated camera systems.
- Dual RJ45 Networking: Supports flexible Dante, AES67, control, and PoE network configurations, including separated audio and control traffic.
- Enterprise Security: Protects networked conferencing audio with 802.1X authentication, secure boot, and Shure Audio Encryption.
- Architectural Flexibility: Offers standard square, 60 cm square, and round designs in paintable black or white finishes.
- Remote Room Management: Enables device monitoring, firmware updates, and scalable system administration through ShureCloud.
Technical Specifications
- Product Type: Networked ceiling array microphone
- Applications: AV conferencing, camera tracking, voice lift, and sound reinforcement
- Microphone Elements: 113 MEMS elements
- Polar Pattern: Array
- Frequency Response: 125 Hz to 20 kHz
- Coverage Type: Automatic Coverage or Steerable Coverage
- Default Coverage Area: 30' x 30'
- Configurable Coverage Areas: Up to 8
- Digital Audio Networking: Dante and AES67
- Automatic Coverage Channel Count: 2 total channels, including 1 output and 1 AEC reference input
- Steerable Coverage Channel Count: 10 total channels, including 8 independent transmit channels, 1 automix output, and 1 AEC reference input
- Sampling Rate: 48 kHz
- Bit Depth: 24-bit
- Sensitivity: -1.74 dBFS/Pa at 1 kHz
- Maximum SPL: 95.74 dB SPL relative to 0 dBFS overload
- Signal-to-Noise Ratio: 75.76 dB A-weighted, referenced to 94 dB SPL at 1 kHz
- Self-Noise: 18.24 dB SPL-A
- Dynamic Range: 77.5 dB
- Direct Output Latency: 13 ms with Automatic Coverage disabled, excluding Dante latency
- Automix Output Latency: 47 ms with IntelliMix processing, excluding Dante latency
- Digital Signal Processing: Automatic mixing, AI acoustic echo cancellation, noise reduction, AI denoising, automatic gain control, compression, delay, AI de-reverberation, 4-band parametric equalization, mute, and gain adjustment
- Gain Range: 140 dB
- Network Connectors: Dual RJ45
- Power Requirements: Power over Ethernet, Class 0
- Maximum Power Consumption: 12.5W
- Control Software: Shure Designer or built-in web application
- Cable Requirements: Cat5e or higher, with shielded cable recommended
- Network Security: 802.1X authentication, Shure Audio Encryption, and secure boot
- Remote Management: ShureCloud monitoring and firmware management
- Room Platform Certifications: Microsoft Teams Rooms and Zoom Rooms
- Status Indicator: LED status bar with adjustable colors and brightness
- Dust Protection: IEC 60529 IP5X
- Operating Temperature: 20°F to 104°F
- Storage Temperature: -20°F to 165°F
- Plenum Rating: UL2043 for square MXA925-S configurations
- Available Finishes: Black or white; paintable
- Mounting Compatibility: Compatible with MXA920 mounting accessories
- Standard Square Dimensions: 23.77" x 23.77" x 2.15"
- Standard Square Weight: 11.8 lbs
