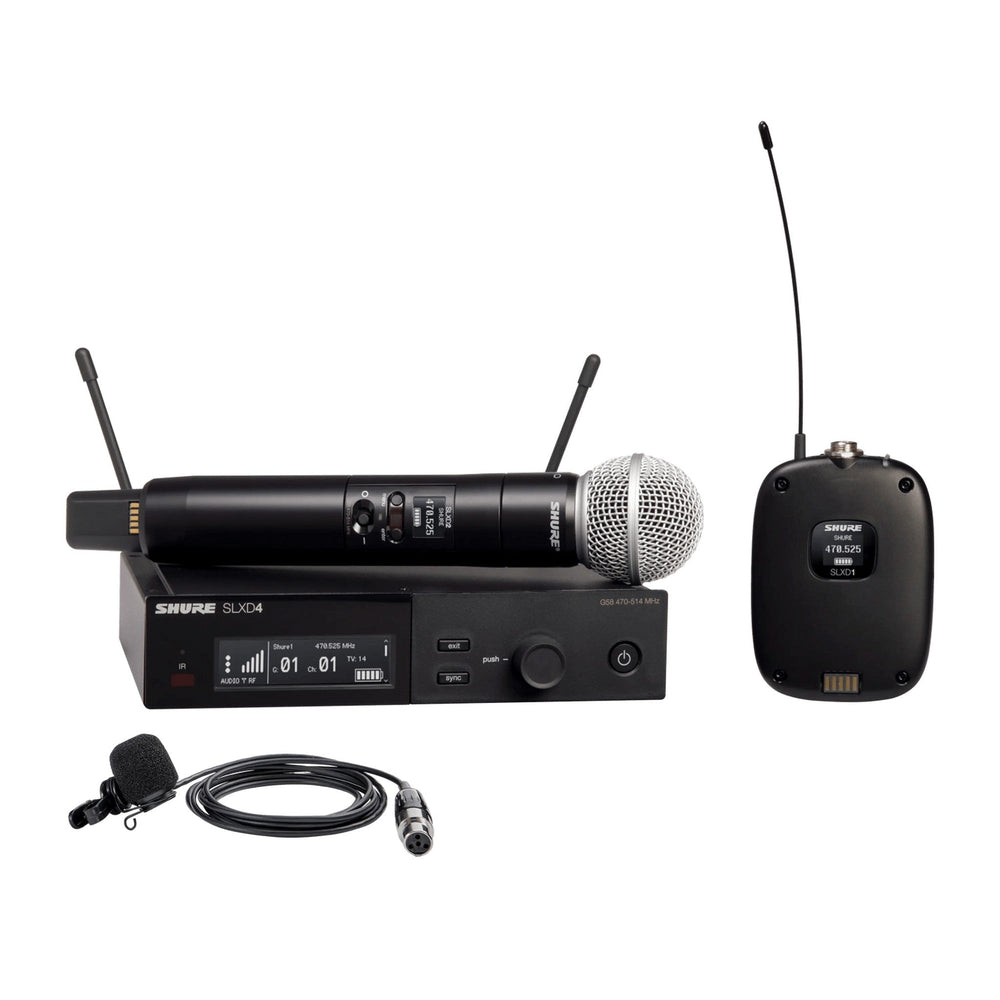

Shure SLXD124/85M Digital Wireless Combo System with SM58 Handheld and WL185m Lavalier Microphones

The Shure SLXD124/85M Digital Wireless Combo System is the ultimate solution for anyone in need of professional-grade audio transmission. Equipped with both the renowned SM58 handheld microphone and the WL185m lavalier microphone, this combo system is perfect for a wide range of applications, including live performances, public speaking engagements, and studio recordings. The SM58 microphone is famous for its warm, rich sound and unmatched durability, making it the top choice for vocalists. On the other hand, the low-profile WL185m lavalier microphone offers a discreet solution for presenters and speakers without compromising on sound quality.

Engineered for seamless operation, the SLXD124/85M system features advanced digital transmission technology that guarantees crystal-clear audio quality over a reliable wireless connection. The system operates across multiple frequency ranges—G58: 470–514 MHz, H55: 514–558 MHz, and J52: 558–616 MHz—providing stable signal strength and resistance to interference, which is crucial for live events and critical presentations. The easy-to-read LCD screen offers real-time monitoring of battery status and signal strength, ensuring optimal performance throughout your event.

User-friendly and convenient, the SLXD124/85M system includes a quick setup and pairing process, making it accessible even for beginners. Everything you need to get started, including a rackmount kit, carrying pouches, and batteries, comes right in the box. Both for stage use and studio recordings, this combo system offers the flexibility and reliability required by performers, presenters, and sound engineers alike.

Key Features

• Single-channel system featuring SM58 handheld and WL185m lavalier microphones
• Superior digital transmission for high-quality audio and range
• Quick and hassle-free setup and pairing process
• Integrated rechargeable battery options available
• Durable and robust design suitable for both stage and studio use

Specifications

• Available System Frequencies: G58: 470–514 MHz, H55: 514–558 MHz, J52: 558–616 MHz

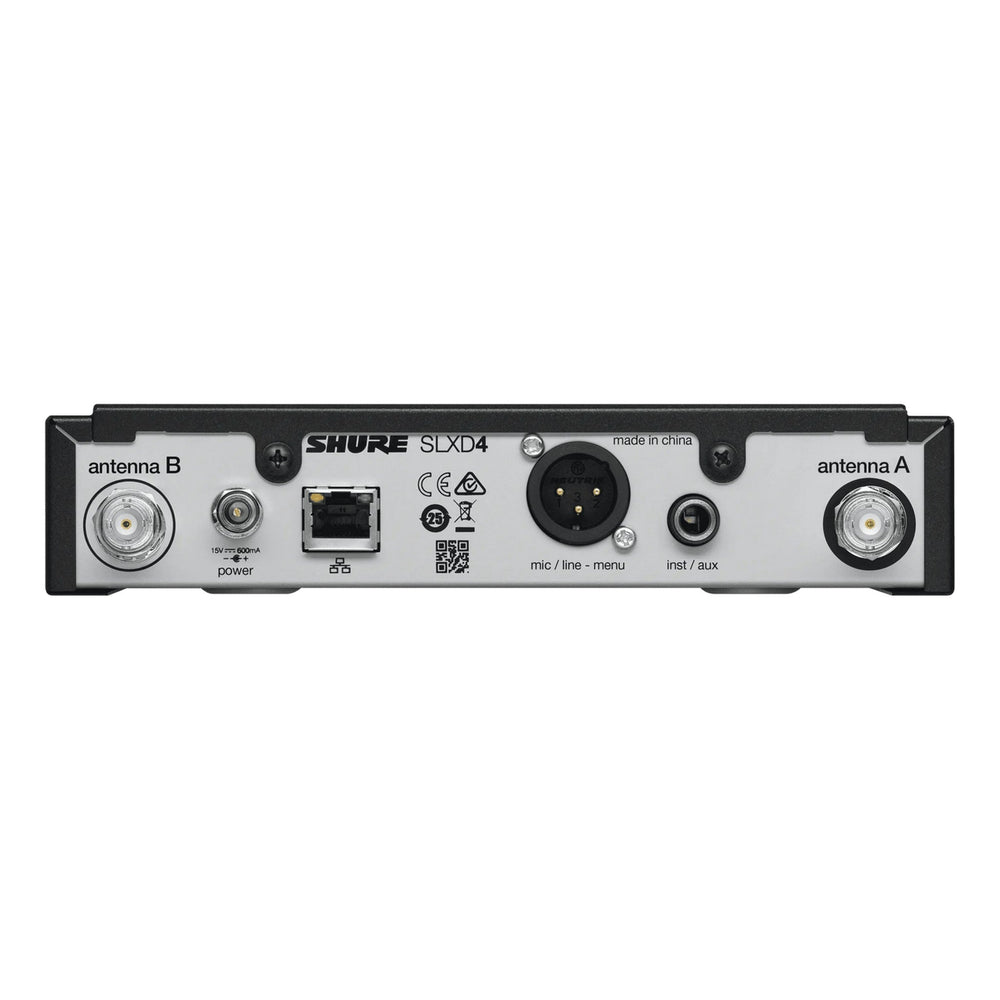

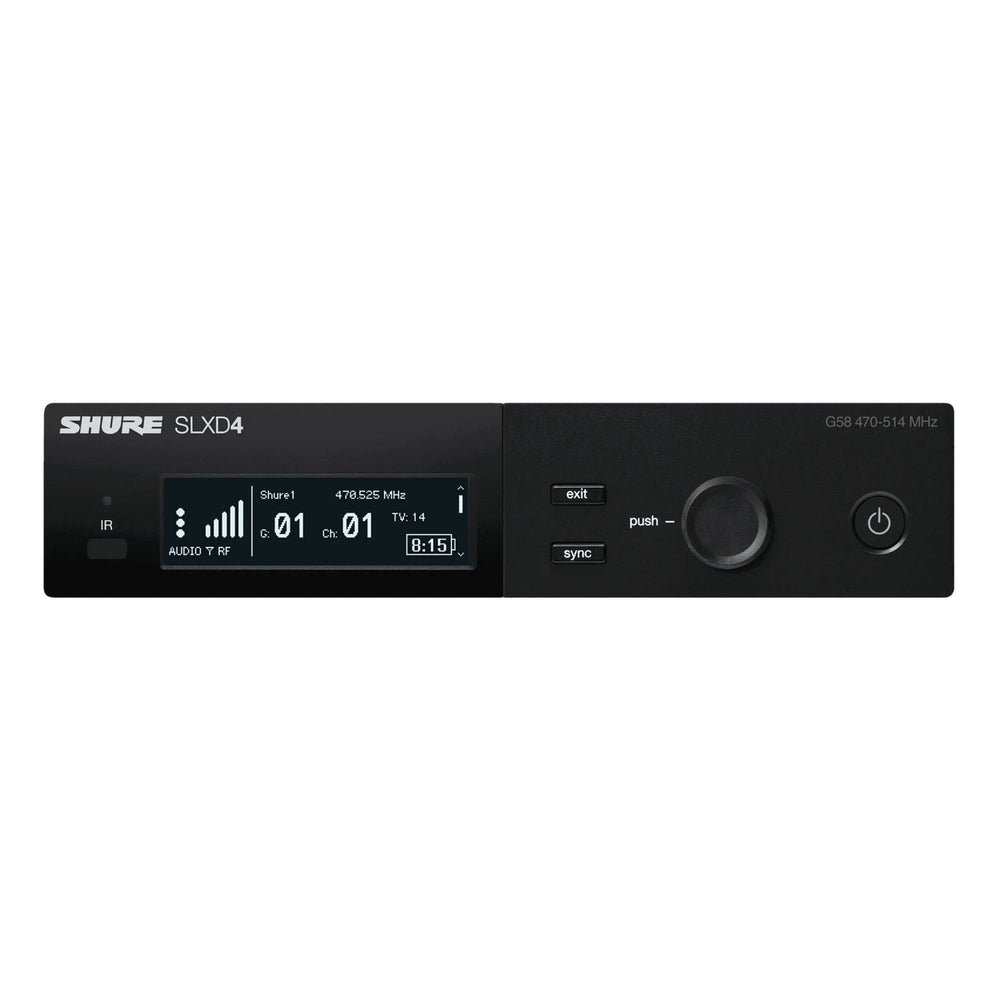

• SLXD4 Digital Wireless Receiver:
  • Dimensions: 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
  • Weight: 1.8 lb (816 g) without antennas
  • Housing: Galvanized Steel
  • Power Requirements: 15 VDC at 600 mA supplied by external power supply (tip positive)
  • RF Input Spurious Rejection: greater than 75 dB Typical
  • Connector Type: BNC
  • Impedance: 50 ohms
  • Audio Output Gain Adjustment Range: –18 to +42 dB in 1 dB steps
  • Configuration: 1/4 inch (6.35 mm): Balanced; XLR: Balanced
  • Impedance: 1/4 inch (6.35 mm): 1.3 k ohms (670 ohms Unbalanced); XLR (line): 400 ohms (200 ohms Unbalanced); XLR (mic): 150 ohms
  • Full Scale Output: 1/4 inch (6.35 mm): +15 dBV differentially (+9 dBV single); XLR (LINE setting): +15 dBV; XLR (MIC setting): –15 dBV
  • Mic/Line Switch: 30 dB pad
  • Phantom Power Protection: Yes for both 1/4 inch (6.35 mm) and XLR
  • Networking Interface: Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 100 m (328 ft)

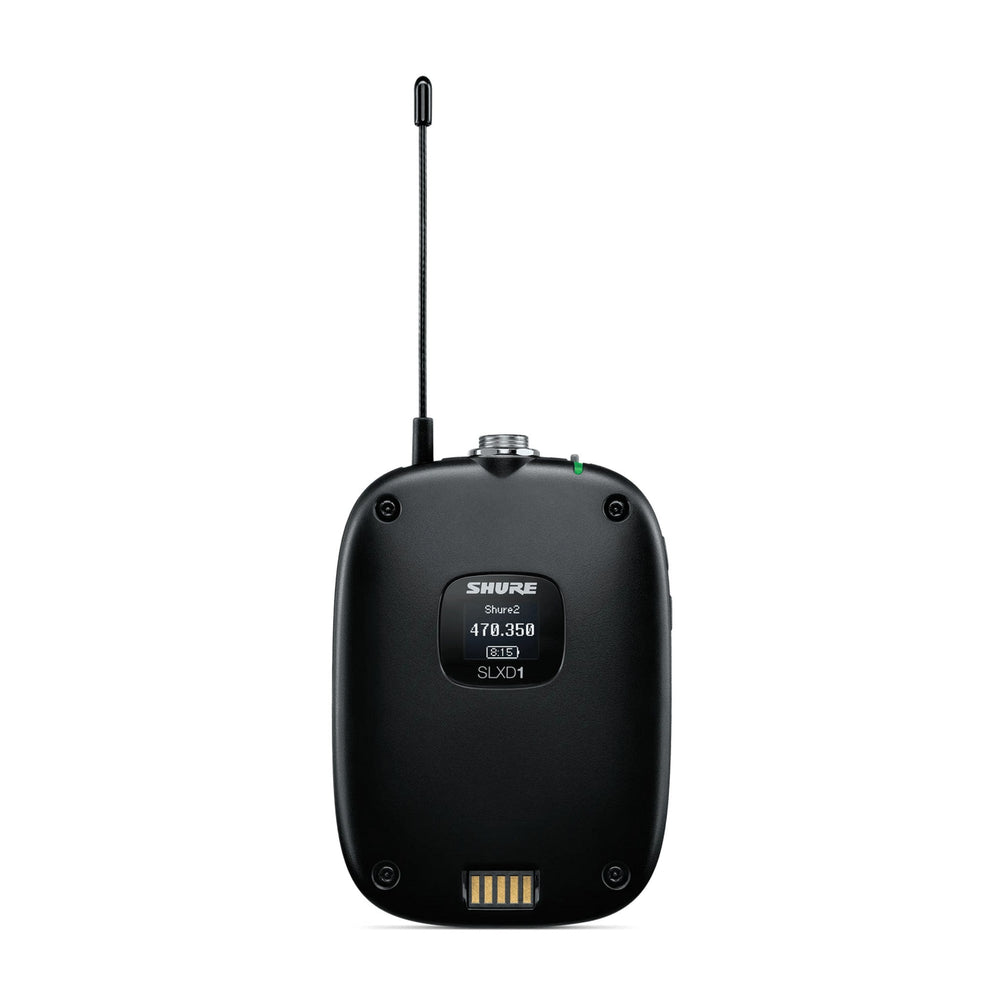

• SLXD1 Digital Wireless Bodypack Transmitter:
  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions: 3.86 × 2.68 × 1.0 in (98 × 68 × 25.5 mm)
  • Weight: 3.1 oz (89 g)
  • Housing: PC/ABS
  • Audio Input Connector: 4-Pin male mini connector (TA4M)
  • Configuration: Unbalanced
  • Impedance: 1 M ohm
  • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
  • Preamplifier Equivalent Input Noise (EIN): –118 dBV
  • RF Output Antenna Type: 1/4 Wave
  • Occupied Bandwidth: less than 200 kHz
  • Modulation Type: Shure Proprietary Digital
  • Power: 1 mW/10 mW (Varies by region)

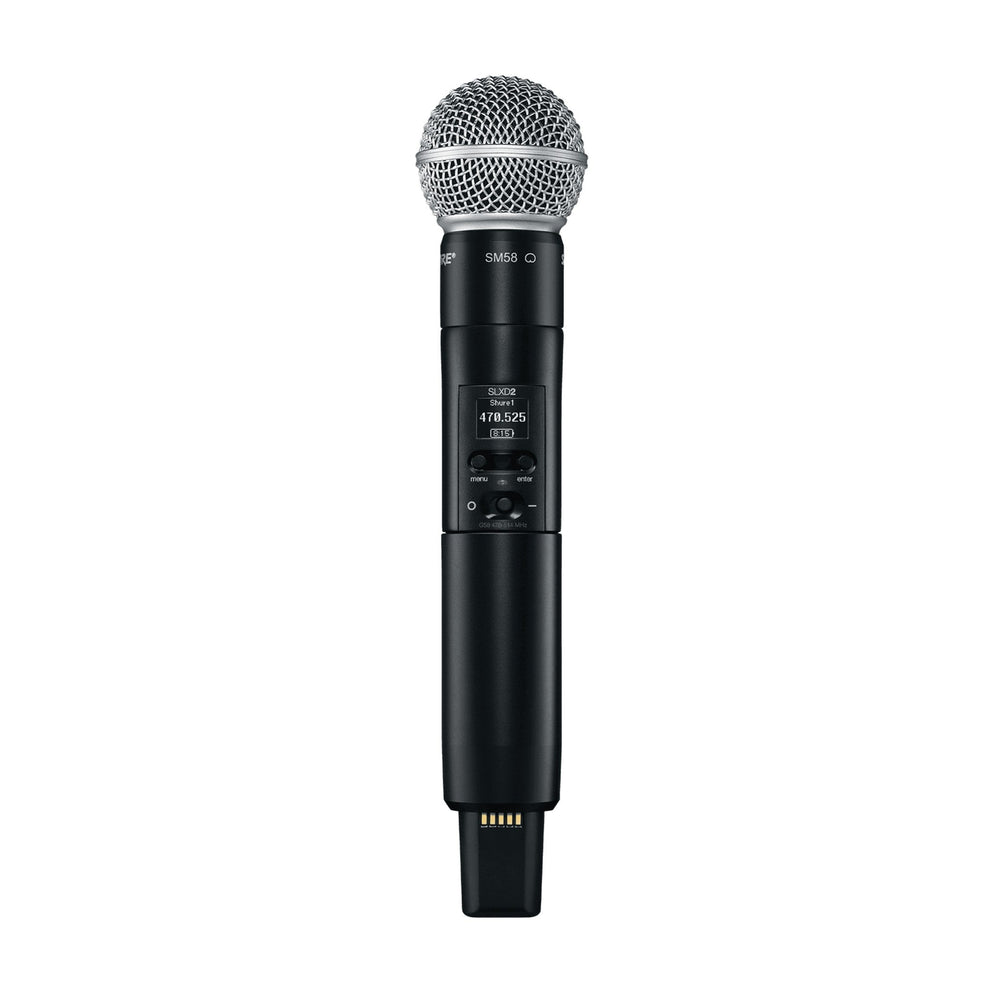

• SLXD2 Digital Wireless Handheld Transmitter:
  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions: 1.46 × 6.93 in (37.1 × 176 mm)
  • Weight: 5.2 oz (147 g)
  • Housing: Aluminum
  • Audio Input Configuration: Unbalanced
  • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
  • RF Output Antenna Type: Integrated Single-Band Helical
  • Occupied Bandwidth: less than 200 kHz
  • Modulation Type: Shure Proprietary Digital
  • Power: 1 mW/10 mW (Varies by region)

Package Contents

• 1 SLXD4 Digital Wireless Receiver
• 1 SLXD1 Bodypack Transmitter
• 1 SLXD2/SM58 Digital Wireless Handheld Transmitter with SM58 Vocal Microphone
• 1 Rackmount Kit
• 4 AA Batteries
• 1 Power Supply
• 1 WL185m Low-profile Cardioid Lavalier Microphone
• 1 Single-Mount Tie Clip
• 1 Snap-Fit Windscreen
• 2 Carrying Pouches
