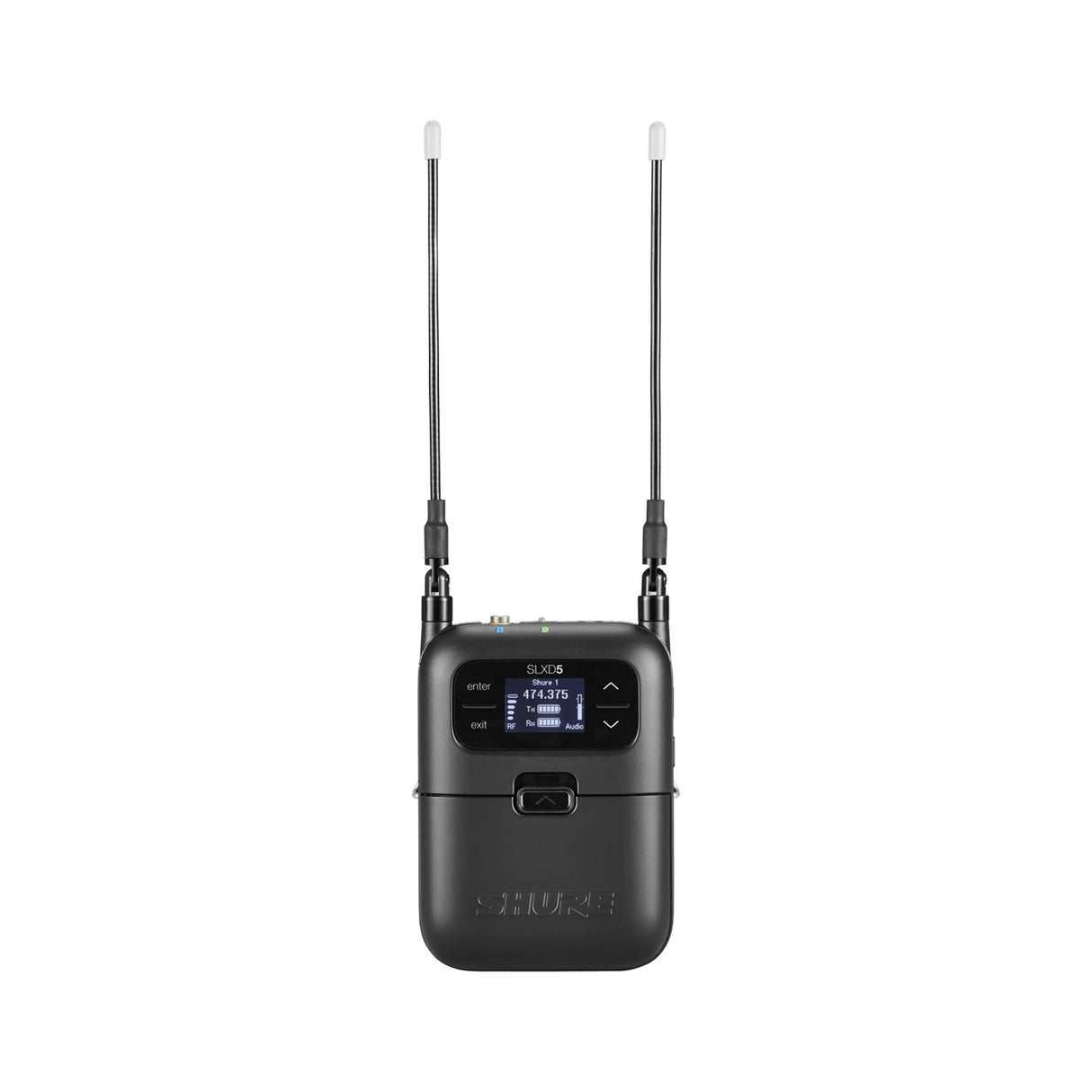

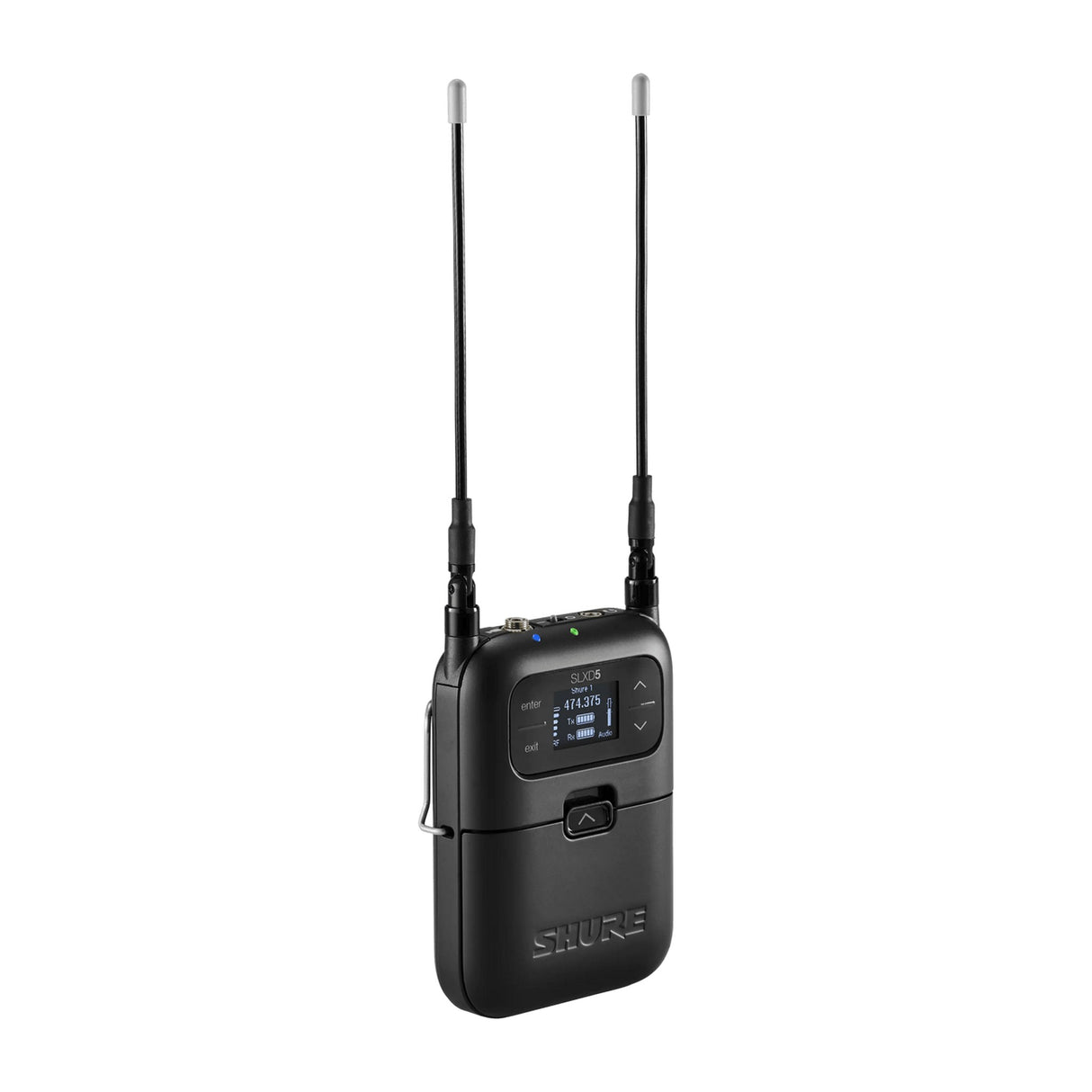

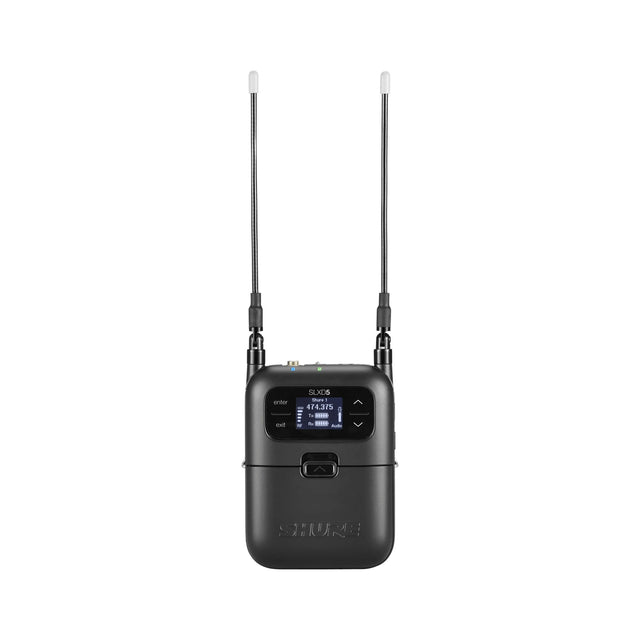

Shure SLXD5 Single-Channel Portable Digital Wireless Receiver

Introducing the Shure SLXD5 Single-Channel Portable Digital Wireless Receiver, G58 470-514 MHz
Are you in need of a wireless receiver that's slim, efficient, and easy to use? Look no further than the SLXD5. This portable receiver packs all the features of the SLXD Digital Wireless Receiver into a compact design, including clear 24-bit digital audio, long-range UHF transmission, and simple setup options. With the ability to scan and deploy frequencies to a compatible wireless transmitter, or coordinate and monitor large channel configurations with multi-mic mode, the SLXD5 is perfect for any audio setup. Additionally, the bright OLED screen displays battery life in hours and minutes when used with the optional rechargeable lithium-ion batteries. The SLXD5 Portable Receiver comes with a non-conductive cold shoe mount adapter, a pair of AA alkaline batteries, and a zippered carrying pouch, making it the ideal choice for any audio professional on-the-go.

Key Features

• Compact and lightweight design for easy portability
• High-quality digital audio with crystal-clear clarity
• Wide frequency range for accurate sound reproduction
• Wide dynamic range for capturing both soft and loud sounds
• Multiple output options for versatile connectivity
• Multi-Mic Mode for scanning and syncing multiple frequencies
• OLED display for easy monitoring of system functions and battery life
• Predictive switching diversity for reliable signal reception
• Wide tuning bandwidth for flexibility in different regions
• Durable metal construction for long-lasting use.

Technical Specifications

Dimensions (H x W x D)
4.21 x 2.68 x 1.0 in (107 x 68 x 25.3 mm)
Weight
1.8 lb (182 g)
Housing
Aluminum

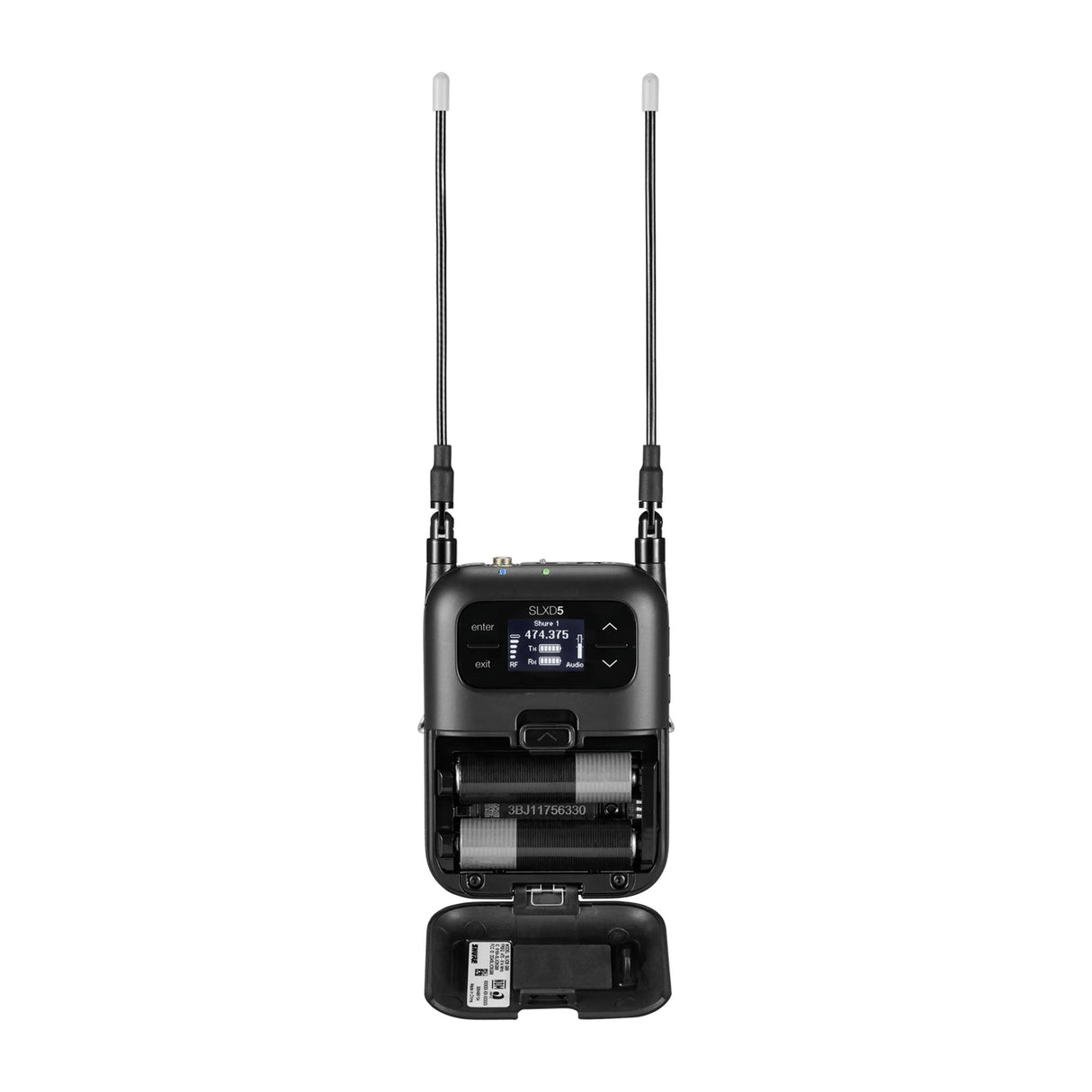

Power Requirements
Battery: Rechargeable Li-Ion or
1.5 V AA batteries
Power Supply: SBC-DC-903 Battery
Eliminator, or 5 VDC via USB-C
RF INPUT
Spurious Rejection
>75 dB
Typical
Impedance
50 Ω
Phantom Power Protection
Yes
Antenna Type
1/4 Wave Whip
AUDIO OUTPUT
Audio Frequency Response
20 Hz - 20 kHz (+1, -3 dB)
Connector Type
1/8” (3.5 mm), x2
Configuration
Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
Impedance (Camera)
Balanced (Mono) Line: 450 Ω
Balanced (Mono) Mic: 240 Ω
Dual Mono Line: 400 Ω
Dual Mono Mic: 200 Ω
Full Scale Output
Camera (Balanced Line): 15 dBV
Headphone: 13 mW @ 64 Ω Load
