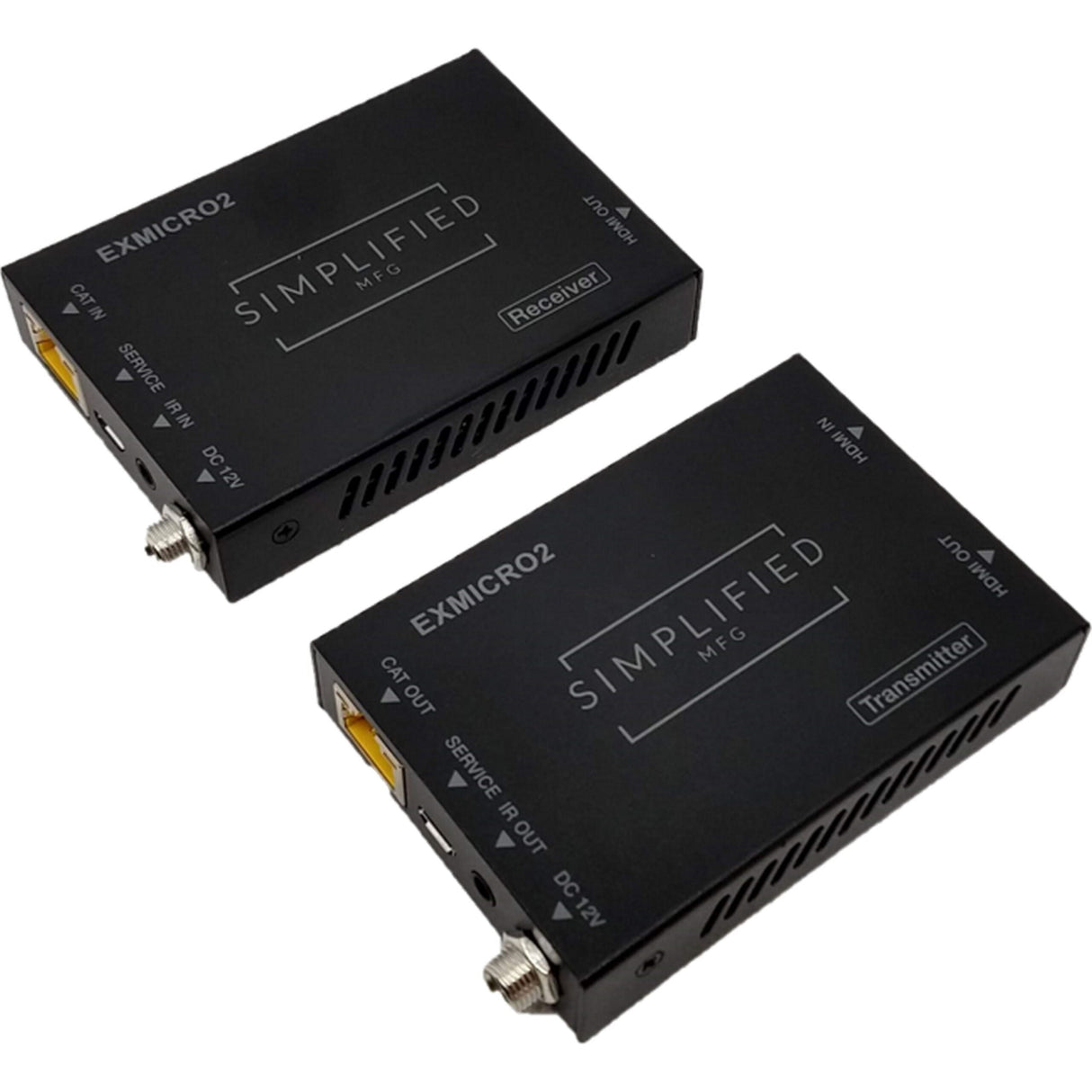

Simplified MFG EXMICRO2 4K HDMI/Cat6/6A, 1080p/Cat6A Extender
The EXMICRO2 is the second device in the Simplified MFG Micro line. It extends 1080p HDMI signals up to 70m/230ft and 4K HDMI signals up to 50m/164ft. The EXMICRO2 supports the entire HDMI 2.0b format including HDR and HDR+. The extender kit only requires power from one end (either) and has a 1-Way IR kit included (transmits IR from display end to source.) This technology is more efficient than most only drawing about 1/3 the power (3.84W) of a typical extender set similar to its abilities. Small, efficient, effective.
Key Features
- Allows HDMI 2.0b (18Gbps) Audio/Video and IR signals to be transmitted over a single Cat6/5e cable
- Built in EQ technology to eliminate clocking issues
- Supports EDID copy from receiver display
- Transmission Range: 4K@60Hz up to 50m/164ft over Cat6 cable, 1080P@60Hz up to 70m/230ft over Cat6 cable.
- HDCP1.4 and HDCP2.2 compliant
- Power from RX or TX
- Compact design
- 3-Year Warranty
Technical Specifications
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2/1.4
Video Bandwidth
18Gbps
Video Resolution
Up to 4K @60Hz 4:4:4
Color Space
RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth
8,10,12-Bit
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
ESD Protection
Human body model - ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Transmitter Inputs
1x HDMI Type A <19-pin female> 1x SERVICE
Transmitter Outputs
1x HDMI Type A <19-pin female> 1x IR OUT <3.5mm Stereo Mini-jack> 1x CAT OUT
Receiver Inputs
1x IR IN <3.5mm Stereo Mini-jack> 1x CAT IN
Receiver Outputs
1x HDMI Type A <19-pin female>
Housing
Metal
Color
Black
Dimensions
3.5” (88mm)
Weight
Transmitter: 160g/5.6 oz., Receiver: 155g/5.5 oz.
Power Supply
Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A
Power Consumption
3.84 W
Operating Temperature
32 - 104 Degrees F / 0 - 40 Degrees C
Storage Temperature
-4 - 140 Degrees F / -20 - 60 Degrees C
Relative Humidity
20 - 90% RH (no condensation)
