SmallRig 6537 D-Tap Dummy Battery Power Cable For Nikon EN-EL15c

SmallRig 6537 Dummy Battery Power Cable For Nikon EN-EL15c

The SmallRig 6537 Dummy Battery Power Cable connects compatible Nikon cameras to an external D-Tap power source through an EN-EL15c-style battery insert. It accepts 9-17V input and supplies 7.8-8.4V output at 2A continuously. An integrated display shows incoming voltage, while status indicators identify low input power and reversed D-Tap connections.

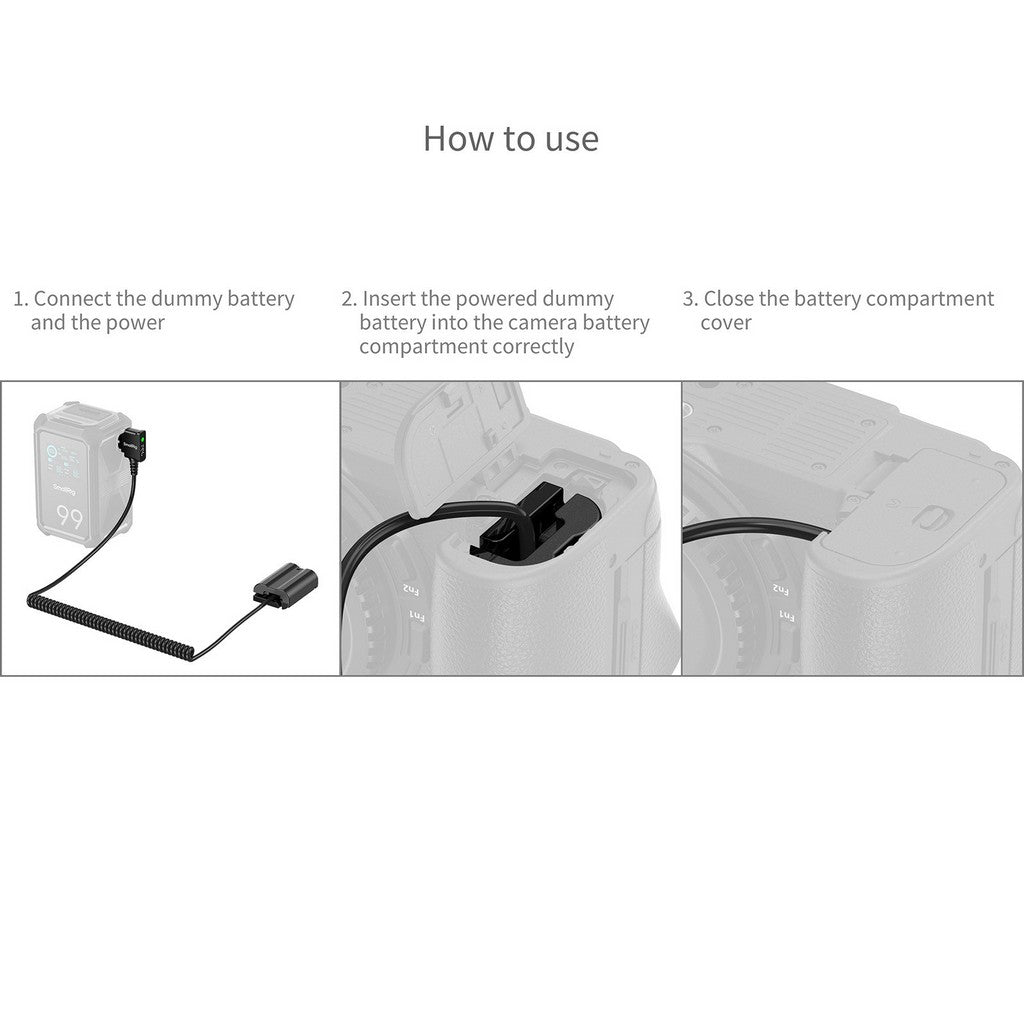

Designed for extended recording and livestreaming, this cable helps reduce interruptions caused by swapping camera batteries. Use it as a D-Tap power cable for Nikon cameras, a dummy battery for long recordings, or an external power connection for studio production. The coiled lead accommodates different rig layouts, while the battery-shaped insert fits into the camera's battery compartment. Connect the D-Tap plug to a suitable external source, such as a compatible V-mount battery.

SmallRig lists support for selected Nikon mirrorless and DSLR bodies, including the Z8, Zf, and D850. The voltage display helps operators monitor the external supply during a session. Reverse-connection protection supplements overvoltage, overheating, overcharge, and short-circuit safeguards. A flame-retardant ABS housing surrounds the battery insert, and the manufacturer lists FCC, CE, RoHS, ISED, and RCM compliance.

Key Features

• External Camera Power: Connect a compatible Nikon body to a D-Tap source to reduce battery changes during extended shooting.

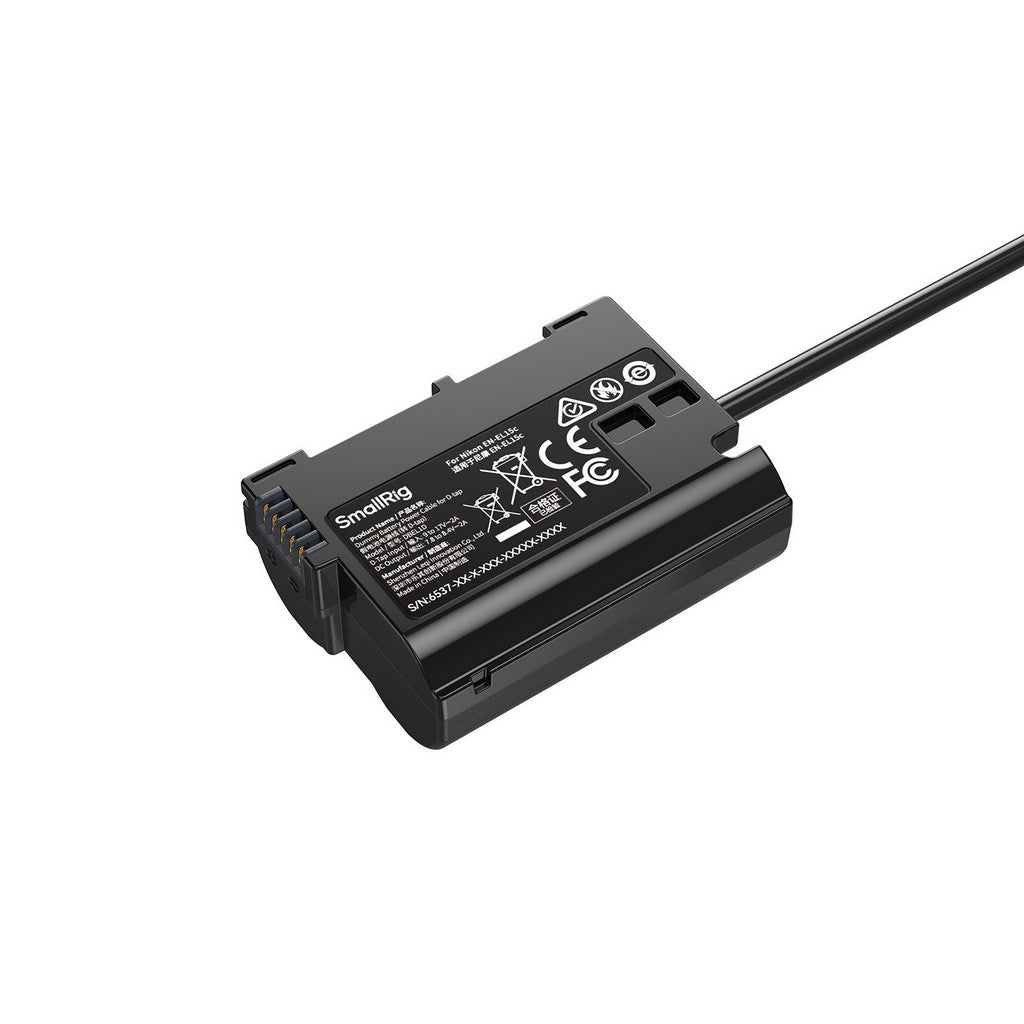

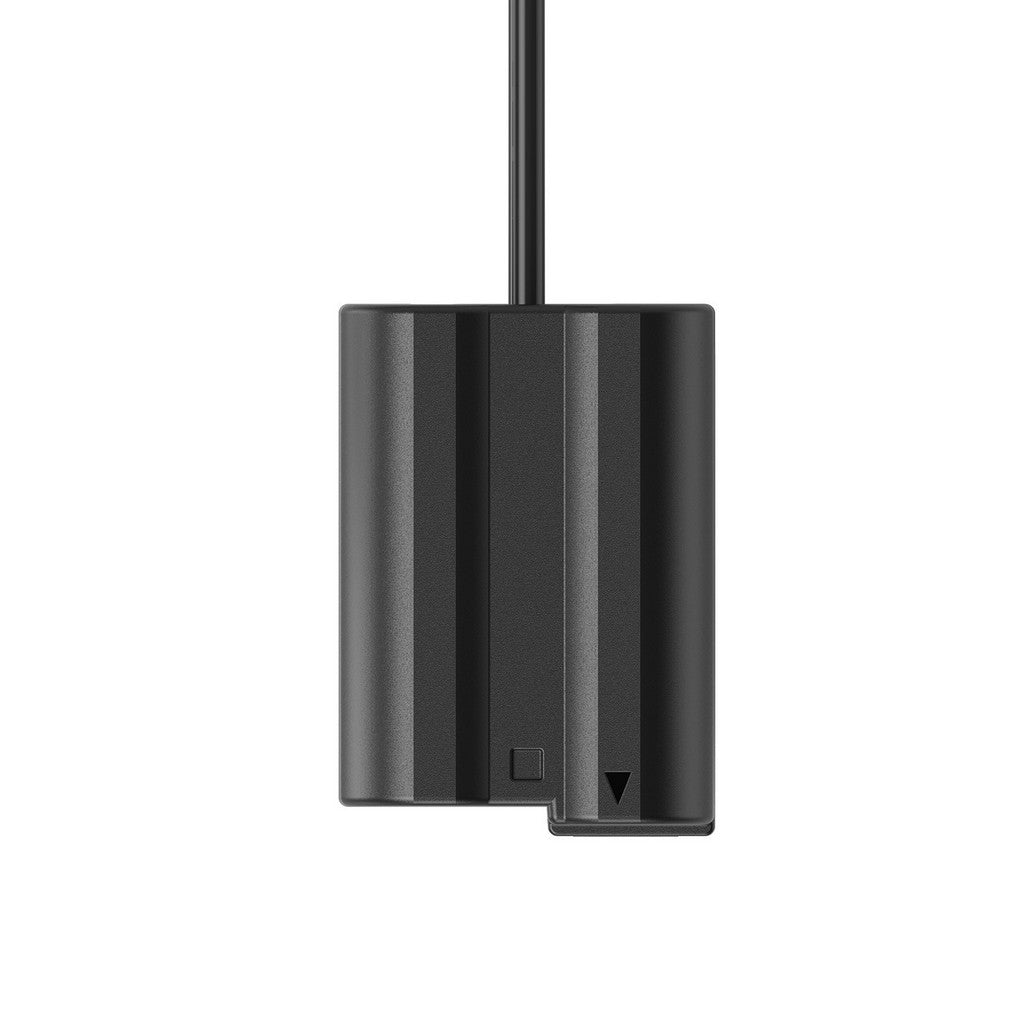

• EN-EL15c-Style Insert: The battery-shaped housing installs in the camera's battery compartment for a direct power connection.

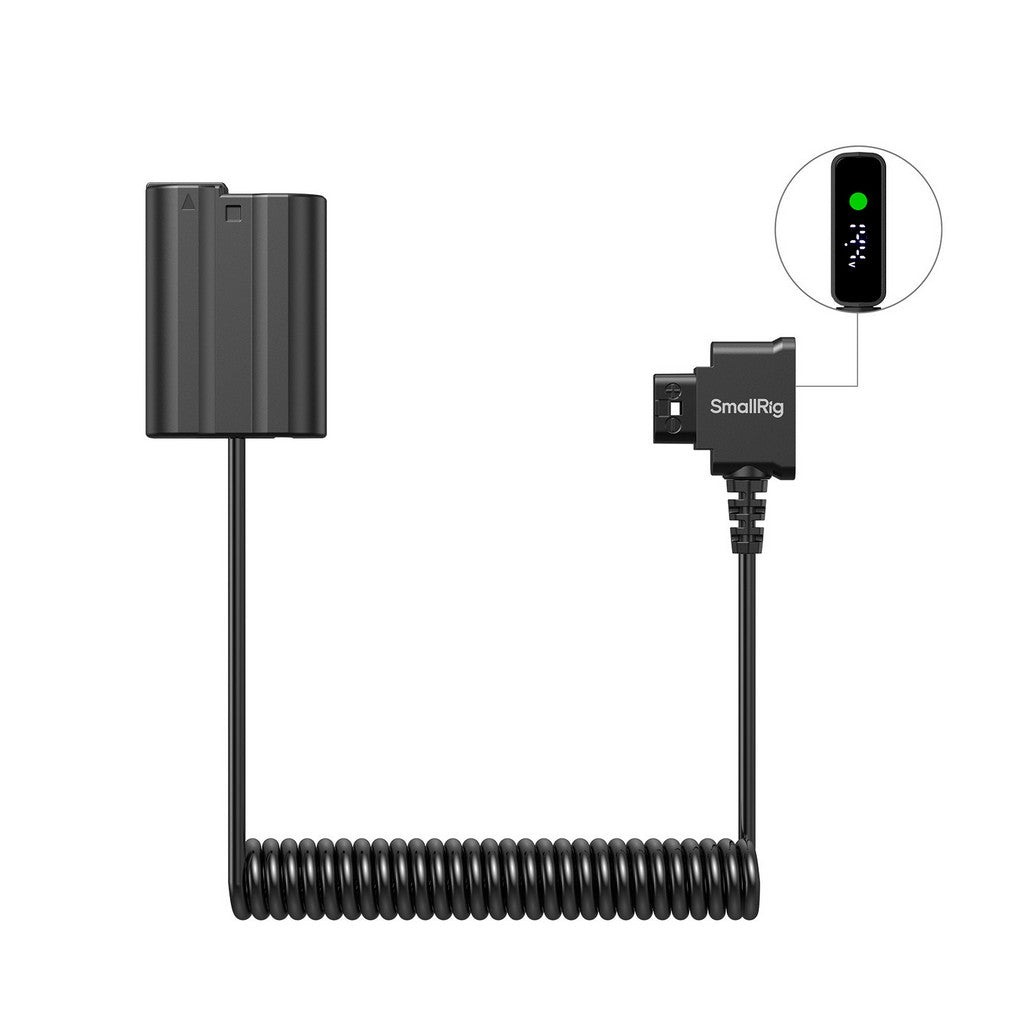

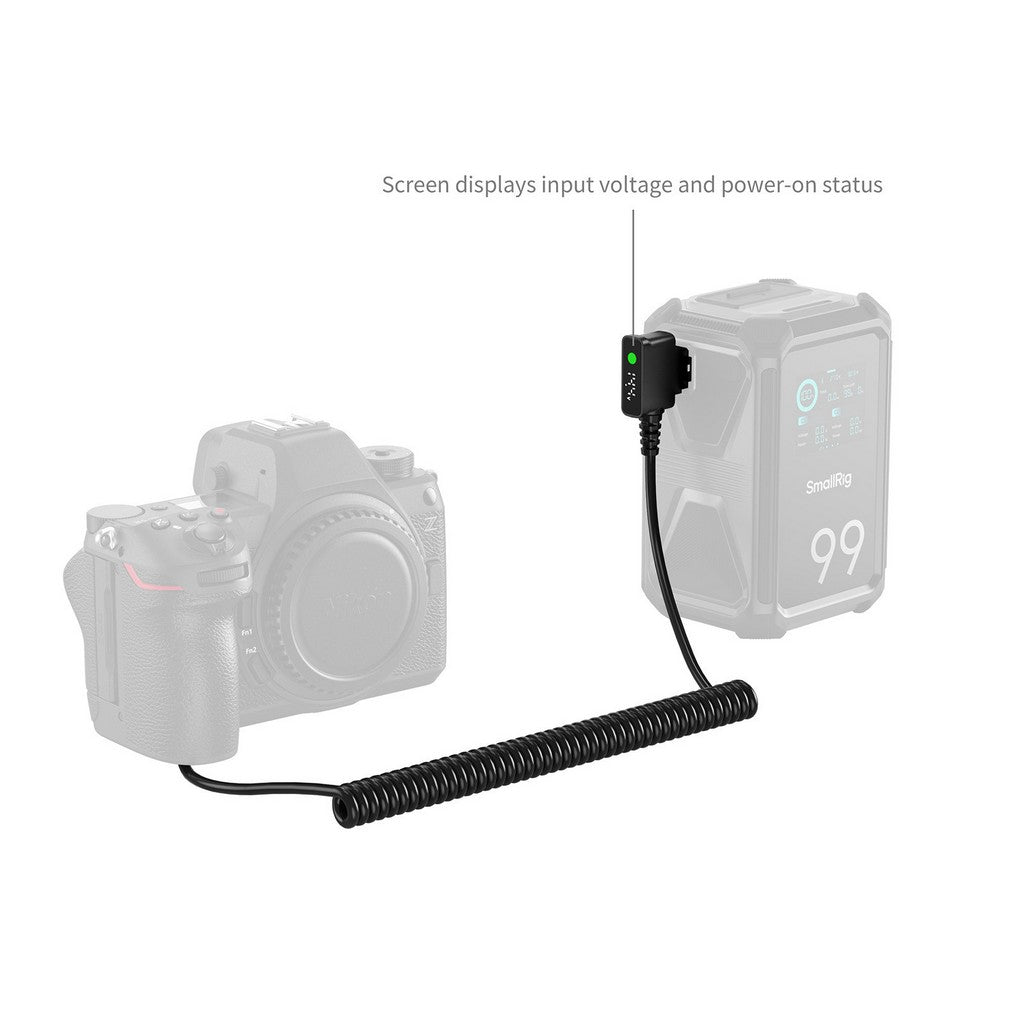

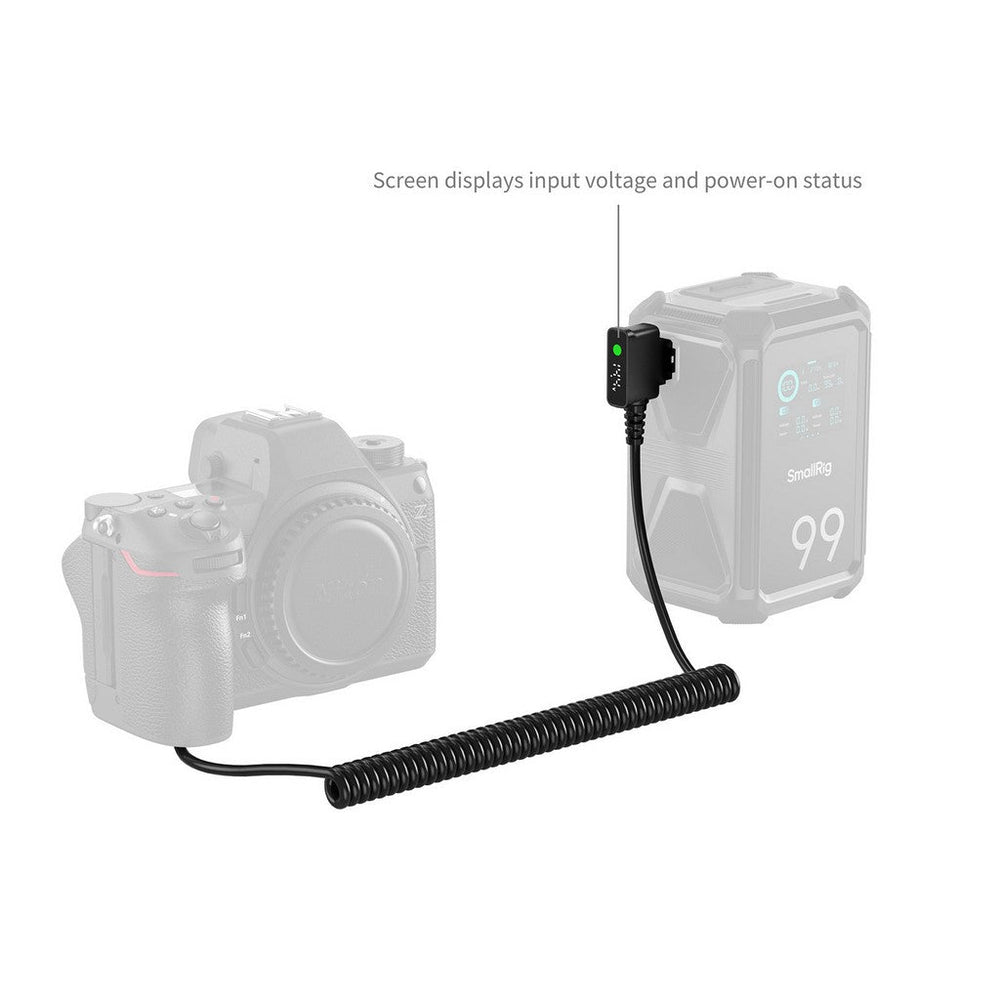

• Real-Time Voltage Display: Monitor incoming voltage and power status without disconnecting the cable.
• Low-Power Indicators: Green indicates input above 13V, while solid or flashing red warns when voltage falls below 13V.
• Reverse-Connection Protection: A solid red indicator with no voltage reading identifies a reversed D-Tap connection so you can correct its orientation.

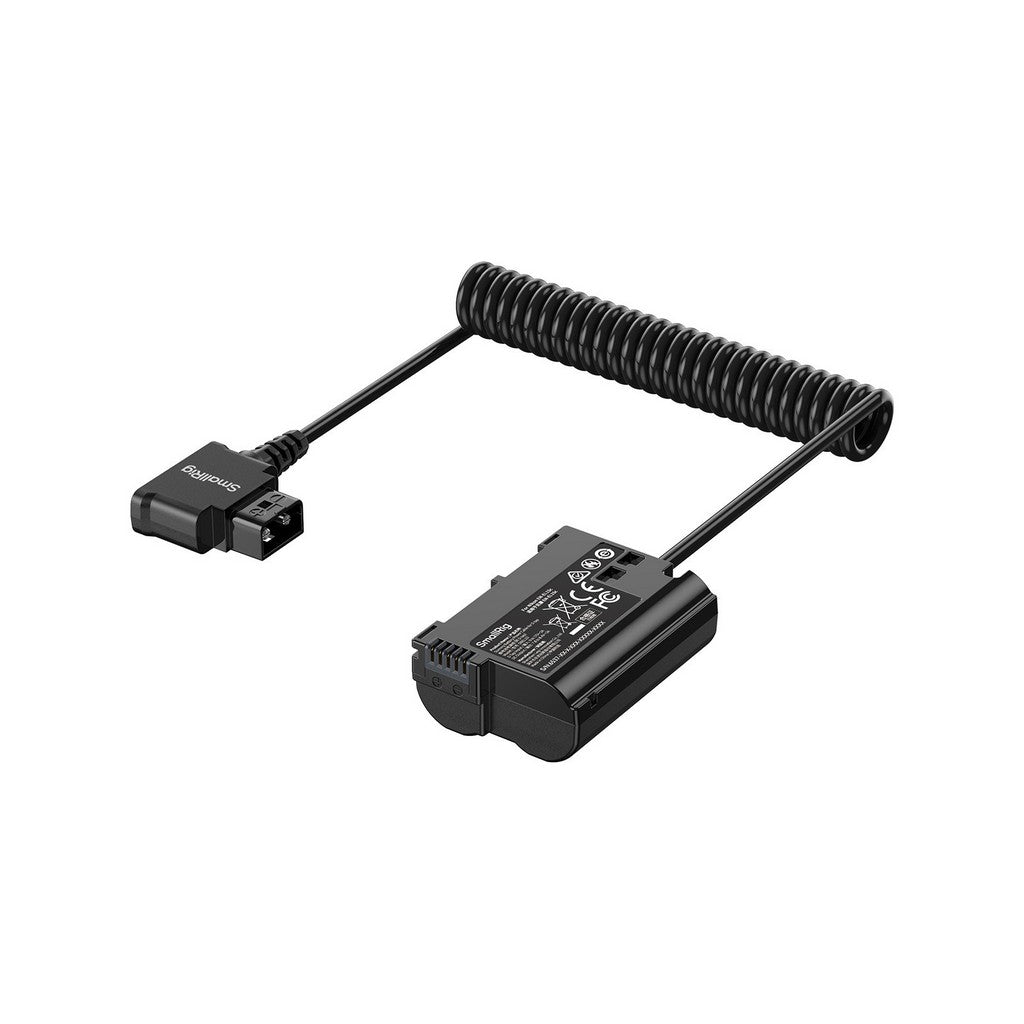

• Coiled Cable: The manufacturer lists an extendable length of 31.5-39.4 inches for routing between the camera and power source.
• Electrical Safeguards: Overvoltage, overheating, overcharge, and short-circuit protection support operation with compatible equipment.
• Flame-Retardant Housing: ABS construction provides a protective enclosure for the dummy battery assembly.

Technical Specifications

• Brand: SmallRig
• Model: 6537
• Product Type: D-Tap to EN-EL15c dummy battery power cable

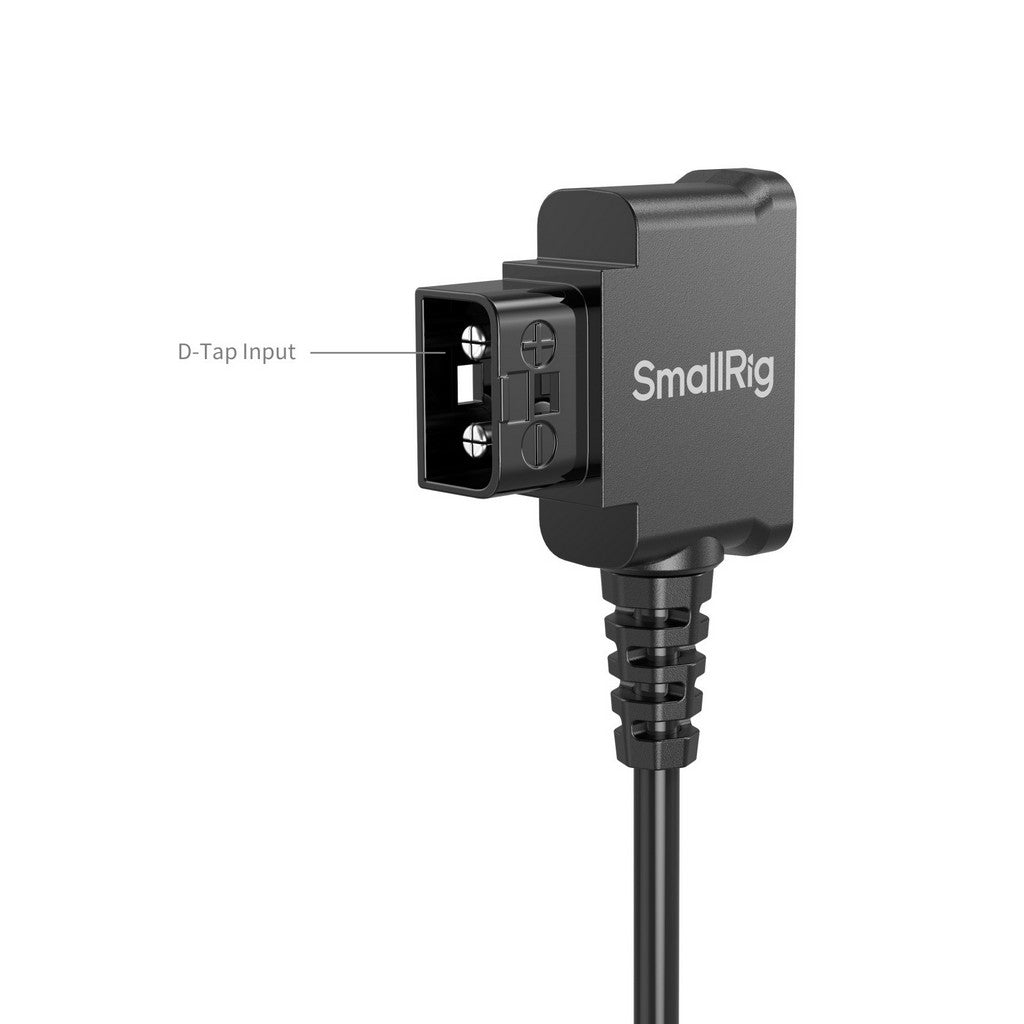

• Input Connector: D-Tap male
• Camera Interface: Nikon EN-EL15c-style dummy battery
• Input Voltage: 9-17V
• Input Current: 2A
• Output Voltage: 7.8-8.4V
• Continuous Output Current: 2A
• Output Protection Current: 4.5-5.5A
• Cable Construction: Coiled
• Manufacturer-Listed Extendable Cable Length: 31.5-39.4 inches
• Display Functions: Real-time input voltage and power status
• Normal-Power Indication: Solid green light with voltage displayed when input exceeds 13V
• Low-Power Indication: Solid or flashing red light with voltage displayed when input falls below 13V
• Reversed D-Tap Indication: Solid red light with no voltage displayed; reverse-connection protection activates
• Protection Systems: Reverse connection, overvoltage, overheating, overcharge, short circuit
• Compatible Nikon Cameras: Z8, Zf, Z6III, Z7II, Z6II, Z5, D850, D780, D500, D7500
• Operating Temperature: -4 to 122°F (-20 to 50°C)
• Storage Temperature: -4 to 140°F (-20 to 60°C)
• Battery Housing Material: Flame-retardant ABS
• Manufacturer-Listed Compliance: FCC, CE, RoHS, ISED, RCM
• Additional Manufacturer-Listed Reports: Quality Inspection Report, Structural Analysis Report
• Product Dimensions: 15.2 x 1.5 x 0.8 inches
• Package Dimensions: 5.5 x 4 x 1.2 inches
• Product Weight: Approximately 0.1 lb
• Package Weight: Approximately 0.2 lb
• EAN: 6941590033631

What's In the Box

• 1 x D-Tap to EN-EL15c dummy battery power cable
• 1 x user manual
