SmallRig 6564 100W GaN Charger With Four USB Ports, US Standard

SmallRig 6564 100W GaN Charger

The SmallRig 6564 100W GaN Charger powers compatible camera batteries, accessories, and everyday electronics through three USB-C ports and one USB-A port. Either USB-C1 or USB-C2 delivers up to 100W when used alone. Connecting all four ports provides up to 95W combined, with automatic power distribution between devices.

Built for photographers, videographers, and traveling creators, this four-port USB charger brings camera equipment and personal electronics into one charging setup. Use it as a USB-C charger for V-mount batteries, a travel charger for camera accessories, or a shared power adapter for phones and laptops. Gallium nitride, abbreviated GaN, enables a compact body that fits easily alongside production gear.

SmallRig lists compatibility with its VB50, VB99, VB155, VB99 SE, VB99 Lite, VB99 Pro, and X99 batteries. Supported charging protocols include USB Power Delivery (PD), Quick Charge (QC), and Programmable Power Supply (PPS). A flame-retardant polycarbonate housing, temperature management, and five electrical protection systems support charging during studio preparation and location work. Available output depends on the ports connected and the receiving device.

Key Features

• 100W Single-Port Charging: USB-C1 or USB-C2 supplies up to 20V at 5A for compatible high-power devices.
• Four Device Connections: Three USB-C outputs and one USB-A output accommodate camera accessories and personal electronics together.
• Automatic Power Allocation: The charger distributes output across connected devices, reaching 95W combined with all four ports occupied.
• Compact GaN Construction: The 2.9 x 2.3 x 1.1-inch body fits conveniently into a camera bag or travel kit.
• Multiple Fast-Charging Protocols: PD, QC, and PPS support charging across compatible phones, tablets, laptops, and production accessories.
• SmallRig Battery Compatibility: Support for selected V-mount batteries and camera charging equipment helps consolidate your power setup.
• Five Protection Systems: Overvoltage, overcurrent, short-circuit, overtemperature, and undervoltage protection work alongside intelligent temperature control.

Technical Specifications

• Brand: SmallRig
• Model: 6564
• Plug Version: US Standard
• Technology: Gallium nitride (GaN)
• Rated Maximum Output: 100W
• Input: AC 100-240V, 50/60Hz, 2.5A maximum

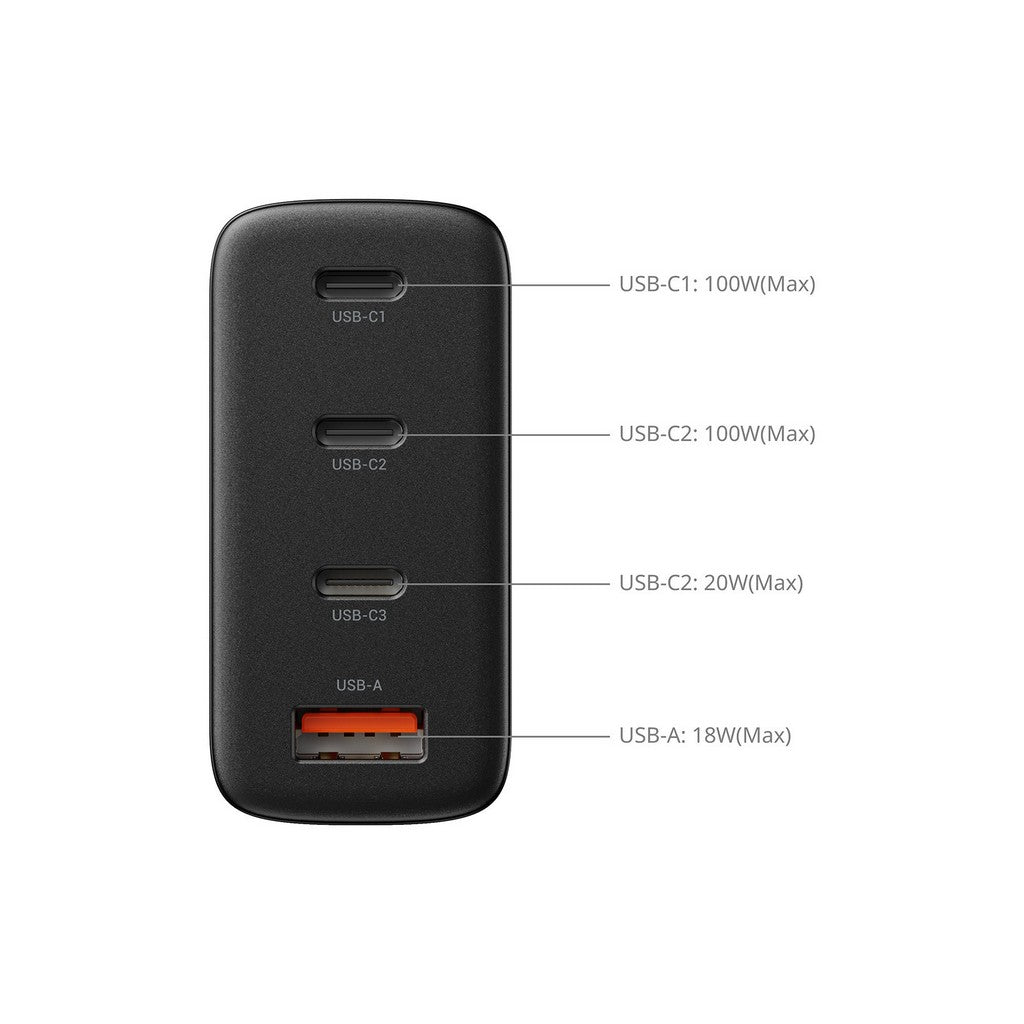

• Output Connections: 3 USB-C ports and 1 USB-A port
• USB-C1 or USB-C2, Single-Port Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, or 20V/5A; 100W maximum per port when used alone
• USB-C3, Single-Port Output: 5V/3A, 9V/2.22A, or 12V/1.5A; 20W maximum
• USB-A, Single-Port Output: 5V/3A, 9V/2A, or 12V/1.5A; 18W maximum
• USB-C1 + USB-C2: 60W + 30W; 90W combined maximum
• USB-C1 + USB-C3: 60W + 20W; 80W combined maximum
• USB-C1 + USB-A: 60W + 18W; 78W combined maximum
• USB-C2 + USB-C3: 45W + 20W; 65W combined maximum
• USB-C2 + USB-A: 45W + 18W; 63W combined maximum
• USB-C3 + USB-A: 10W + 10W; 20W combined maximum
• USB-C1 + USB-C2 + USB-C3: 45W + 30W + 20W; 95W combined maximum
• USB-C1 + USB-C2 + USB-A: 45W + 30W + 18W; 93W combined maximum
• USB-C1 + USB-C3 + USB-A: 60W + 10W + 10W; 80W combined maximum
• USB-C2 + USB-C3 + USB-A: 45W + 10W + 10W; 65W combined maximum
• USB-C1 + USB-C2 + USB-C3 + USB-A: 45W + 30W + 10W + 10W; 95W combined maximum
• Charging Protocols: PD, QC, PPS
• Listed SmallRig Battery Compatibility: VB50, VB99, VB155, VB99 SE, VB99 Lite, VB99 Pro, X99
• Supported Equipment: Compatible V-mount batteries, NP-F batteries, direct-charge batteries, charging hubs, camera battery chargers, wireless microphones, LED lights, monitors, wireless video transmitters, phones, tablets, and laptops
• Protection: Overvoltage, overcurrent, short circuit, overtemperature, undervoltage
• Thermal Management: Intelligent temperature control
• Housing: Flame-retardant polycarbonate (PC)

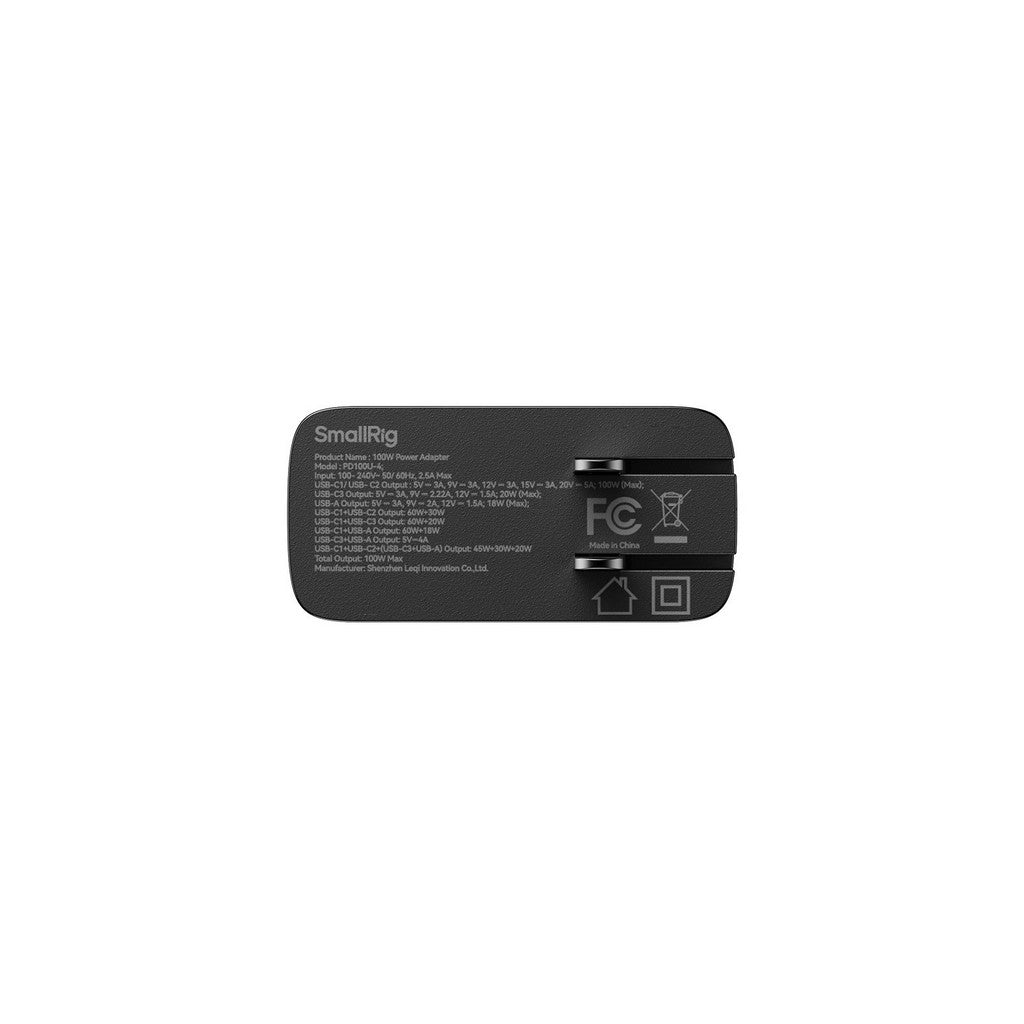

• Manufacturer-Listed Compliance: FCC, UL 62368, TSCA, CEC, DOE

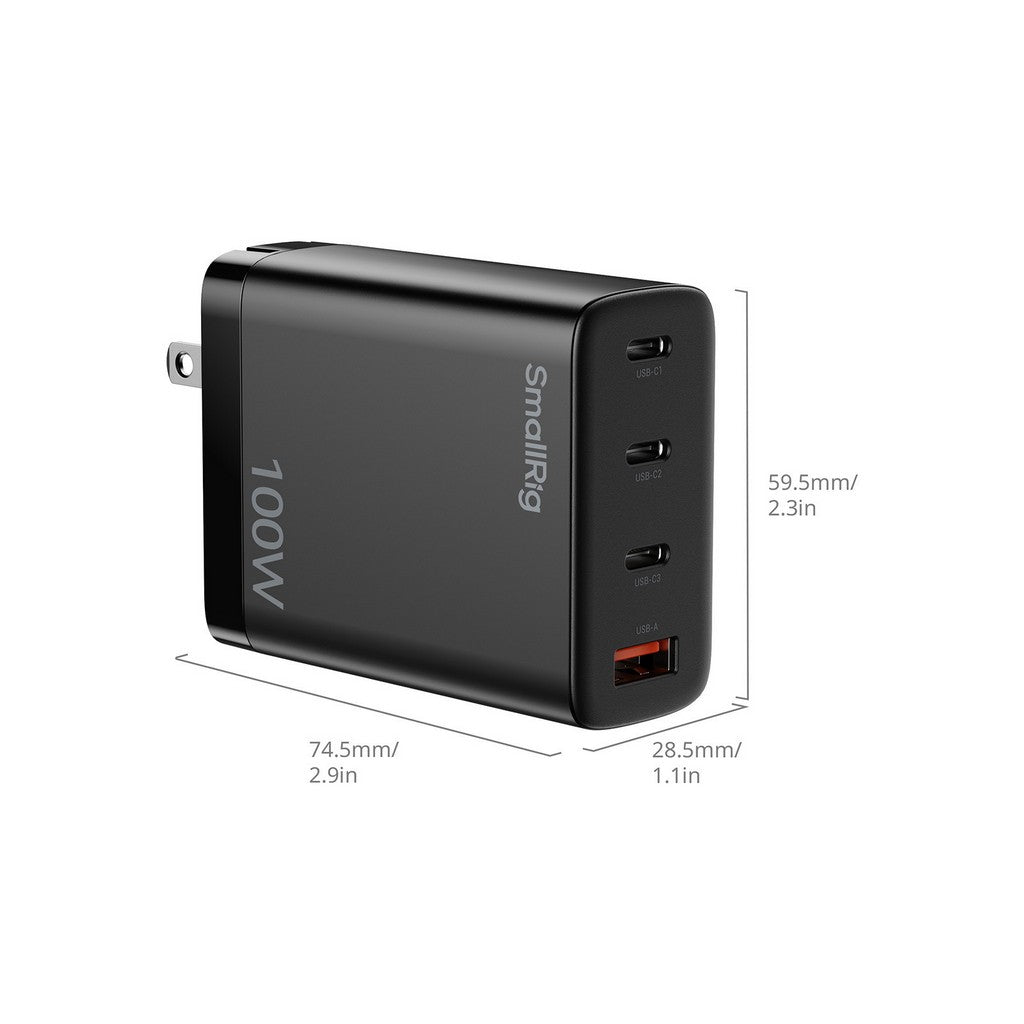

• Product Dimensions: 2.9 x 2.3 x 1.1 inches
• Package Dimensions: 5.5 x 3.7 x 1.4 inches
• Net Weight: Approximately 0.5 lb
• Weight With Charging Cable: Approximately 0.5 lb
• Package Weight: Approximately 0.7 lb
• EAN: 6941590033907

What's In the Box

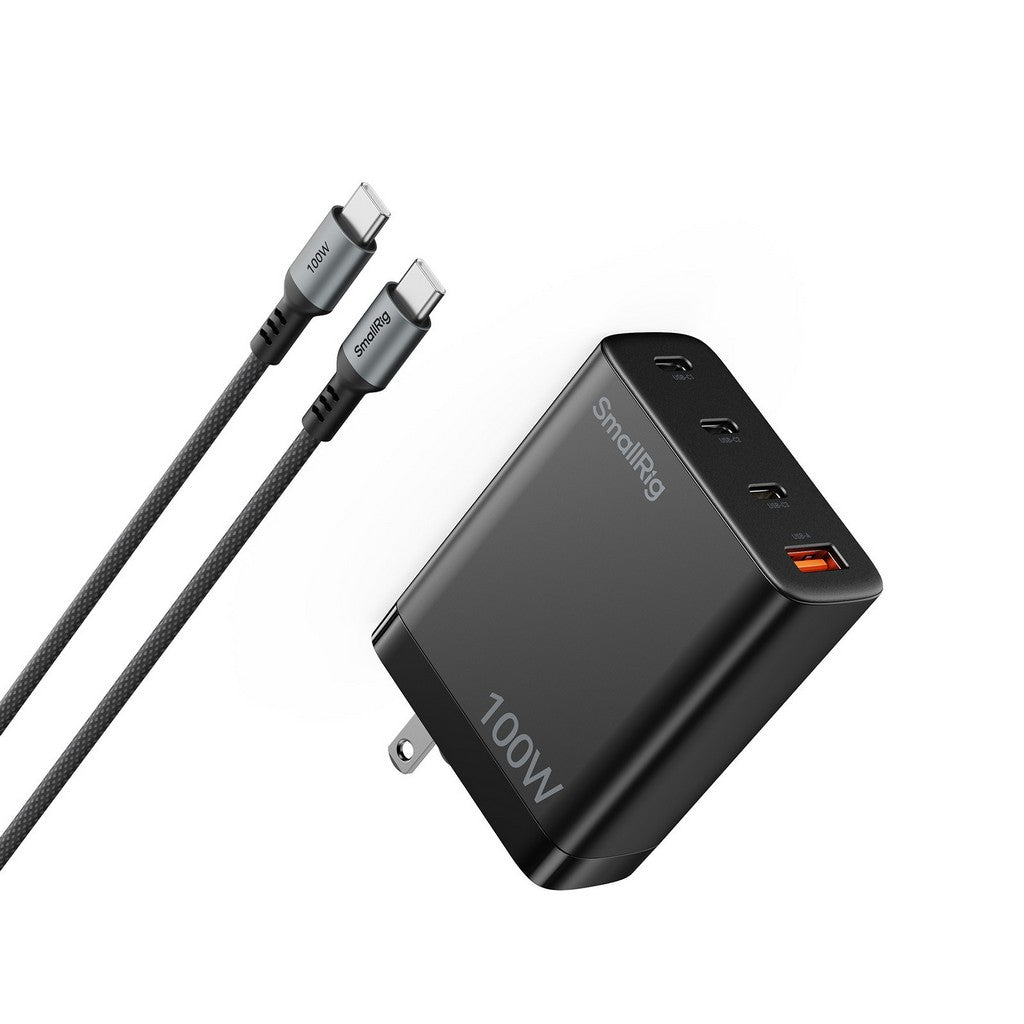

• 1 x 100W power adapter
• 1 x charging cable
• 1 x user manual
