SmallRig Nano36 6057 Power Bank With Retractable USB-C Cable And V-Mount Plate

SmallRig Nano36 6057 Power Bank

The SmallRig Nano36 6057 Power Bank supplies portable USB power with a retractable USB-C cable, a USB-C port, and a USB-A port. It delivers up to 45W through either USB-C connection used alone. A removable V-mount plate and 1/4"-20 threaded hole provide mounting options for compatible camera rigs and accessories.

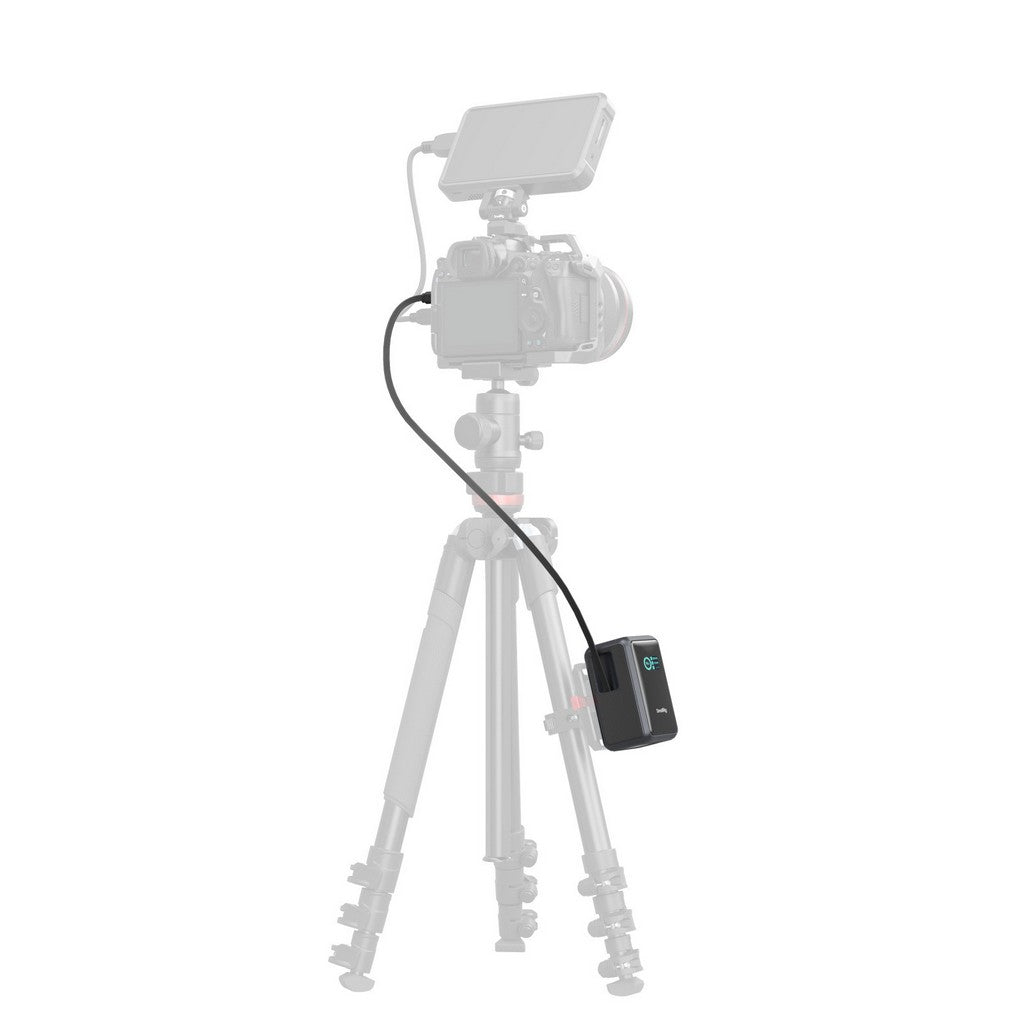

Designed for mobile creators, this compact battery combines an approximately 27.6-inch retractable cable with a color display for monitoring power. Use it as a portable power bank for cameras, a rig-mounted battery for mobile shooting, or a USB charger for everyday devices. Remove the metal mounting plate when you want a standalone battery, or attach it for a compatible V-mount setup. Two-device and three-device operation share a maximum total output of 20W.

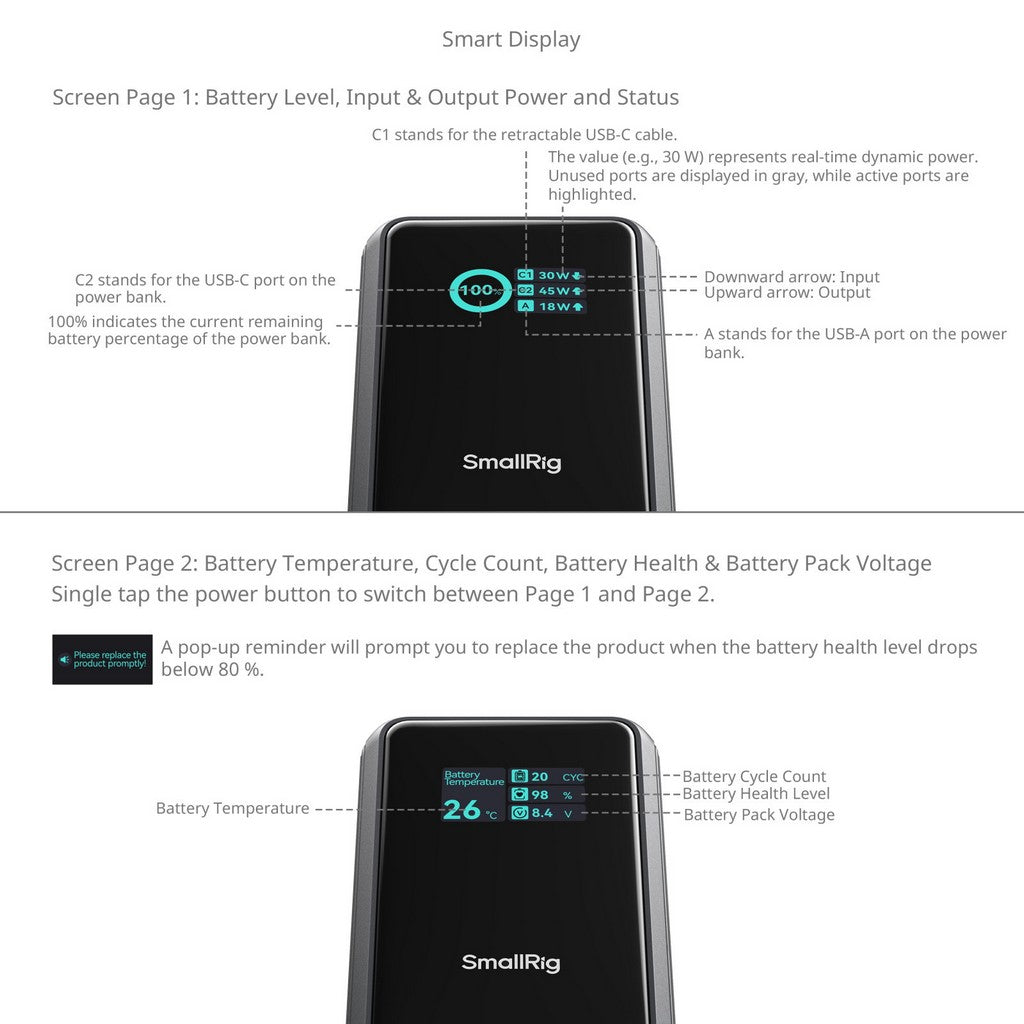

The thin-film transistor (TFT) display reports battery level and charging power, with additional views for battery health, cycle information, and temperature. SmallRig lists compatibility with selected cameras, action cameras, phones, and other portable electronics. Short-circuit, overcurrent, overtemperature, overvoltage, and undervoltage protection support charging and discharging. The rear locating hole complements the threaded connection when attaching compatible mounting accessories.

Key Features

• 45W USB-C Output: Either the integrated cable or USB-C port delivers up to 45W when used individually for compatible equipment.

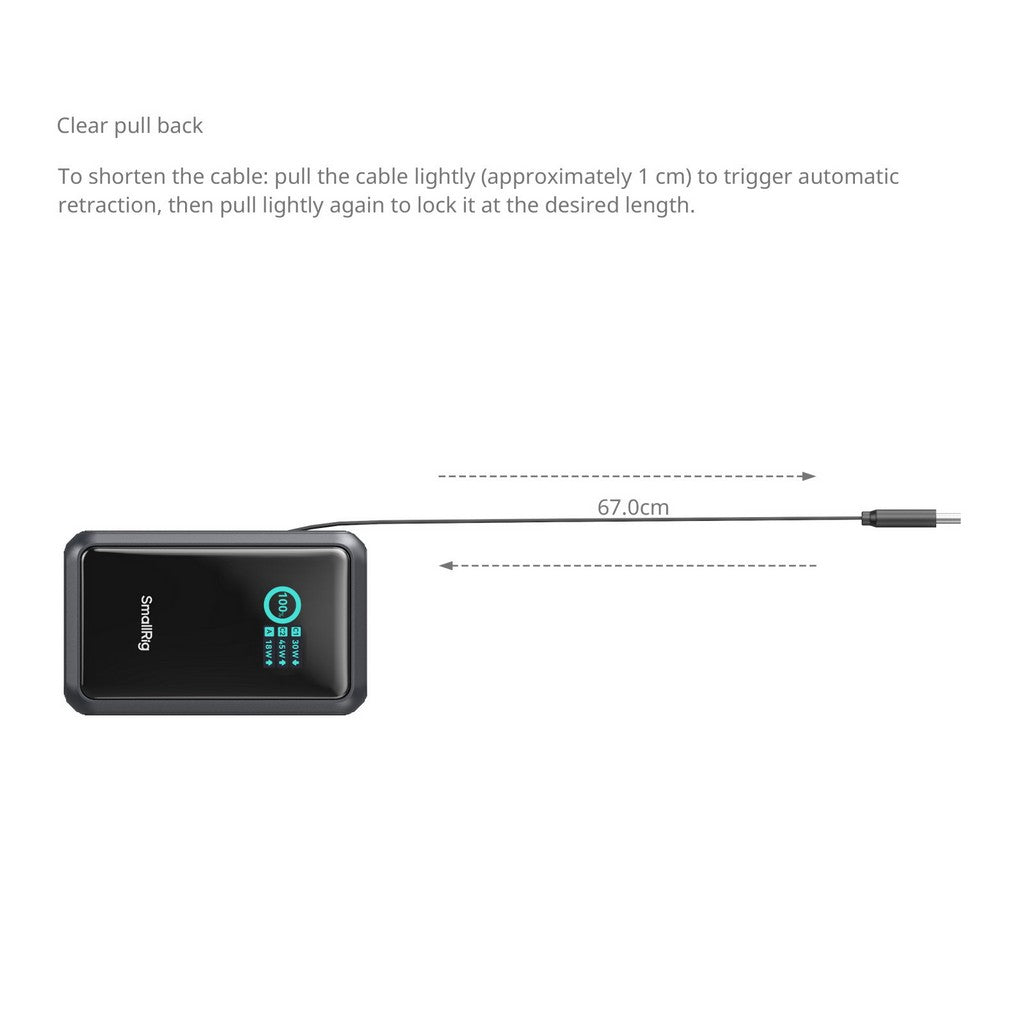

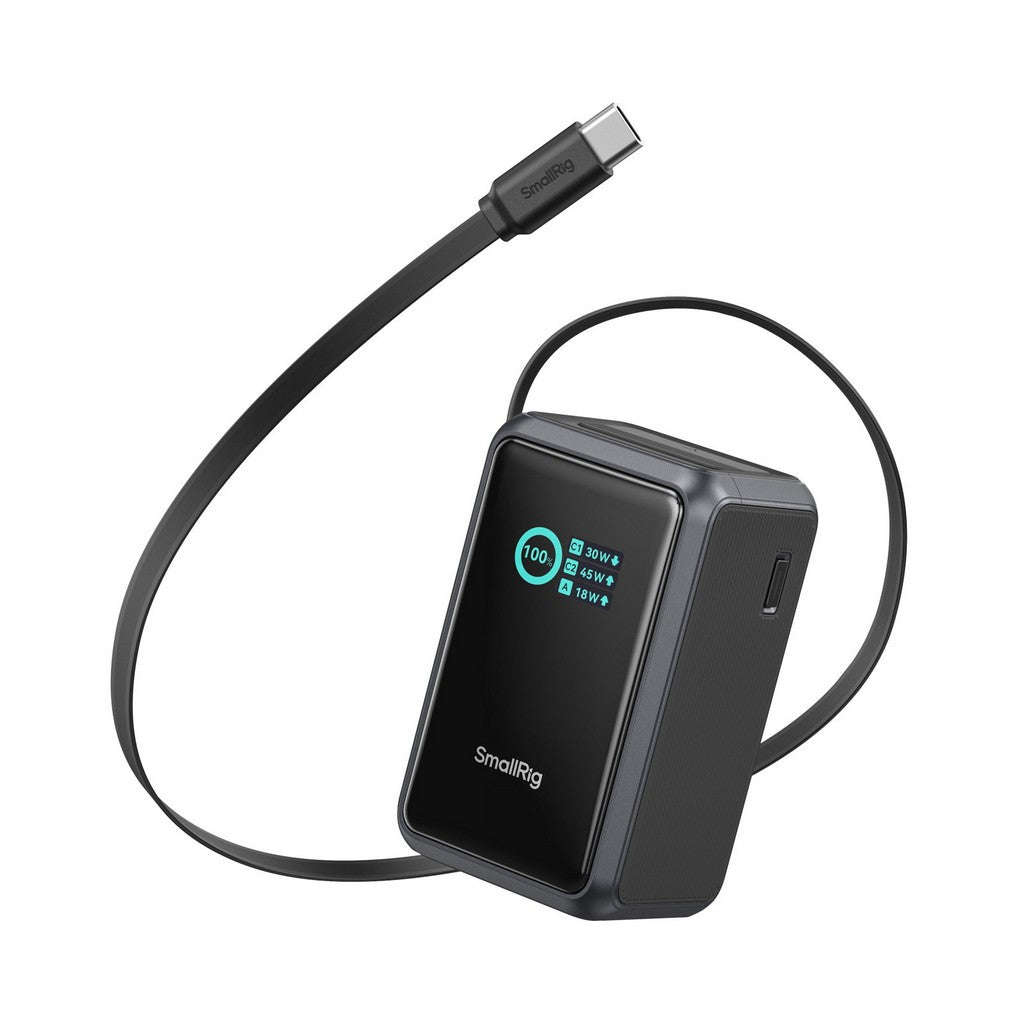

• Retractable Charging Cable: The approximately 27.6-inch USB-C cable extends when needed and retracts automatically to simplify cable storage.
• Detachable V-Mount Plate: Switch between a compatible rig-mounted setup and standalone power bank use.

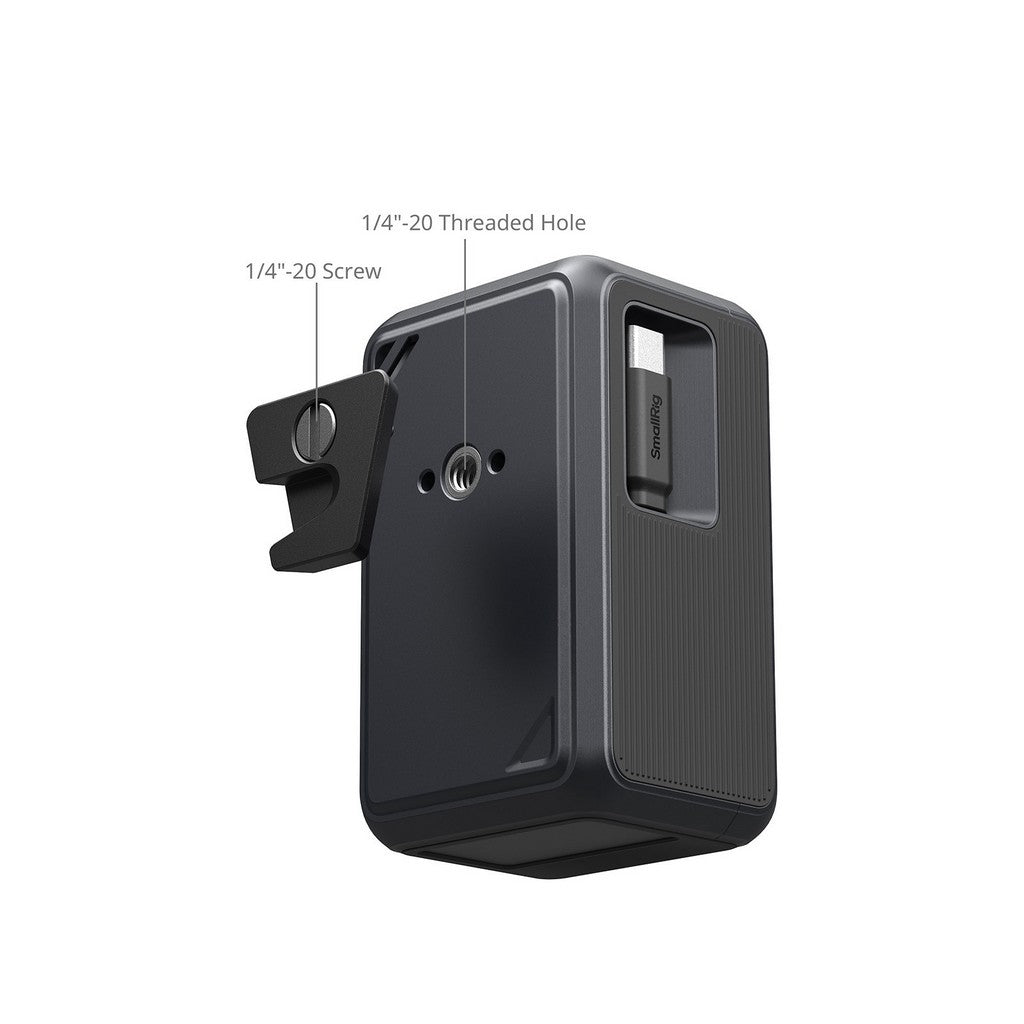

• Threaded Accessory Mounting: A rear 1/4"-20 threaded hole and locating hole accommodate compatible mounting hardware, including arms and clamps.
• Color Battery Display: Check charge level, connection power, battery health, cycle count, remaining cycle life, and temperature.
• Three Output Connections: Power compatible devices through the built-in cable, USB-C port, and USB-A port, with up to 20W shared during simultaneous use.
• 30W Maximum Input: Recharge through either USB-C connection using a compatible power source.
• Five Electrical Protections: Built-in safeguards address short circuits, excess current, overheating, overvoltage, and undervoltage.

Technical Specifications

• Brand: SmallRig
• Product Series: Nano36
• Model: 6057
• Battery Type: Lithium battery
• Manufacturer-Listed Cell Capacity: 10000mAh total cell capacity; two 5000mAh cells connected in series
• Manufacturer-Listed Battery Pack Rating: 5000mAh / 7.35V / 36.5Wh
• Connections: Built-in retractable USB-C cable, USB-C port, USB-A port
• Retractable Cable Length: Approximately 27.6 inches
• Maximum Input: 30W through the USB-C cable or USB-C port
• USB-C Input Profiles: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A
• USB-C Cable or USB-C Port Output, Used Alone: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A; 45W maximum
• USB-A Output, Used Alone: 5V/3A, 9V/2A, 10V/2.25A, 12V/1.5A; 22.5W maximum
• USB-C Cable + USB-C Port Output: 10W + 10W
• Either USB-C Connection + USB-A Output: 10W + 10W
• USB-C Cable + USB-C Port + USB-A Output: 7W + 7W + 6W
• Combined Output With Multiple Connections: 5V/4A; 20W maximum
• USB-A Low-Current Behavior: With a load below 100mA, the display and output switch off after 2 hours and the unit enters sleep mode
• Mounting Interfaces: Rear 1/4"-20 threaded hole and locating hole
• V-Mount Plate: Detachable metal plate secured with a 1/4"-20 slotted screw
• Display: TFT color screen
• Displayed Information: Battery level, input and output power for each connection, battery health, cycle count, remaining cycle life, temperature
• Protection Systems: Short circuit, overcurrent, overtemperature, overvoltage, undervoltage
• Manufacturer-Listed Compatibility: iPhone, AirPods, and Apple Watch models; DJI Osmo Action 6, 5 Pro, 4, and 3; DJI Osmo Pocket 4P, 4, and 3; DJI Osmo 360; Insta360 X5 and Luna Ultra; Canon EOS R5 II; BMPCC 6K Pro; Nikon Z6; Panasonic GH6
• Materials: Aluminum alloy, silicone, thermoplastic polyurethane (TPU), PC V0 polycarbonate
• Manufacturer-Listed Certifications: FCC, CE, PSE, RCM, ISED

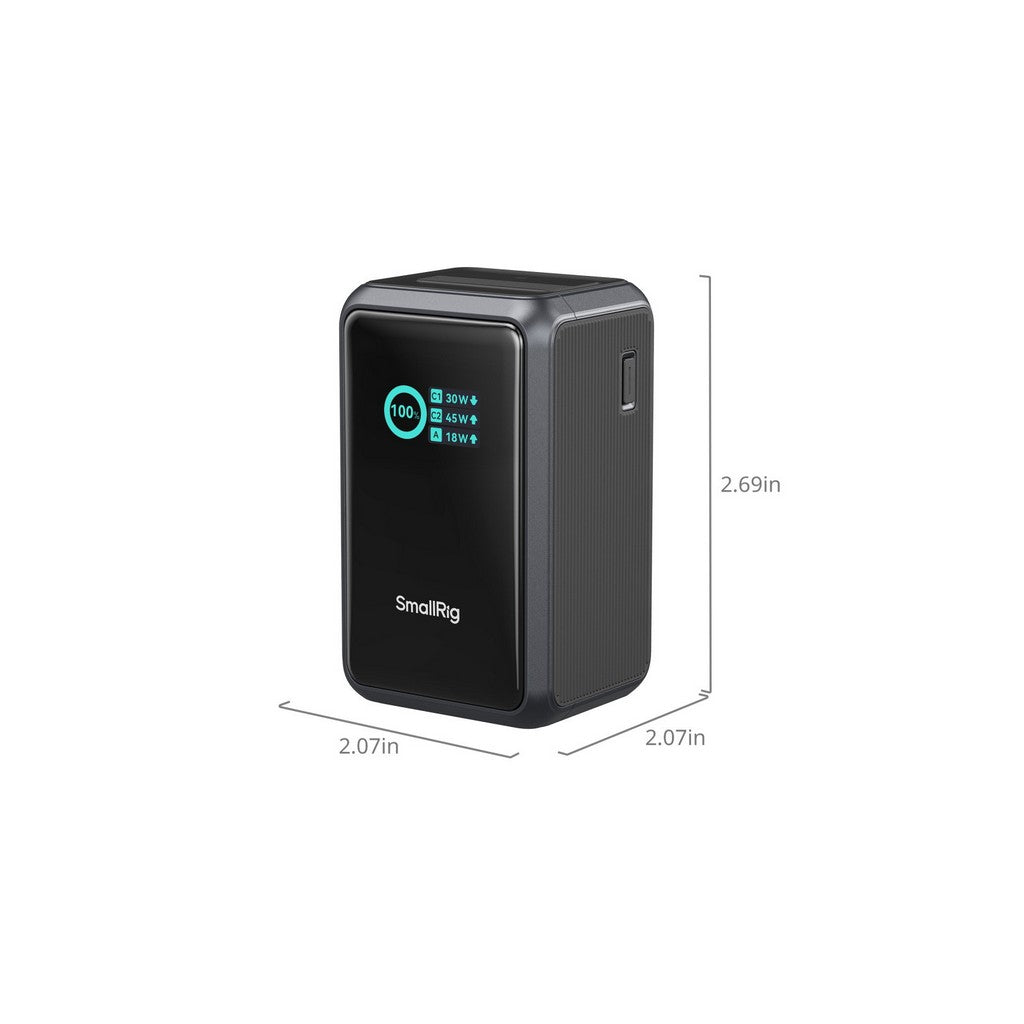

• Product Dimensions: 2.1 x 2.7 x 2.1 inches
• Package Dimensions: 3.6 x 2.4 x 4.9 inches
• Product Weight: Approximately 0.6 lb
• Package Weight: Approximately 0.9 lb
• EAN: 6941590032979

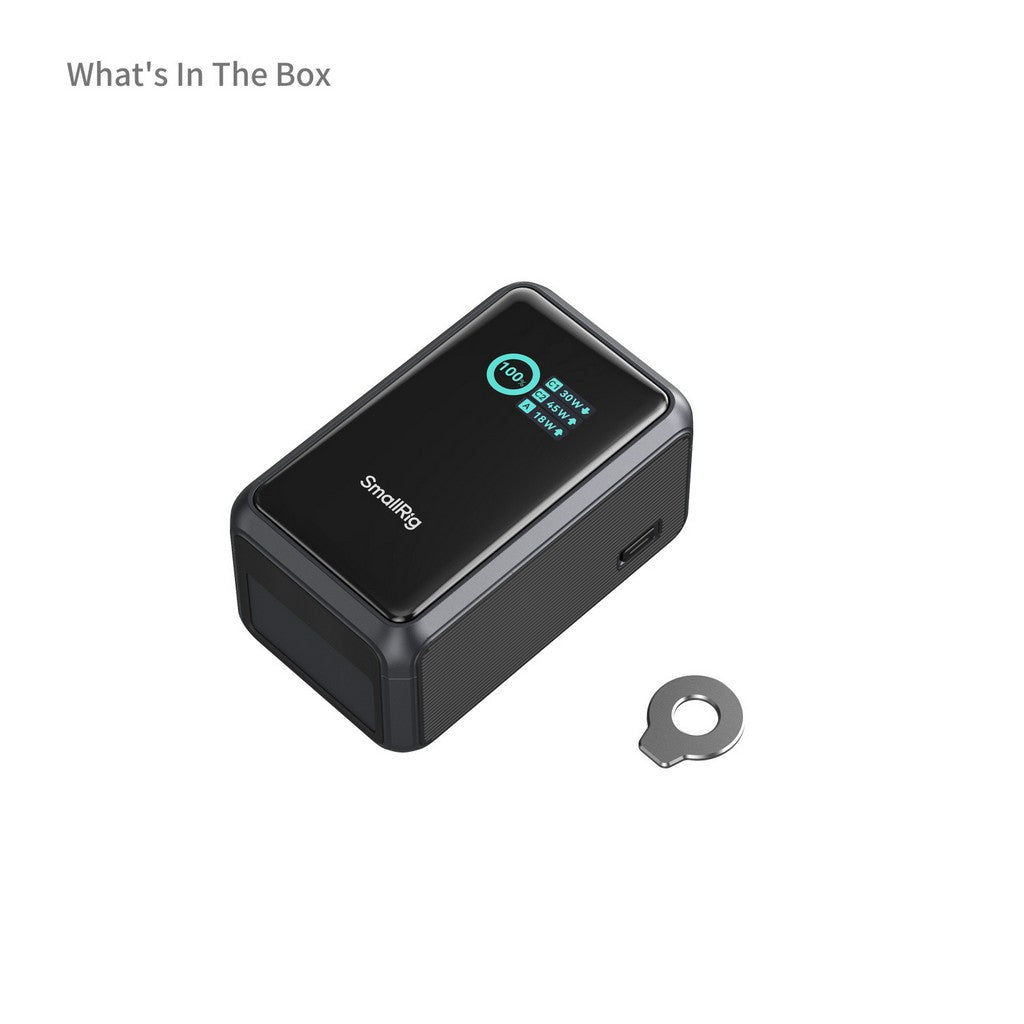

What's In the Box

• 1 x power bank
• 1 x wrench
• 1 x user manual
