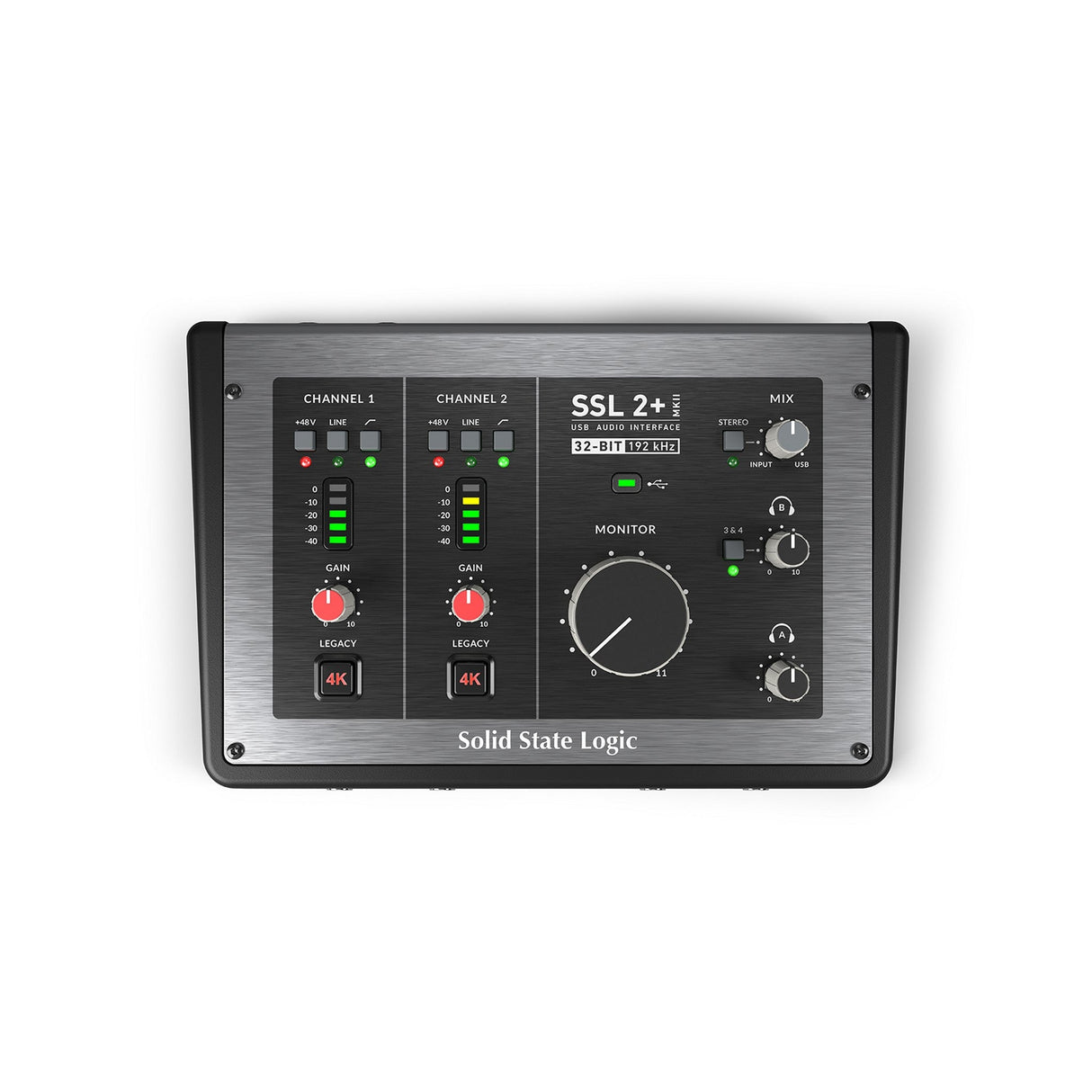

Solid State Logic SSL 2+ MKII USB-C Audio Interface

Solid State Logic SSL 2+ MKII USB-C Audio Interface

The Solid State Logic SSL 2+ MKII USB-C Audio Interface provides professional recording connectivity for musicians, producers, engineers, and content creators working with computers. Its microphone preamps deliver a 64 dB gain range, -130.5 dBu EIN A-weighted noise performance, and 116.5 dB A-weighted dynamic range for capturing microphones with low noise and ample usable gain.

For instrument and line-level recording, the SSL 2+ MKII accommodates a wide range of studio sources. Its instrument inputs provide 116 dB A-weighted dynamic range and support signals up to +15 dBu, while the line inputs deliver 117 dB A-weighted dynamic range with a maximum input level of +24 dBu. These specifications make the interface suitable for recording instruments, external preamps, synthesizers, processors, and other compatible line-level equipment.

The monitoring section maintains similarly strong performance, with balanced outputs offering 120 dB A-weighted dynamic range and a maximum output level of +14.5 dBu. Headphone outputs provide 119.5 dB A-weighted dynamic range with up to +13 dBu output. USB 2.0 connectivity uses a Type-C connector, while class-compliant Mac operation and dedicated Windows ASIO/WDM driver support provide straightforward integration with compatible computer recording systems.

Key Features

• Professional Mic Preamps: 64 dB gain range supports a broad selection of microphone sources.
• Low-Noise Recording: -130.5 dBu EIN A-weighted microphone preamp performance helps preserve clean recordings.
• Instrument Connectivity: Instrument inputs provide 116 dB A-weighted dynamic range and accept levels up to +15 dBu.
• Line-Level Recording: Line inputs deliver 117 dB A-weighted dynamic range with a +24 dBu maximum input level.
• Balanced Monitoring: Balanced outputs provide 120 dB A-weighted dynamic range and up to +14.5 dBu output.
• Headphone Monitoring: Headphone outputs deliver 119.5 dB A-weighted dynamic range with a +13 dBu maximum output.
• USB-C Connectivity: USB 2.0 Type-C connection supports compatible Mac and Windows computer systems.
• Cross-Platform Support: Class-compliant Mac operation and included Windows ASIO/WDM driver support streamlined setup.

Technical Specifications

System Requirements and Specs

• Mac Compatibility: macOS 12 and above
• Mac Operation: Class-compliant, plug-and-play
• Windows Compatibility: Windows 10, Windows 11, and Windows 11 ARM
• Windows Driver: Included ASIO/WDM driver installation required

Connectivity

• USB Connection: USB 2.0 Type-C connector

Mic Preamps

• Equivalent Input Noise: -130.5 dBu EIN, A-weighted
• Gain Range: 64 dB
• Dynamic Range: 116.5 dB, A-weighted

Instrument Inputs

• Dynamic Range: 116 dB, A-weighted
• Maximum Instrument Input Level: +15 dBu

Line Inputs

• Dynamic Range: 117 dB, A-weighted
• Maximum Line Input Level: +24 dBu

Balanced Outputs

• Dynamic Range: 120 dB, A-weighted
• Maximum Output Level: +14.5 dBu

Headphone Outputs

• Dynamic Range: 119.5 dB, A-weighted
• Maximum Output: +13 dBu

What's In the Box

• USB Type-C to USB Type-C cable
• USB Type-C to USB Type-A cable
