Sonance PowerPipe X PPX8, PPX10, PPX12 and PPX15 Hidden Subwoofers

The Sonance PowerPipe X PPX8, PPX10, PPX12, and PPX15 Hidden Subwoofers provide concealed architectural bass with 8", 10", 12", and 15" woofer options. Each model uses a ported bandpass enclosure, which routes low-frequency energy through a flexible tuned tube while allowing the main cabinet to remain hidden in ceilings, walls, closets, or cabinetry.

This scalable series serves distributed audio, home theater, luxury residential, and professional installations where visible subwoofer cabinets would interfere with the room design. Buyers can choose compact PPX8 performance, step up through PPX10 and PPX12 for increased extension and output, or select the PPX15 for the deepest response. Compatible grille, toe-kick, and flush-mount solutions let integrators terminate the port according to each project's architectural requirements.

Every Sonance PowerPipe X Hidden Subwoofer uses a high-excursion anodized aluminum woofer with rubber surround, a 4-ohm nominal impedance, an MDF enclosure, and a textured black finish. Frequency extension scales from 44 Hz on the PPX8 down to 29 Hz on the PPX15, while recommended amplifier power increases from 300W to 600W across the four-model range.

Key Features

• Four Woofer Sizes: Choose PPX8, PPX10, PPX12, or PPX15 models with 8", 10", 12", and 15" high-excursion woofers.
• Hidden Architectural Bass: Conceals the primary enclosure while routing bass into the listening area through a flexible port tube.
• Ported Bandpass Construction: Uses a tuned enclosure and remote port arrangement for controlled low-frequency output from concealed locations.
• Scalable Low-Frequency Extension: Model response extends from 44 Hz on the PPX8 to 29 Hz on the flagship PPX15.
• High-Excursion Aluminum Woofers: Anodized aluminum cones with rubber surrounds support dedicated architectural subwoofer performance.
• 4-Ohm Design: All four models use a 4-ohm nominal impedance for integration with compatible amplification.
• Flexible Finish Integration: Supports compatible toe-kick, XPC grille, trimless, micro-trim, and flush-mount installation approaches.
• Concealed Placement Options: Designed for installation in ceilings, walls, adjacent spaces, closets, and cabinetry.

Technical Specifications

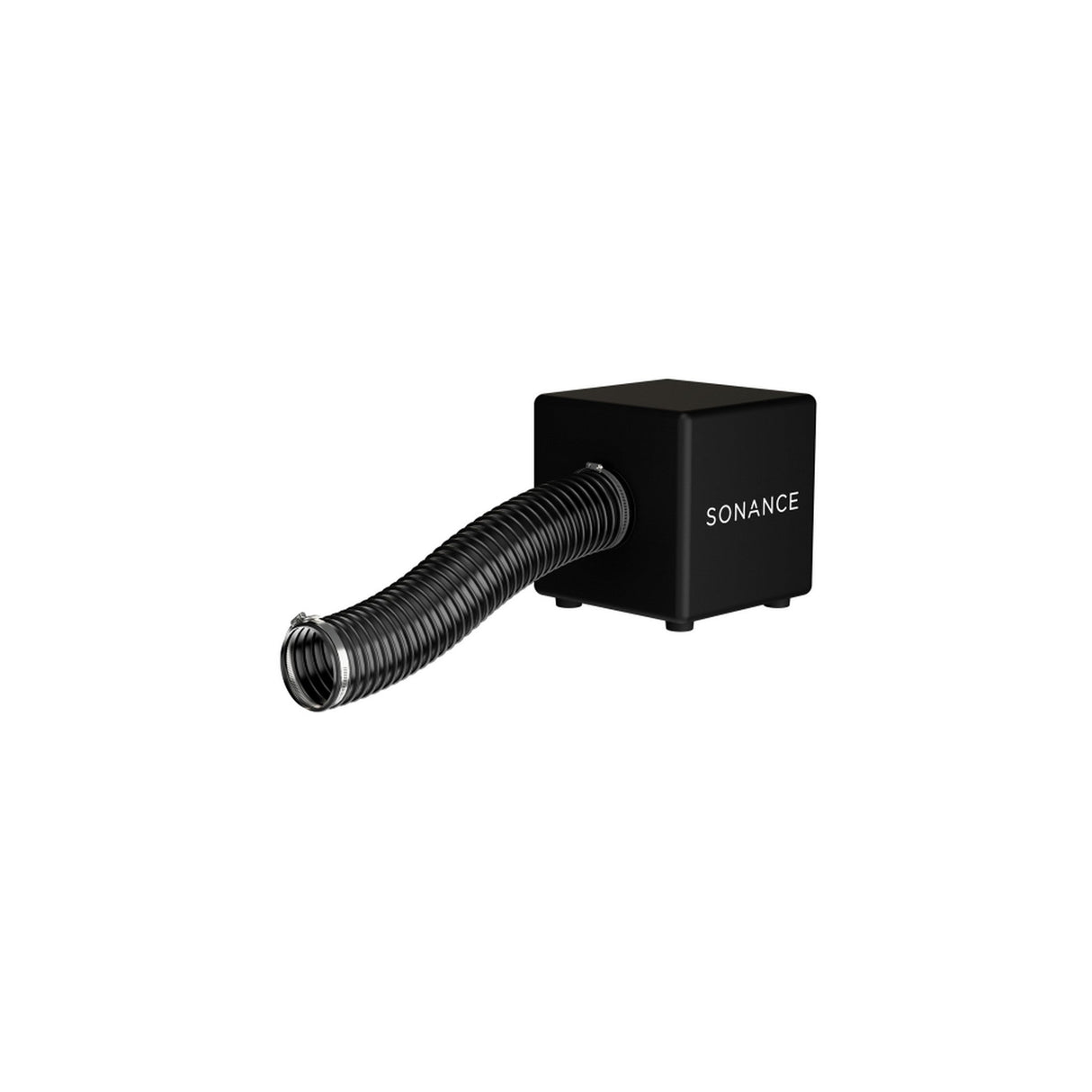

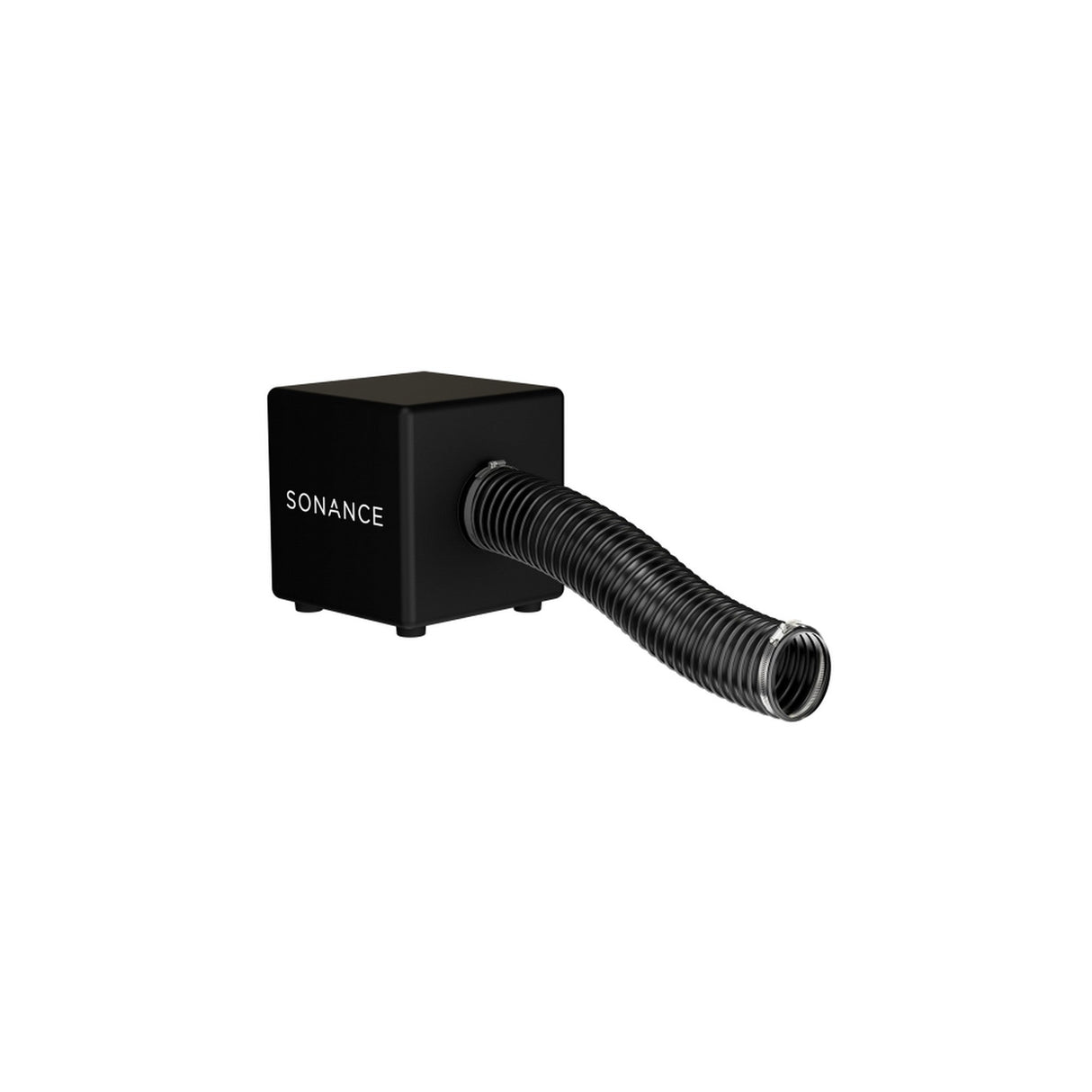

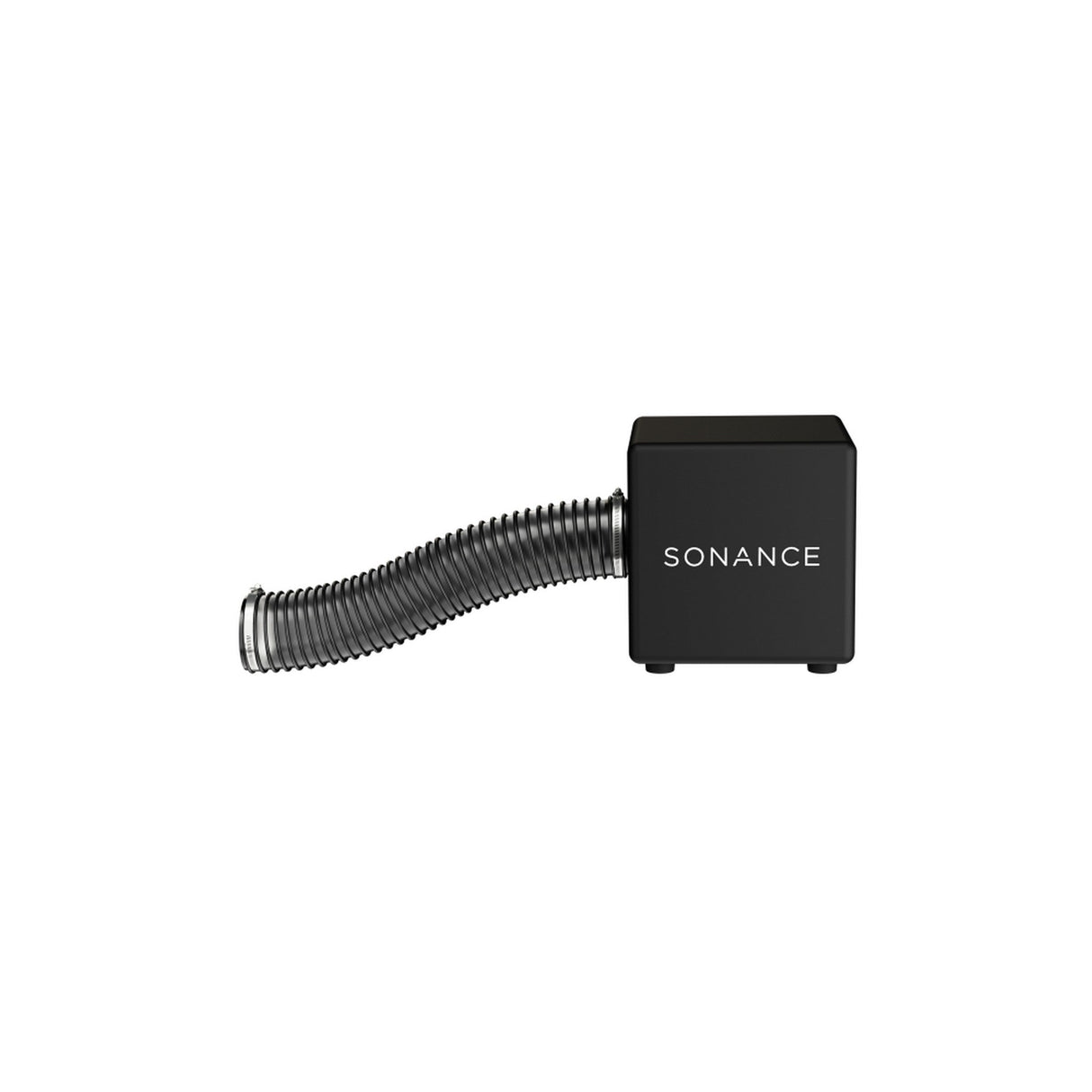

PPX8 - 8" Hidden Subwoofer

• Model: PPX8
• Manufacturer Item Number: 93785
• Woofer: 8" anodized aluminum cone, rubber surround, high excursion
• Frequency Response: 44 Hz to 130 Hz, +/-3 dB
• Sensitivity: 91 dB SPL at 2.83V/1m
• Nominal Impedance: 4 ohms
• Recommended Power: 300W
• Enclosure: MDF
• Finish: Textured black
• Tube Inside Diameter: 4"
• Tube Length: 21.7"
• Dimensions With Feet (W x H x D): 11.8" x 12.4" x 11.5"
• Dimensions Without Feet (W x H x D): 11.8" x 11.8" x 11.5"
• Product Weight: 30.6 lb
• Shipping Weight: 36.4 lb
• Recommended Amplifiers: Blaze PowerZone Connect 1002, 2004, and 4008; Sonance DSP 2-750 MKIII

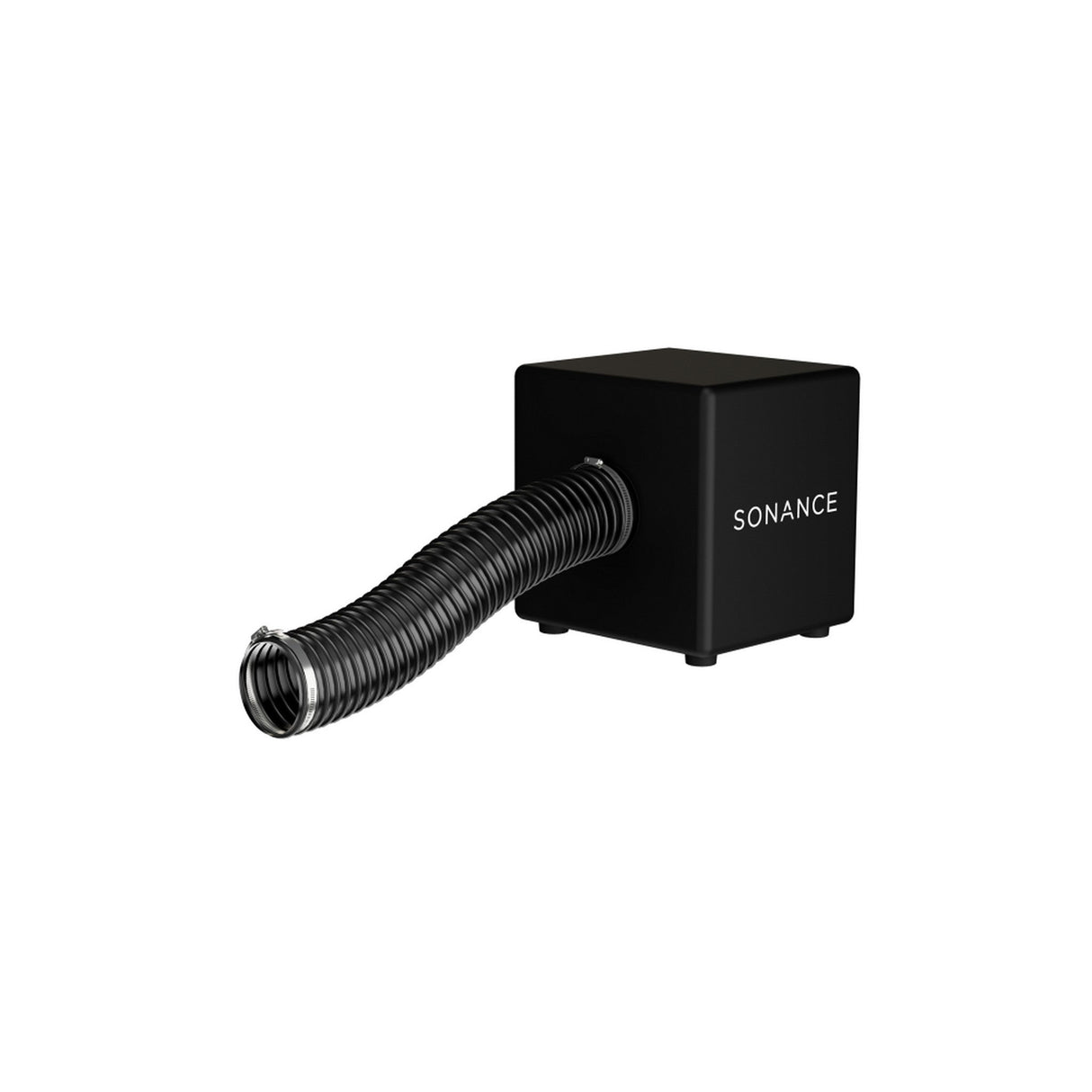

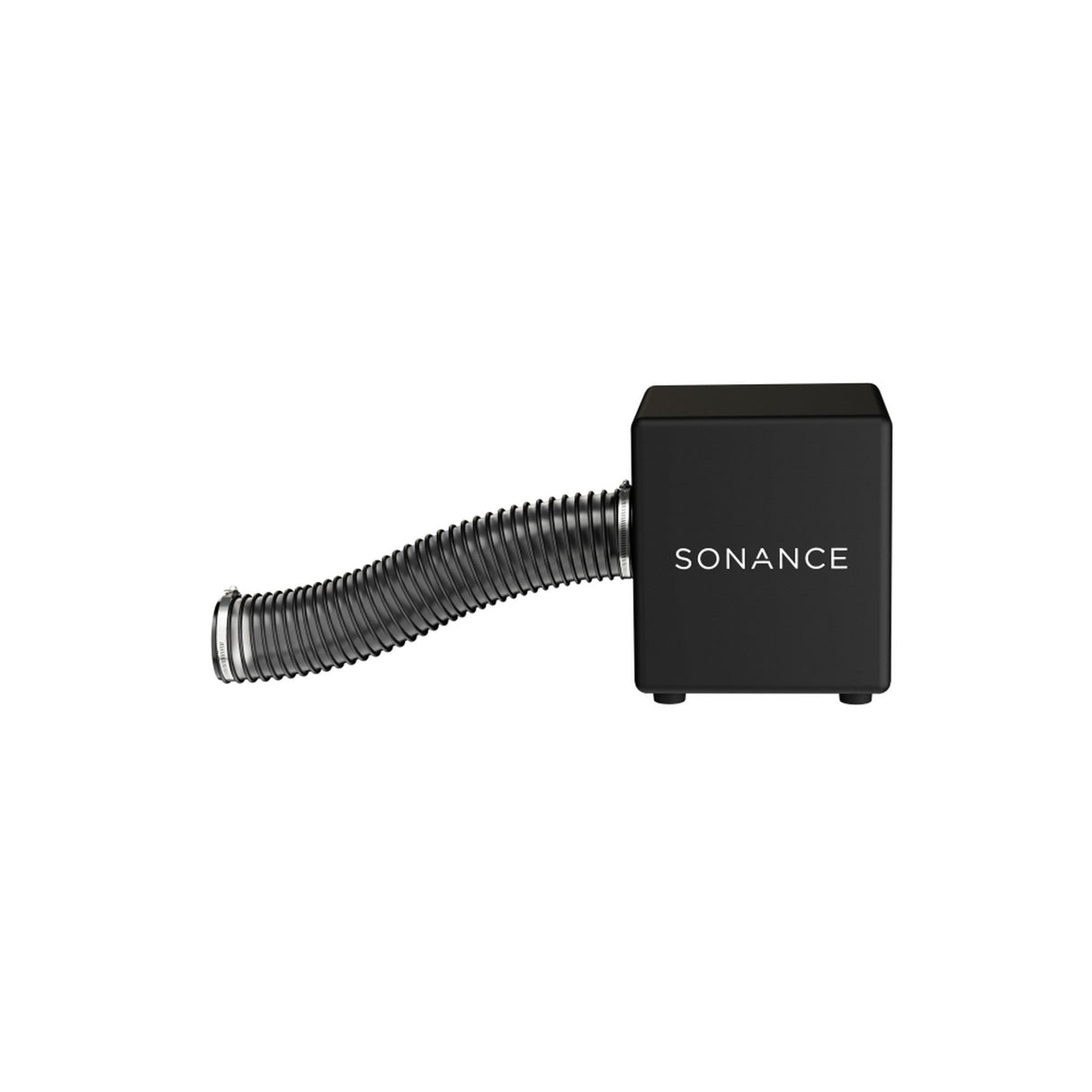

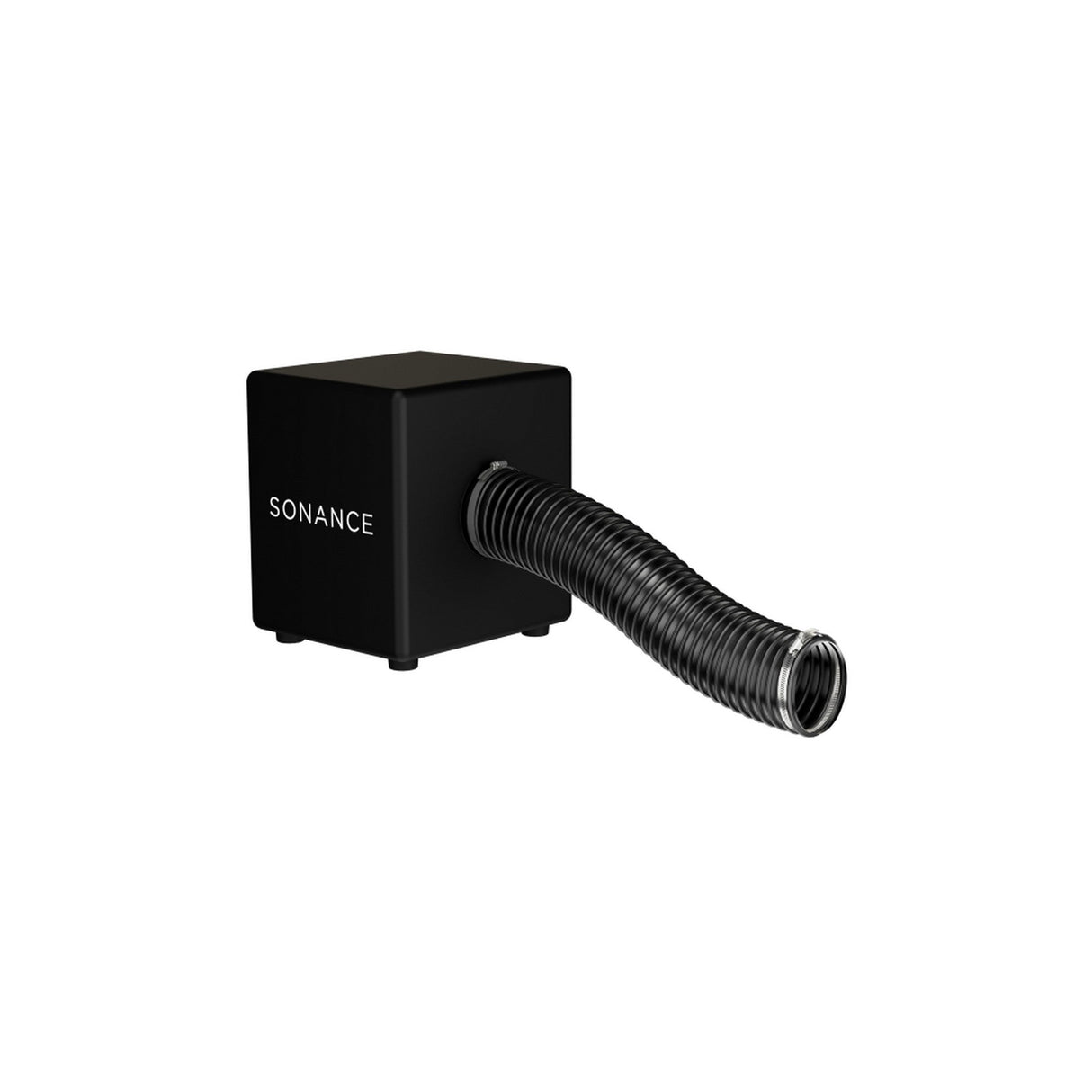

PPX10 - 10" Hidden Subwoofer

• Model: PPX10
• Manufacturer Item Number: 93786
• Woofer: 10" anodized aluminum cone, rubber surround, high excursion
• Frequency Response: 39 Hz to 115 Hz, +/-3 dB
• Sensitivity: 92 dB SPL at 2.83V/1m
• Nominal Impedance: 4 ohms
• Recommended Power: 400W
• Enclosure: MDF
• Finish: Textured black
• Tube Inside Diameter: 4"
• Tube Length: 21.7"
• Dimensions With Feet (W x H x D): 13" x 13.6" x 11.8"
• Dimensions Without Feet (W x H x D): 13" x 13" x 11.8"
• Product Weight: 38.3 lb
• Shipping Weight: 44.8 lb
• Recommended Amplifiers: Blaze PowerZone Connect 1502, 3004, and 6008; Sonance DSP 2-750 MKIII

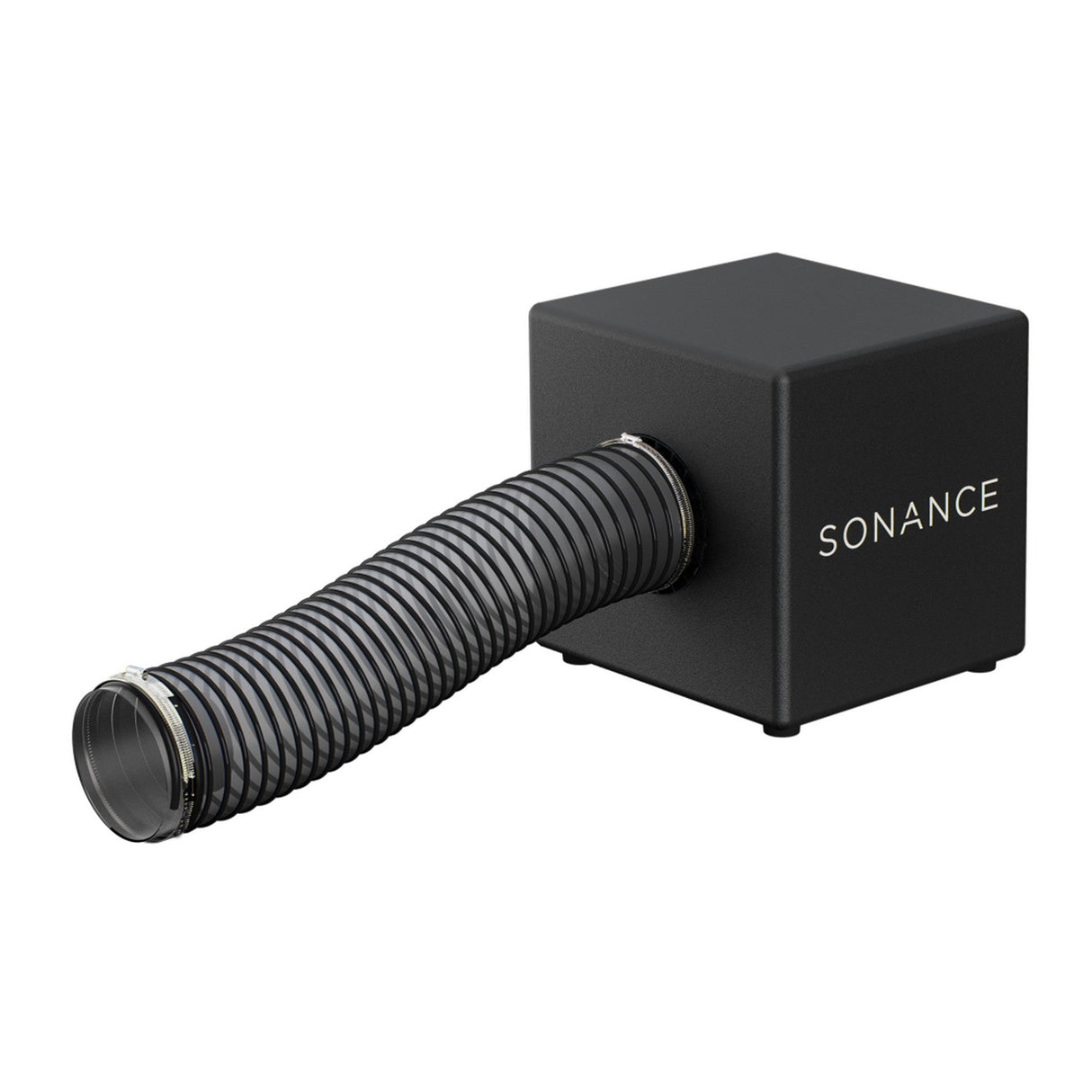

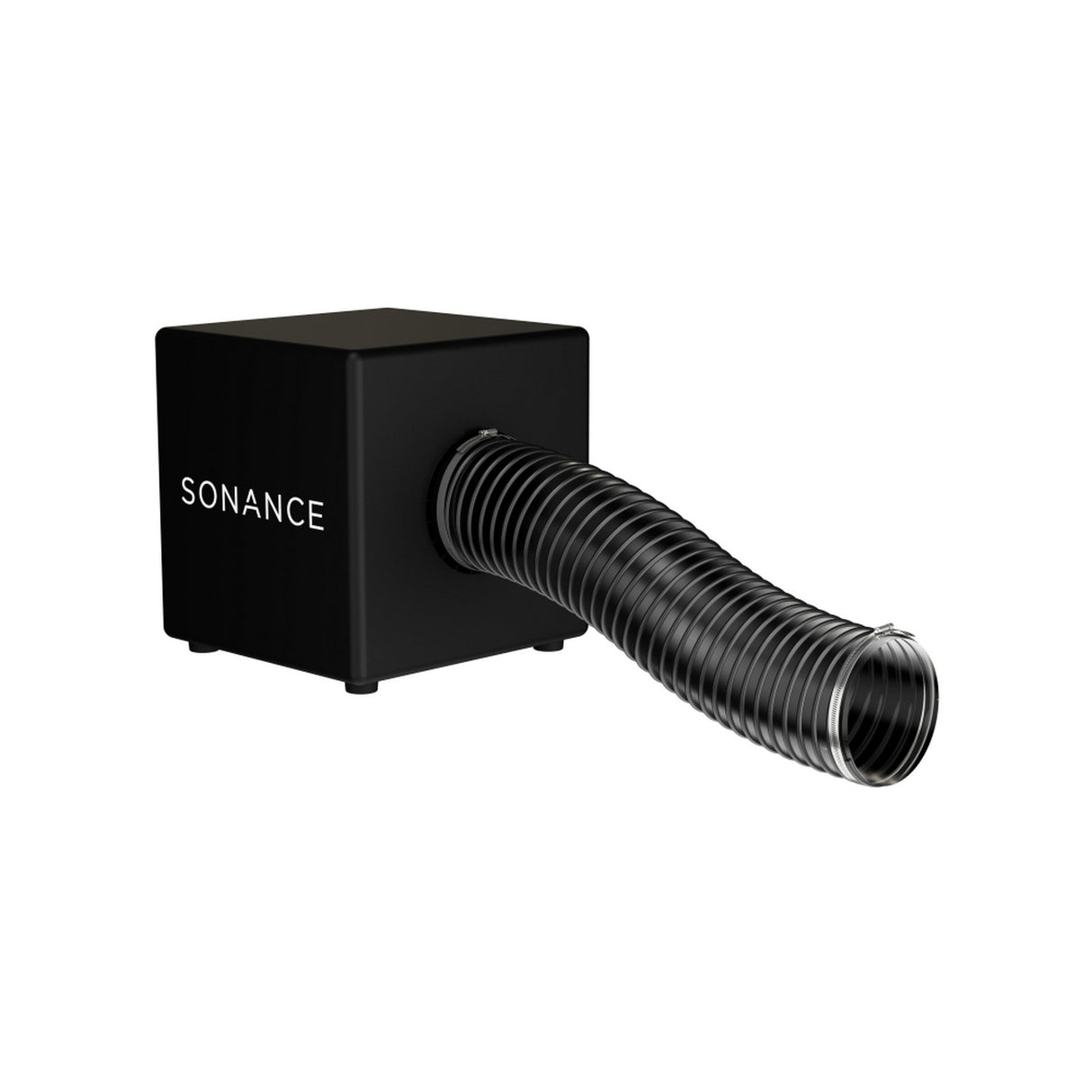

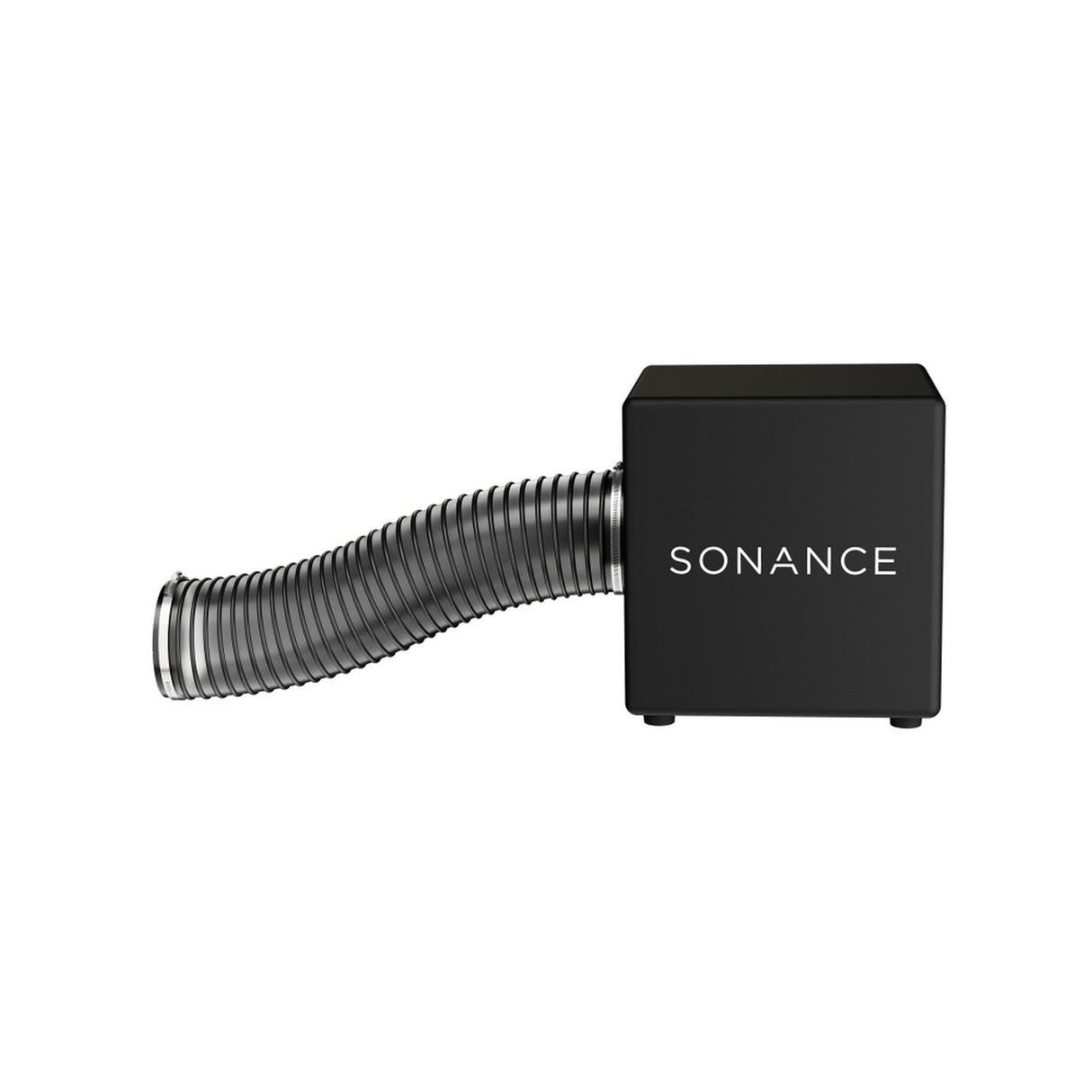

PPX12 - 12" Hidden Subwoofer

• Model: PPX12
• Manufacturer Item Number: 93787
• Woofer: 12" anodized aluminum cone, rubber surround, high excursion
• Frequency Response: 34 Hz to 100 Hz, +/-3 dB
• Sensitivity: 93 dB SPL at 2.83V/1m
• Nominal Impedance: 4 ohms
• Recommended Power: 500W
• Enclosure: MDF
• Finish: Textured black
• Tube Inside Diameter: 6"
• Tube Length: 25.6"
• Dimensions With Feet (W x H x D): 15.8" x 16.4" x 15.2"
• Dimensions Without Feet (W x H x D): 15.8" x 15.8" x 15.2"
• Product Weight: 55.9 lb
• Shipping Weight: 64.4 lb
• Handling: Team lift required
• Recommended Amplifiers: Blaze PowerZone Connect 1502, 3004, and 6008; Sonance DSP 2-750 MKIII

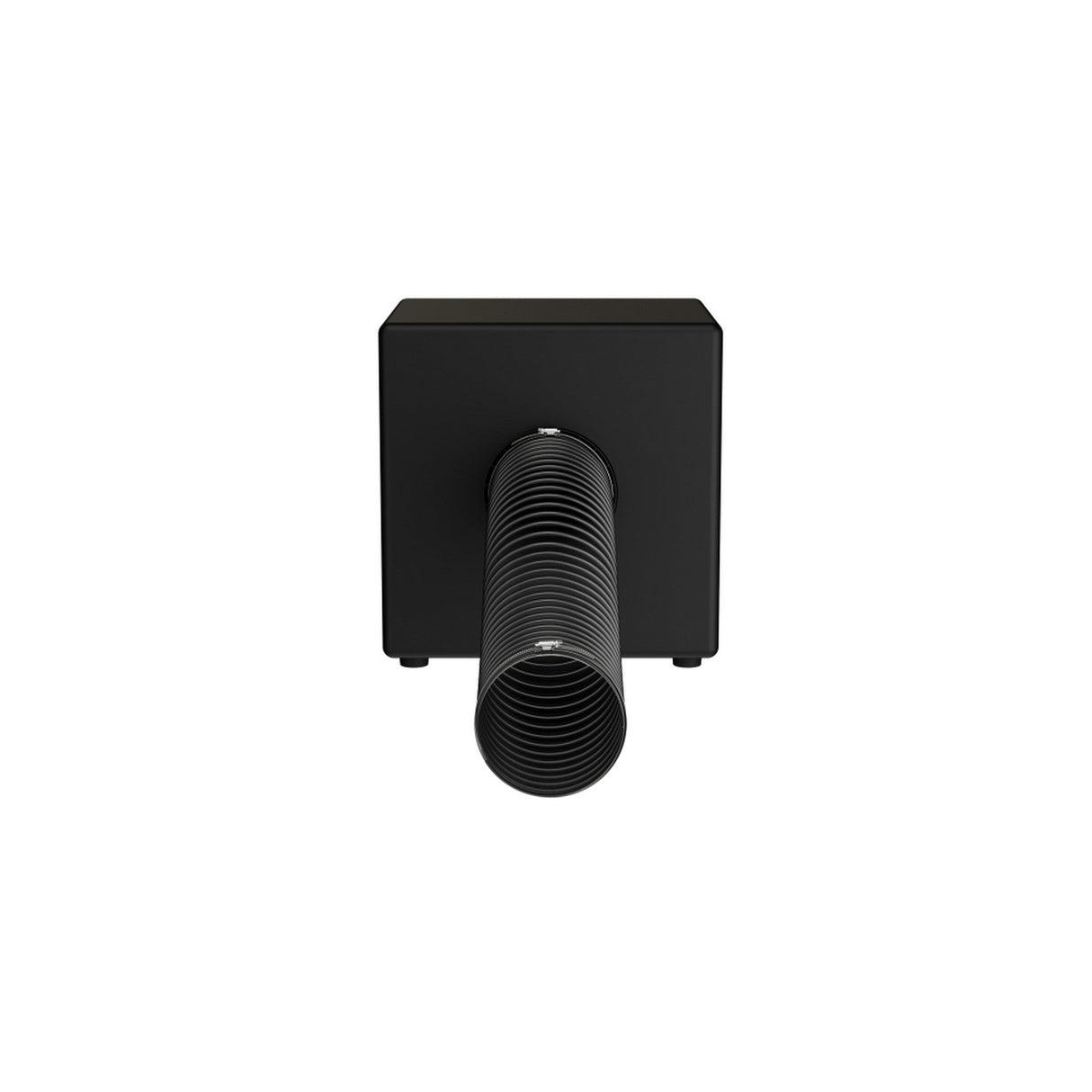

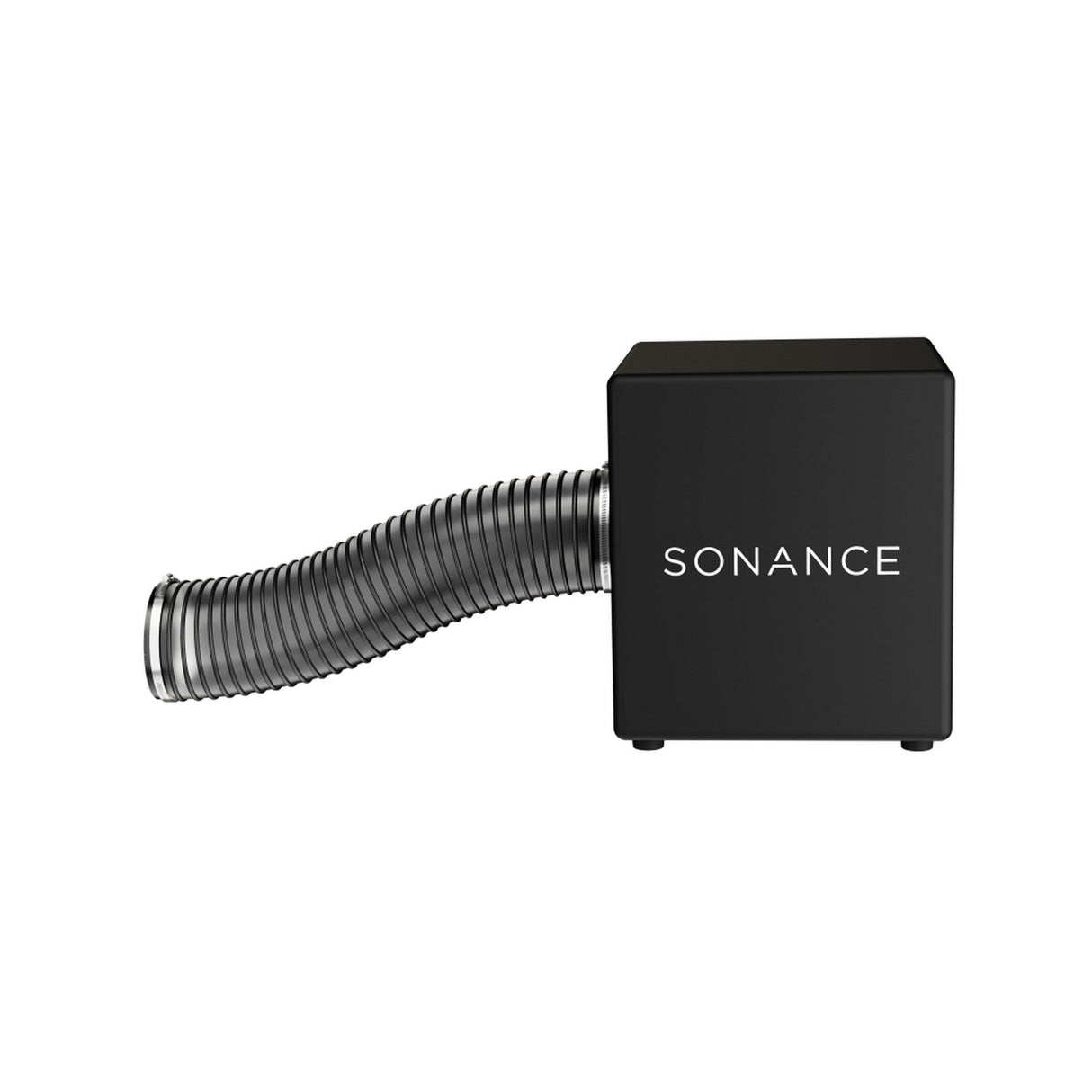

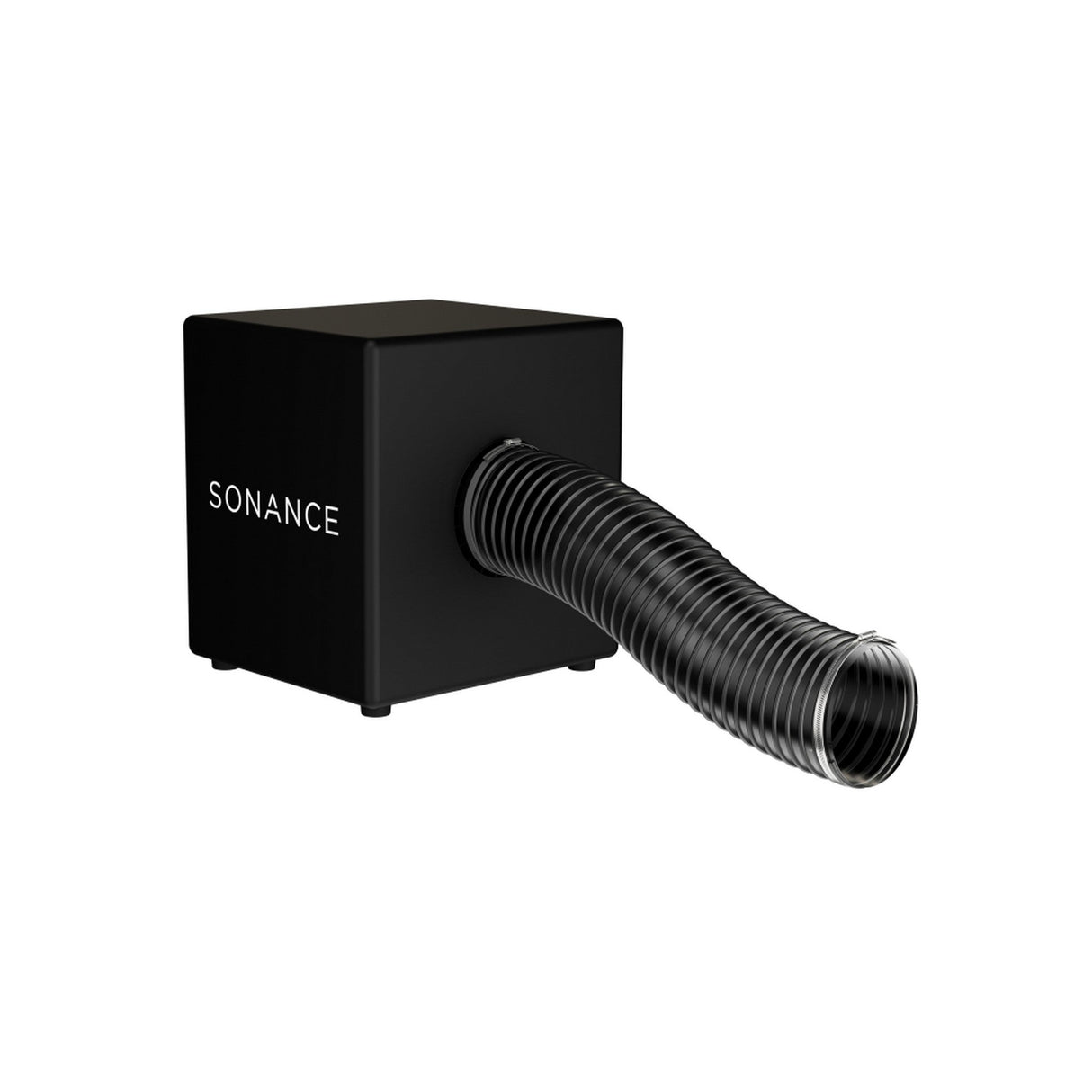

PPX15 - 15" Hidden Subwoofer

• Model: PPX15
• Manufacturer Item Number: 93788
• Woofer: 15" anodized aluminum cone, rubber surround, high excursion
• Frequency Response: 29 Hz to 90 Hz, +/-3 dB
• Sensitivity: 94 dB SPL at 2.83V/1m
• Nominal Impedance: 4 ohms
• Recommended Power: 600W
• Enclosure: MDF
• Finish: Textured black
• Tube Inside Diameter: 6"
• Tube Length: 25.6"
• Dimensions With Feet (W x H x D): 17.7" x 18.3" x 16.9"
• Dimensions Without Feet (W x H x D): 17.7" x 17.7" x 16.9"
• Product Weight: 68.3 lb
• Shipping Weight: 79.4 lb
• Handling: Team lift required
• Recommended Amplifiers: Blaze PowerZone Connect 1502, 3004, and 6008; Sonance DSP 2-750 MKIII
