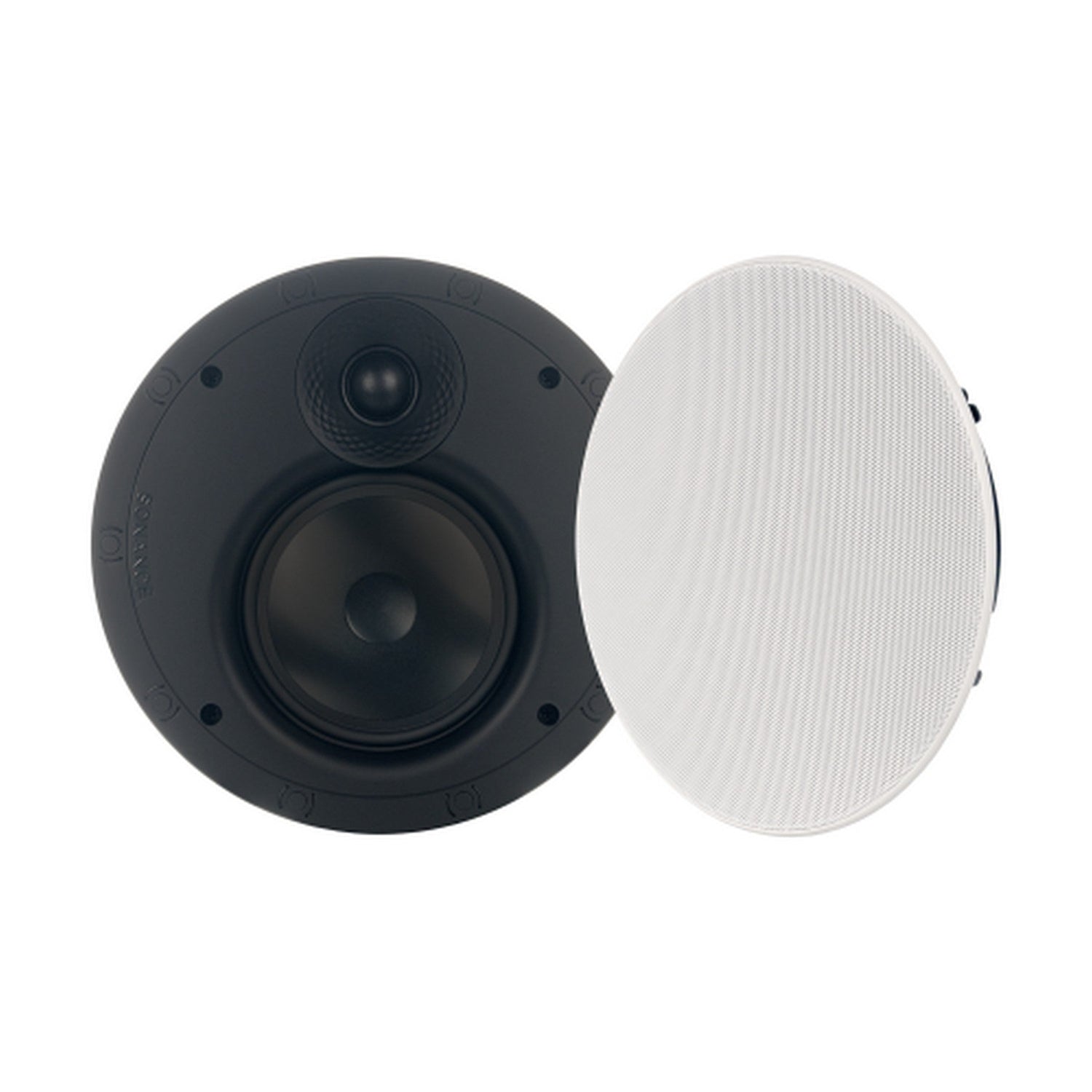

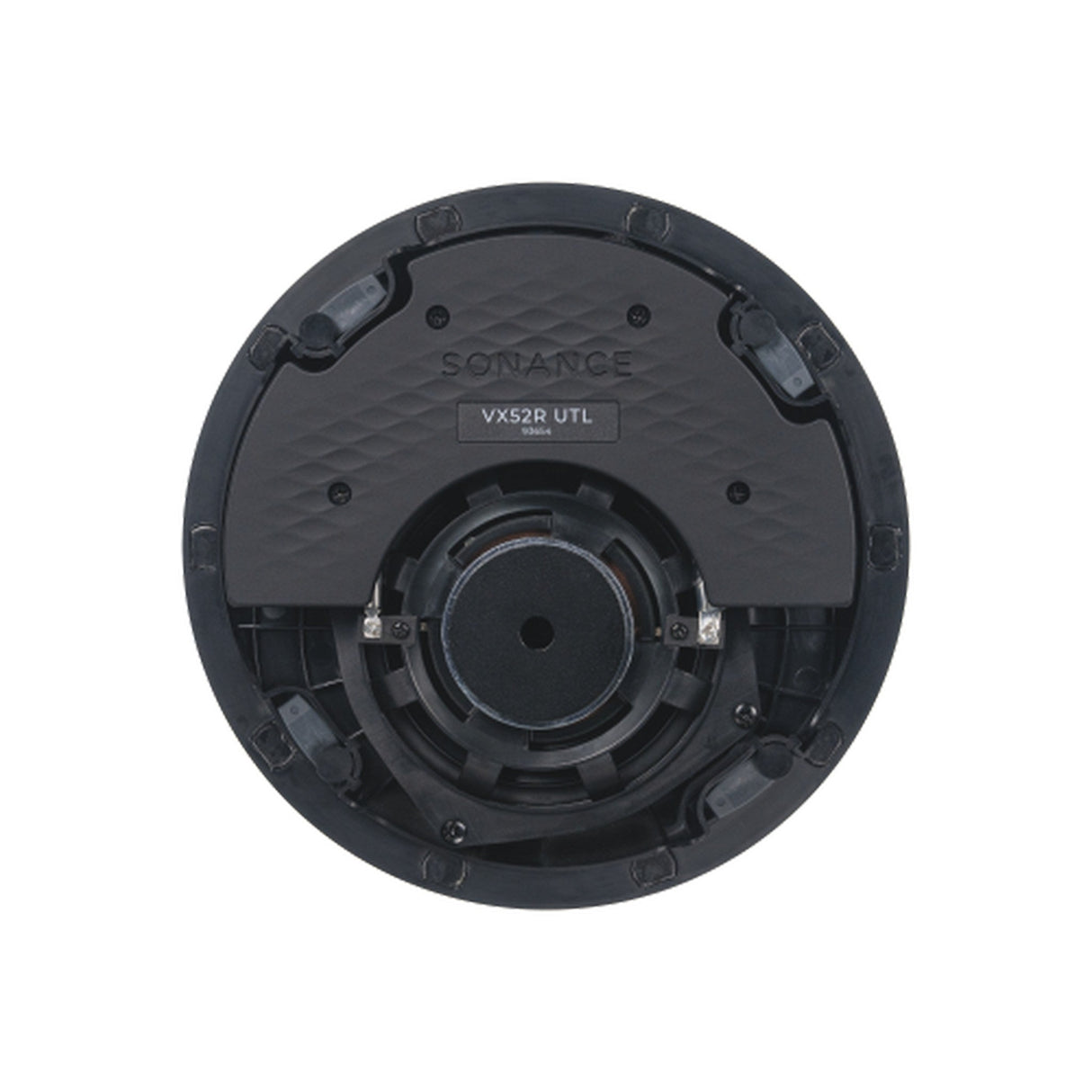

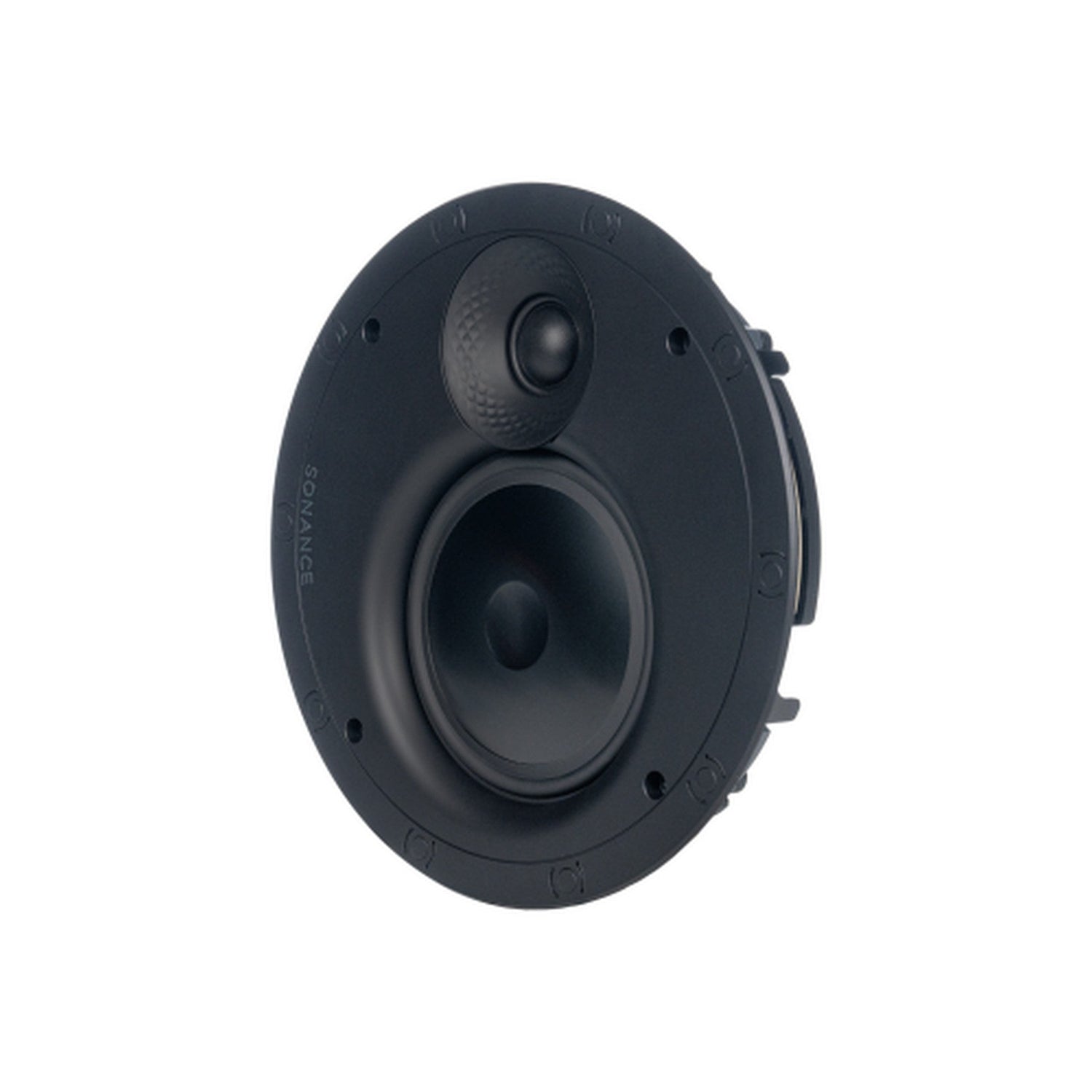

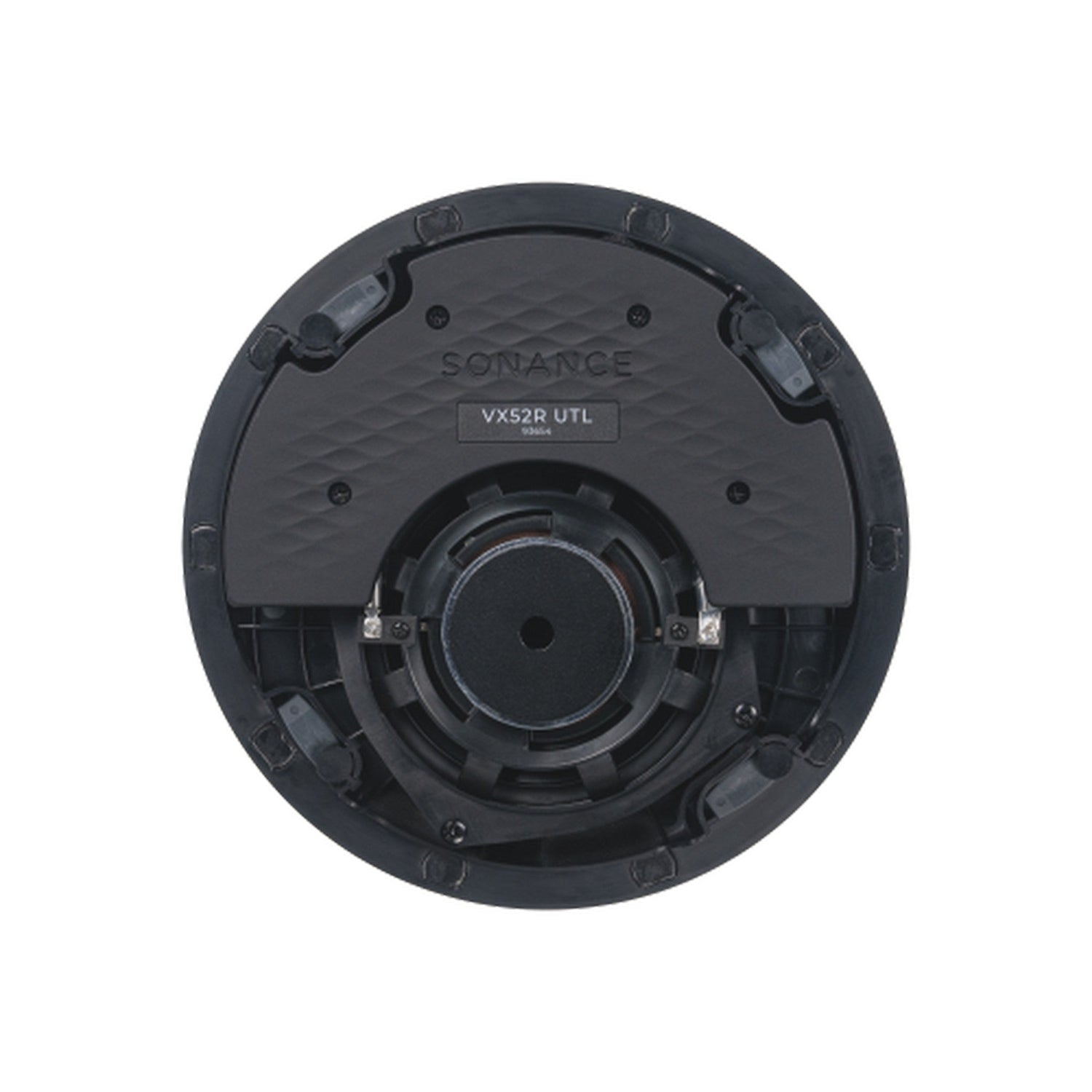

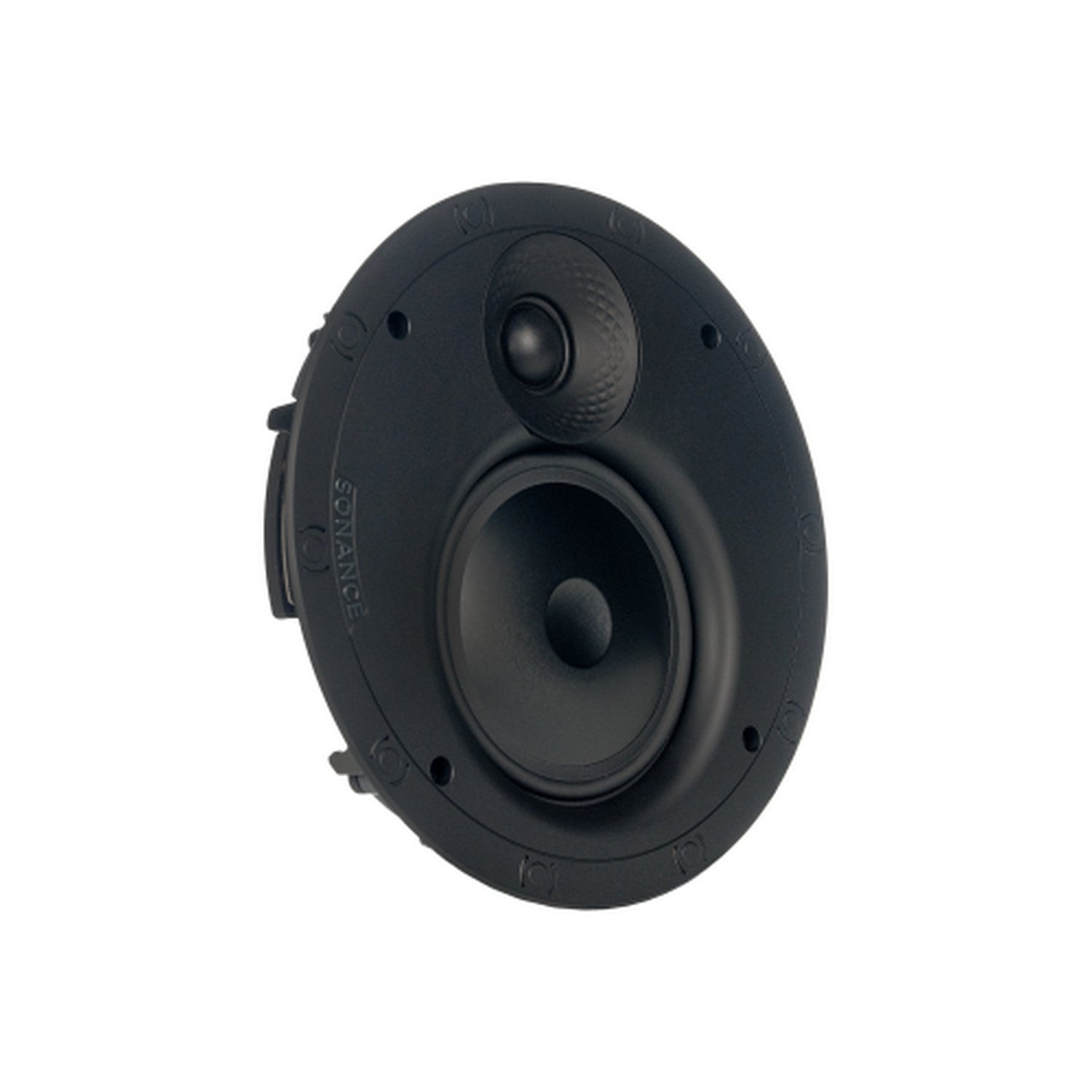

Sonance VX52R UTL Ultra Thin-Line In-Ceiling Speaker Pair, 5.25 Inch

Sonance VX52R UTL 5.25-Inch Ultra Thin-Line In-Ceiling Speaker Pair

The Sonance VX52R UTL 5.25-Inch Ultra Thin-Line In-Ceiling Speaker Pair delivers architectural audio from an exceptionally shallow 1.4" mounting profile. SKU 93654 combines a 5.25" anodized aluminum woofer with a 1" cloth-dome tweeter, providing a 55Hz-20kHz frequency response for installations where conventional speaker depth is unavailable.

Designed for shallow ceiling cavities, concrete construction, high-rise residences, multi-dwelling units, and retrofit projects, the VX52R UTL fits applications using 2.5" metal framing. Its round 9.2" speaker frame requires an 8.3" cutout, while Sonance's integral RotoLock mounting system supports fast installation directly into compatible ceilings. Magnetic, paintable grilles help the finished installation blend into surrounding surfaces.

The Sonance VX52R UTL uses an 8-ohm nominal impedance with a 6-ohm minimum, 89dB sensitivity, and RMS power handling from 5 to 100 watts. Sonance also offers micro-trim and trimless round or square grille formats for the platform. Each SKU 93654 package is identified by the manufacturer's current data sheet as a pair, making it suitable for stereo and distributed architectural audio installations.

Key Features

• Ultra-Shallow Installation: Uses a 1.4" mounting depth for ceiling cavities where conventional architectural speakers cannot fit.
• 5.25" Anodized Aluminum Woofer: Combines an aluminum cone with a rubber surround for the low- and mid-frequency range.
• 1" Cloth-Dome Tweeter: Uses Ferrofluid cooling and an acoustic back chamber for high-frequency reproduction.
• 55Hz-20kHz Frequency Response: Covers a broad audio range for music and distributed listening applications.
• 89dB Sensitivity: Provides efficient output with compatible amplification at a 2.83V/1m reference.
• RotoLock Mounting: Integral mounting hardware simplifies secure installation into compatible finished ceilings.
• Paintable Magnetic Grilles: Supports a discreet architectural finish that can coordinate with surrounding ceiling surfaces.
• Sold as a Pair: Manufacturer SKU 93654 includes two VX52R UTL speakers.

Technical Specifications

• Brand: Sonance
• Model: VX52R UTL
• Series: Visual Experience Ultra Thin-Line
• SKU: 93654
• Quantity: Pair
• Color: Brilliant White
• Product Type: Round Ultra Thin-Line In-Ceiling Speaker
• Tweeter: 1" cloth dome, Ferrofluid-cooled, acoustic back chamber
• Woofer: 5.25" anodized aluminum cone with rubber surround
• Frequency Response: 55Hz-20kHz, ±3dB
• Nominal Impedance: 8 ohms
• Minimum Impedance: 6 ohms
• Power Handling: 5W minimum to 100W maximum RMS
• Sensitivity: 89dB SPL at 2.83V/1m
• Speaker Diameter: 9.2"

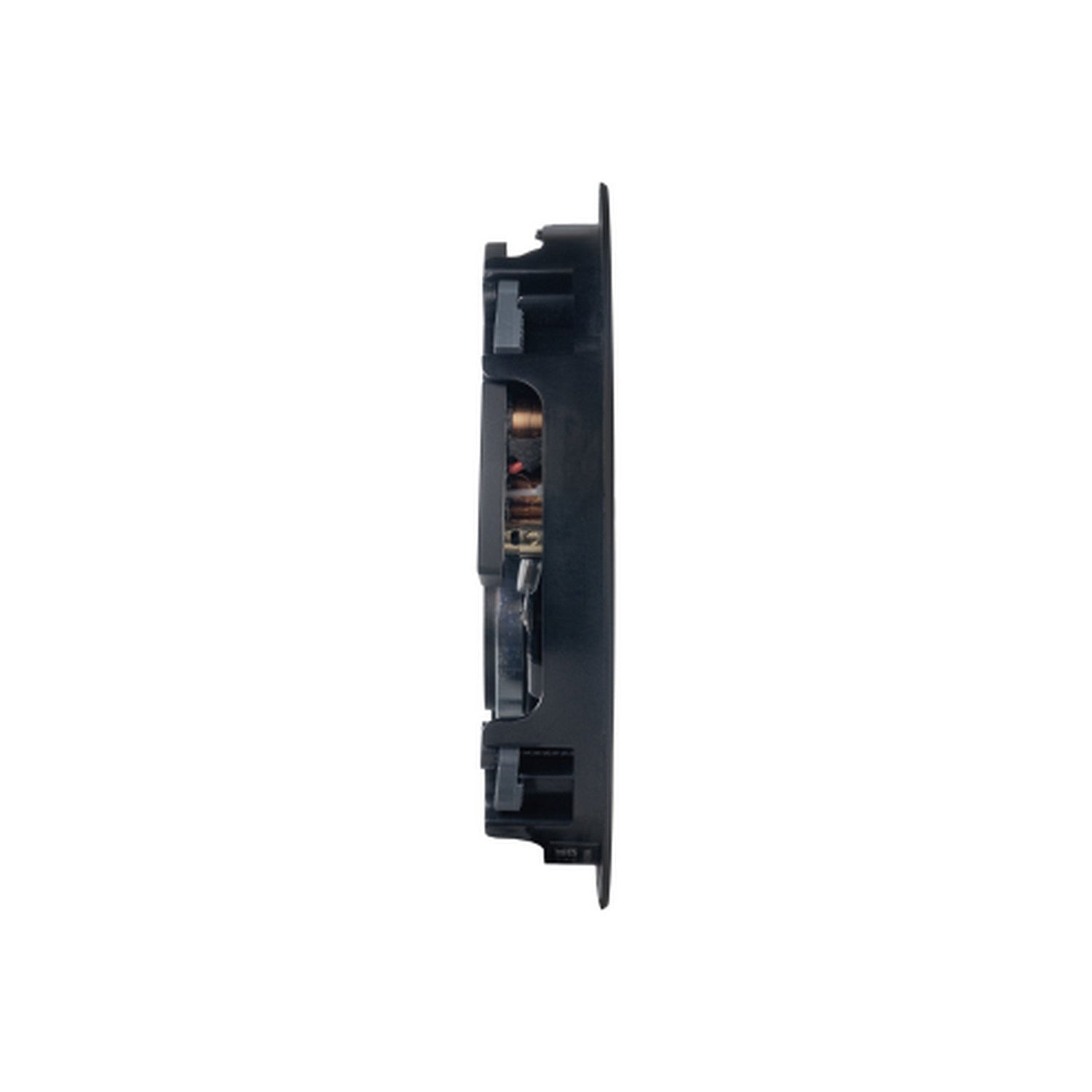

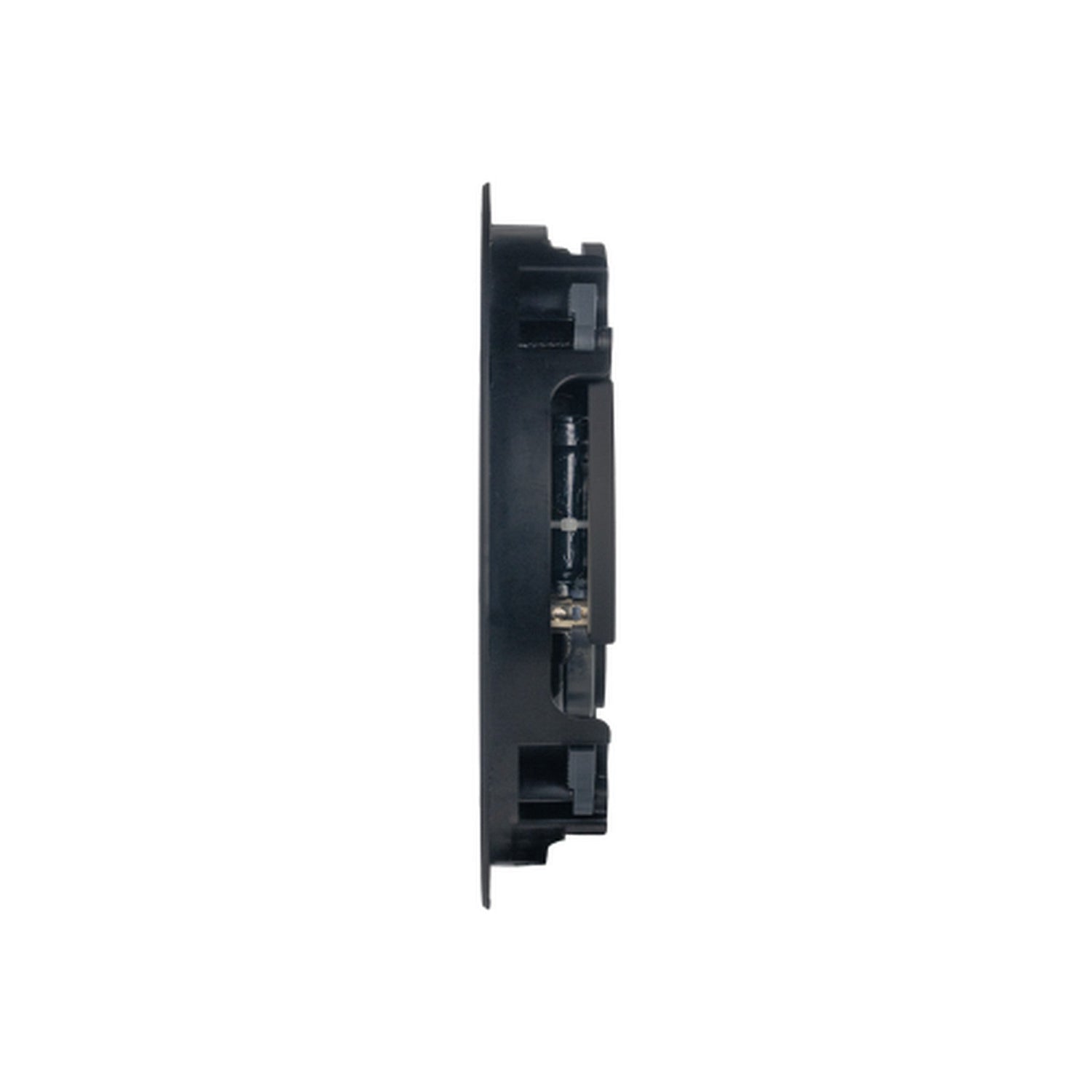

• Mounting Depth: 1.4"
• Cutout Diameter: 8.3"
• Round Micro Trim Grille Diameter: 9.6"
• Round Trimless Grille Diameter: 9.3"
• Square Micro Trim Grille Dimensions: 9.6" x 9.6"
• Square Trimless Grille Dimensions: 9.3" x 9.3"
• Mounting System: Integral RotoLock
• Grille Attachment: Magnetic
• Product Weight Without Grille: 2 lb each
• Product Weight With Grille: 2.3 lb each
• Shipping Weight: 7.1 lb per pair

What's In the Box

• 2 x Sonance VX52R UTL Speakers
• 2 x Paintable Grilles
• 1 x Quickstart Guide / Cutout Template
