Sonance VX62R TL Thin-Line In-Ceiling Speaker Pair, 6 Inch

Sonance VX62R TL 6-Inch Thin-Line In-Ceiling Speaker Pair

The Sonance VX62R TL Thin-Line In-Ceiling Speaker Pair brings architectural audio performance to installations with limited ceiling depth. Each speaker combines a 6.5" textured polypropylene woofer, 1" cloth-dome tweeter, and Sinusoidal Textured Waveguide in a shallow 2.91" mounting profile, making the system practical for space-constrained residential and architectural audio projects.

Designed for distributed music systems, home audio installations, high-rise residences, and shallow ceiling cavities, the VX62R TL delivers a 45Hz-20kHz frequency response with 89dB sensitivity. Its 8-ohm nominal impedance and 5W-to-125W RMS power range accommodate a broad selection of compatible amplifiers. Sonance's one-stage RotoLock clamp system supports direct installation into finished ceilings, while the included magnetic micro-trim grilles create a discreet finished appearance.

The VX62R TL is part of the Sonance Visual Experience Thin-Line family and incorporates the company's CDX crossover and waveguide design concepts for consistent coverage across the listening area. Round and square grille options, trimless accessories, retrofit enclosures, and TRUFIG installation solutions provide additional flexibility when coordinating the speakers with different architectural finishes and installation methods.

Key Features

• Thin-Line In-Ceiling Design: Uses a 2.91" mounting depth for installations where available ceiling space is limited.
• 6.5" Polypropylene Woofer: Textured polypropylene cone with rubber surround handles low- and mid-frequency reproduction.
• 1" Cloth-Dome Tweeter: Ferrofluid-cooled tweeter with an acoustic back chamber reproduces high-frequency content.
• 45Hz-20kHz Response: Provides broad frequency coverage for distributed music and architectural audio systems.
• Sinusoidal Textured Waveguide: Controls dispersion to support consistent coverage throughout the listening area.
• RotoLock Installation: One-stage clamp mounting simplifies attachment directly into compatible finished ceilings.

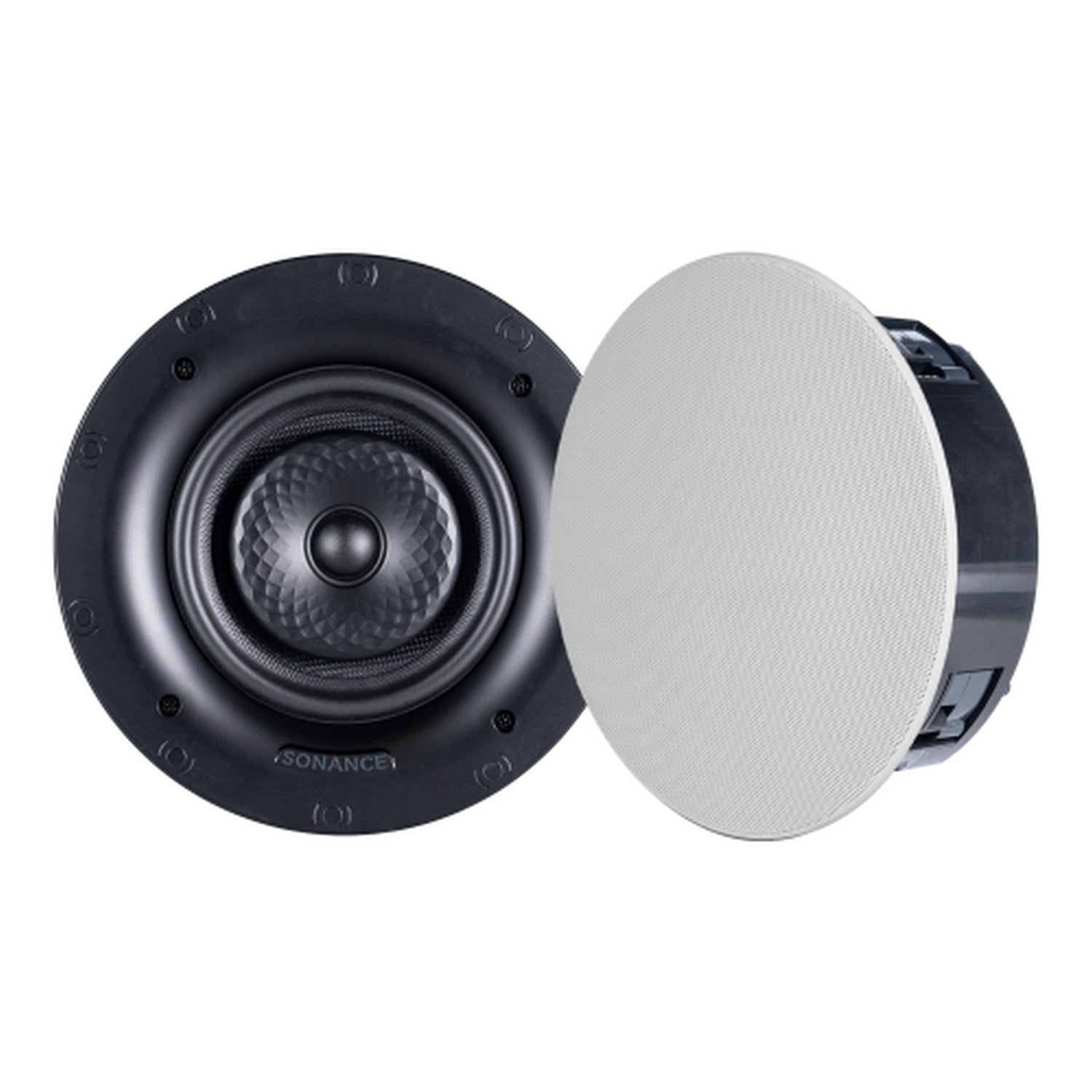

• Magnetic Micro-Trim Grilles: Included paintable grilles create a low-profile architectural finish.
• Pair Configuration: Sonance SKU 93650 includes two VX62R TL speakers for stereo or distributed installations.

Technical Specifications

• Brand: Sonance
• Model: VX62R TL
• Series: Visual Experience Thin-Line
• SKU: 93650
• Quantity: Pair
• Color: Brilliant White (Satin)
• Product Type: Round Thin-Line In-Ceiling Speaker
• Tweeter: 1" cloth dome, Ferrofluid-cooled, acoustic back chamber
• Woofer: 6.5" textured polypropylene cone with rubber surround
• Dispersion Technology: Sinusoidal Textured Waveguide
• Tweeter Pivot: No pivot
• Frequency Response: 45Hz-20kHz, ±3dB
• Nominal Impedance: 8 ohms
• Minimum Impedance: 6 ohms
• Power Handling: 5W minimum to 125W maximum RMS
• Sensitivity: 89dB SPL at 2.83V/1m
• Mounting Technology: One-stage RotoLock clamp installation
• Speaker Diameter: 9.17"
• Speaker Mounting Depth: 2.91"
• Mounting Depth with Retrofit Enclosure: 5.21"
• Cutout Diameter: 8.25"
• Round Micro Trim Grille Diameter: 9.62"
• Round Trimless Grille Diameter: 9.28"
• Square Micro Trim Grille Dimensions: 9.62" x 9.62"
• Square Trimless Grille Dimensions: 9.28" x 9.28"
• Shipping Weight: 11.68 lb per pair
• Speaker Warranty: Limited lifetime for qualifying purchases from an authorized Sonance dealer or distributor
• Grille Warranty: 5 years

What's In the Box

• 2 x Sonance VX62R TL Speakers
• 2 x Paintable Micro Trim Grilles
• 1 x Cutout Template / Quickstart Guide
