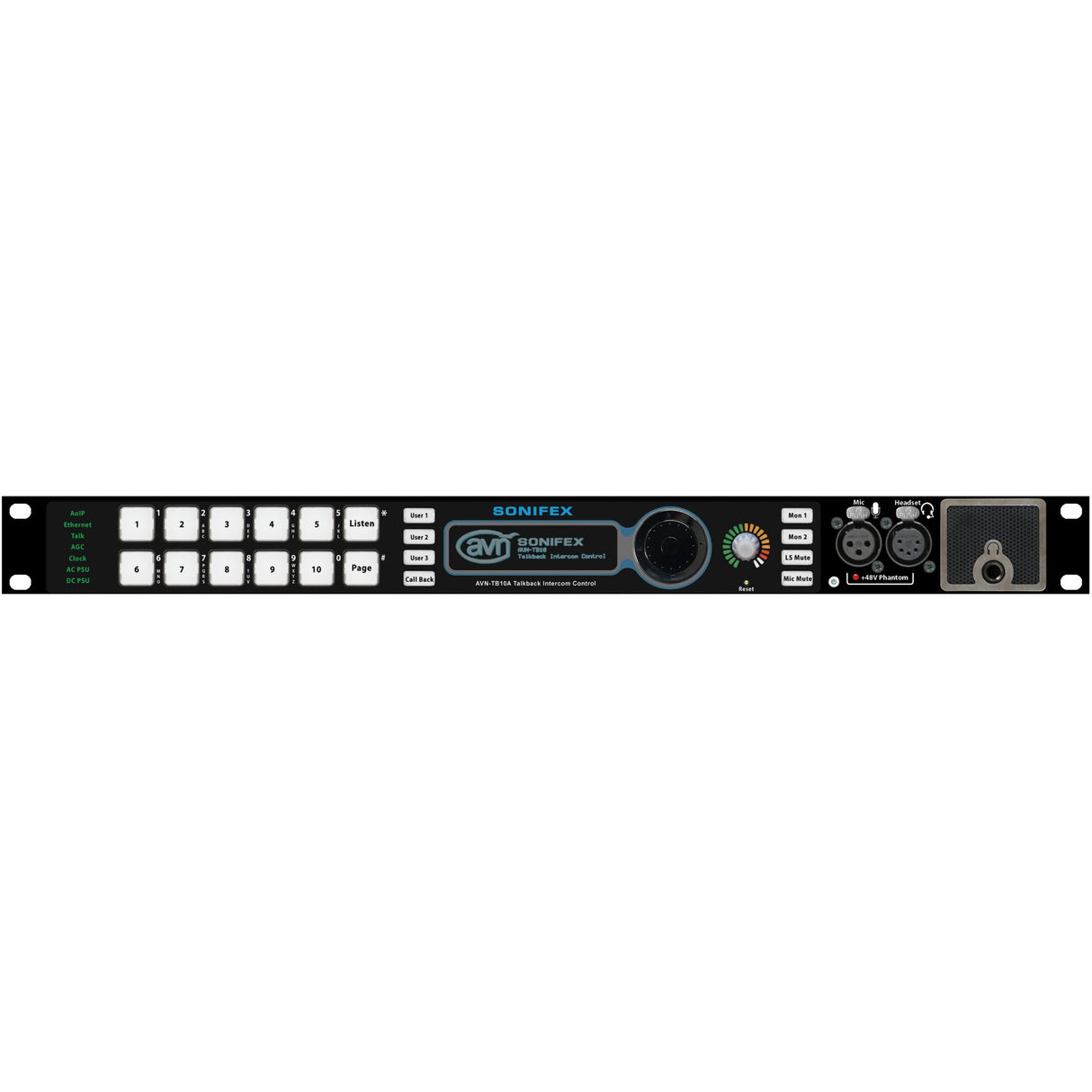

Sonifex AVN-TB10AR 10 Button Advanced Talkback Intercom, AoIP Rackmount Portal

Sonifex | SKU: SONI-AVNTB10AR
$4,00300

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New


Sonifex AVN-TB10AR 10 Button Advanced Talkback Intercom, AoIP Rackmount Portal

The AVN-TB products are IP audio based talkback intercom units with an advanced feature set, allowing them to be used in multiple applications. With both 4-wire analogue inputs and outputs, as well as AoIP network audio connectivity, the AVN-TB units can be used with existing legacy 4-wire systems and with new AES67 AoIP networked audio infrastructure. Additionally, all audio is at 48kHz sample rate, meaning that it’s broadcast quality audio as standard.

Key Features

  • 10 illuminated key-cap Talk buttons plus Listen & Page buttons
  • Mic & headset inputs, headphone & speaker outputs with volume control
  • Sources from AoIP, balanced, 2 x unbalanced or S/PDIF digital inputs
  • Destinations to AoIP or rear panel balanced & unbalanced outputs
  • Advanced echo cancellation & mic AGC to prevent acoustic feedback
  • Dual 1Gb lan ports & 1Gb SFP fibre port
  • 10 user assignable GPIO ports
  • Dual AC & DC power supply inputs
  • Front panel display providing source & destination information
  • Ethernet webserver and front panel control & configuration
  • Speaker & microphone mute buttons
  • Callback button with source display

Technical Specifications

Audio-Over-IP
Open Standards
RAVENNA, AES67
Device Discovery
Bonjour (mDNS / DNS-SD)
Audio Delivery
RTP/UDP over IPv4 multicast
QoS
DiffServ
Stream Management
RTSP/SDP
Control
Ember+/webserver
Format
Linear PCM 24-bit (L24)
Channels Per Stream
2
Frames Per Packet
48
Maximum Streams
RX 15, TX 5 (fixed)
Sample Rate
48 kHz
Timing Synchronisation
Profile Support
Default, media & custom profiles
Timing Protocol
PTPv2, IEEE1588-2008
Microphone and Headset Input
Input Impedance
>2.5kohms balanced
Gain Range
0dB to +60dB
0dBFS Line-Up
Adjustable in steps of 3dB from -58dBu to +2dBu
Frequency Response
20Hz to 20kHz, +0/-0.2dB
Noise
-127dBu, 20kHz BW, Rs=200ohms ref. 76dB gain
Unbalanced Line Inputs
Input Impedance
>20kohms
0dBFS Line-Up
+12dBu
Frequency Response
20Hz to 20kHz, +0/-0.2dB
THD+N
<-97dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise
-100dBFS, 20kHz BW, Rs=200ohms
Crosstalk
<-97dB
Balanced Line Inputs
Input Impedance
>20kohms balanced
0dBFS Line-Up
Adjustable +15/+18/+20/+22/ +24dBu
Frequency Response
20Hz to 20kHz, +0/-0.2dB
THD+N
<-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise
-110dBFS, 20kHz BW, Rs=200ohms
Crosstalk
<-100dB
Common Mode Rejection
>70dB @ 1kHz
Headphone Output
Output Impedance
Drives 150mW into 32OHMS to 600OHMS headphones
0dBFS Line-Up
+20dBu
Frequency Response
20Hz to 20kHz, +0/-0.2dB
THD+N
<-108dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise
-110dBFS, 20kHz BW
Unbalanced Line Outputs
Output Impedance
<50ohms
0dBFS Line-Up
+12dBu
Frequency Response
20Hz to 20kHz, +0/-0.2dB
THD+N
<-95dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise
-100dBFS, 20kHz BW
Balanced Line Outputs
Output Impedance
<50ohms balanced
0dBFS Line-Up
Adjustable +15/+18/+20/+22/ +24dBu
Frequency Response
20Hz to 20kHz, +0/-0.2dB
THD+N
<-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise
-110dBFS, 20kHz BW, Rs=200ohms
Loudspeaker
Power Output
4W
Volume
Mute to full volume via front panel control
Connections
Microphone
XLR-3 pin female (electronically balanced)
Headphone
inch (6.35mm) stereo jack socket
Headset
2 x XLR-5 pin female (front/rear electronically balanced input)
Audio Inputs
2 x unbalanced stereo, RCA phono
1 x S/PDIF, RCA phono
Audio Outputs
1 x balanced stereo, RJ45
1 x unbalanced stereo, 2 x RCA phono
1 x loudspeaker output
Audio Input/Output
1 x balanced stereo input or mono input/output, RJ45
GPIO
15-way ‘D’-type socket
Network
2 x gigabit Ethernet, RJ45
1 x SFP fibre
Mains AC Input
Universal filtered IEC, continuously rated 85-264VAC, 47-63Hz, 20W
DC Input
4 pin 7.5A power jack socket, 9.5-14VDC
Fuse Rating
Anti-surge fuse 2A 20mm x 5mm
Physical
Dimensions: (Raw)
48.3cm (W) x 17.5cm (D) x 4.4cm (H)(1U)
19” (W) x 6.9” (D) x 1.8” (H) (1U)
Dimensions (Boxed)
59cm (W) x 28cm (D) x 11cm (H)
23” (W) x 11” (D) x 4.3” (H)
Weight
Nett: 2.4kg Gross: 3.1kg
Nett: 5.3lbs Gross: 6.8lbs
