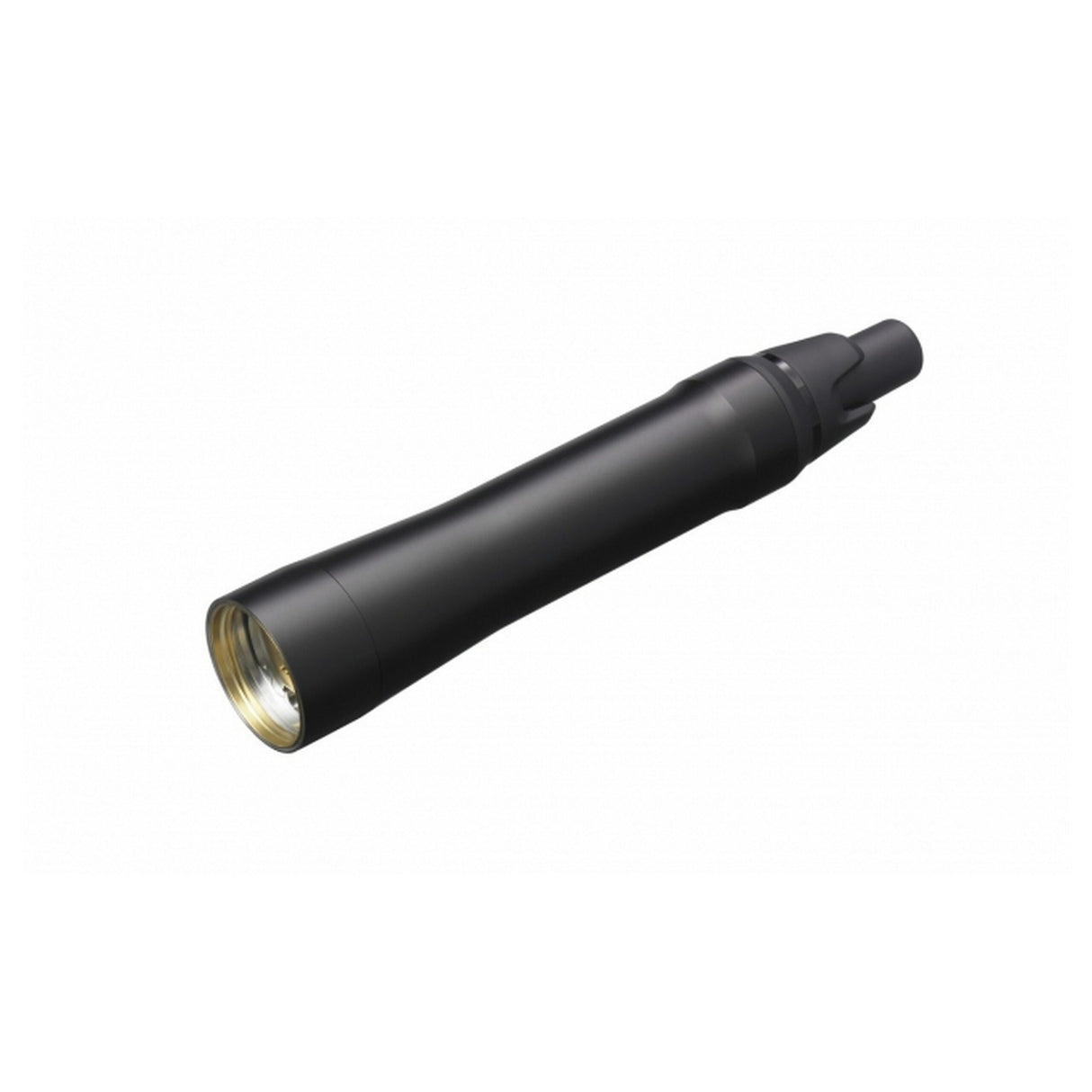

Sony DWM-02N/14 Handheld Digital Wireless Transmitter, UC14, 470 to 542 MHz

The DWM-02N digital wireless microphone forms part of the DWX series system offering high-quality full-digital operation shorter audio latency and more reliable RF transmission mode - ideal for a variety of high-quality applications, including broadcast studio, theatre and live sound. Maximising flexibility for users, the DWM-02N is not supplied with a microphone capsule as the DWM-02N Interchangeable head mechanism supports Sony and other third party capsules. Sony offers three microphone heads - the CU-C31, CU-F31 and CU-F32 - and there are also a wide variety of third-party capsules to choose from - ensuring whatever your requirements, the DWM-02N wireless handheld microphone is an ideal choice. The DWX series system delivers superb-quality wireless transmission of 24-bit digital audio. Thanks to its improved codec and new hardware, it can provide higher sound quality with lower audio latency.

Key Features

• Three codec modes designed for wide variety of applications
• Superb quality wireless transmission and reception
• Stable and secure transmission and reception
• Simultaneous multi-channel operation
• Three interchangeable heads and third party support
• Quick open/closed mechanism for microphone heads
• Selectable output power
• Remote control of transmitter functions from the receiver

Technical Specifications

Wireless Interface
WiDIF-HP
Oscillator Type
Crystal-controlled PLL Synthesizer
Antenna Type
/4 flexible wire
Type of Emission
G1E or G1D
Carrier Frequencies - UC14
UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) , 25 kHz steps
30A UC: 566.125MHz to 607.875MHz (UHF-TV channels 30-36) 25kHz steps
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51) , 25 kHz steps (not available in US or Canada)
Carrier Frequencies - CE7
CE21: 470.025 MHz to 542.000 MHz (TV-21 to TV-29 channels) 25 kHz steps
CE33: 566.025 MHz to 630.000 MHz (TV-33 to TV-40 channels) , 25 kHz steps
CE42: 638.025 MHz to 710.000 MHz (TV-42 to TV-50 channels) , 25 kHz steps
Carrier Frequencies - JWL
470.150 MHz to 542.000 MHz (TV-13 to TV-24 channels) , 25 kHz steps
WM: 566.025 MHz to 638.000 MHz (TV-29 to TV-40 channels) , 25 kHz steps
WH: 638.025 MHz to 713.850 MHz (TV-41 to TV-52 and 53 channels) , 25 kHz steps
G: 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps
RF Power
1 mW/10 mW/50 mW (e.r.p) selectable
Maximum Input Level
-16 dBu (with 0 dB attenuator)
Audio Attenuator Adjustment Range
0 dB to 21 dB (in 3-dB steps)
Frequency Response
Transmission: 20Hz to 22kHz (typical)
Audio Delay
MODE1: 1.5 msec (total: 3.4msec) /MODE2: 1.0 msec (total: 1.5msec) /MODE3: 2.1 msec (total 4.0msec)
Wireless Remote Control
Cross Remote (2.4-GHz IEEE802.15.4 compliant)
Display
OLED
Operating Temperature
0C to 50C / 32F to 122F
Storage/Transport Temperature
-20C to +60C / -4F to +140F
Dimensions
37.1 x 194 mm
Mass
Approx. 235 g (including batteries)
