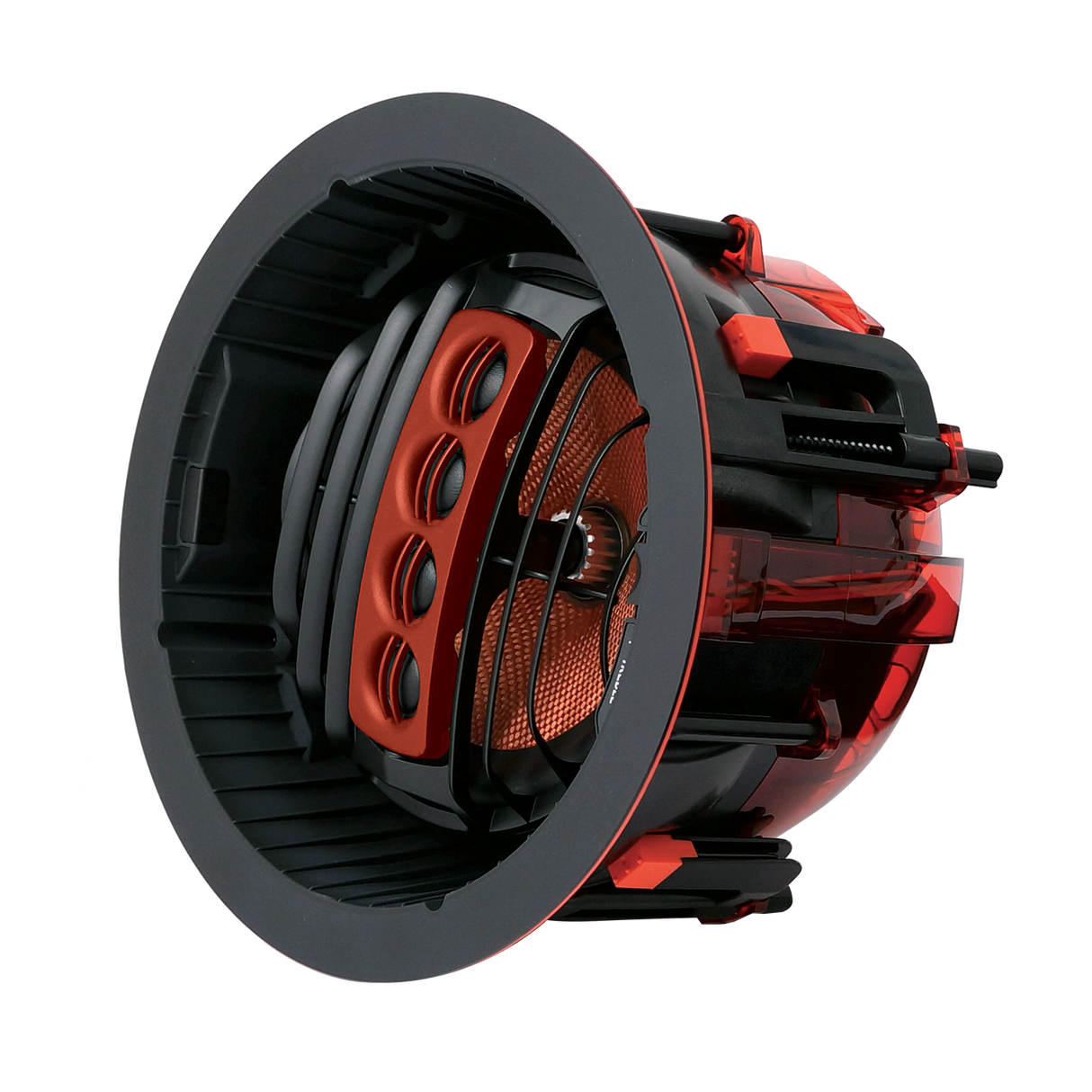

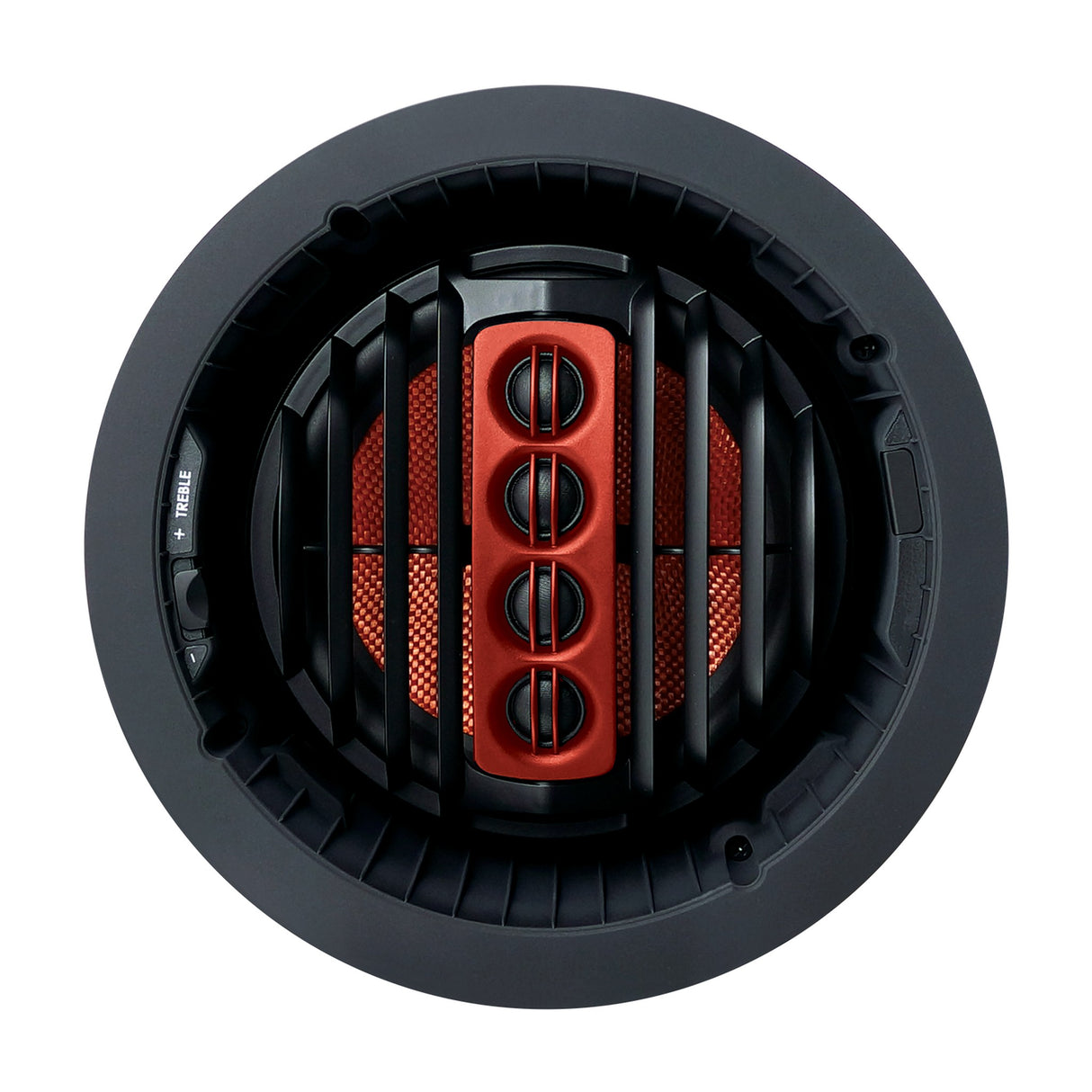

SpeakerCraft AIM272-MK3 7-inch 2-Way In-Ceiling Speaker, ARC Tweeter Array
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The SpeakerCraft AIM272-MK3 is a 7-inch 2-way flangeless in-ceiling speaker from the legendary AIM Mk 3 family, re-voiced to support modern distributed audio and object-based surround formats such as Dolby Atmos, Auro-3D, and DTS:X. It combines a pivoting 7-inch glass-fiber woofer with a four-element silk-dome ARC Tweeter Array to deliver wide, immersive, high-fidelity sound throughout the listening area.
Inspired by concert line arrays, the ARC Tweeter Array orients four 5/8-inch silk tweeters along a pivoting arc, fed in phase to project high frequencies farther into the room with a tightly defined output pattern. This enhances speech intelligibility, tightens the soundstage, and lets integrators aim sound precisely at the listening area. WavePlane technology acts as an acoustic lens for cleaner, wider high-frequency dispersion, so the speaker sounds its best even when you are not directly beneath it.
A refined crossover using symmetrical and asymmetrical Linkwitz-Riley filtering improves phase coherence and driver blending, while Vortex Eliminators and Acoustic Isolation Technology decouple the housing from the ceiling to reduce structural resonance for a cleaner, more repeatable install. Timbre-matched to the rest of the Two Level series, it is an ideal choice for whole-home audio and home theater side, rear, or height channels.
Features
- 7" pivoting glass-fiber woofer for wide, full-range sound
- Four-element 5/8" silk-dome ARC Tweeter Array with 359-degree rotational adjustability
- Re-voiced for Dolby Atmos, Auro-3D, and DTS:X object-based surround
- WavePlane acoustic lens for wide, even high-frequency dispersion
- Symmetrical/asymmetrical Linkwitz-Riley crossover for phase coherence
- Acoustic Isolation Technology and Vortex Eliminators reduce ceiling resonance
- Flangeless design, timbre-matched to the Two Level series
Technical Specifications
- Woofer: 7" Glass Fiber, pivoting
- Tweeter: 4 x 5/8" Silk Pivoting ARC Tweeter Array, 359-degree rotational
- Sensitivity: 88 dB
- Power Handling: 125 W
- Frequency Response: 40 Hz - 20 kHz
- Impedance: 8 Ohms
- Cutout: 8-1/4" (210 mm) diameter
- Outside Dimensions: 9-5/8" (244 mm) diameter x 5-1/2" (140 mm) depth
- Timbre: Timbre-matched to all Two Level speakers
- Warranty: 5-Year Limited
