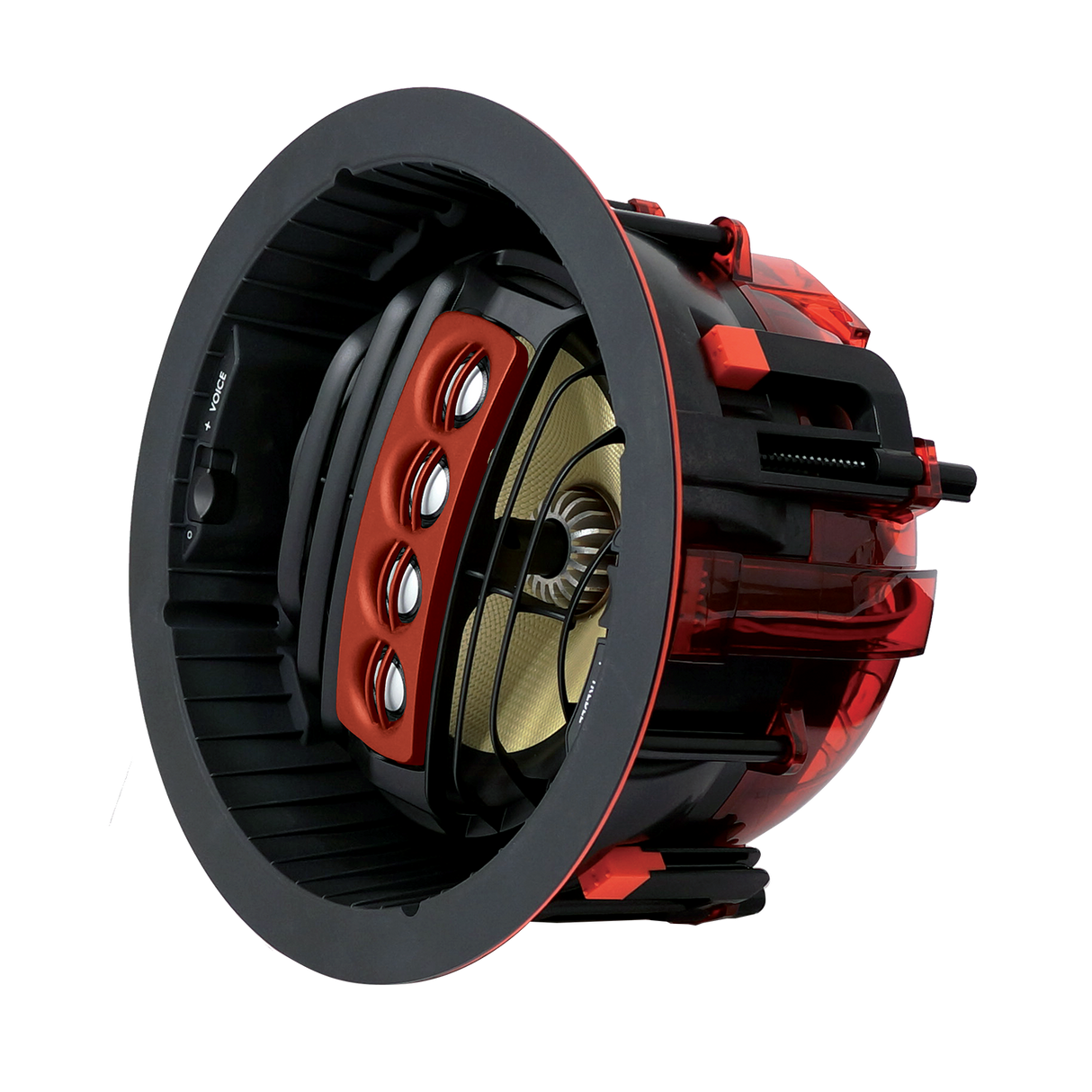

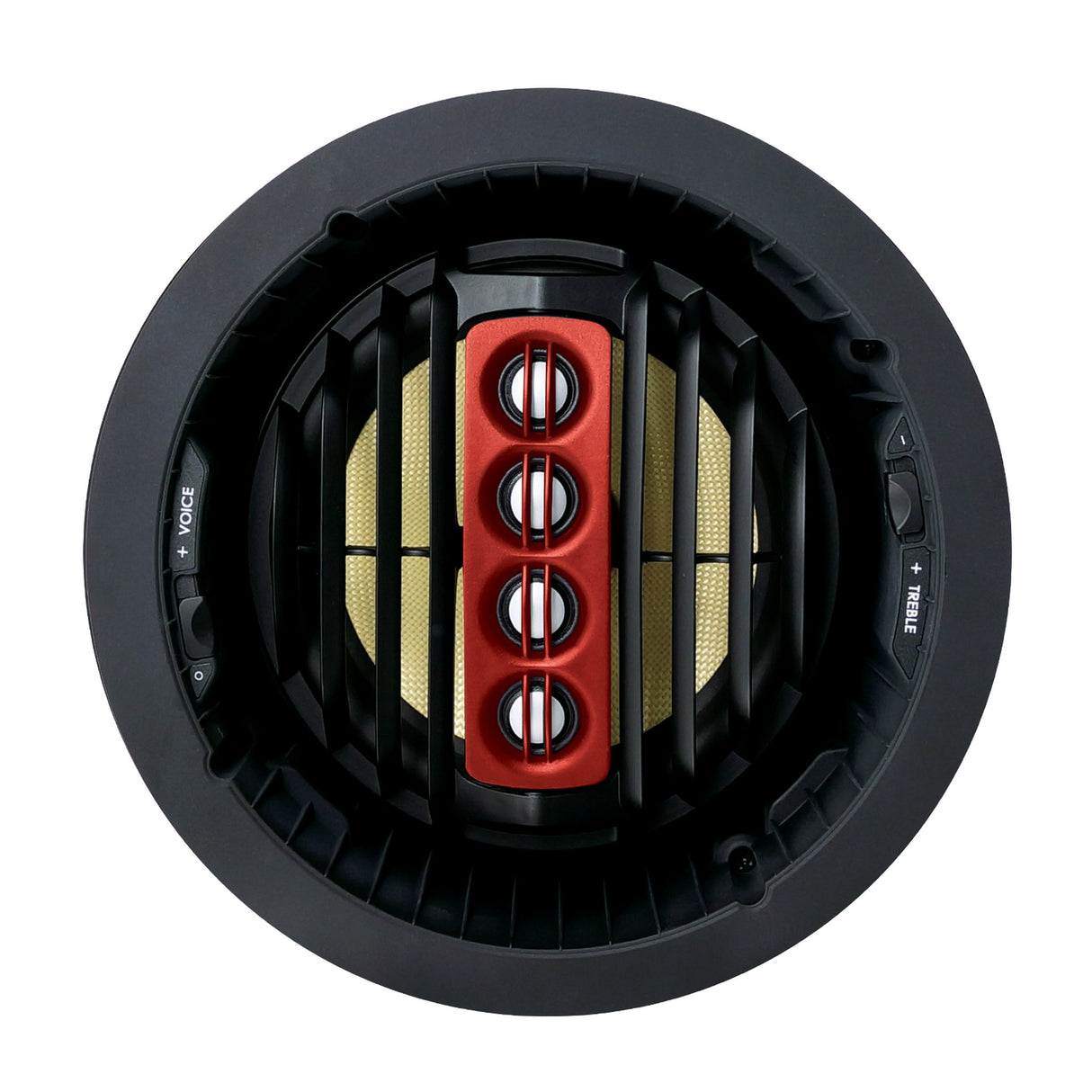

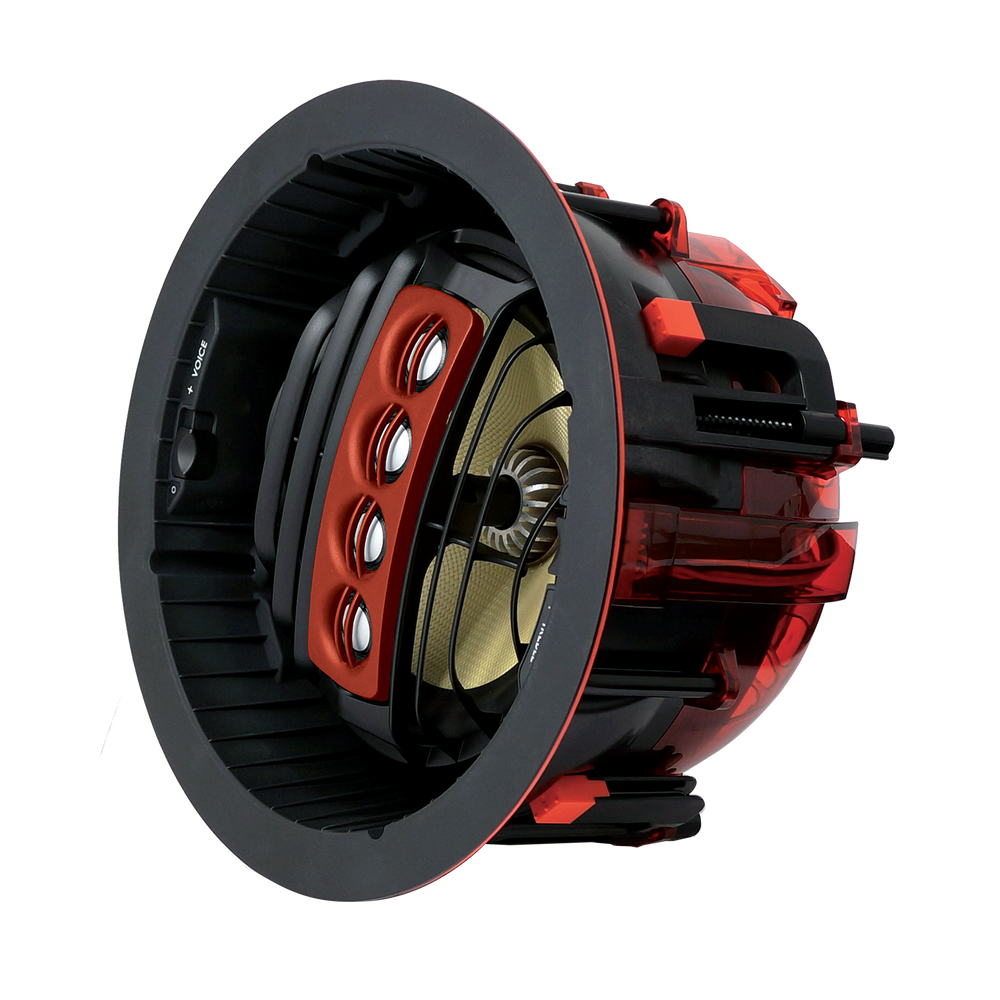

SpeakerCraft AIM275-MK3 7-Inch In-Ceiling Speaker with ARC Tweeter Array
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The SpeakerCraft AIM275-MK3 is the legend, revoiced. This 7-inch, two-way in-ceiling speaker updates one of the most celebrated architectural loudspeakers with modern voicing tuned for high-performance distributed audio and advanced object-based surround formats including Dolby Atmos, Auro-3D, and DTS:X. Its flangeless design and paintable grille let it vanish into the ceiling while delivering exceptional detail and dynamics.
The star of the AIM275-MK3 is its ARC Tweeter Array, which places four 5/8-inch Aluminum/Magnesium tweeters along a pivoting arc, fed in phase to project high frequencies farther and more precisely into the room than a traditional single-tweeter speaker. This carefully controlled dispersion pattern sharpens speech intelligibility and, with 359-degree rotational adjustability, lets integrators aim the soundfield exactly where listeners sit. Complementary WavePlane technology acts as an acoustic lens for wider, cleaner, richer highs, while the pivoting Kevlar woofer provides fast, articulate low-end.
A refined crossover using symmetrical and asymmetrical Linkwitz-Riley filtering improves phase coherence and driver blending for smoother response and greater power handling, and Acoustic Isolation Technology decouples the housing from surrounding materials to eliminate structural resonance. Timbre-matched to all FIVE Level speakers, with a deep 35Hz to 20kHz frequency response and 150-watt power handling, the AIM275-MK3 is backed by a 5-year warranty.
Features
- Revoiced 7-inch two-way in-ceiling speaker tuned for Dolby Atmos, Auro-3D, and DTS:X
- ARC Tweeter Array of four pivoting 5/8-inch Aluminum/Magnesium tweeters projects highs farther with pinpoint accuracy
- 359-degree rotational tweeter adjustability aims the soundfield to the listening area
- Pivoting Kevlar woofer for fast, articulate bass and midrange
- WavePlane acoustic lens technology for wider, cleaner high-frequency dispersion
- Refined Linkwitz-Riley crossover improves phase coherence and driver blending
- Acoustic Isolation Technology decouples the housing to eliminate structural resonance
- Flangeless design timbre-matched to all FIVE Level speakers
Technical Specifications
- Woofer: 7" Kevlar pivoting woofer
- Tweeter: ARC Array - 4 x 5/8" Aluminum/Magnesium pivoting tweeters with 359° rotational adjustability
- Power Handling: 150 Watts
- Impedance: 8 Ohms
- Sensitivity: 90 dB
- Frequency Response: 35Hz - 20kHz
- Cutout: 8-1/4" (210 mm) diameter
- Dimensions: 9-5/8" (244 mm) diameter x 5-1/2" (140 mm) depth
- Voicing: Timbre-matched to all FIVE Level speakers
- Warranty: 5 Years (60 months)
