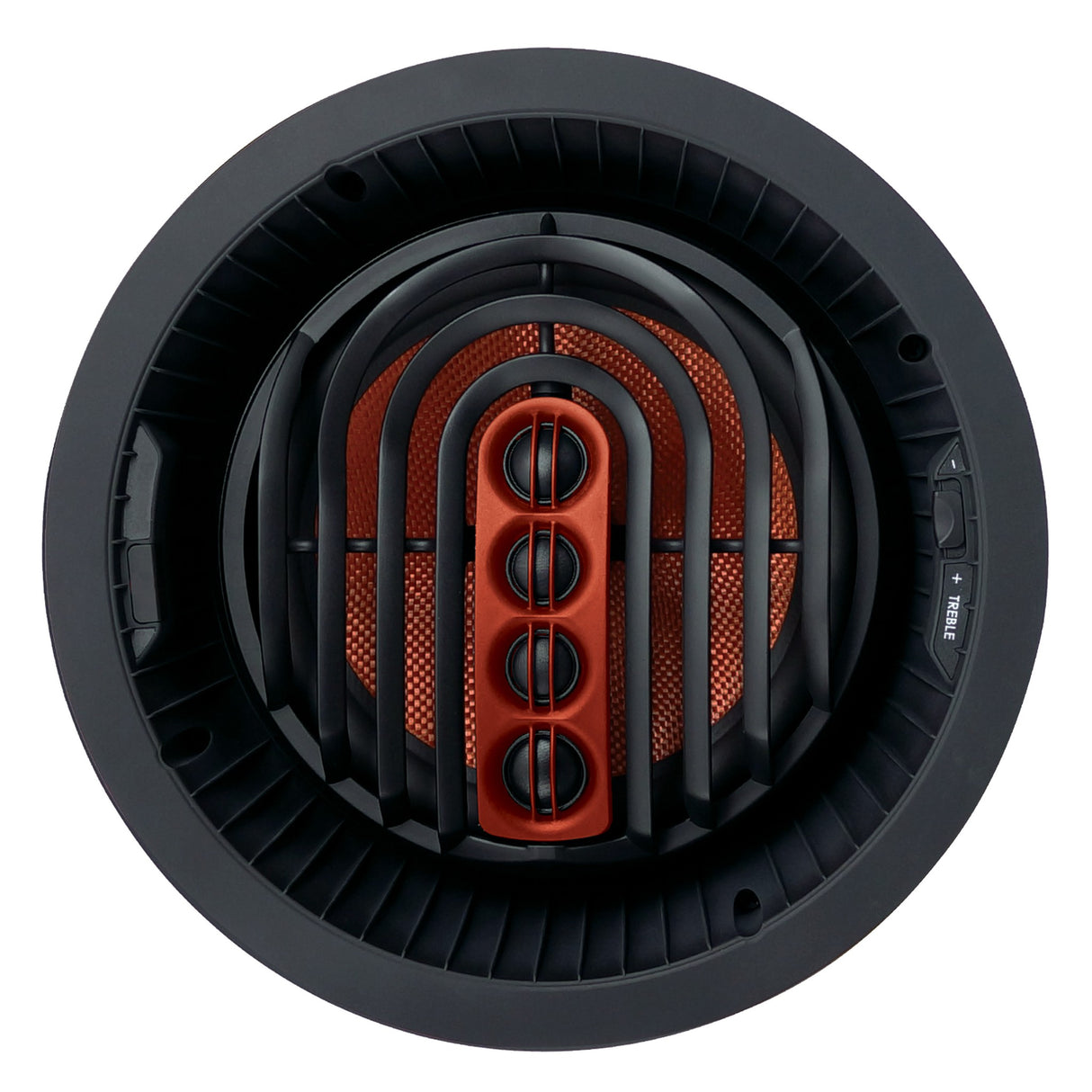

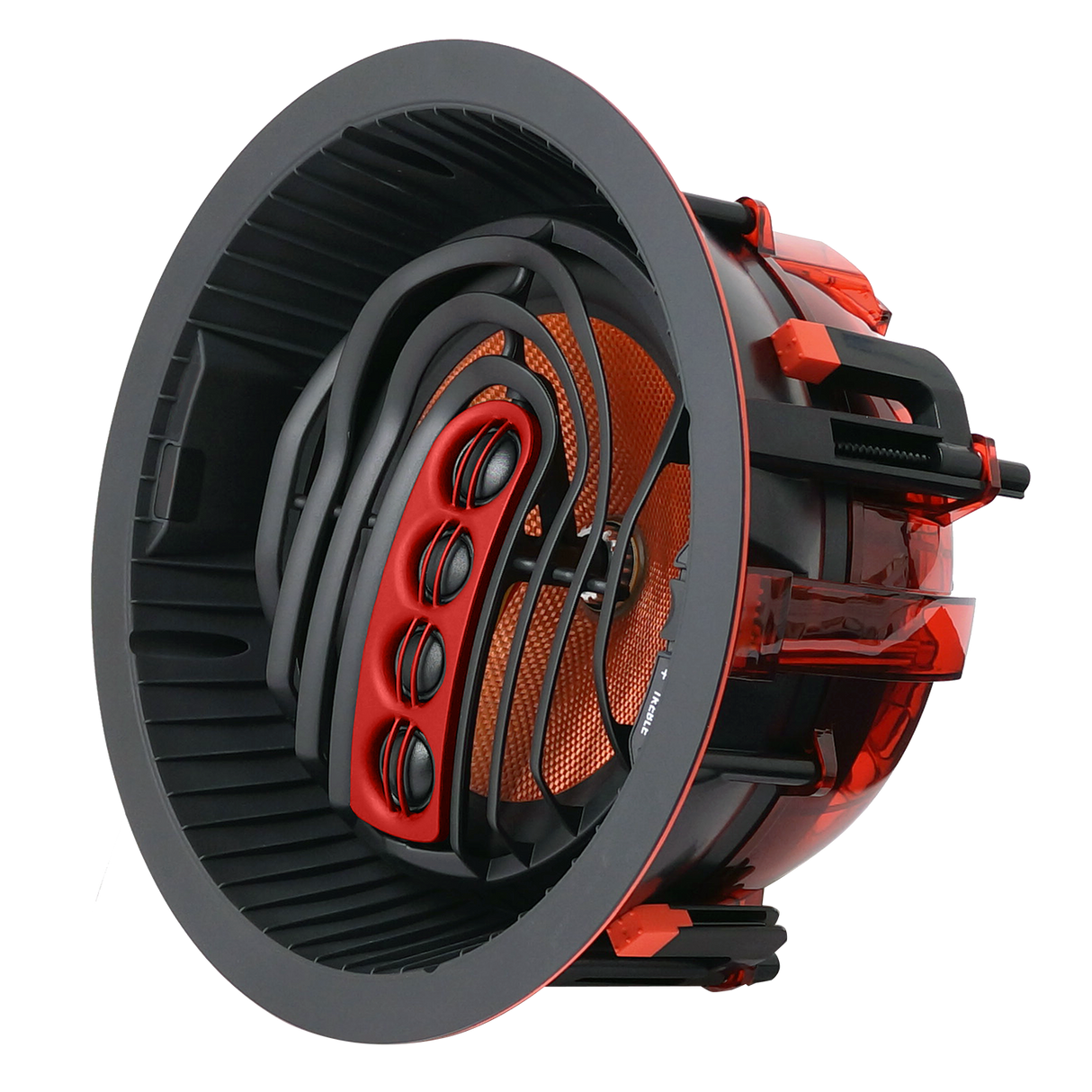

SpeakerCraft AIM282-MK3 8" 2-Way In-Ceiling Speaker, ARC Tweeter Array
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The SpeakerCraft AIM282-MK3 is an 8-inch, two-way in-ceiling loudspeaker from the legendary AIM Mk 3 family — the classic ReVoiced. It has been re-tuned to support modern installations that demand serious sonic performance, from distributed whole-home audio to advanced object-based surround formats such as Dolby Atmos, Auro-3D, and DTS:X. The result is a flangeless architectural speaker that disappears into the ceiling while delivering rich, room-filling sound.
At the heart of the AIM282-MK3 is SpeakerCraft's signature ARC Tweeter Array: two 3/4-inch and two 5/8-inch silk-dome tweeters arranged along a pivoting arc and fed in phase, so high frequencies travel farther into the room with a carefully defined dispersion pattern. Paired with a pivoting glass-fiber woofer offering 359-degree rotational adjustability, integrators can aim the sound precisely at the listening area for exceptional speech intelligibility and imaging. Updated WavePlane technology acts as an acoustic lens, focusing high-frequency energy for a cleaner, wider, and richer sound throughout the space.
A refined crossover combining symmetrical and asymmetrical Linkwitz-Riley filtering improves phase coherence, acoustic symmetry, and power handling for a smooth transition between frequency bands. Acoustic Isolation Technology decouples the housing from the surrounding ceiling to reduce structural resonance, and the speaker is timbre-matched to all SpeakerCraft Two Level speakers for a seamless whole-home listening experience.
Features
- 8" pivoting glass-fiber cone woofer for extended low-frequency response to 37 Hz
- ARC Tweeter Array: two 3/4" plus two 5/8" silk-dome tweeters with 359-degree rotational adjustability
- WavePlane technology acts as an acoustic lens for wider, cleaner high-frequency dispersion
- ReVoiced for Dolby Atmos, Auro-3D, and DTS:X object-based surround plus distributed audio
- Refined symmetrical/asymmetrical Linkwitz-Riley crossover for smoother, more coherent response
- Flangeless, low-profile design with Acoustic Isolation Technology to reduce structural resonance
- Timbre-matched to all SpeakerCraft Two Level series speakers
- Handles up to 150 watts at 8 ohms
Technical Specifications
- Woofer: 8" Glass Fiber Pivoting Woofer
- Tweeter: 2 x 3/4" and 2 x 5/8" Silk Pivoting Tweeter with 359-degree Rotational Adjustability
- Frequency Response: 37 Hz - 20 kHz
- Power Handling: 150 Watts
- Sensitivity: 87 dB
- Impedance: 8 Ohms
- Dimensions: 11-1/16" (280 mm) Diameter x 6" (152 mm) Depth
- Cutout: 9-3/4" (248 mm) Diameter
- Timbre Matching: Timbre-Matched to all Two Level Speakers
- Warranty: 5 Years (60 months)
