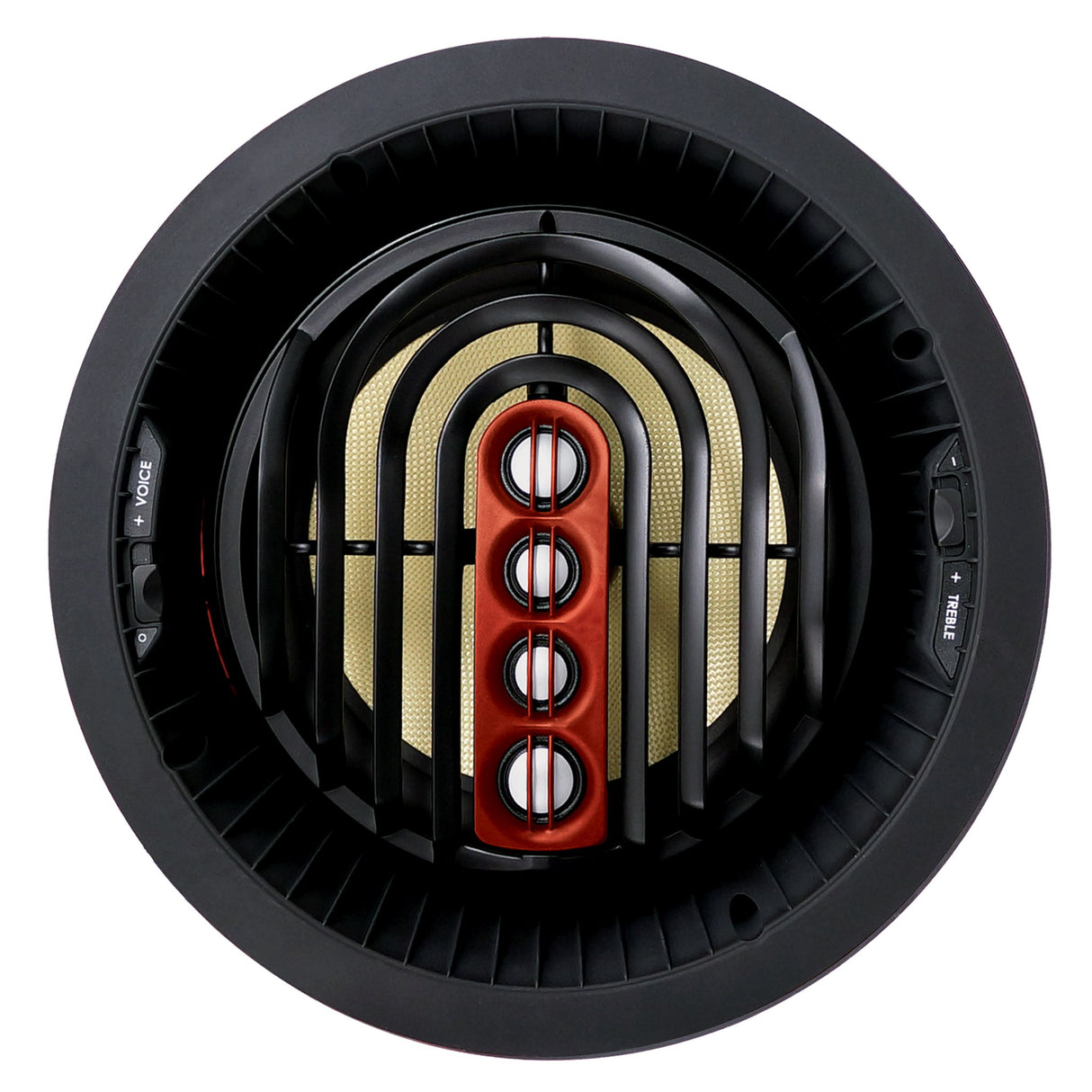

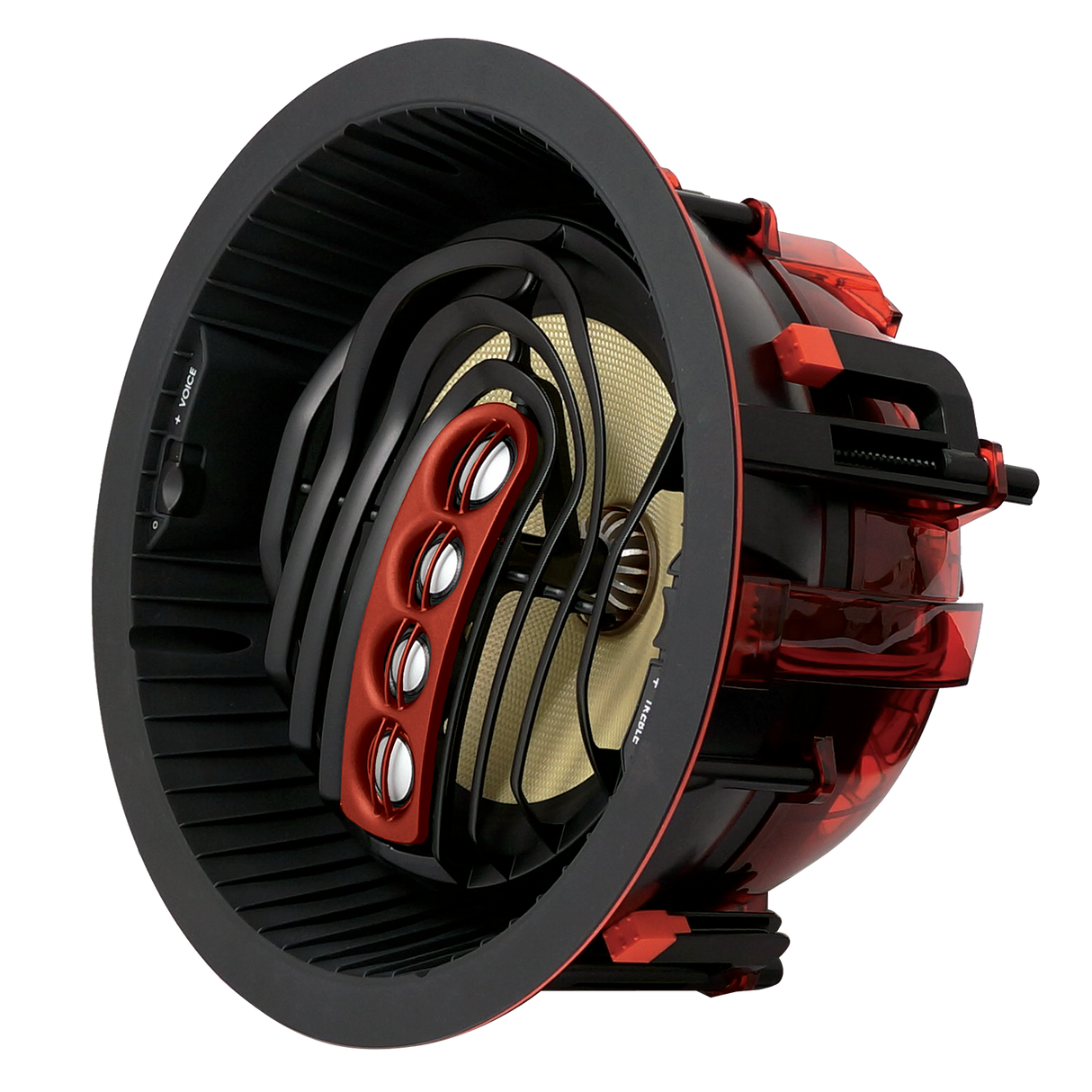

SpeakerCraft AIM285-MK3 8-Inch In-Ceiling Speaker with ARC Tweeter Array
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The SpeakerCraft AIM285-MK3 is the legend, revoiced. This flagship 8-inch, two-way in-ceiling speaker updates one of the most respected architectural loudspeakers ever made with modern voicing tuned for high-performance distributed audio and advanced object-based surround formats such as Dolby Atmos, Auro-3D, and DTS:X. A flangeless bezel and paintable grille let it disappear into any ceiling while delivering reference-grade sound.
Its defining feature is the AIM (ARC) Tweeter Array: multiple Aluminum/Magnesium tweeters arranged along a pivoting arc and fed in phase, projecting high frequencies farther and more precisely into the listening area than a conventional single-tweeter design. This narrowed, directable pattern dramatically improves speech intelligibility and lets integrators aim the soundfield exactly where it is needed, while WavePlane technology acts as an acoustic lens for cleaner, wider, richer highs. The pivoting Kevlar woofer adds stiffness and light weight for fast, articulate low-end and dynamics.
A refined crossover using symmetrical and asymmetrical Linkwitz-Riley filtering improves phase coherence and driver blending for smoother response and higher power handling, while Acoustic Isolation Technology decouples the housing from surrounding materials to eliminate structural resonance. Timbre-matched to all FIVE Level speakers, with a deep 33Hz to 20kHz frequency response and 175-watt power handling, the AIM285-MK3 is backed by a 5-year warranty.
Features
- Revoiced 8-inch two-way in-ceiling speaker tuned for Dolby Atmos, Auro-3D, and DTS:X
- ARC Tweeter Array of pivoting Aluminum/Magnesium tweeters projects highs farther with pinpoint accuracy
- 359-degree rotational tweeter adjustability directs the soundfield to the listening area
- Pivoting Kevlar woofer for fast, articulate bass and midrange
- WavePlane acoustic lens technology for wider, cleaner high-frequency dispersion
- Refined Linkwitz-Riley crossover improves phase coherence and driver blending
- Acoustic Isolation Technology decouples the housing to eliminate structural resonance
- Flangeless design timbre-matched to all FIVE Level speakers
Technical Specifications
- Woofer: 8" Kevlar pivoting woofer
- Tweeter: ARC Array - 2 x 3/4" and 2 x 5/8" Aluminum/Magnesium pivoting tweeters with 359° rotational adjustability
- Power Handling: 175 Watts
- Impedance: 8 Ohms
- Sensitivity: 90 dB
- Frequency Response: 33Hz - 20kHz
- Cutout: 9-3/4" (248 mm) diameter
- Dimensions: 11-1/16" (280 mm) diameter x 6" (152 mm) depth
- Voicing: Timbre-matched to all FIVE Level speakers
- Warranty: 5 Years (60 months)
