SpeakerCraft ASM55301 Profile AIM5 Three 5.25 Inch In-Ceiling Speaker

SpeakerCraft ASM55301 Profile AIM5 Three 5.25" In-Ceiling Speaker

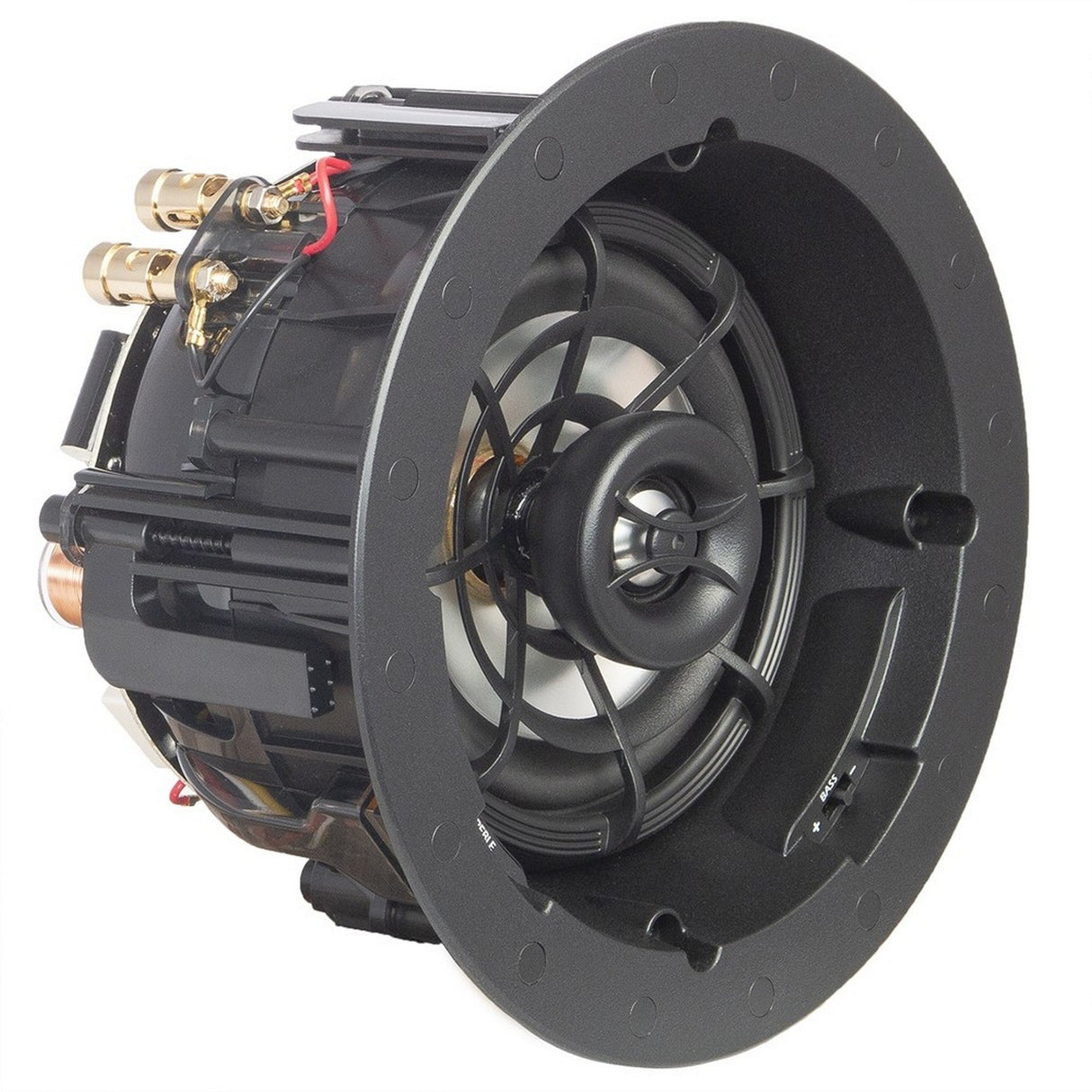

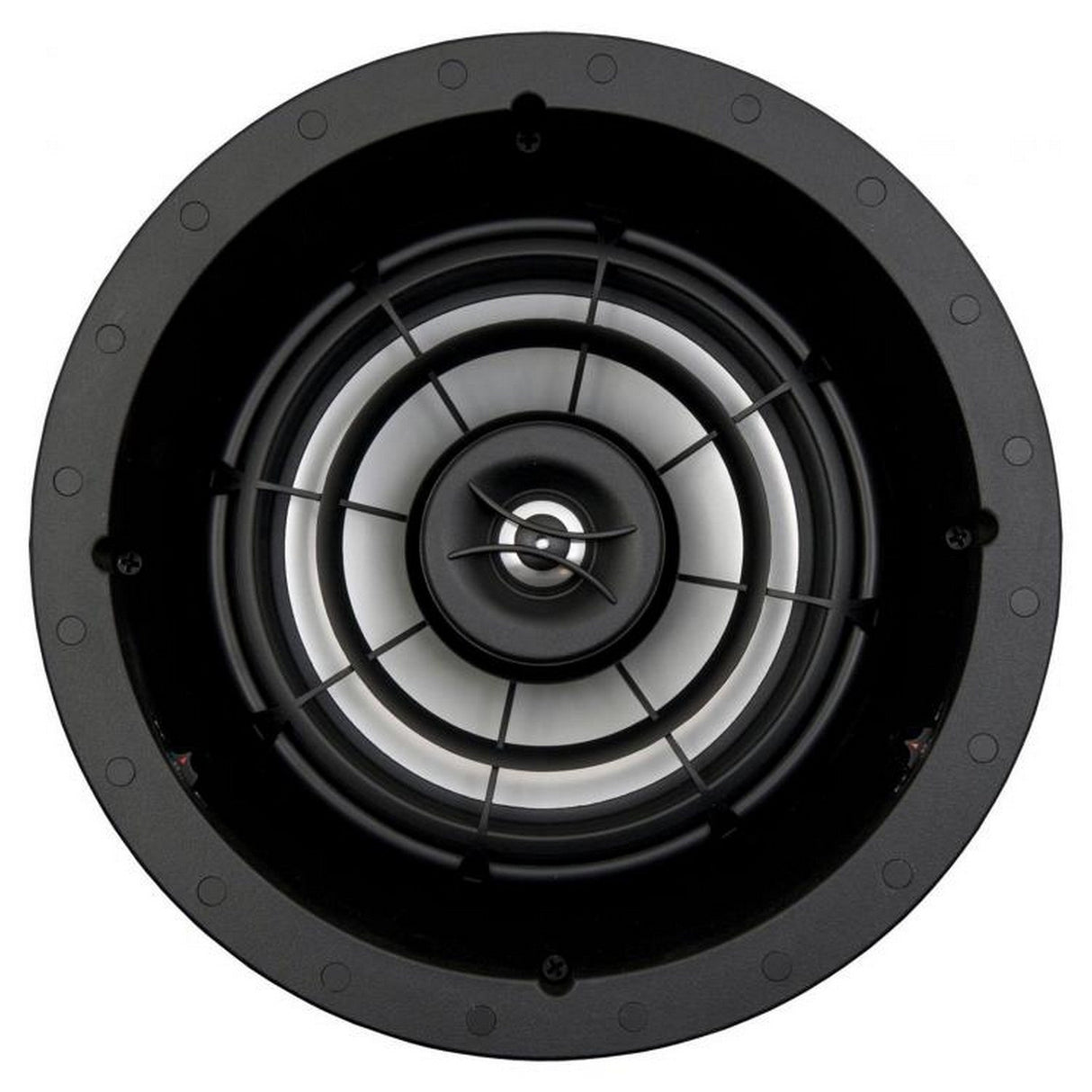

The SpeakerCraft ASM55301 Profile AIM5 Three 5.25" In-Ceiling Speaker is a directional architectural loudspeaker designed for discreet home audio and theater installations. Its pivoting 5.25" aluminum woofer and pivoting 0.75" aluminum-dome tweeter let installers aim sound toward the listening position while the flangeless Profile design minimizes its visual footprint.

The AIM5 Three suits distributed audio, media rooms, home theaters, bedrooms, kitchens, offices, and other spaces where speaker placement does not align perfectly with the listening area. SpeakerCraft WavePlane technology works with the aimable driver assembly, while front-mounted bass and treble equalization controls allow additional tuning after installation. Adjustable 8-, 6-, and 4-ohm impedance settings provide flexibility when matching the speaker to compatible amplification.

With a 50 Hz to 20 kHz frequency response, 89 dB sensitivity, and 100W power handling, the Profile AIM5 Three balances compact dimensions with flexible installed-audio performance. The round speaker measures 8" in diameter and 4.5" deep with its grille installed, requiring a 6.625" ceiling cutout. A white grille covers the black speaker assembly for a clean finished appearance.

Key Features

• Fully Aimable Driver Assembly: Pivoting woofer and tweeter allow sound to be directed toward the primary listening area after ceiling installation.
• 5.25" Aluminum Woofer: Delivers low- and mid-frequency reproduction from a compact in-ceiling format.
• 0.75" Aluminum Dome Tweeter: Provides directional high-frequency reproduction and pivots independently for installation flexibility.
• WavePlane Technology: Supports controlled sound dispersion from the recessed architectural speaker design.

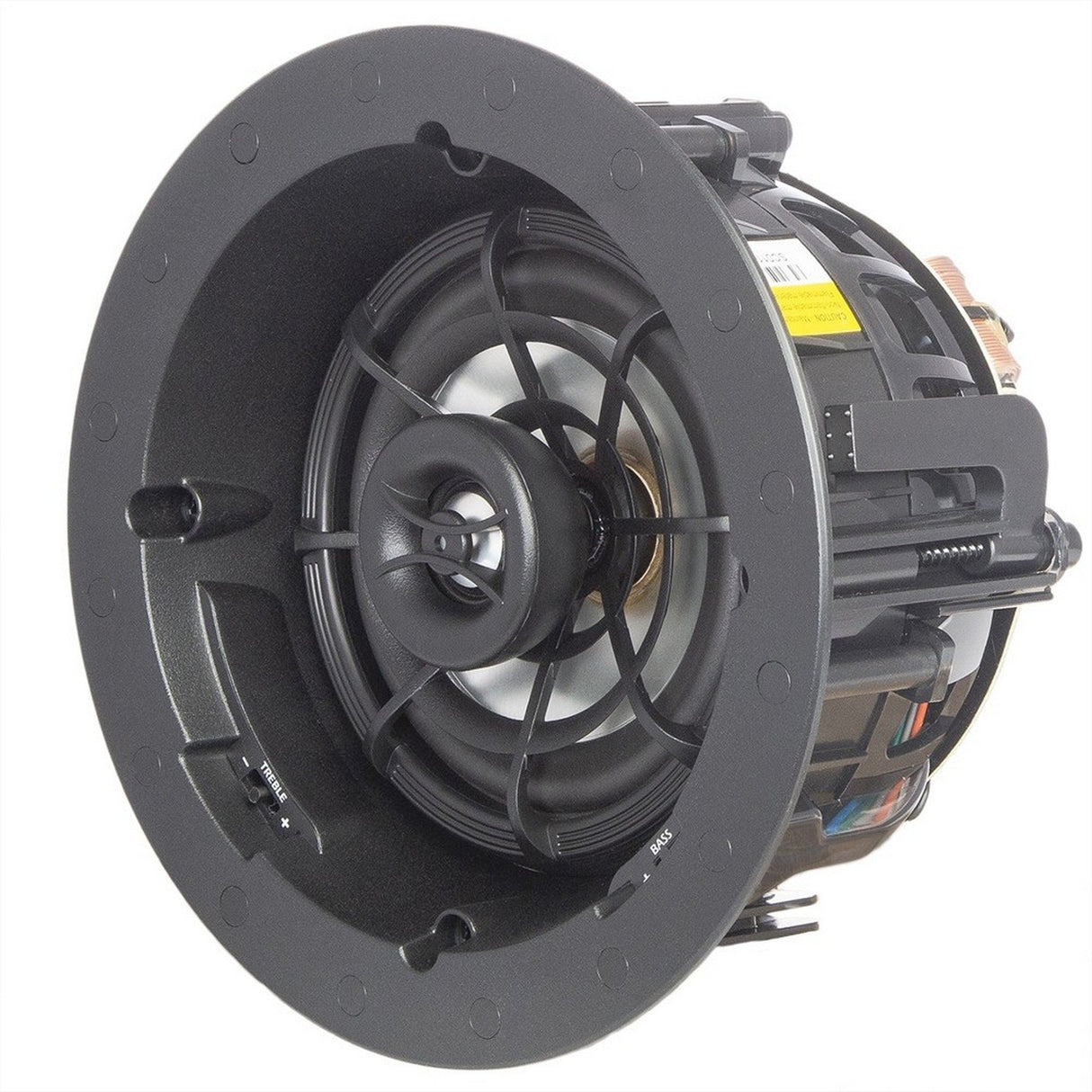

• Front-Mounted Equalization: Bass and treble switches provide convenient tonal adjustment from the front of the installed speaker.
• Adjustable Impedance: Selectable 8-, 6-, or 4-ohm operation accommodates different compatible amplifier and system configurations.
• Flangeless Profile Design: Minimizes visible trim for a discreet architectural installation.
• 100W Power Handling: Supports home theater, multi-room audio, and general-purpose installed sound applications.

Technical Specifications

• Product Type: Aimable in-ceiling speaker
• Model: ASM55301
• Series: Profile AIM Three
• Mounting Type: In-ceiling
• Woofer: 5.25" pivoting aluminum cone
• Tweeter: 0.75" pivoting aluminum dome
• Frequency Response: 50 Hz to 20 kHz
• Sensitivity: 89 dB, 1W at 1 m
• Power Handling: 100W
• Impedance: Selectable 8 / 6 / 4 ohms
• Equalization Controls: Front-mounted bass and treble switches
• Dispersion Technology: WavePlane Technology
• Timbre Matching: Timbre-matched to SpeakerCraft Three Series speakers
• Appearance: Flangeless
• Grille Color: White
• Speaker Assembly Color: Black
• Diameter with Grille: 8"
• Depth with Grille: 4.5"
• Ceiling Cutout Diameter: 6.625"
• Unit of Measure: Each
