Description

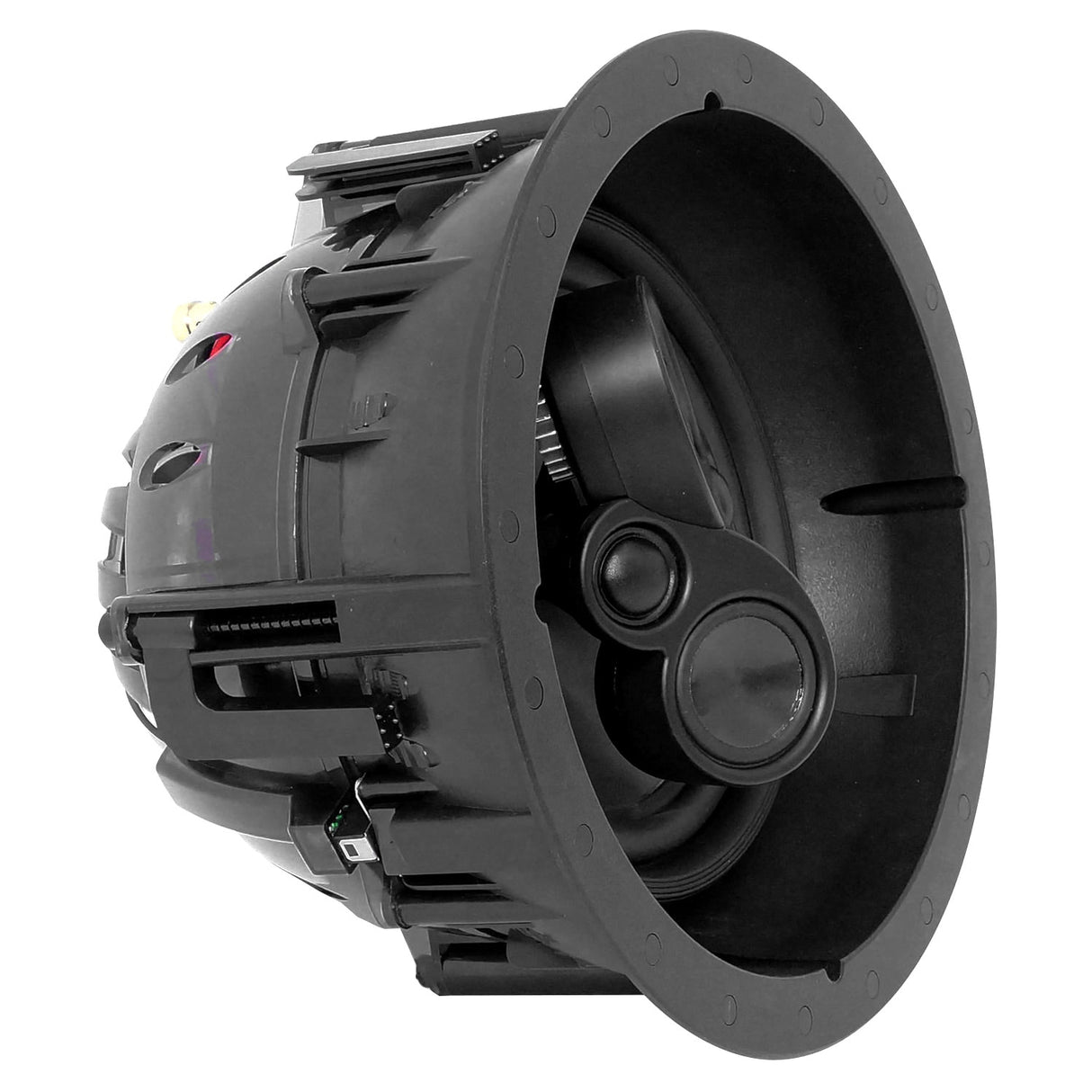

The SpeakerCraft Profile AIM8 Wide One is an 8-inch in-ceiling loudspeaker engineered for exceptionally wide, room-filling sound. Part of the Profile AIM WIDE Series, it pairs a fully pivoting 8-inch woofer with a unique dual midrange-tweeter module, delivering the kind of expansive coverage that makes it a natural fit for home theater side, rear, and height channels as well as demanding multi-room applications.

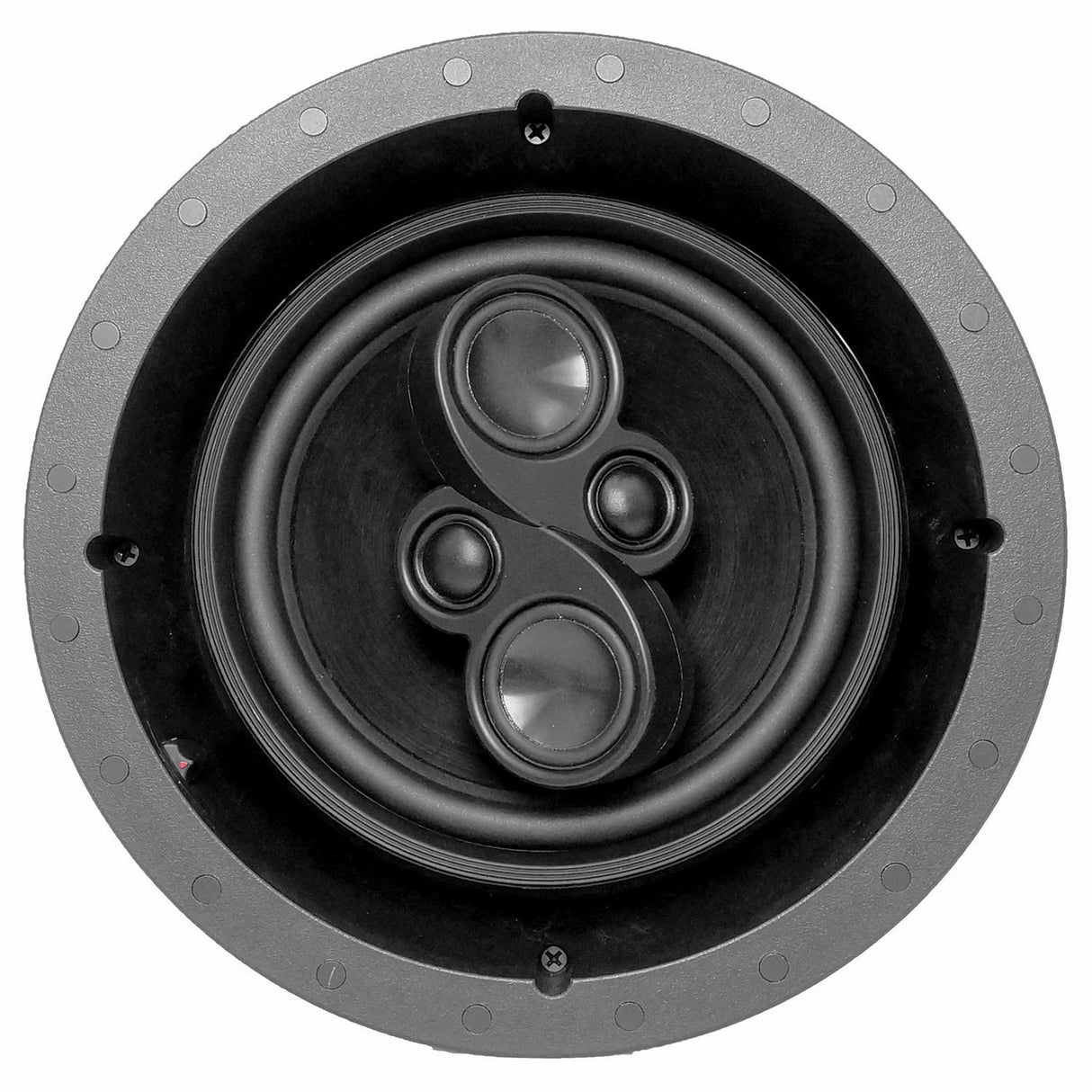

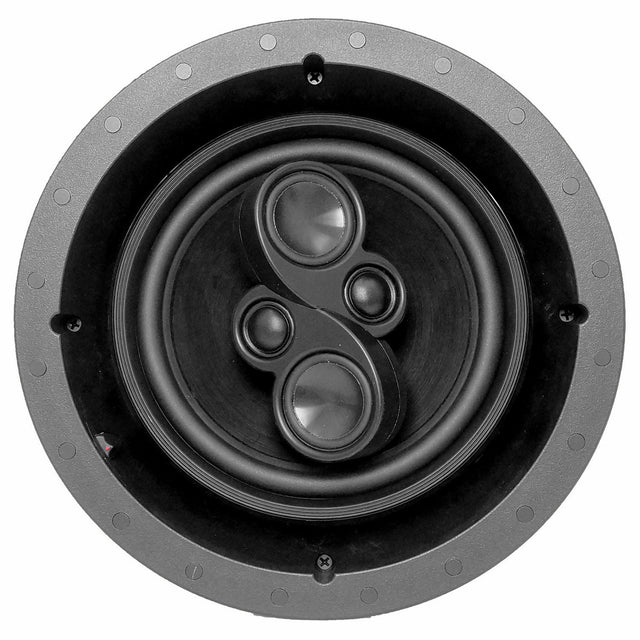

At the heart of the design is a midrange-tweeter module mounted directly over the woofer, combining dual 2-inch graphite inverted-dome midrange drivers with dual 3/4-inch silk-dome tweeters angled 70 degrees off-axis from each other. The result is ultra-wide sound dispersion with tremendous fidelity, spreading detailed, high-resolution audio evenly across the listening area rather than into a single sweet spot. The pivoting woofer lets installers aim output toward the primary seating position for precise, immersive results.
Timbre-matched to all ONE Series speakers, the AIM8 Wide One integrates seamlessly into larger SpeakerCraft systems for consistent tonal balance from room to room. With a wide 40Hz to 20kHz frequency response, 125-watt power handling, and an 8-ohm load, it performs equally well in dedicated theaters and whole-home audio zones, and it is backed by a lifetime warranty.
Features
- Fully pivoting 8-inch graphite cone woofer for aimable, room-filling bass and midrange
- Unique dual midrange-tweeter module for ultra-wide sound dispersion
- Dual 2-inch graphite inverted-dome midrange drivers plus dual 3/4-inch silk-dome tweeters
- Tweeters angled 70 degrees off-axis to broaden coverage across the listening area
- Ideal for home theater side, rear, and height channels or multi-room audio
- Timbre-matched to all ONE Series speakers for seamless system integration
- Wide 40Hz to 20kHz frequency response with 125-watt power handling
Technical Specifications
- Woofer: Pivoting 8" graphite cone woofer
- Midrange: Dual 2" graphite inverted-dome midrange drivers
- Tweeter: Dual 3/4" silk-dome tweeters
- Power Handling: 125 Watts
- Impedance: 8 Ohms
- Sensitivity: 88 dB
- Frequency Response: 40Hz - 20kHz
- Cutout: 9 3/4" (248 mm)
- Dimensions (Diameter x Depth): 11 7/16" x 6 1/2" (291 mm x 165 mm)
- Voicing: Timbre-matched to all ONE Series speakers
- Warranty: Lifetime
