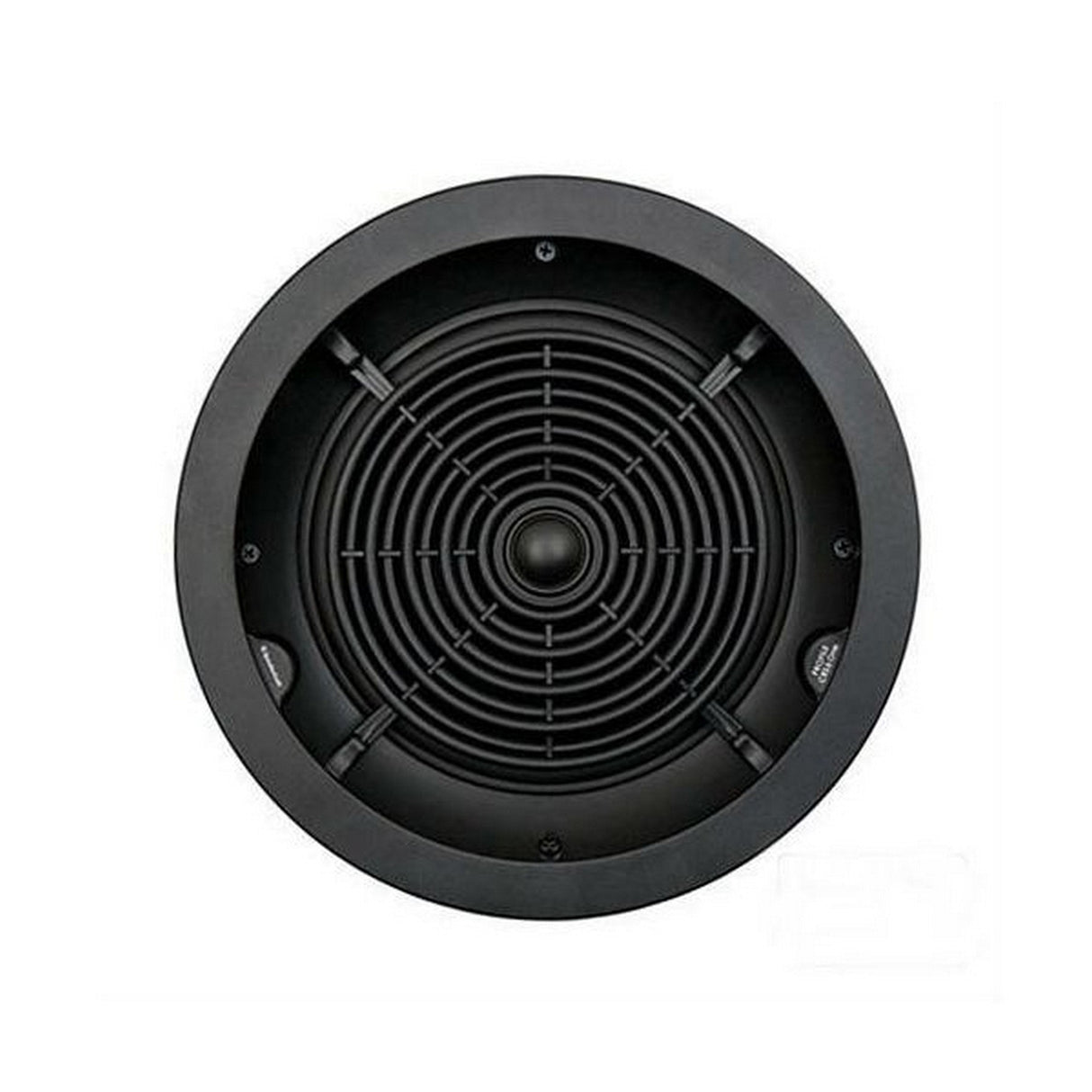

SpeakerCraft Profile CRS6 One 6.5 Inch 2-Way In-Ceiling Speaker

SpeakerCraft Profile CRS6 One 6.5 Inch 2-Way In-Ceiling Speaker

The SpeakerCraft Profile CRS6 One 6.5" In-Ceiling Speaker is a two-way architectural loudspeaker designed for discreet whole-home audio and home theater installations. A 6.5" polypropylene woofer with rubber surround pairs with a pivoting 1" liquid-cooled silk dome tweeter, providing 100W power handling and a 40 Hz to 20 kHz frequency response.

The CRS6 One works well for bedrooms, kitchens, media rooms, living areas, and multi-room music systems where floor or bookshelf speakers would occupy valuable space. Its pivoting tweeter lets installers direct high frequencies toward the primary listening area, while 92 dB sensitivity and an 8-ohm nominal impedance make the speaker compatible with a broad range of conventional home audio amplifiers.

SpeakerCraft's WavePlane technology places a dedicated surface behind the tweeter to improve high-frequency dispersion and reduce interaction with the woofer. The Profile version uses a flangeless design with a white grille for a low-visibility ceiling installation. Each speaker requires an approximately 8.3" circular cutout and measures about 9.6" in diameter by 4.1" deep with the grille installed.

Key Features

• 6.5" Polypropylene Woofer: Uses a polypropylene cone with rubber surround for low- and mid-frequency reproduction.
• Pivoting Silk Dome Tweeter: The 1" liquid-cooled tweeter can be directed toward the preferred listening area.
• WavePlane Technology: Improves high-frequency dispersion by controlling how tweeter output interacts with the woofer area.
• 100W Power Handling: Supports home theater, distributed music, and general-purpose architectural audio systems.
• 92 dB Sensitivity: Provides efficient output from compatible amplification in residential listening environments.
• Flangeless Profile Design: Minimizes visible trim for a cleaner finished ceiling installation.
• One Series Timbre Matching: Designed to maintain tonal consistency when combined with other SpeakerCraft One Series speakers.

Technical Specifications

• Product Type: 2-way in-ceiling speaker
• Series: Profile CRS6 One
• Manufacturer Order Number: ASM56601-2
• Installation: In-ceiling
• Woofer: 6.5" polypropylene cone with rubber surround
• Tweeter: 1" pivoting liquid-cooled silk dome
• Frequency Response: 40 Hz to 20 kHz
• Sensitivity: 92 dB, 1W at 1 m
• Power Handling: 100W
• Nominal Impedance: 8 ohms
• Dispersion Technology: WavePlane
• Timbre Matching: SpeakerCraft One Series
• Appearance: Flangeless
• Visible Grille Finish: White
• Speaker Assembly: Black
• Diameter with Grille: 9.6"
• Depth with Grille: 4.1"
• Ceiling Cutout Diameter: 8.3"
• Weight: 5 lb
• Unit of Measure: Each
