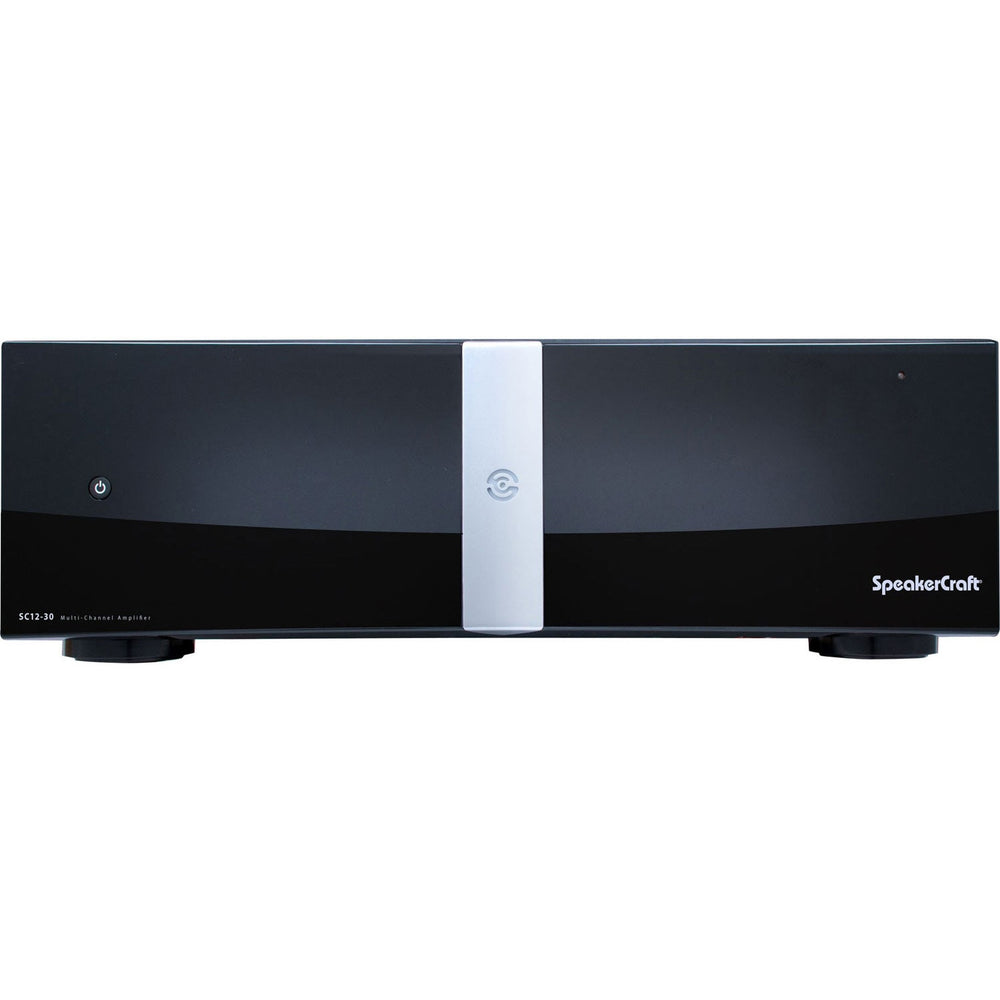

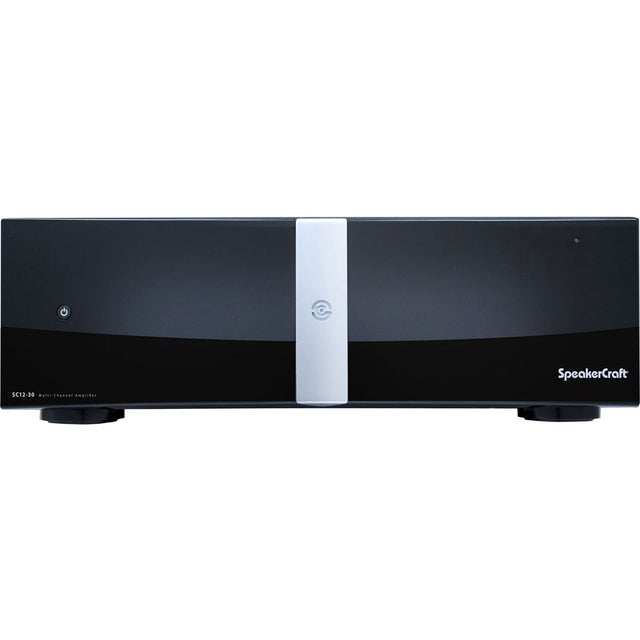

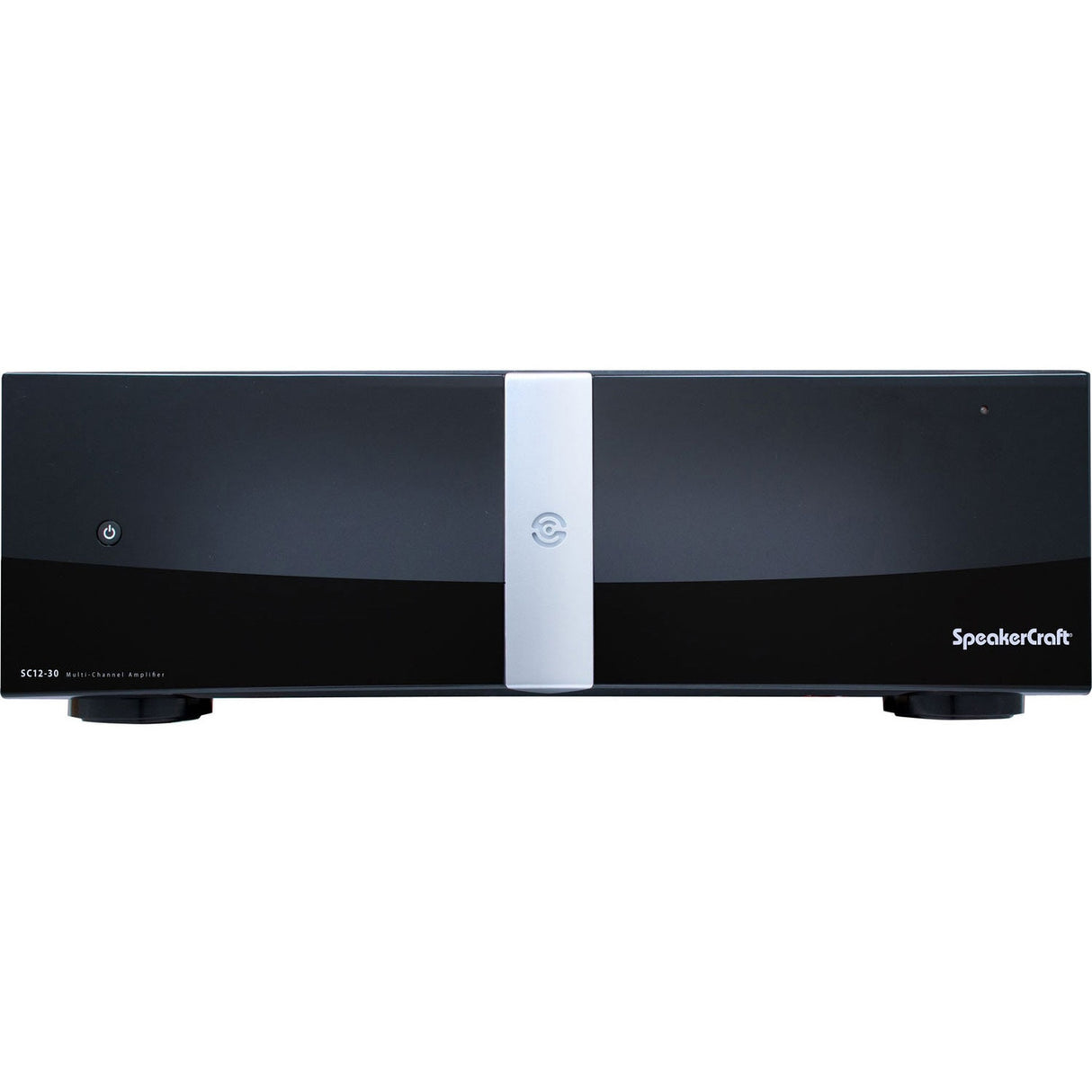

SpeakerCraft SC12-30 12-Channel 30W Distribution Amplifier, BusMatrix
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The SpeakerCraft SC12-30 is a fully configurable 12-channel distribution amplifier built to deliver the classic SpeakerCraft stability that custom installers know and trust. Purpose-designed to solve the challenges of interfacing with different brands and models of equipment across varied rooms and applications, the SC12-30 makes multi-zone and multi-room amplification more straightforward than ever before.
With 12 channels providing 30 watts per channel — or 80 watts when adjacent channels are bridged — plus the unique BusMatrix Selector, the SC12-30 gives integrators the flexibility to route and power whole-home audio from a single rack-mountable chassis. Low distortion of just 0.2% THD, a wide 3-24V trigger input, and 12-volt control output round out a professional feature set aimed at reliable, clean performance in demanding installations.
Features
- 12 independent channels for true multi-zone / multi-room distribution
- 30 watts RMS per channel, bridgeable to 80 watts on adjacent channels
- Unique BusMatrix Selector for flexible signal routing
- Low 0.2% THD from 20Hz to 20kHz for clean output
- Voltage trigger input (3-24VAC/DC) and 12-volt control output
- Rack-mountable chassis with rack ears included
- Removable line cord and fan-free cooling design
Technical Specifications
- Number of Channels: 12
- Power (8 Ohms): 30 watts RMS per channel, all channels driven
- Power (4 Ohms): 40 watts RMS per channel, all channels driven
- Bridged Power: 80 watts RMS into 8 Ohms (adjacent channels)
- Total Harmonic Distortion: 0.2% THD, 20Hz to 20kHz
- Trigger: 3-24VAC/DC input; 12-volt control out
- Rack Mountable: Yes, rack ears included
- Dimensions: 17.25"W x 5.75"H (with feet) x 16.25"D
- Weight: 35 lb (15.8 kg)
- Compliance: US, Canada, EU, and Australian safety and EMC standards
- Warranty: 2-year limited
