SpeakerCraft SC3-IW5-LCR Dual 5.25" In-Wall LCR Speaker, Kevlar Woofers
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

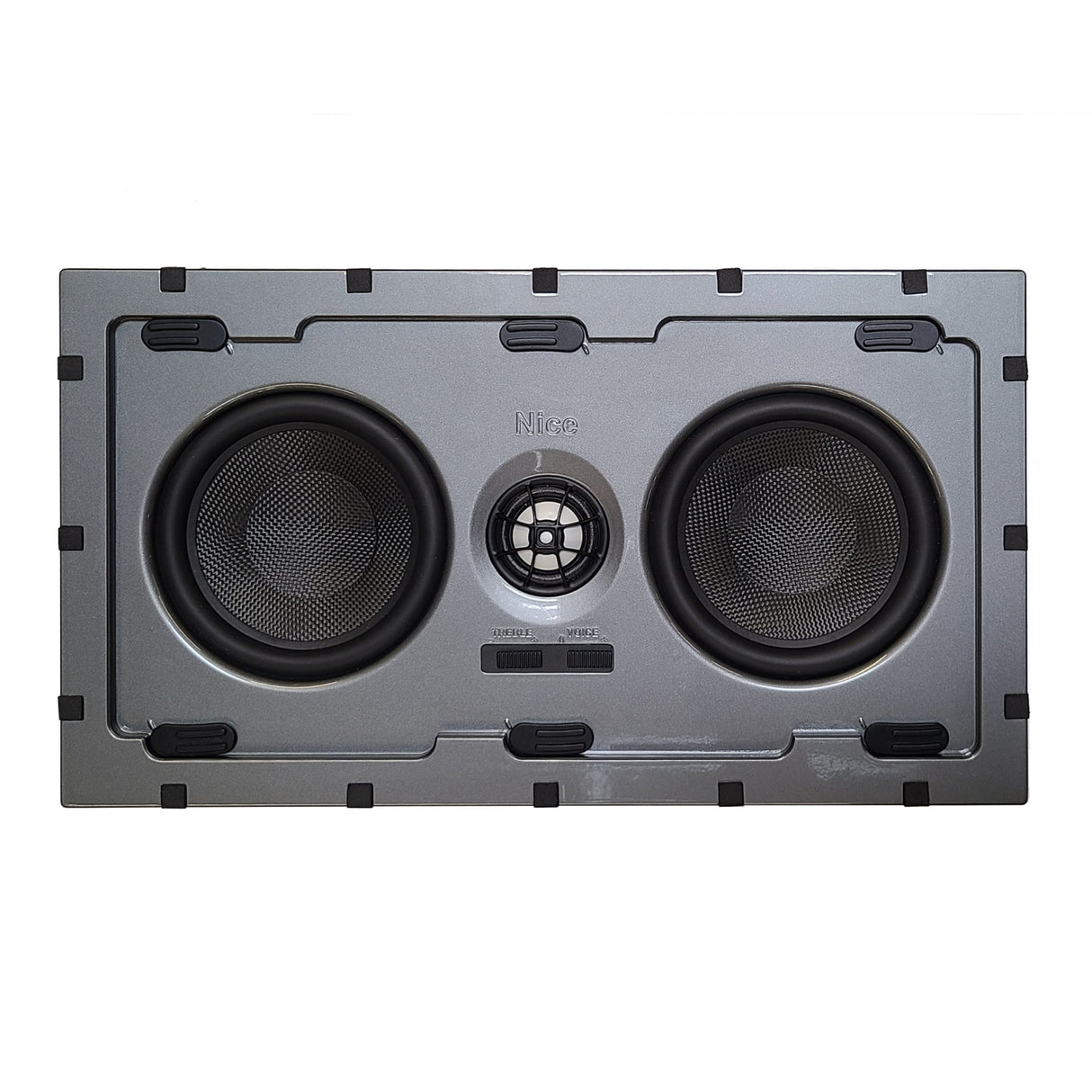

The SpeakerCraft SC3-IW5-LCR is a premium in-wall LCR loudspeaker from the Nice SC3 architectural series — an evolution of SpeakerCraft, the inventor of architectural speakers. Its left-center-right-capable design pairs dual 5.25-inch black Kevlar woofers with a pivoting aluminum-magnesium AccuAim tweeter, making it an ideal on-wall front-stage or surround channel for home theater and high-performance whole-home audio.
Kevlar is thin, stiff, and light for improved transient response and dynamics, while the aluminum-magnesium alloy tweeter — 56.3% larger than a typical 1-inch dome — delivers more power at a lower crossover point, enhanced off-axis response, and low distortion. A copper shorting ring (Faraday shield) reduces distortion and keeps impedance consistent, and an asymmetrical 3rd-order crossover with a 3-position tweeter level switch and 2-position voice switch lets you fine-tune the highs and vocal focus for a crisp, dynamic musical performance.

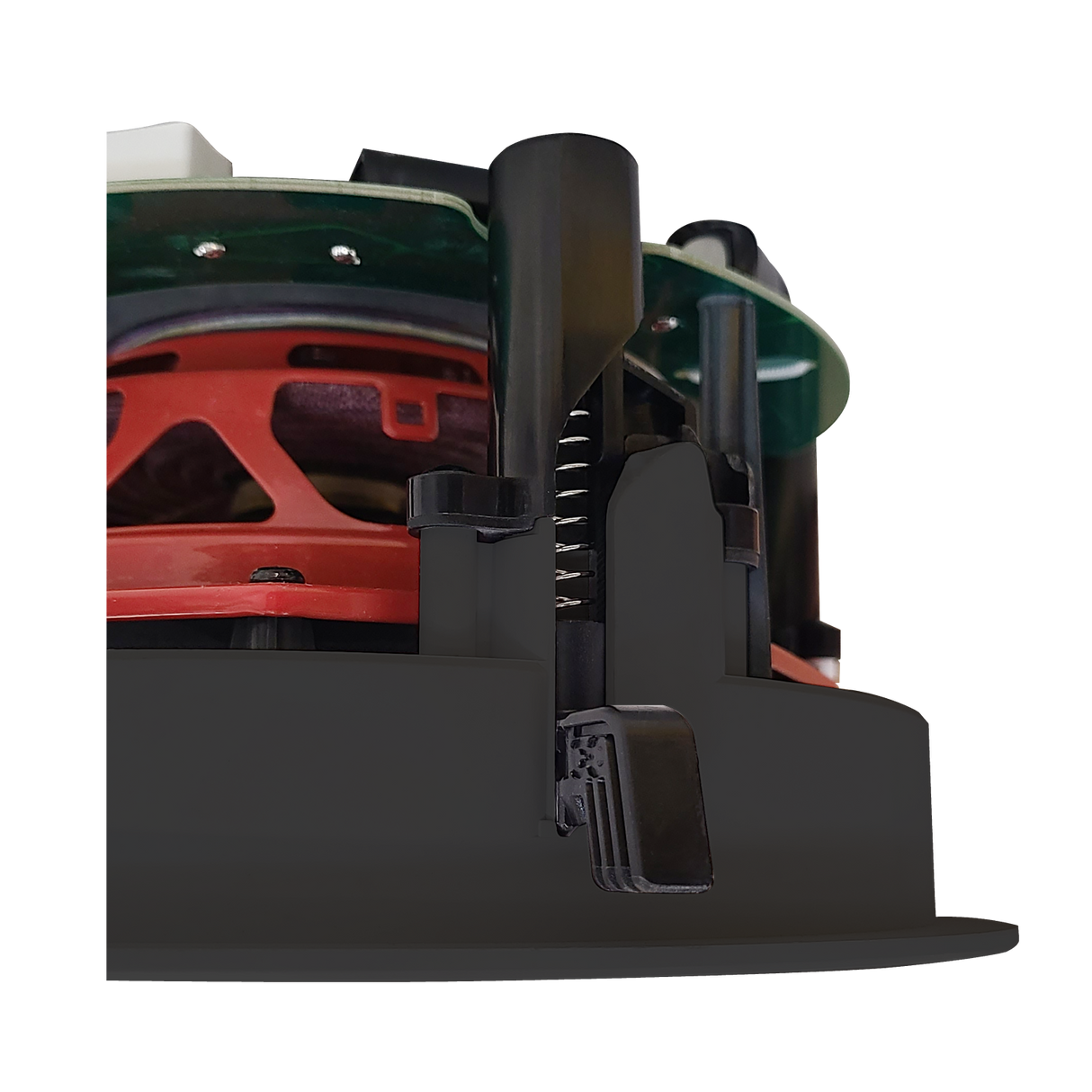

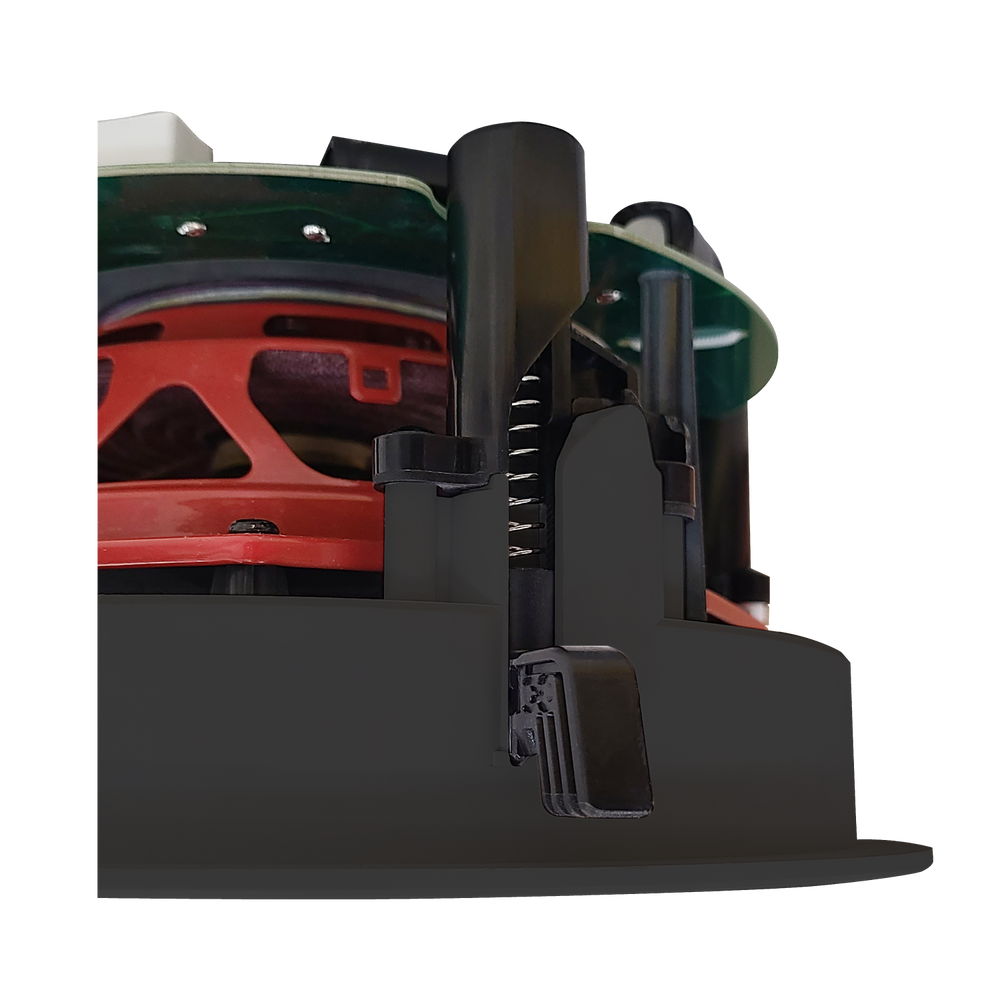

The ViseLock toolless clamping system mounts the speaker up to 75% faster than traditional designs, AccuAim click-locks the tweeter to a repeatable angle for precise phase accuracy, and XmaG extended pole pieces keep response linear at all levels. A rigid metal frame minimizes resonance and transmission loss, and the paintable, bezelless stainless-steel rectangular grille resists rust naturally. The SC3-IW5-LCR works with BKT84600E pre-construction brackets.
Features
- Dual 5.25-inch black Kevlar woofers for extended, dynamic mid-bass

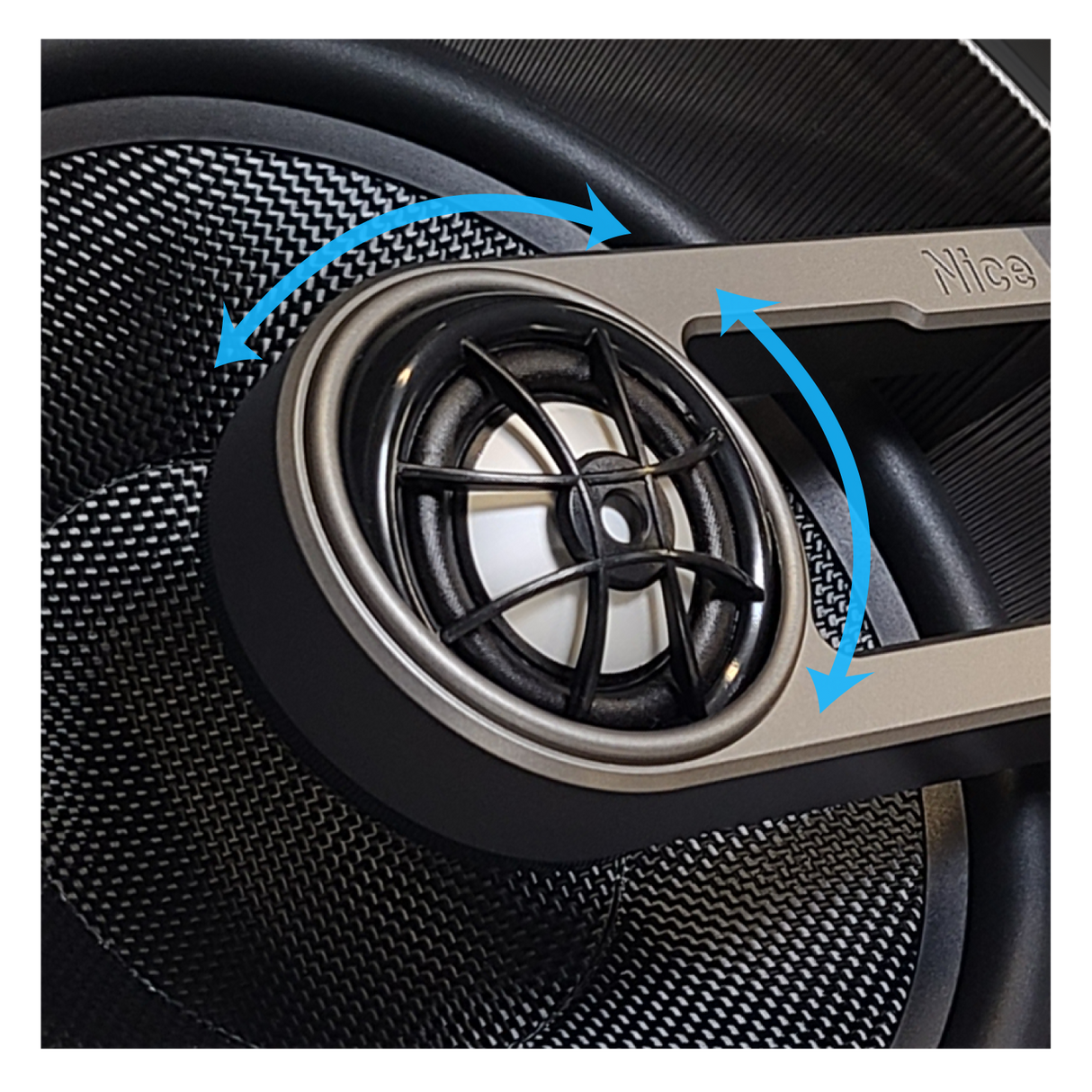

- Pivoting 1.25-inch aluminum-magnesium AccuAim tweeter, 56.3% larger than a 1-inch dome
- LCR-capable design for front left, center, and right home-theater channels
- Copper shorting ring (Faraday shield) for lower distortion and consistent impedance
- Asymmetrical 3rd-order crossover with 3-position tweeter level and 2-position voice switches
- ViseLock toolless mounting system installs up to 75% faster
- XmaG extended pole pieces plus a rigid metal frame for linear, low-distortion sound
- Paintable, bezelless stainless-steel rectangular grille; 90 dB sensitivity, 145 W power handling
Technical Specifications
- Woofers: Dual 5.25-inch Black Kevlar
- Tweeter: 1.25-inch Aluminum Magnesium Alloy (pivoting AccuAim)
- Power Handling: 145 W
- Sensitivity: 90 dB SPL ±3 dB
- Frequency Range: 42 Hz – 20 kHz
- Impedance: 8 Ohms Nominal; 6.2 Ohms Minimum
- Mounting: Toolless (ViseLock)
- Cutout (H x W): 7 1/2 in x 14 1/4 in (190 x 362 mm)
- Dimensions: 15.6 in (397 mm) L x 8.8 in (225 mm) W x 3.8 in (99 mm) depth
- Behind-Wall Depth: 5.5 in
- Works With: BKT84600E Pre-Construction Brackets
- Warranty: 5 Year
What's Included
- SC3-IW5-LCR in-wall speaker
- Paintable bezelless stainless-steel rectangular grille
