Studio Technologies RMBK-12 Rackmount Kit for Two 1/2-Rack Units

Studio Technologies RMBK-12 Rackmount Kit for Two 1/2-Rack Units

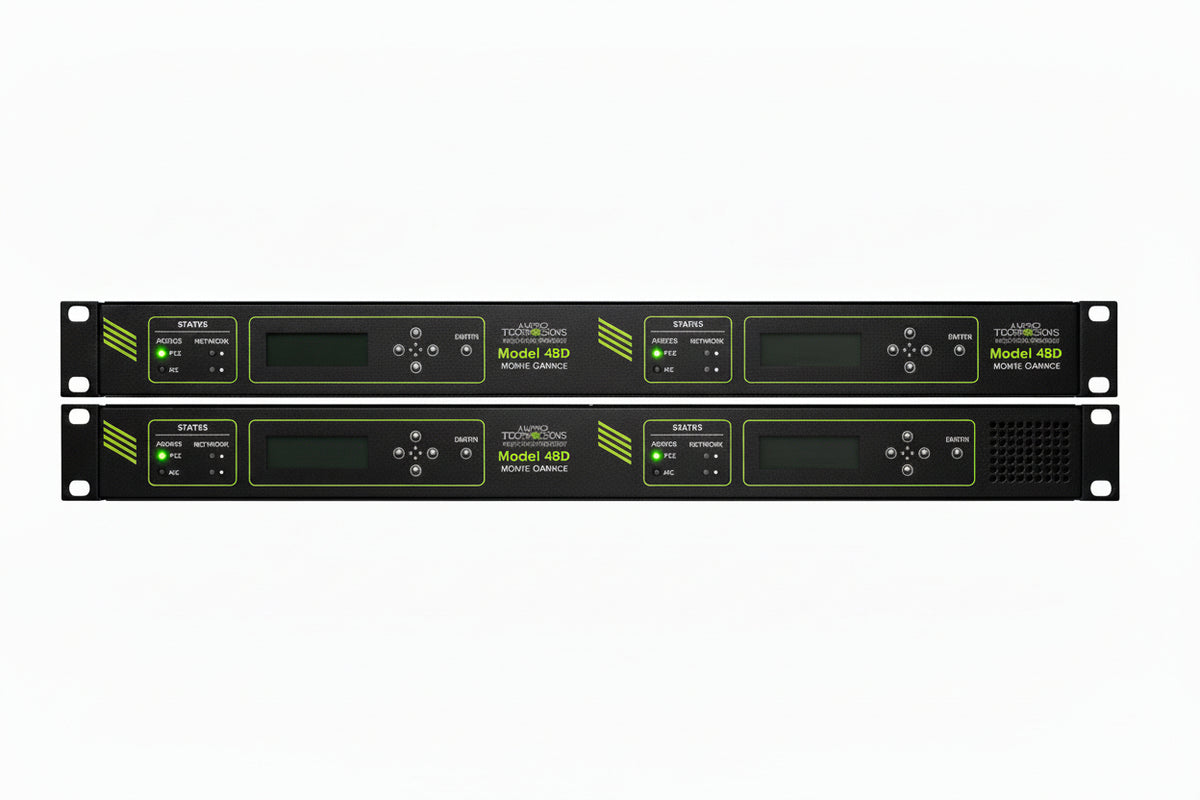

The Studio Technologies RMBK-12 Rackmount Kit installs two compatible Studio Technologies 1/2-rack devices together in one 1U space of a standard 19" equipment rack. The hardware mechanically joins the two units and provides the outer rack brackets required for a secure, professional installation.

Designed for broadcast, intercom, Dante, and professional audio systems, the RMBK-12 helps consolidate two compatible tabletop devices into a compact rack configuration. Supported equipment includes multiple Studio Technologies interfaces, intercom stations, and Dante audio engines that share the company's compatible 1/2-rack enclosure format. Compatible models can also be mixed where Studio Technologies specifically approves RMBK-12 installation.

The kit uses two standard-length rack brackets at the outside edges and two joiner plates between the paired devices. Eight 6-32 Phillips-head machine screws secure the rack brackets, while two 2-56 Torx T7 machine screws secure the joiner plates. Once assembled, the two devices occupy a single 1U position in a conventional 19" equipment rack.

Key Features

• Dual-Unit Rack Mounting: Installs two compatible Studio Technologies 1/2-rack devices in one rack space.
• Standard 19" Rack Support: Creates a complete 1U assembly for professional equipment racks and production cases.
• Mixed-Model Compatibility: Supports combinations of compatible Studio Technologies products when approved for RMBK-12 mounting.
• Joiner Plate System: Two internal plates mechanically connect the paired chassis into a unified rack assembly.
• Outer Rack Brackets: Two standard-length brackets provide mounting points at the left and right sides of the completed assembly.
• Installation Hardware Included: Supplied machine screws match the rack brackets and joiner plates used in the installation.
• 1U Installation: Preserves rack space by fitting two compatible half-rack products into a single rack unit.

Technical Specifications

• Brand: Studio Technologies
• Model: RMBK-12
• Product Type: Rack-mount installation kit
• Rack Compatibility: Standard 19" equipment rack
• Rack Space: 1U
• Device Capacity: 2 compatible 1/2-rack units
• Standard-Length Rack Brackets: 2
• Joiner Plates: 2
• Rack-Bracket Fasteners: 8 x 6-32 Phillips-head machine screws
• Joiner-Plate Fasteners: 2 x 2-56 Torx T7 machine screws

Verified Compatible Products

• Model 48D: Dante Bridge
• Model 5304: Intercom Station
• Model 5421: Dante Intercom Audio Engine
• Model 5421A: Dante Intercom Audio Engine
• Model 543D: IFB Interface
• Model 544D: Audio Interface
• Model 545DC: Intercom Interface
• Model 545DR: Intercom Interface
• Model 545AR: Intercom Interface

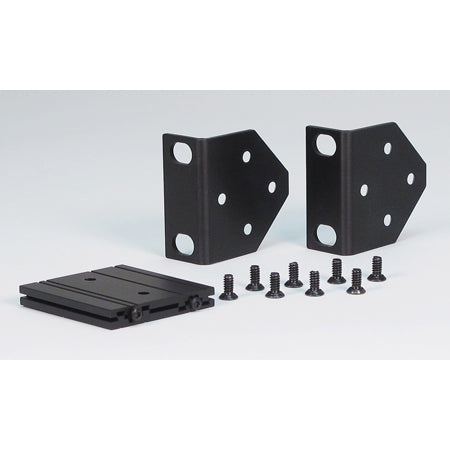

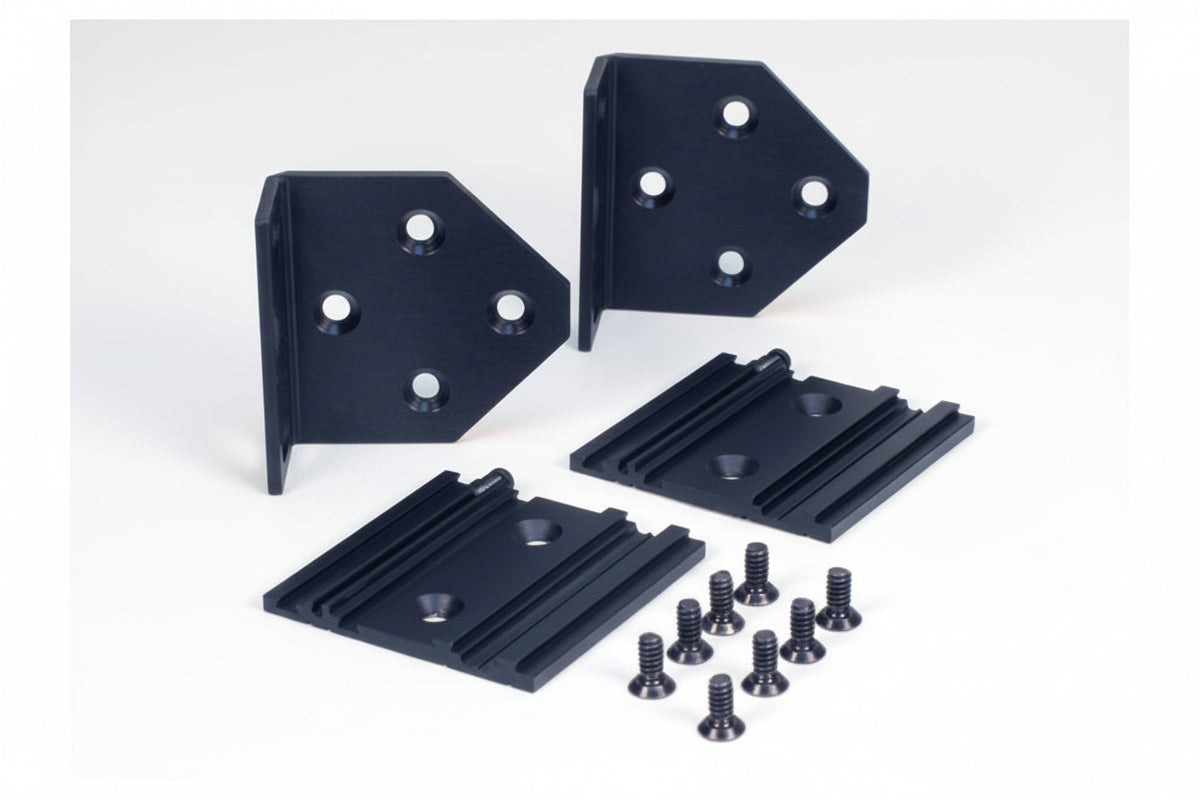

What's In the Box

• 2 x Standard-Length Rack Brackets
• 2 x Joiner Plates
• 8 x 6-32 Phillips-Head Machine Screws
• 2 x 2-56 Torx T7 Machine Screws
