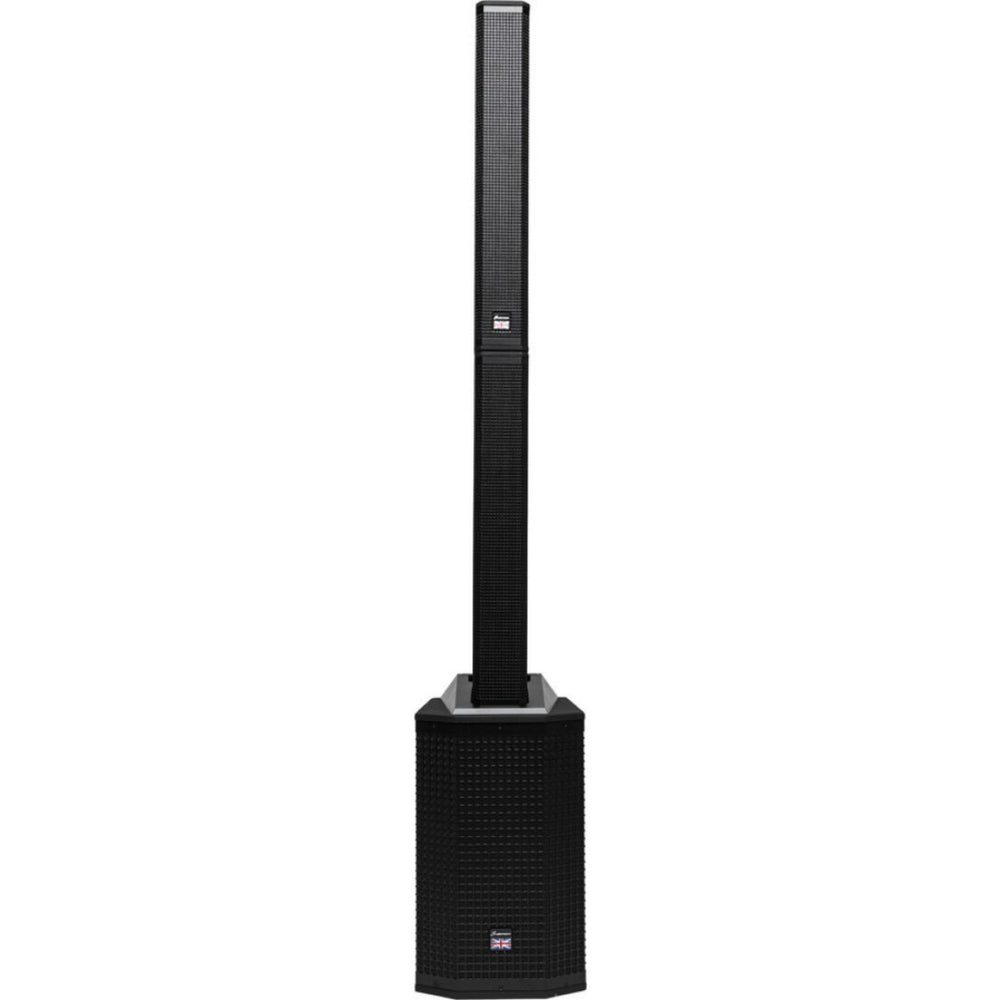

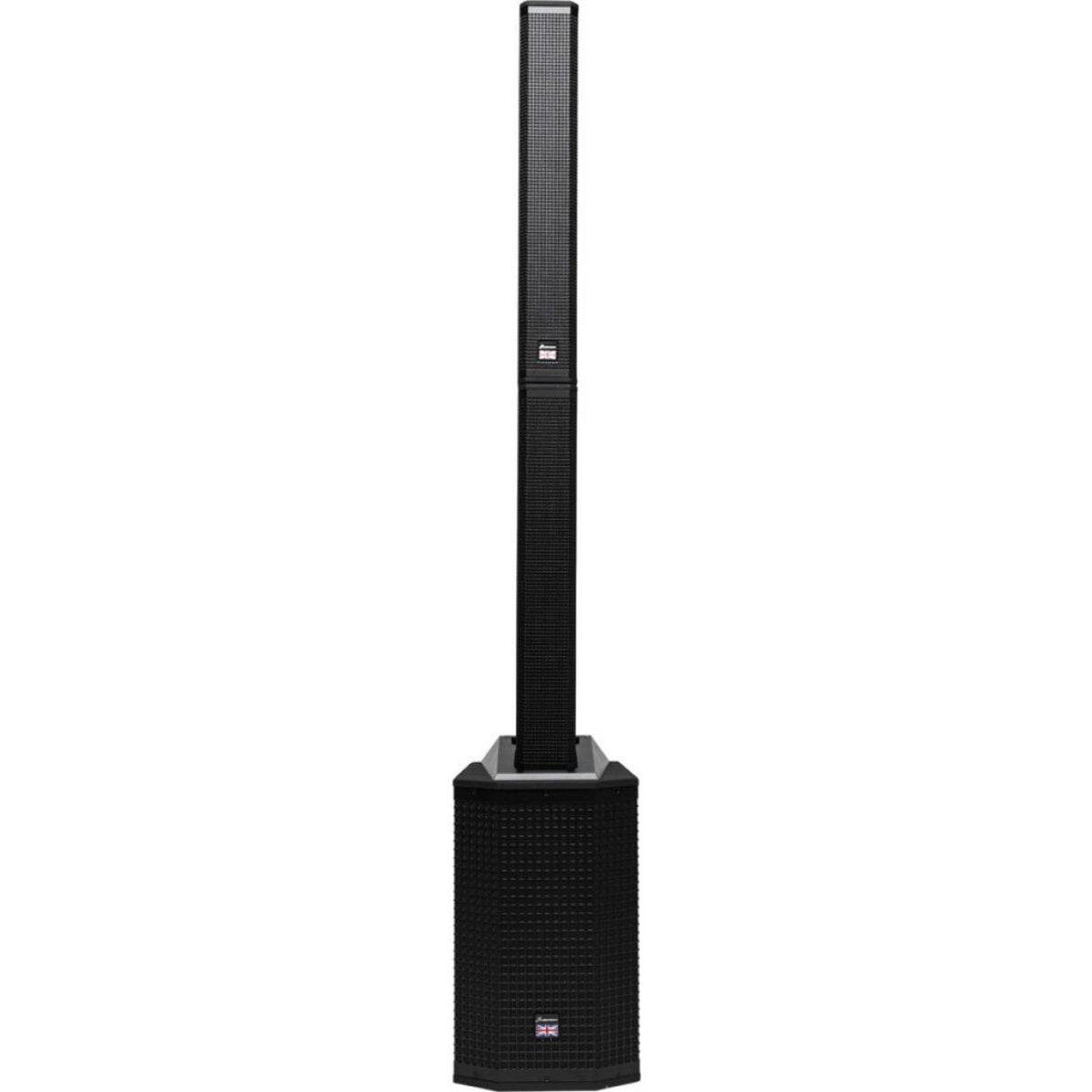

Studiomaster Direct 121M 12-Inch Column PA System - Black

Studiomaster Direct 121M 12-Inch Column PA System

The Studiomaster Direct 121M Column PA System is a self-powered three-way sound system delivering 600W RMS, up to 2400W peak power, and a manufacturer-rated maximum output of 122 dB. Its 12-inch bass-reflex subwoofer combines with six 3-inch midrange drivers and a 1-inch compression driver for portable full-range sound reinforcement.

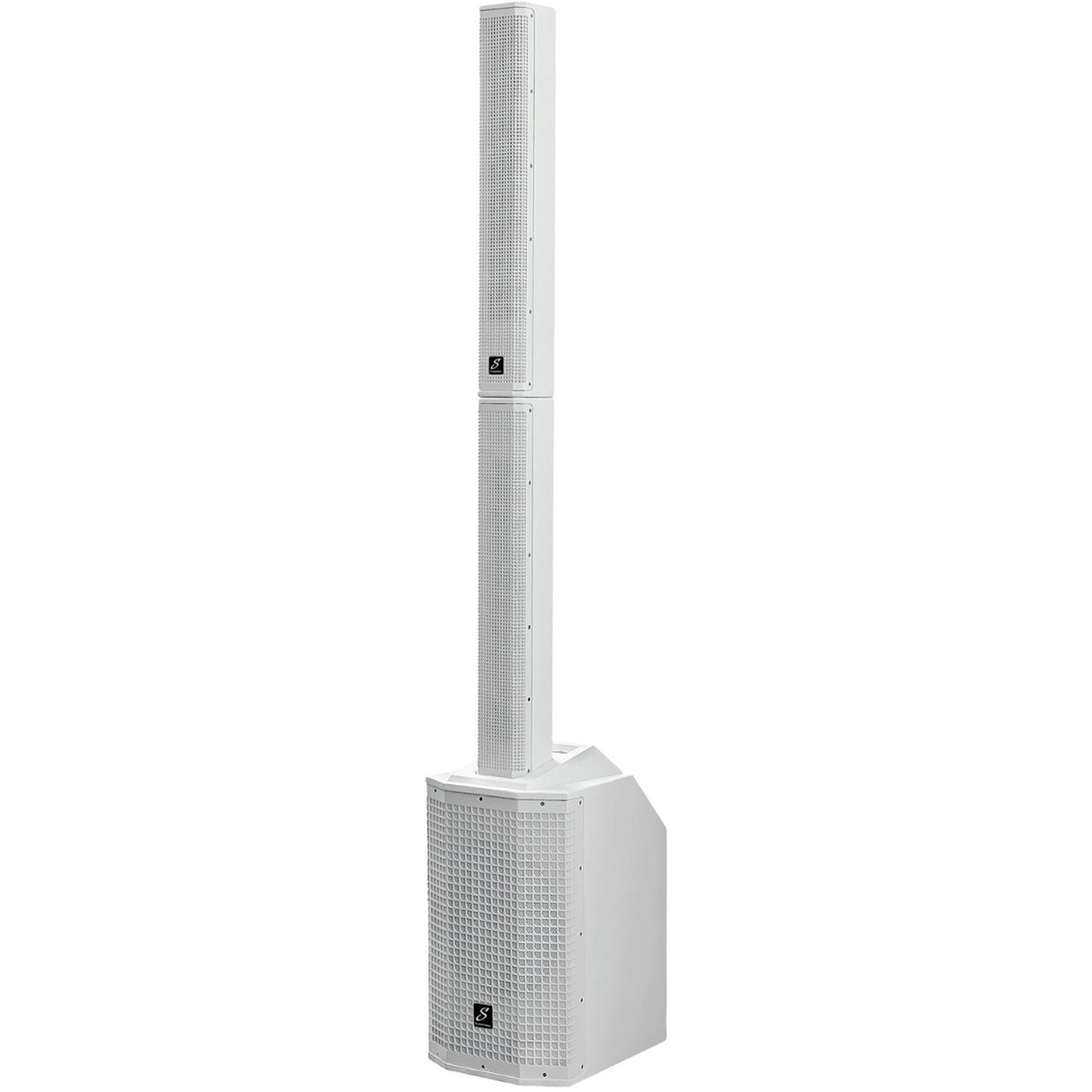

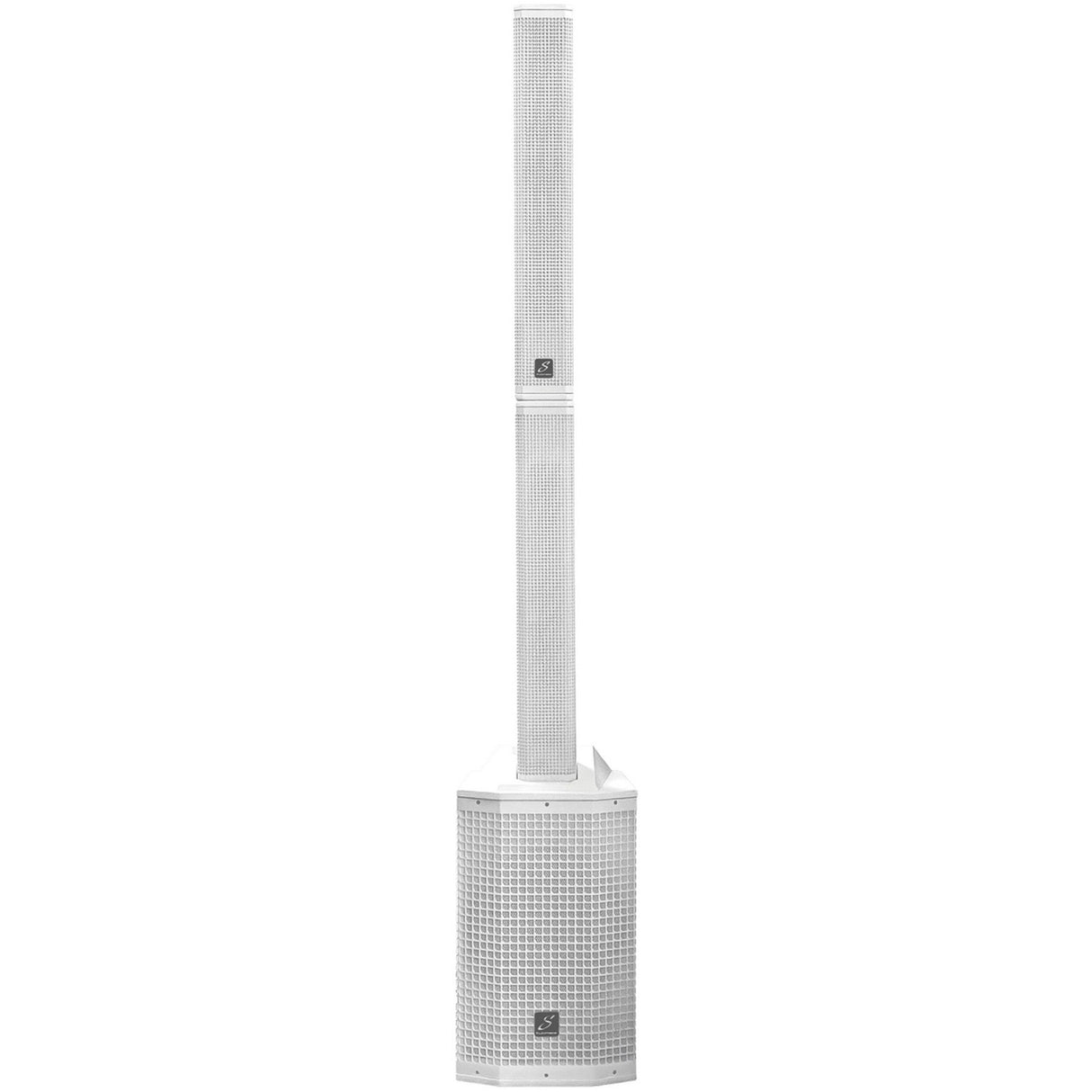

Available in Black and White, the Direct 121M suits mobile DJs, live performers, presentations, houses of worship, corporate events, and other applications that benefit from fast setup and wide audience coverage. The column system provides 120 x 30-degree dispersion, while internal connections allow the speaker sections and height-adjusting column to assemble without separate audio cables. A universal 100-240V power supply supports operation across a broad range of venues.

An integrated four-channel mixer handles microphone, line, instrument, RCA, and Bluetooth sources without requiring a separate console for straightforward setups. The onboard 24-bit DSP provides equalization, gain adjustment, selectable presets, high-pass filtering, limiting, and digital delay up to 100 meters. Bluetooth also supports TWS, or True Wireless Stereo, for pairing two compatible systems as left and right channels.

Key Features

• 600W RMS Powered System: Dual 300W RMS Class-D amplifier channels power the integrated column and 12-inch subwoofer system.
• 122 dB Maximum SPL: Provides substantial output for portable performances, presentations, DJ events, and small-to-medium venue reinforcement.
• Three-Way Speaker Design: Combines six 3-inch midrange drivers, one 1-inch compression driver, and a 12-inch bass-reflex woofer.
• Wide Audience Coverage: 120-degree horizontal by 30-degree vertical dispersion helps distribute sound across broad listening areas.
• Integrated Four-Channel Mixer: Connects microphones, line-level devices, instruments, stereo RCA sources, and Bluetooth playback equipment.
• 24-Bit DSP Processing: Provides EQ, gain, high-pass filtering, limiter protection, presets, and adjustable digital delay.
• Bluetooth with TWS: Streams compatible wireless audio and supports stereo pairing between two compatible DIRECT systems.
• Black and White Variants: Offers identical core system functionality in two finishes for different stage, event, and installation aesthetics.

Technical Specifications

System

• System Type: Self-powered three-way column array PA system
• Color Options: Black, White
• Total Rated Power: 600W RMS
• Peak Power: 2400W
• Amplifier Output: 2 x 300W RMS
• Amplifier Type: Class-D
• Maximum SPL: 122 dB
• Amplifier Frequency Range: 20 Hz-20 kHz
• Coverage: 120 degrees horizontal x 30 degrees vertical
• System Construction: Column array with powered bass-reflex subwoofer and height-adjusting support column
• Assembly: Tool-free design with internal speaker connections

Column Array

• Midrange Drivers: 6 x 3-inch drivers
• High-Frequency Driver: 1 x 1-inch compression driver
• Column Rated Power: 180W RMS
• Column Rated Impedance: 6 ohms

Subwoofer

• Low-Frequency Driver: 1 x 12-inch woofer
• Enclosure Type: Bass reflex
• Subwoofer Rated Power: 300W RMS
• Subwoofer Rated Impedance: 4 ohms

Four-Channel Mixer

• Input Channels: 4
• Channels 1-2: Mic/Line inputs
• Channels 1-2 Connectors: XLR/1/4-inch combo
• Channel 3: 1/4-inch instrument input
• Channel 4: Stereo RCA input and Bluetooth audio
• Line Link Outputs: XLR
• Mix Output: XLR
• Subwoofer Control: Dedicated sub level control
• Channel Gain: Adjustable
• Mic/Line Selection: Switchable on microphone/line channels

DSP and Wireless Audio

• DSP: 24-bit, 1-in/2-out processing
• Display: Graphic DSP display
• Control: Rotary One-Control encoder
• Factory Presets: Music, Voice, DJ
• Equalization: High, sweepable mid, and low EQ adjustment
• Digital Gain: Adjustable
• High-Pass Filter: Selectable
• Limiter: Dual-channel limiter protection
• Digital Delay: 0-100 meters
• Delay Resolution: 0.25-meter increments
• Bluetooth: Wireless audio streaming
• Bluetooth Stereo: TWS support for compatible paired systems
• User Presets: Store, load, and erase customized settings

Power and Physical Specifications

• AC Power: 100-240V
• Power Supply: Switch-mode power supply
• Assembled Dimensions (W x H x D): 14.1 x 82.9 x 17.2 inches
• Approximate Assembled Weight: 71.7 lb

What's In the Box

• DIRECT Sound Column
• Height-Adjusting Column
• DIRECT 12AX Subwoofer
• Power Cord
• User Manual
• Warranty Documentation
