Studiomaster nEX2-1000 AES67 Networked 2-Channel Power Amplifier

Studiomaster nEX2-1000 AES67 Networked 2-Channel Power Amplifier

The Studiomaster nEX2-1000 AES67 networked 2-channel power amplifier delivers 500W per channel at 8 ohms, 750W per channel at 4 ohms, or 1500W bridged at 8 ohms. Its Class-D design combines high-output amplification, onboard DSP, network audio transport, and a compact 1U rack enclosure for fixed professional sound systems.

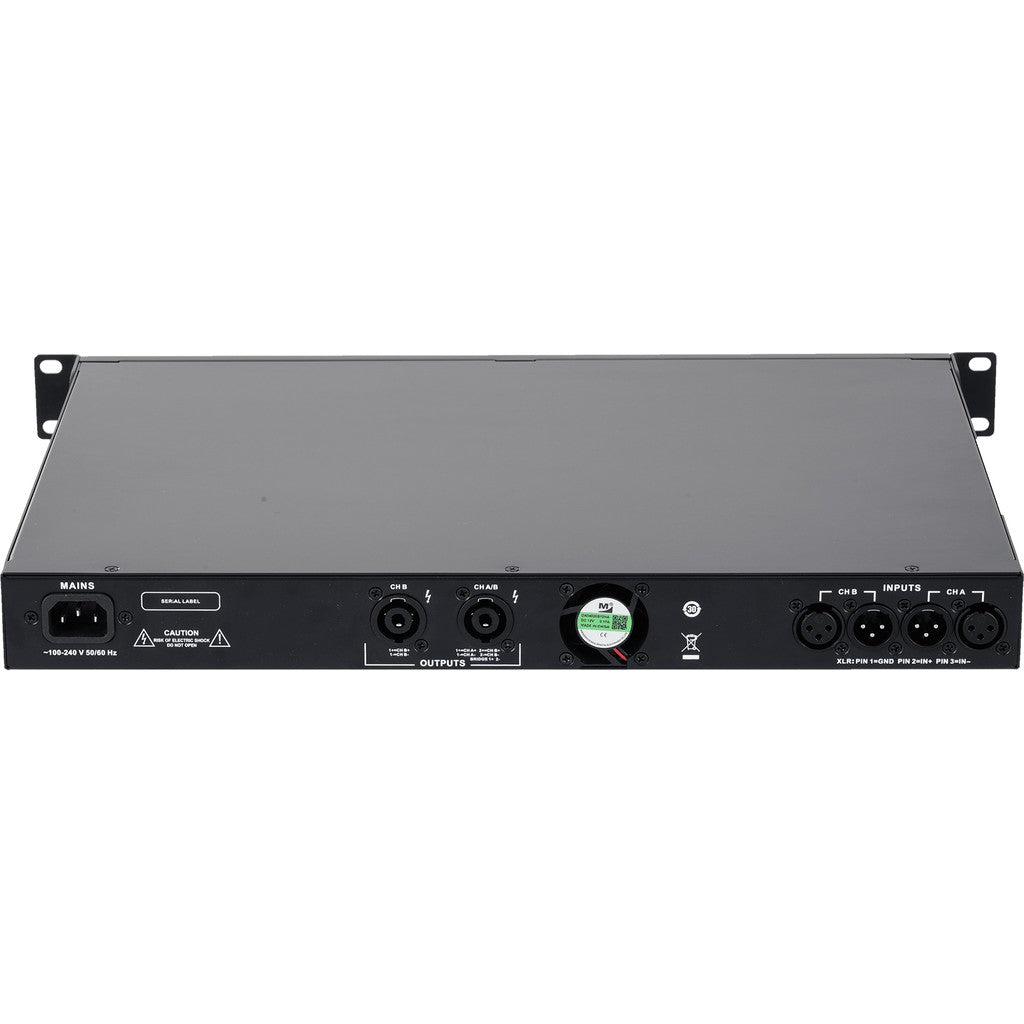

Designed for installed audio, houses of worship, performance venues, education facilities, and commercial AV systems, this networked amplifier supports stereo, parallel mono, and bridged operation. Balanced combination inputs and professional speaker outputs simplify integration, while dual Ethernet ports connect the amplifier to AES67 audio-over-IP networks for low-latency routing, monitoring, and control.

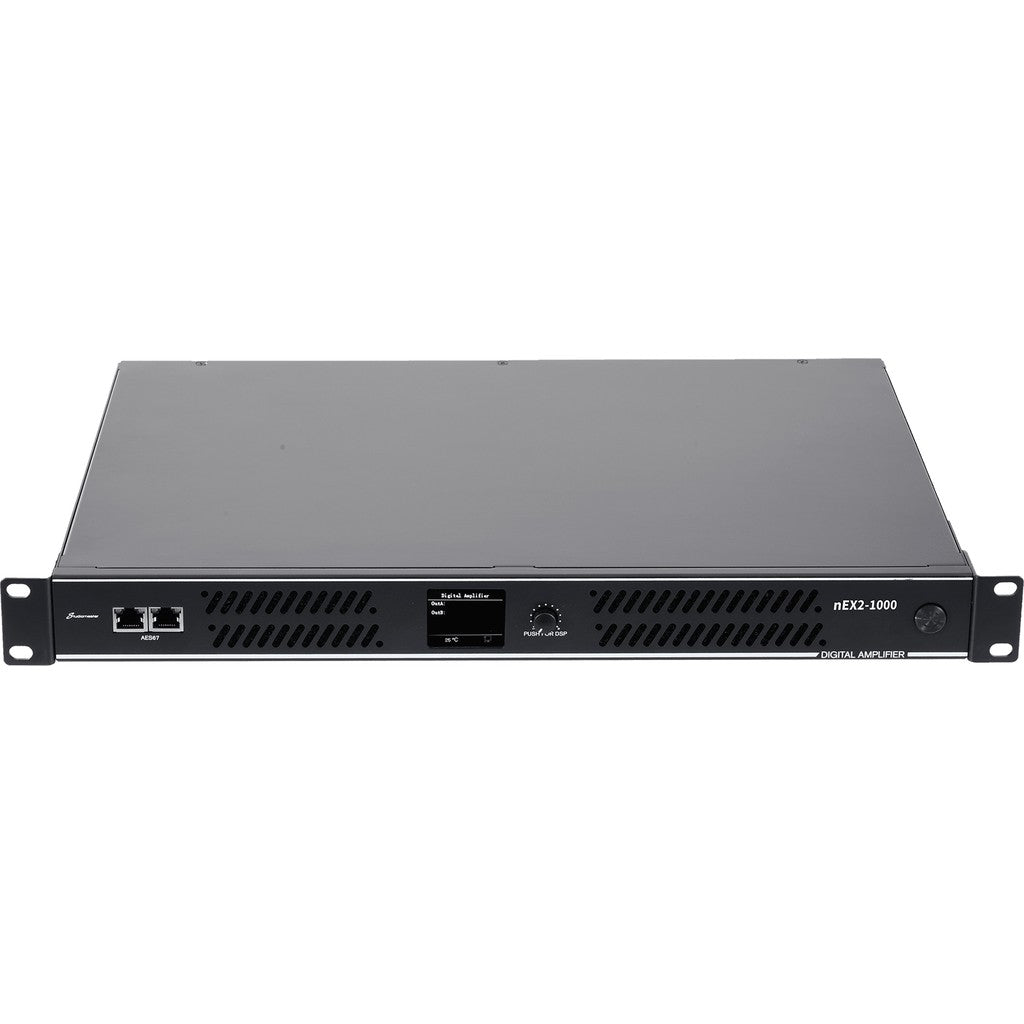

A front-panel 1.8-inch TFT display provides access to levels, presets, operating temperature, protection status, and network information. Built-in processing includes equalization, filtering, delay, dynamics, feedback suppression, matrix mixing, and gain sharing. Front-to-rear forced-air cooling, a removable dust filter, and multiple protection circuits support dependable rack-based operation.

Key Features

• AES67 Network Audio: Sends and receives low-latency digital audio through standard Ethernet infrastructure.
• Dual-Channel Class-D Power: Produces 2 x 500W at 8 ohms or 2 x 750W at 4 ohms.
• Bridged Output Mode: Delivers up to 1500W into an 8-ohm load for higher-power applications.
• Integrated DSP: Provides equalization, filtering, delay, dynamics, mixing, feedback suppression, and signal generation.
• Flexible Operating Modes: Supports stereo, parallel mono, and bridged amplifier configurations.
• Front-Panel Control: Uses a 1.8-inch TFT display and rotary control for local setup and monitoring.
• Network Management: Supports DHCP or static addressing, PTP synchronization, and unicast or multicast routing.
• Compact Rack Design: Fits a standard 19-inch rack while occupying only 1U of vertical space.

Technical Specifications

• Brand: Studiomaster
• Model: nEX2-1000
• Product Type: AES67 networked Class-D power amplifier
• Output Channels: 2
• Rated Output at 8 Ohms: 2 x 500W
• Rated Output at 4 Ohms: 2 x 750W
• Bridged Output at 8 Ohms: 1 x 1500W
• Output RMS Voltage: 63.2V
• Operating Modes: Stereo, parallel mono, and bridged
• Default Gain: 30 dB
• Selectable Input Gain: 0.775V, 32 dB, and 26 dB settings
• Maximum Input Level: +21 dBu
• THD+N: Typically 0.05% at 10% rated power into 8 ohms
• Frequency Response: Within ±0.5 dB from 20Hz to 20kHz at 10% rated power into 8 ohms
• Signal-to-Noise Ratio: Greater than 100 dB, A-weighted, 20Hz to 20kHz into 8 ohms
• Crosstalk: Greater than 75 dB from 20Hz to 1kHz below rated power
• Damping Factor: Greater than 500 from 20Hz to 200Hz into 8 ohms
• Input Impedance: 20 kilohms balanced, 10 kilohms unbalanced
• Analog Inputs: Balanced XLR/TRS combination connectors
• Speaker Outputs: Four-pole professional speaker connectors compatible with speakON connections
• Network Audio Protocol: AES67
• Network Connections: Dual RJ45 Ethernet ports with integrated network switch
• IP Configuration: DHCP or static addressing
• Clock Synchronization: Precision Time Protocol
• Network Routing: Unicast and multicast
• Control Software: SM AES67 CONTROL
• Display: 1.8-inch TFT LCD
• User Programs: Up to 20 stored programs with import and export support
• Input DSP: Signal generator, noise gate, feedback suppression, delay, seven-band parametric EQ, high-pass filter, low-pass filter, expander, mute, gain, and phase inversion
• Output DSP: Delay, seven-band parametric EQ, high-pass filter, low-pass filter, compressor, limiter, mute, gain, and phase inversion
• Input Delay: 0 to 500 ms with 1/48 ms adjustment steps
• Channel Gain Range: -60 to +12 dB in 0.1 dB steps
• Mixing Functions: Full input-to-output matrix, gain sharing, and channel gain adjustment
• Cooling: Forced front-to-rear airflow with dust filter
• Operating Temperature: 32 to 104°F
• Protection: Output limiting, overload, short-circuit, thermal, undervoltage, and output DC protection
• Power Requirements: 100 to 240 VAC, ±10%, 50/60Hz
• Rack Size: 1U
• Dimensions: 19 x 1.8 x 11.8 inches (W x H x D)
• Weight: 10.6 pounds

What's In the Box

• Studiomaster nEX2-1000 power amplifier
• Owner's manual
• Power cord
• Four rubber feet
