Studiomaster nEX2-2400 AES67 Networked 2-Channel Power Amplifier

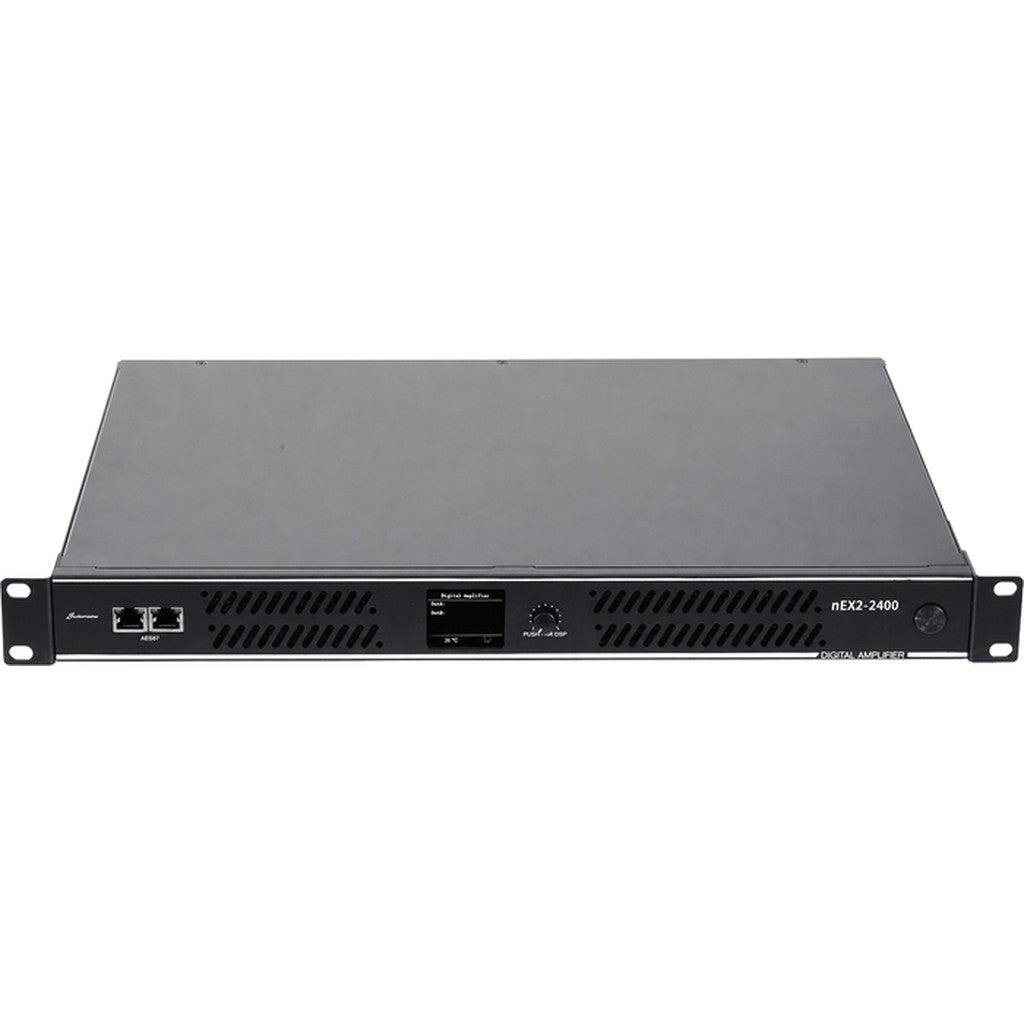

Studiomaster nEX2-2400 Networked 2-Channel Power Amplifier

The Studiomaster nEX2-2400 networked 2-channel power amplifier delivers 1200W per channel at 8 ohms, 1800W per channel at 4 ohms, or 3600W in bridged mode at 8 ohms. AES-67 audio networking, Ethernet monitoring, onboard DSP, and a compact 1U chassis support high-output professional sound systems.

This amplifier suits installed sound, live entertainment, touring, rental systems, and commercial audio applications. Stereo, parallel or mono, and bridged modes accommodate conventional two-channel systems or a single higher-powered loudspeaker circuit. It works well as an AES-67 amplifier for installed sound or a lightweight power amplifier for touring racks.

Balanced XLR inputs and professional 4-pole speaker outputs simplify integration with compatible audio equipment. A 2.2-inch color LCD provides front-panel access to built-in DSP settings, while automatic standby reduces unnecessary idle operation. Output limiting, short-circuit protection, thermal monitoring, under-voltage protection, and DC protection help safeguard the amplifier and connected loudspeakers.

Key Features

• High-Output Two-Channel Design: Supplies 2 x 1200W at 8 ohms for demanding professional loudspeaker systems.
• 4-Ohm Performance: Delivers 2 x 1800W when connected to compatible 4-ohm speaker loads.
• Bridged Amplification: Produces 3600W at 8 ohms for applications requiring one higher-powered output.
• AES-67 Network Audio: Integrates with compatible audio-over-IP systems for network-based signal transport.
• Ethernet Monitoring: Enables amplifier monitoring through a LAN connection and compatible control software.
• Built-In DSP: Provides onboard signal-processing controls through a 2.2-inch color LCD.
• Automatic Standby: Reduces idle operation when the amplifier does not detect an input signal.
• Compact Rackmount Chassis: Fits a standard 19-inch rack while occupying only 1U of vertical space.

Technical Specifications

• Brand: Studiomaster
• Model: nEX2-2400
• Product Type: Networked 2-channel power amplifier
• Network Audio Protocol: AES-67
• Output Channels: 2
• Rated Output at 8 Ohms: 2 x 1200W
• Rated Output at 4 Ohms: 2 x 1800W
• Bridged Output at 8 Ohms: 1 x 3600W
• Rated Output Test Conditions: 1% THD, continuous 1kHz sine wave, both channels operating simultaneously
• RMS Output Voltage: 98V at 1% THD and 1kHz
• Operating Modes: Stereo, parallel or mono, and bridged
• Input Sensitivity and Gain: 0.5 to 2 Vrms selectable at rated output, 1kHz, and 8 ohms
• Distortion and Noise: Typically 0.05% at 10% rated output, 1kHz, and 8 ohms
• Crosstalk Suppression: At least 75 dB below rated power from 20Hz to 1kHz at 8 ohms
• Frequency Response: Typically ±0.5 dB from 20Hz to 20kHz at 10% rated output and 8 ohms
• Input Impedance: 20 kilohms balanced and 10 kilohms unbalanced
• Damping Coefficient: Typically 1000 from 20Hz to 200Hz at 8 ohms
• Signal-to-Noise Ratio: At least 100 dB, A-weighted, from 20Hz to 20kHz at 8 ohms
• Audio Inputs: Balanced XLR
• Speaker Outputs: Industry-standard 4-pole speaker connectors
• Network Connection: Ethernet/LAN
• Display: 2.2-inch color LCD
• Signal Processing: Built-in DSP with front-panel display access
• Standby Function: Automatic standby when no input signal is detected
• Protection: Output limiting, DC, short-circuit, thermal, under-voltage, overheating, and overload protection
• Power Requirements: 100 to 240 VAC, ±10%, 50/60Hz
• Enclosure: Steel 1U rackmount chassis
• Dimensions: 19 x 1.8 x 11.8 inches (W x H x D)
• Weight: 11.9 pounds
