SWIT BIVO Dual-Voltage B-Mount Battery - 98Wh

SWIT BIVO Dual-Voltage B-Mount Battery

The SWIT BIVO dual-voltage B-mount battery powers professional cinema cameras, lighting fixtures, and production accessories at either 14.4V or 28.8V. Available in 98Wh, 160Wh, and 290Wh capacities, each battery automatically selects the correct output voltage through the connected B-mount plate.

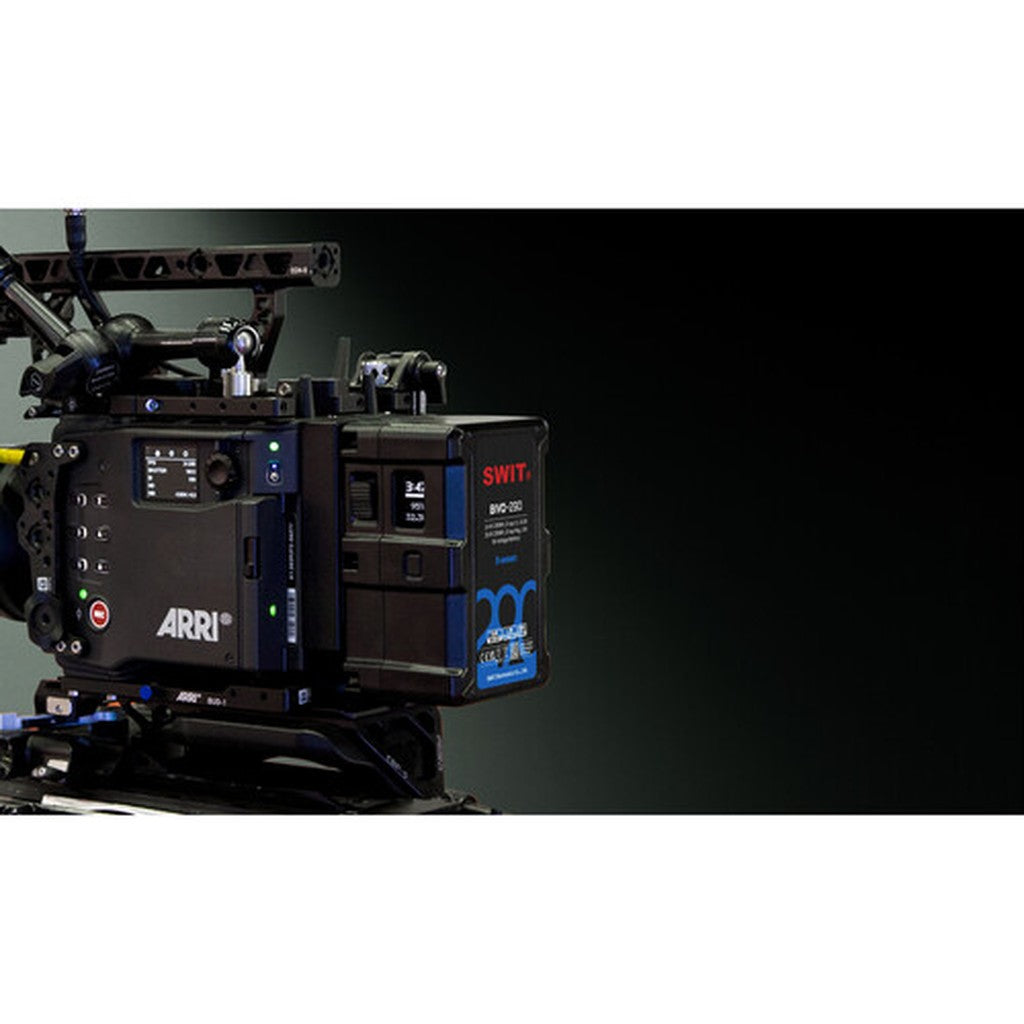

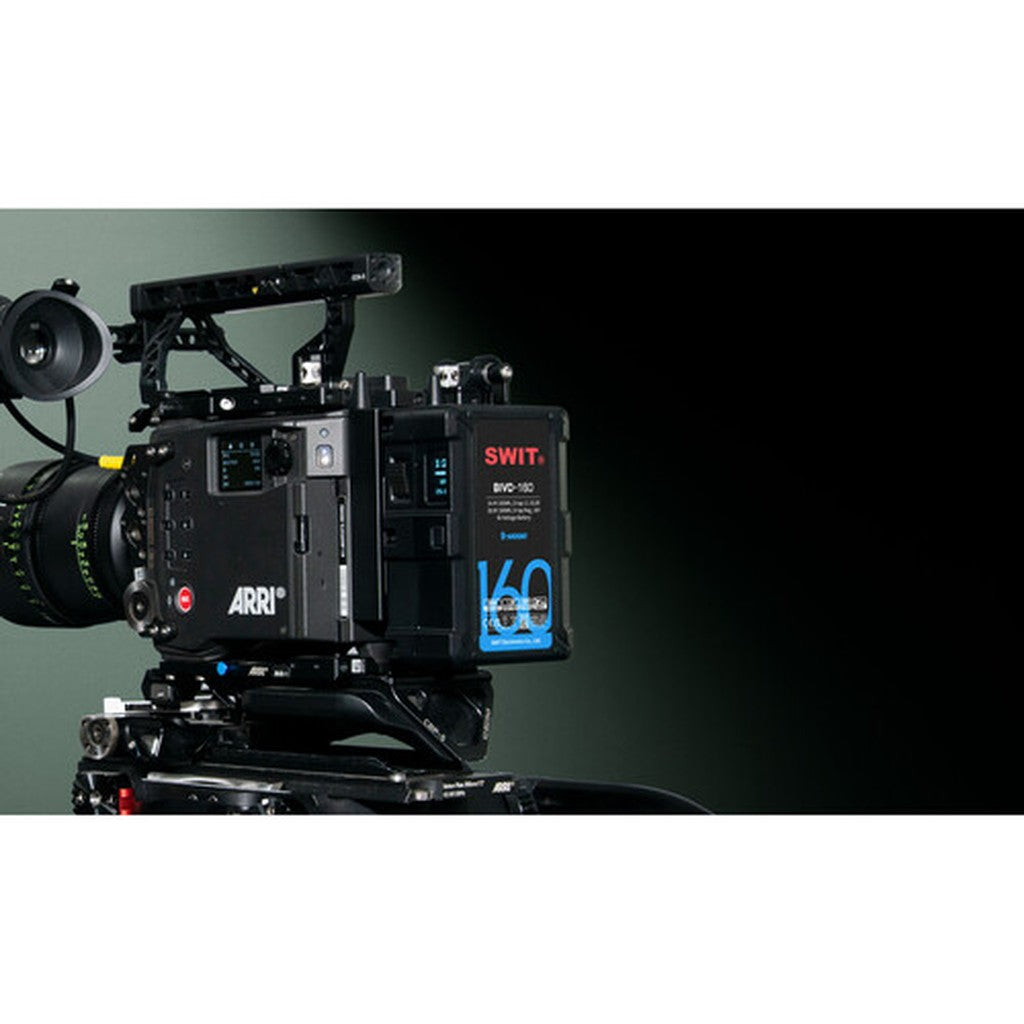

Choose the compact BIVO-98 for handheld cameras, stabilizers, and travel-focused production kits. The BIVO-160 balances extended runtime with manageable size, while the BIVO-290 supports long shooting days and high-demand cinema equipment. Each option includes two D-Tap outputs for powering monitors, transmitters, wireless systems, and other camera-mounted accessories.

The secure B-mount interface supports high-voltage professional workflows while reducing the risk of incorrect voltage selection. Integrated circuit protection, rugged drop-resistant construction, and a rear LED torch provide dependable operation in studios and demanding field environments. Power indicators simplify battery management, with LED indicators on the BIVO-98 and detailed OLED information displays on the BIVO-160 and BIVO-290.

Key Features

• Multiple Capacity Options: Select 98Wh, 160Wh, or 290Wh to match handheld, mobile, or extended-runtime production requirements.
• Automatic Dual Voltage: Supplies 14.4V or 28.8V according to the identification signal from the connected B-mount plate.
• High Continuous Output: Supports loads up to 150W, 200W, or 250W depending on the selected capacity.

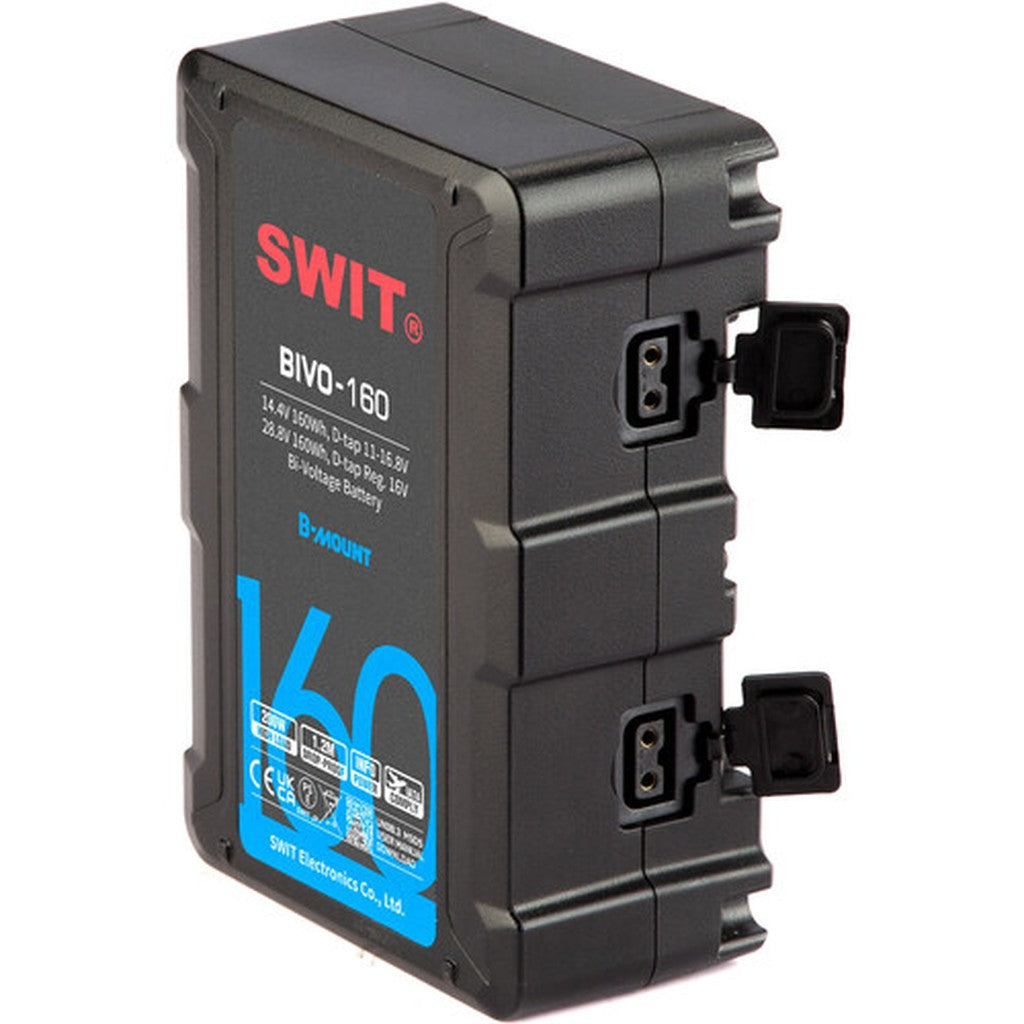

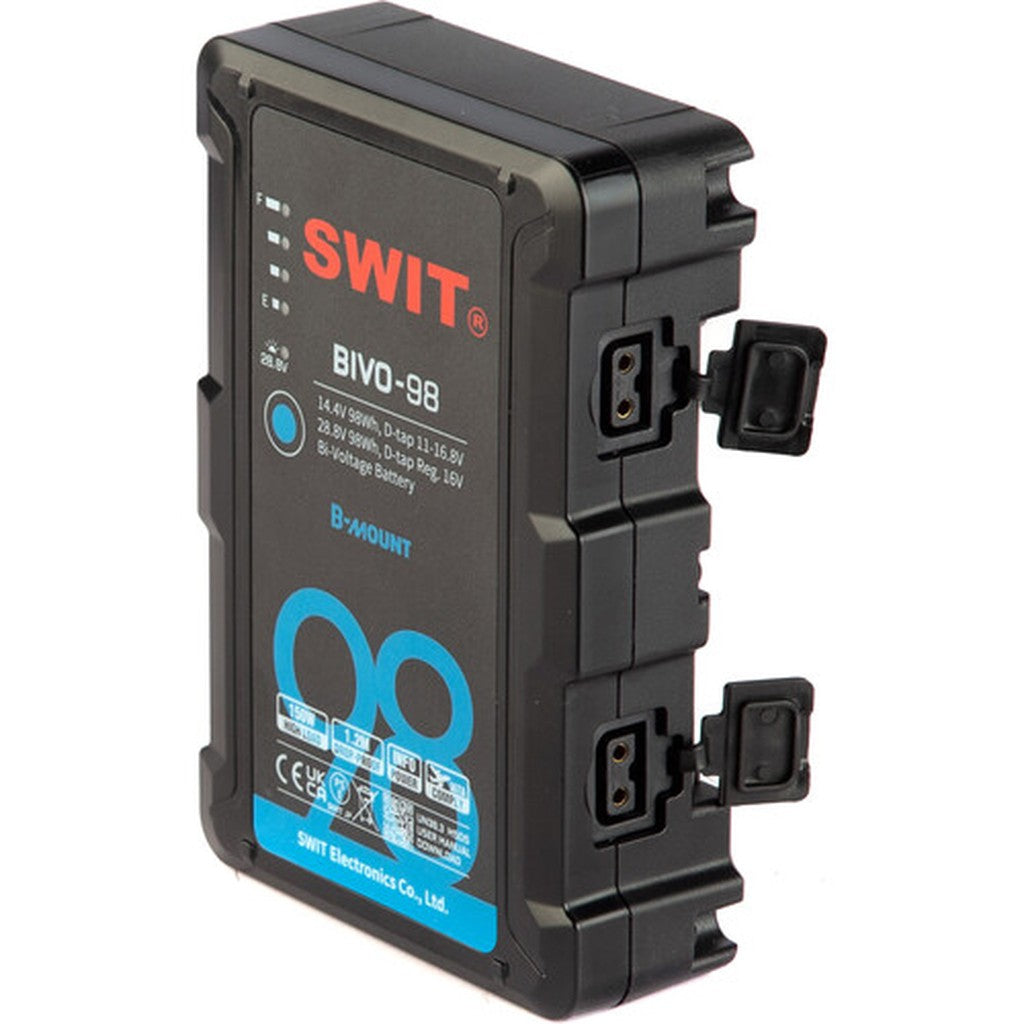

• Dual D-Tap Outputs: Powers camera-mounted monitors, transmitters, audio devices, and other production accessories.
• Fast Charging: Supports 50W charging on the 98Wh model and 100W charging on the 160Wh and 290Wh models.
• Power Status Monitoring: Provides LED power and voltage indicators or an OLED information display, depending on capacity.
• Built-In LED Torch: Illuminates the mounting area for easier battery installation in dark production environments.
• Rugged Housing: Withstands drops from heights up to 3.94 feet and incorporates multiple circuit protections.

Technical Specifications

• Available Models: BIVO-98, BIVO-160, and BIVO-290
• Battery Type: Rechargeable professional camera battery
• Battery Chemistry: Lithium-ion

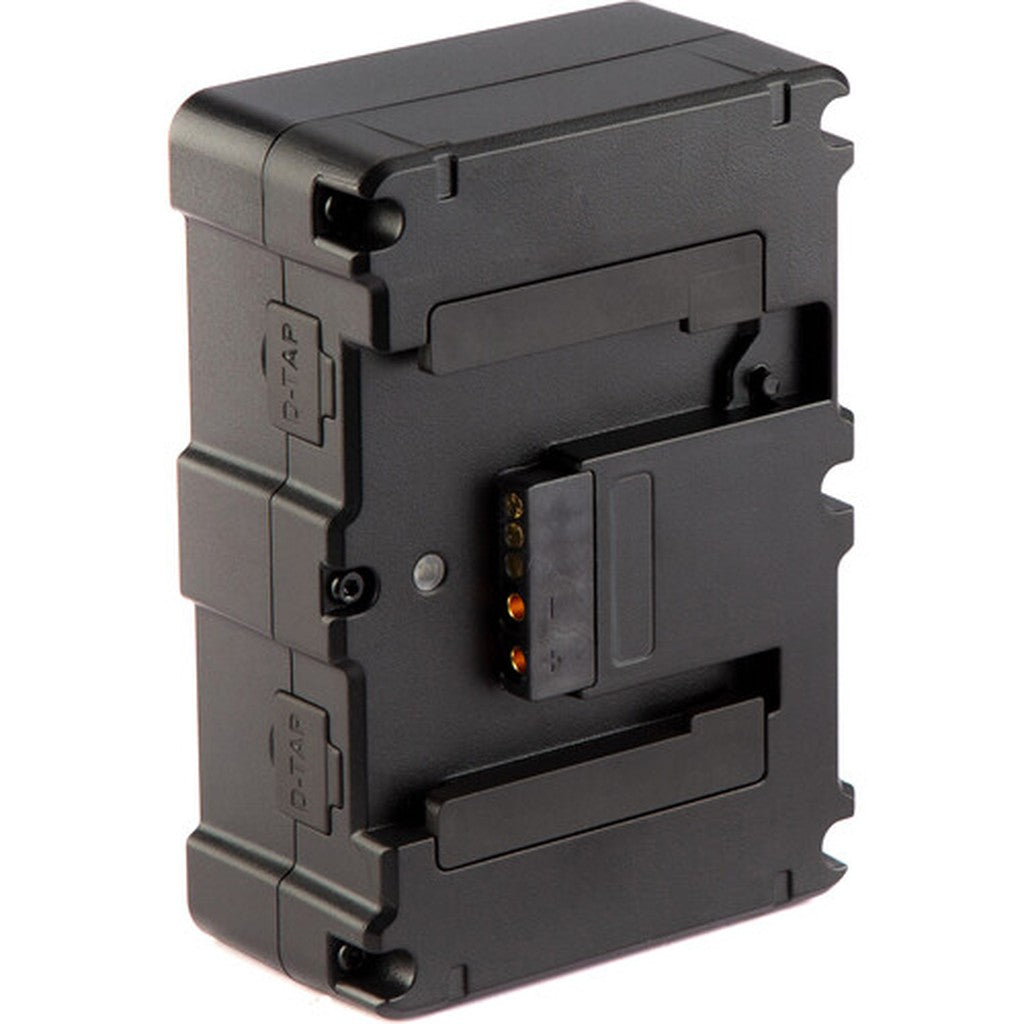

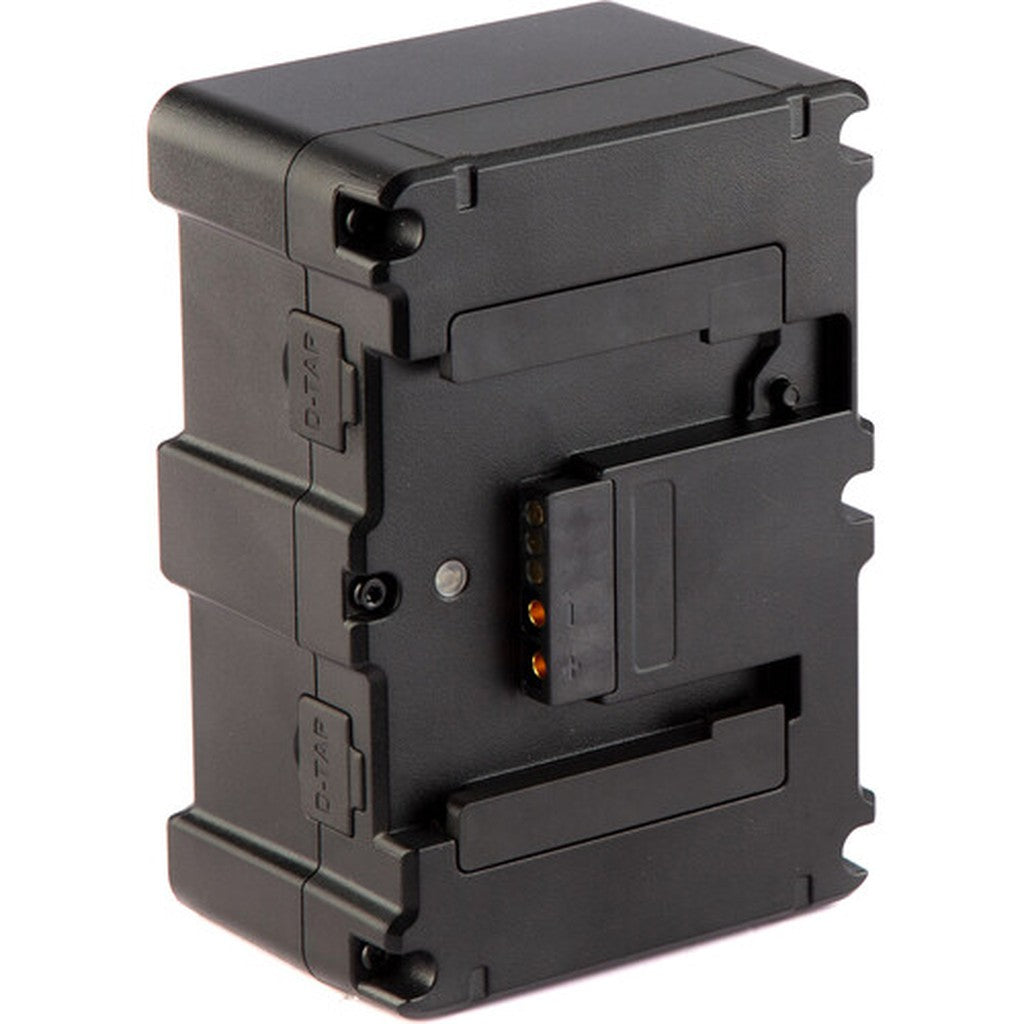

• Mount Type: B-mount
• Nominal Output Voltages: 14.4V and 28.8V
• 14.4V Operating Range: 10.8 to 16.8V
• 28.8V Operating Range: 21.6 to 33.6V
• Accessory Outputs: 2 D-Tap outputs
• D-Tap Output at 14.4V: 10.8 to 16.8V
• D-Tap Output at 28.8V: Regulated 16V, 50W
• Charging Temperature: 32 to 104°F
• Discharging Temperature: -4 to 122°F
• Drop Resistance: Up to 3.94'
• Additional Features: LED torch, ultra-low standby power design, and multiple circuit protections

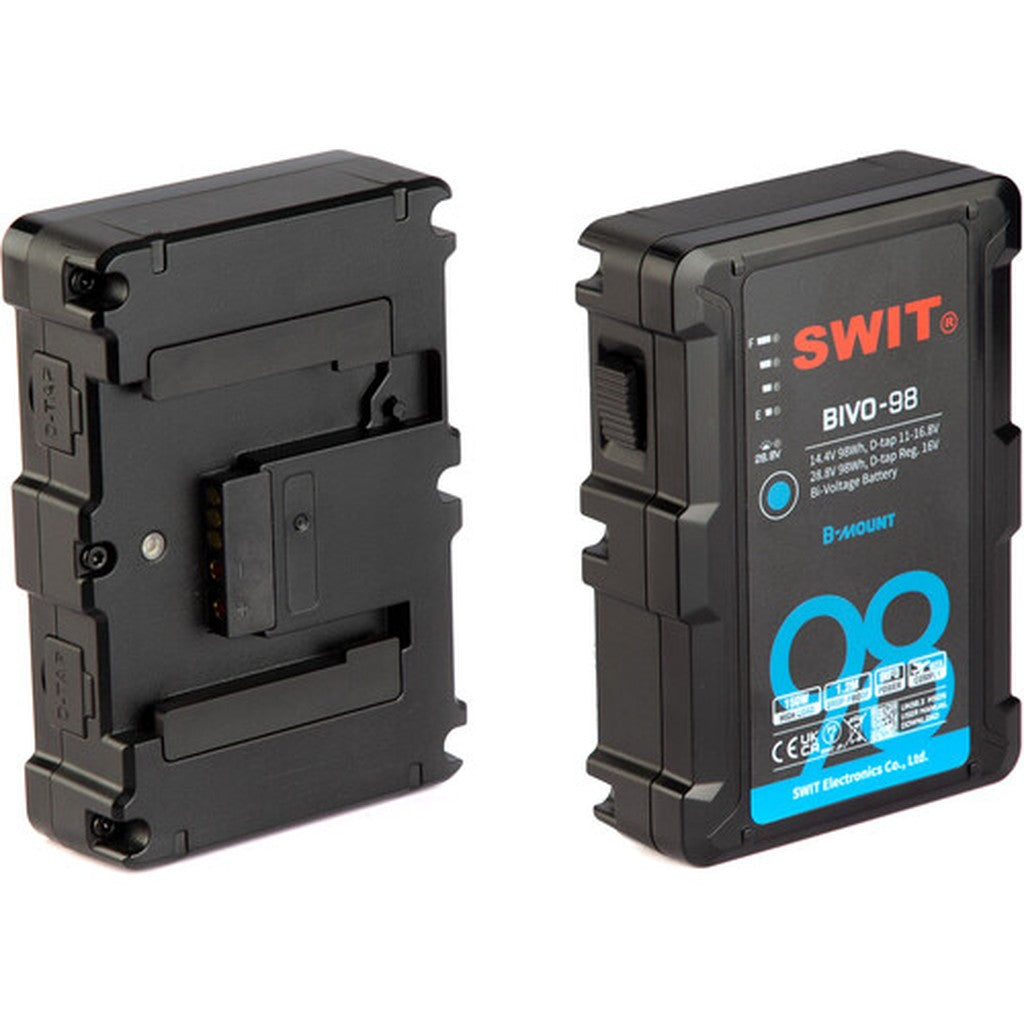

BIVO-98 Specifications

• Capacity: 98Wh
• Continuous Load at 28.8V: 150W / 6A
• Continuous Load at 14.4V: 150W / 12A
• Charging: 33.6V, 1.5A, 50W

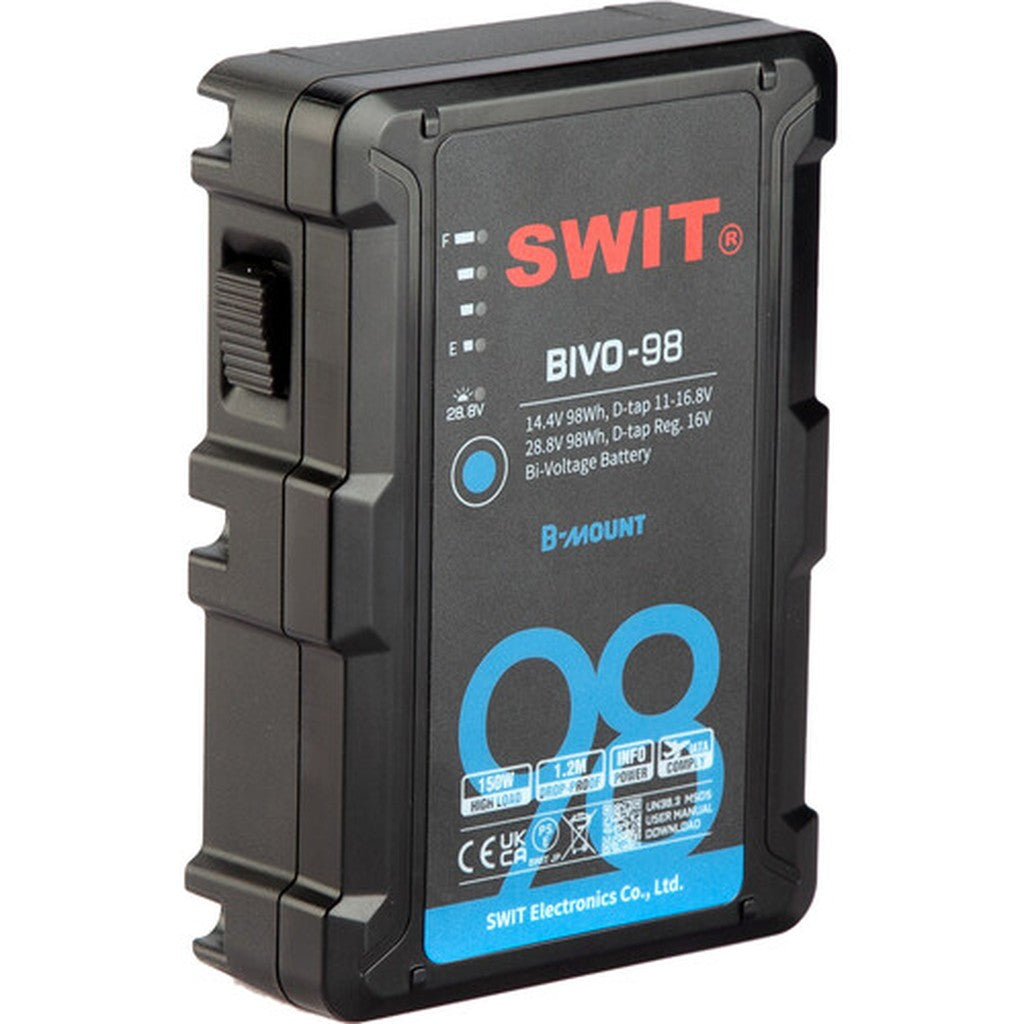

• Power Indicator: Four-level LED capacity indicator with independent blue voltage-status LED
• Dimensions: 5.67" x 3.94" x 1.50"
• Weight: 1.47 lbs

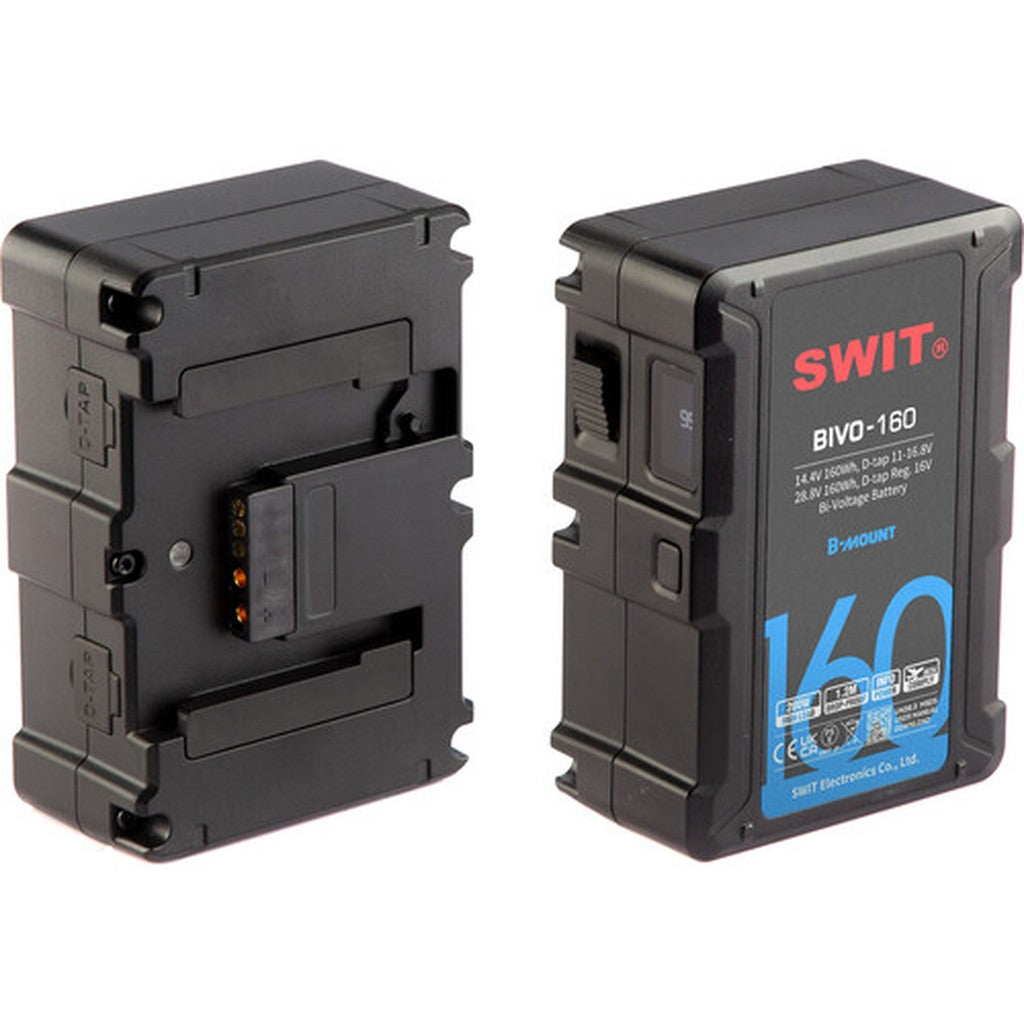

BIVO-160 Specifications

• Capacity: 160Wh
• Continuous Load at 28.8V: 200W / 8A
• Continuous Load at 14.4V: 200W / 16A
• Charging: 33.6V, 100W
• Power Indicator: OLED display with output voltage, remaining percentage, estimated runtime, and protection warnings
• Dimensions: 5.67" x 3.94" x 2.13"
• Weight: 2.43 lbs

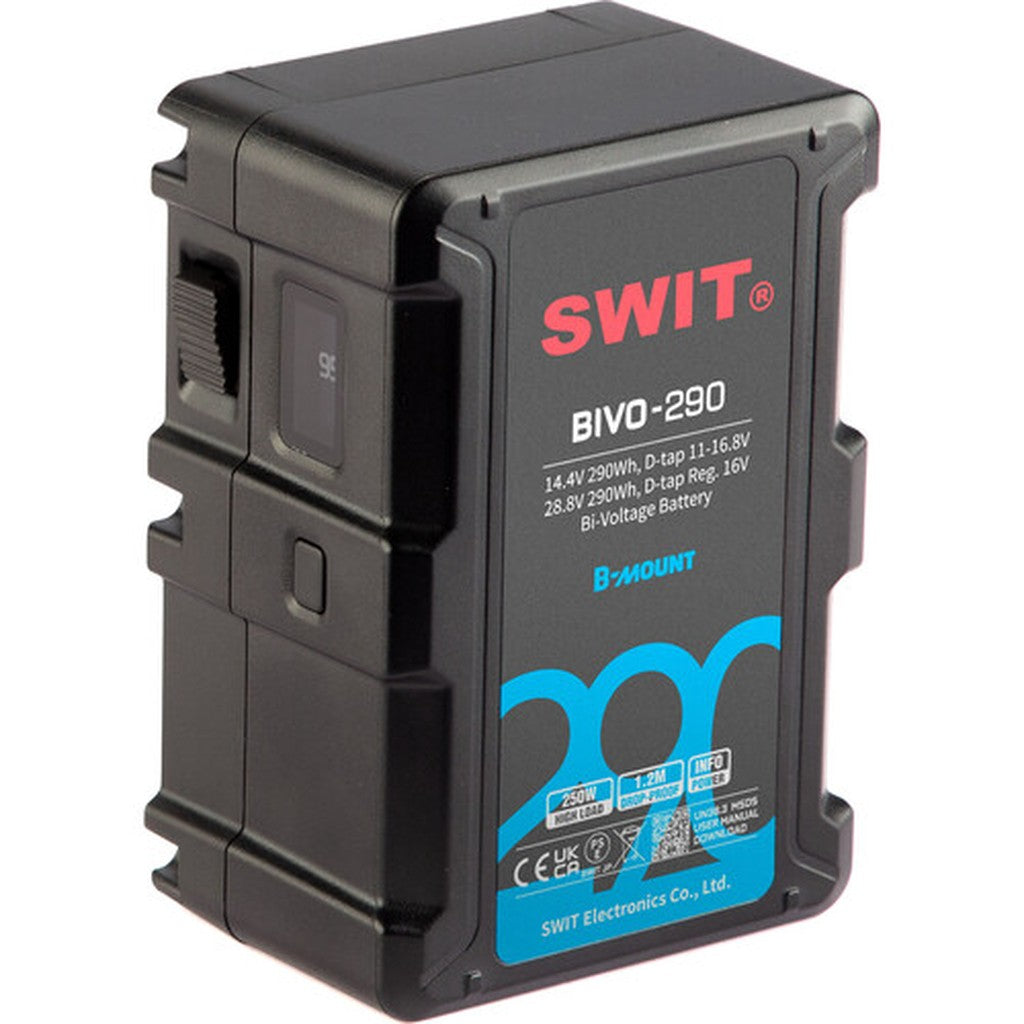

BIVO-290 Specifications

• Capacity: 290Wh
• Continuous Load at 28.8V: 250W / 10A
• Continuous Load at 14.4V: 250W / 20A
• Charging: 33.6V, 100W
• Power Indicator: OLED display with output voltage, remaining percentage, estimated runtime, and protection warnings
• Dimensions: 5.67" x 3.94" x 3.03"
• Weight: 3.35 lbs

What's In the Box

• Selected SWIT BIVO Dual-Voltage B-Mount Battery
