SWIT BM-H245 23.8-Inch 4K-Ready QLED Production Monitor

SWIT BM-H245 23.8-Inch 4K-Ready QLED Production Monitor

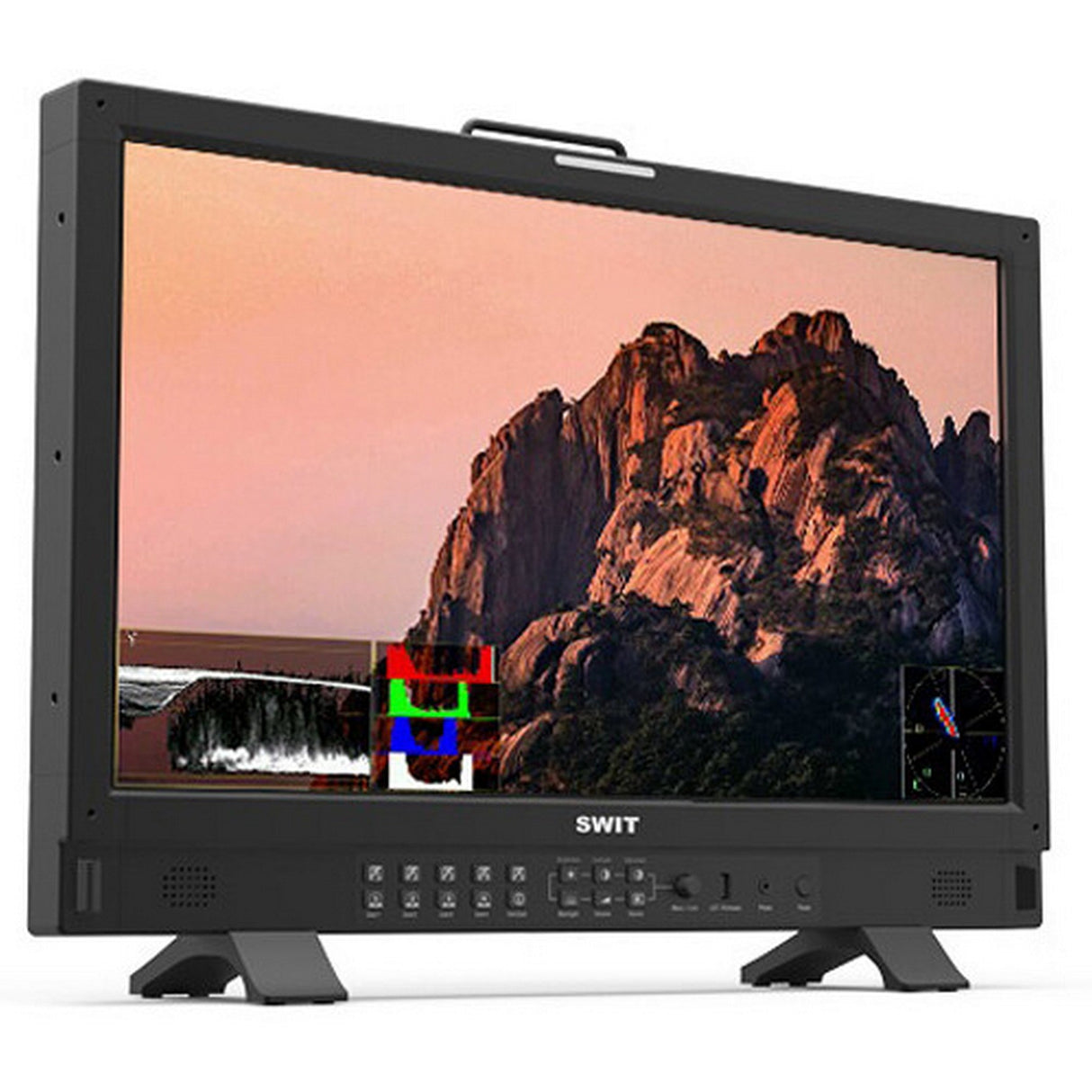

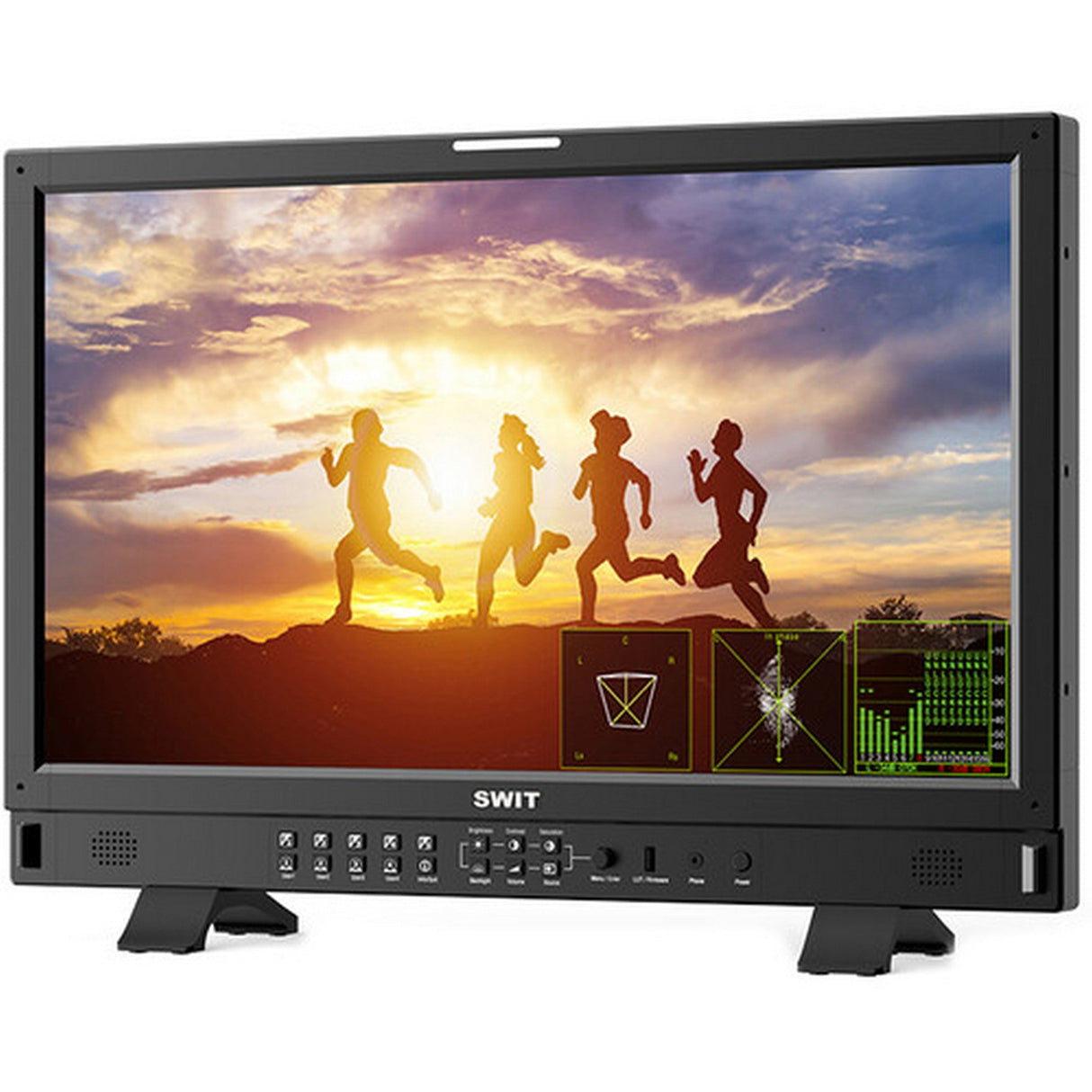

The SWIT BM-H245 23.8-inch 4K-ready QLED production monitor combines a 1920 x 1080 display with 12G-SDI, quad-link 3G-SDI, HDMI 2.0, HDR/SDR monitoring, and professional scopes. It accepts signals up to 4K60 while providing a full-size monitoring platform for broadcast, film production, control rooms, and post-production.

The 23.8-inch QLED panel delivers 400-nit brightness, a 1000:1 contrast ratio, 10-bit color, and 100% DCI-P3 coverage. Production teams can monitor a single 12G-SDI source, quad-link 4K, or mixed SDI and HDMI feeds in multiview. Two-source picture-by-picture and picture-in-picture modes further support multi-camera production monitoring and studio signal evaluation.

Built-in waveform, vectorscope, histogram, eye pattern, focus assist, false color, zebra, and audio metering help operators evaluate images without additional test hardware. The BM-H245 also supports HLG, PQ, S-Log3, user 3D LUTs, automatic calibration with compatible probes, Payload ID configuration, and Ethernet browser control. AC, 4-pin XLR DC, and V-mount power options support fixed studios and mobile production environments.

Key Features

• 23.8-Inch QLED Panel: Displays Full HD 1920 x 1080 images with 100% DCI-P3 wide-gamut coverage and a 178-degree viewing angle.
• Multiple 4K Inputs: Accepts single-link 12G-SDI, quad-link 4 x 3G-SDI, and HDMI 2.0 signals up to 4K60.
• Flexible Multiview: Displays four independent mixed SDI and HDMI sources or two sources using picture-by-picture and picture-in-picture layouts.
• HDR and SDR Evaluation: Supports HLG, PQ, S-Log3, multiple SDR gamma settings, and selectable Rec.709, DCI-P3, Rec.2020, and native gamuts.
• 3D LUT Calibration: Performs automatic calibration with compatible X-Rite or JETI probes and accepts user 17 x 17 x 17 LUT files through USB.
• Professional Video Scopes: Provides waveform, vectorscope, histogram, eye pattern, false color, focus assist, zebra, markers, and blue-only monitoring.
• Low-Latency Monitoring: Zero-latency mode operates at less than 1/100 of a frame for precise audio/video lip-sync evaluation.
• IP Remote Control: Gigabit Ethernet enables browser-based source selection, image adjustment, function control, and user configuration.

Technical Specifications

Display

• Model: BM-H245
• Display Type: QLED production monitor
• Display Size: 23.8 inches
• Display Area: 20.8 x 11.7 inches
• Native Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Brightness: 400 nits
• Contrast Ratio: 1000:1
• Color Depth: 10-bit, 8-bit + 2FRC
• Internal Signal Processing: 18-bit
• Color Gamut: 100% DCI-P3
• Viewing Angle: 178 degrees horizontal / 178 degrees vertical
• Eye Comfort Rating: VICO 1.97 A-Class
• Touchscreen: No

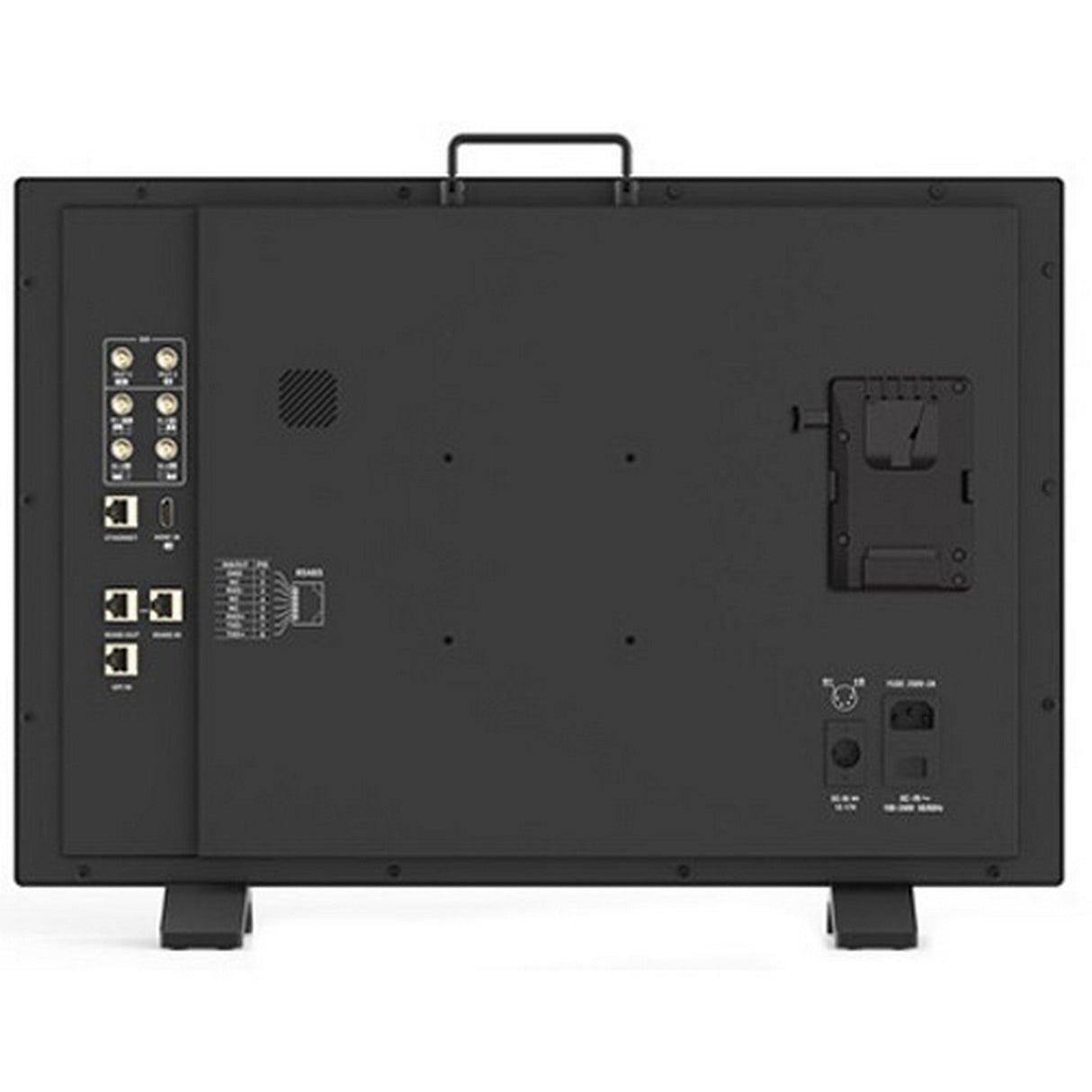

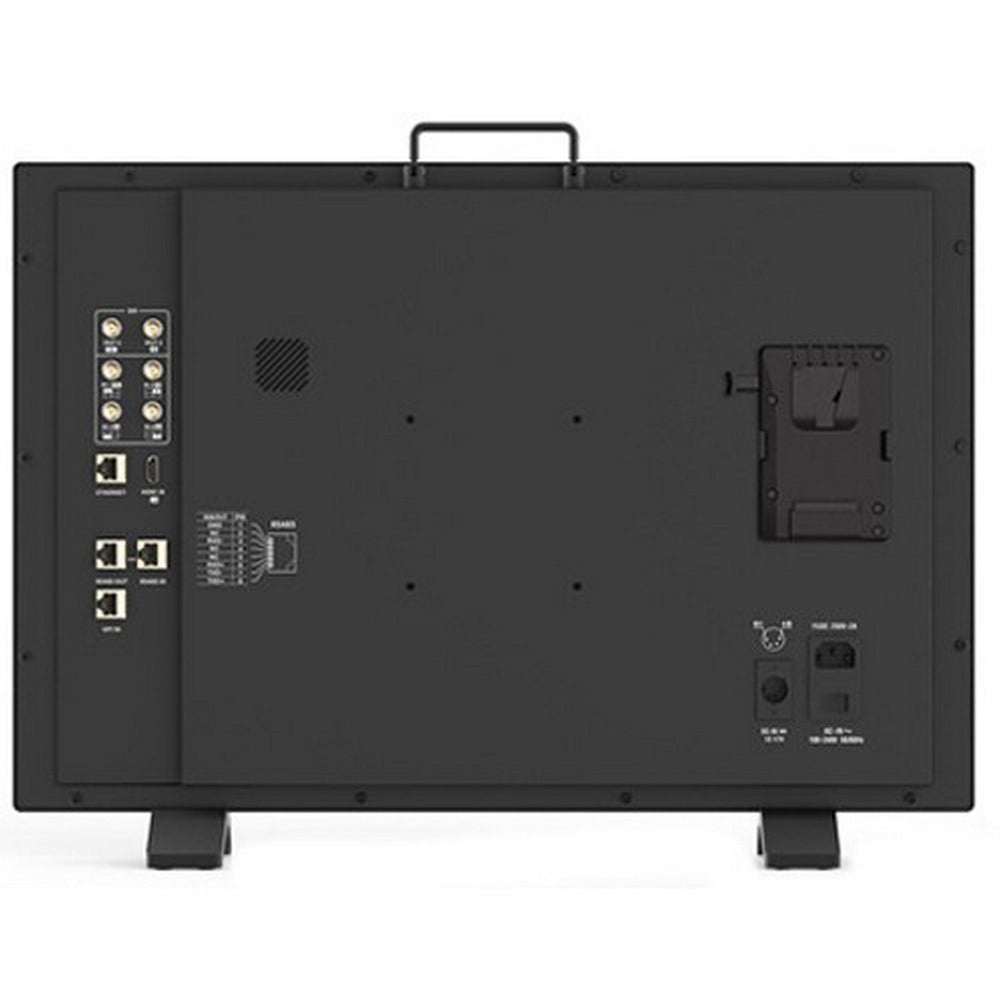

Video Inputs and Outputs

• SDI Input 1: 1 x BNC supporting 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI
• SDI Inputs 2-4: 3 x BNC supporting 3G-SDI, HD-SDI, and SD-SDI
• HDMI Input: 1 x HDMI 2.0
• Primary SDI Loop Output: 1 x BNC supporting 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI
• Secondary SDI Loop Output: 1 x BNC supporting 3G-SDI, HD-SDI, and SD-SDI
• USB: USB-A for user LUT loading and firmware updates
• Ethernet: 1 x RJ45 Gigabit Ethernet for webserver IP control
• TSL UMD Input: 1 x RS-485 supporting TSL 3.1/4.0
• TSL UMD Output: 1 x RS-485 supporting TSL 3.1/4.0
• Tally Input: 1 x GPI over RS-485
• Headphone Output: 1 x 3.5mm
• Built-In Speaker: Mono

4K and Multiview Operation

• Single-Link 4K: 12G-SDI
• Quad-Link 4K: 4 x 3G-SDI with SQD and 2SI support
• HDMI 4K: HDMI 2.0 up to 4K60
• 4-Channel Multiview: Mixed SDI and HDMI sources
• 2-Channel Viewing: Picture-by-picture and picture-in-picture
• 4K Pixel-to-Pixel: Pixel-to-pixel zoom of 4K signals on the Full HD panel
• Multi-Gamut Viewing: One source can be displayed in four windows with different HDR/SDR and color-gamut settings

HDR, Color, and Calibration

• HDR EOTFs: HLG, PQ, S-Log3
• SDR Gamma: 1.0, 1.8, 2.2, 2.4, 2.6
• Selectable Color Gamuts: LCD Native, Rec.709, DCI-P3, Rec.2020
• Payload ID: Automatically configures EOTF, color gamut, input range, color space, and color depth from supported metadata
• Automatic 3D LUT Calibration: Built-in calibration without a computer
• Compatible Calibration Probes: X-Rite i1 and JETI Specbos 1211
• X-Rite i1 Calibration Time: Approximately 15 minutes
• JETI Specbos 1211 Calibration Time: Approximately 45 minutes
• Calibration Accuracy: Delta E less than or equal to 1.0
• User LUT Support: 17 x 17 x 17 3D LUT cube files
• Built-In De-Log LUTs: Log-C, C-Log, S-Log2, S-Log3, V-Log, J-Log1, RedLogFilm, and additional camera log conversions

Monitoring and Audio Tools

• Video Analysis: Waveform, vectorscope, histogram, eye pattern, false color, focus assist, zebra, markers, and blue-only
• Zero-Latency Mode: Less than 1/100 frame
• Embedded Audio Metering: Up to 16 channels
• Audio Monitoring: Any two embedded channels selectable for speaker or headphone output
• Audio Analysis: Lissajous figures plus 5.1 and 7.1 surround-sound phase patterns
• Webserver Control: Browser-based remote operation through Ethernet
• Front-Panel Controls: Brightness, contrast, saturation, backlight, volume, and assignable function controls

Supported SDI Video Formats

• SDI 1 - 4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 1 - 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 1 - 2048 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 1 - 2048 x 1080i: 60, 59.94, 50
• SDI 1 - 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 1 - 1080i: 60, 59.94, 50
• SDI 1 - 1080PsF: 30, 29.97, 25, 24, 23.98 fps
• SDI 1 - 720p: 60, 59.94, 50 fps
• SDI 1 - Standard Definition: 480i59.94 and 576i50
• SDI 2/3/4 - 2048 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 2/3/4 - 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 2/3/4 - 1080i: 60, 59.94, 50
• SDI 2/3/4 - 1080PsF: 30, 29.97, 25, 24, 23.98 fps
• SDI 2/3/4 - 720p: 60, 59.94, 50 fps
• SDI 2/3/4 - Standard Definition: 480i59.94 and 576i50
• Quad-Link 4K - 2048 x 1080p per Channel: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• Quad-Link 4K - 1080p per Channel: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps

Supported HDMI Video Formats

• 4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• 1080i: 60, 59.94, 50
• 720p: 60, 59.94, 50 fps

Power and Environmental

• AC Input: 100-240 VAC, 50/60 Hz
• DC Input: 12-17 VDC via 4-pin XLR
• Power Consumption: 60W
• Battery Mount: V-mount
• Wireless: No
• Wi-Fi: No
• Bluetooth: No
• Media Card Slot: No
• Operating Temperature: 32 to 122 degrees F
• Operating Humidity: 10-90%
• Storage Temperature: 5 to 140 degrees F
• Storage Humidity: 10-90%
• Dimensions: 22.9 x 15.4 x 2.9 inches
• Weight: 14.8 lb
• Shipping Carton Dimensions: 27 x 20 x 7.8 inches
• Packaged Weight: 23.5 lb

What's In the Box

• SWIT BM-H245 23.8-Inch Production Monitor
• V-Mount Battery Plate
• 2 x Desktop Stand Feet
• AC Power Cable
