SWIT BM-U175 / BM-U245 4K/8K 12G-SDI Studio Monitors

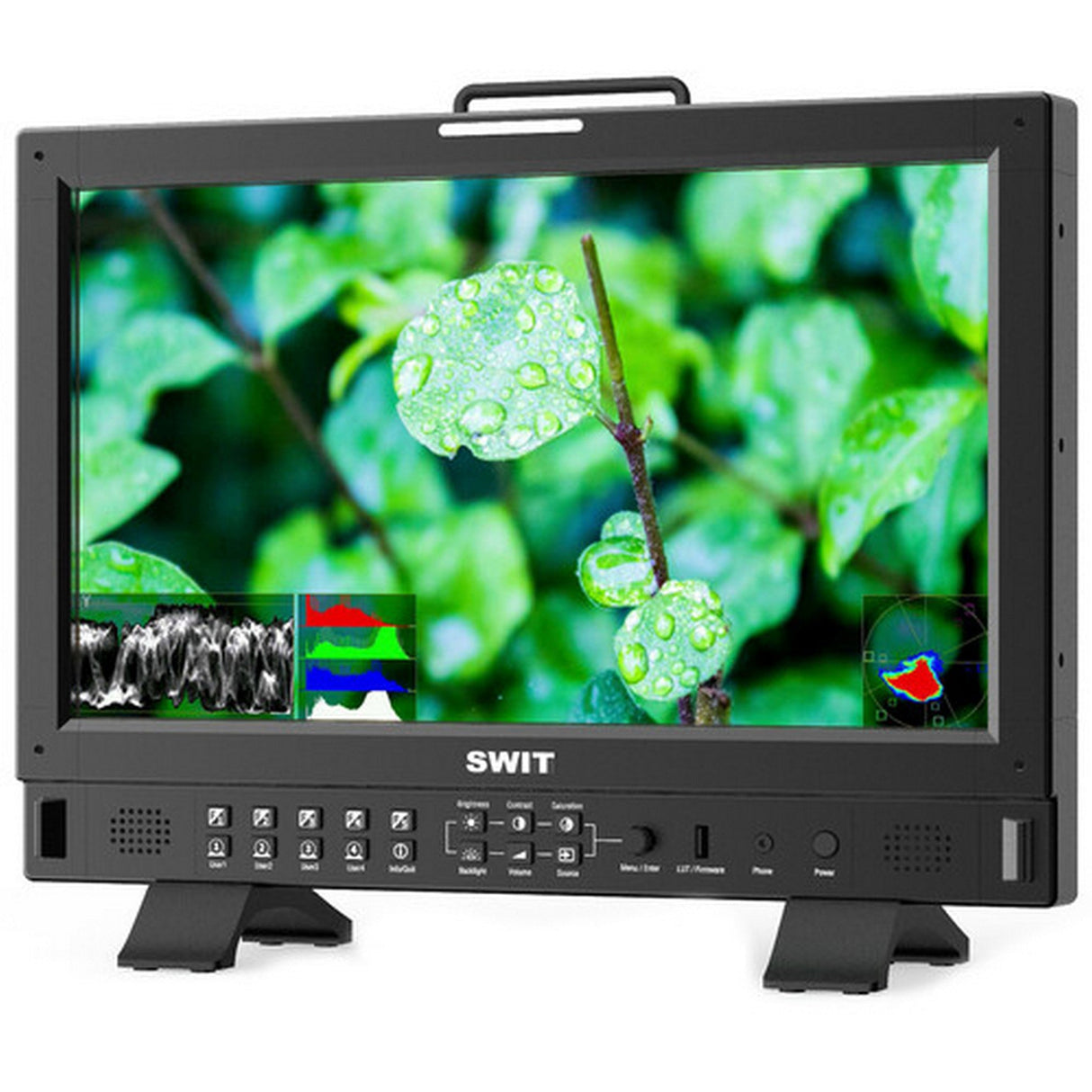

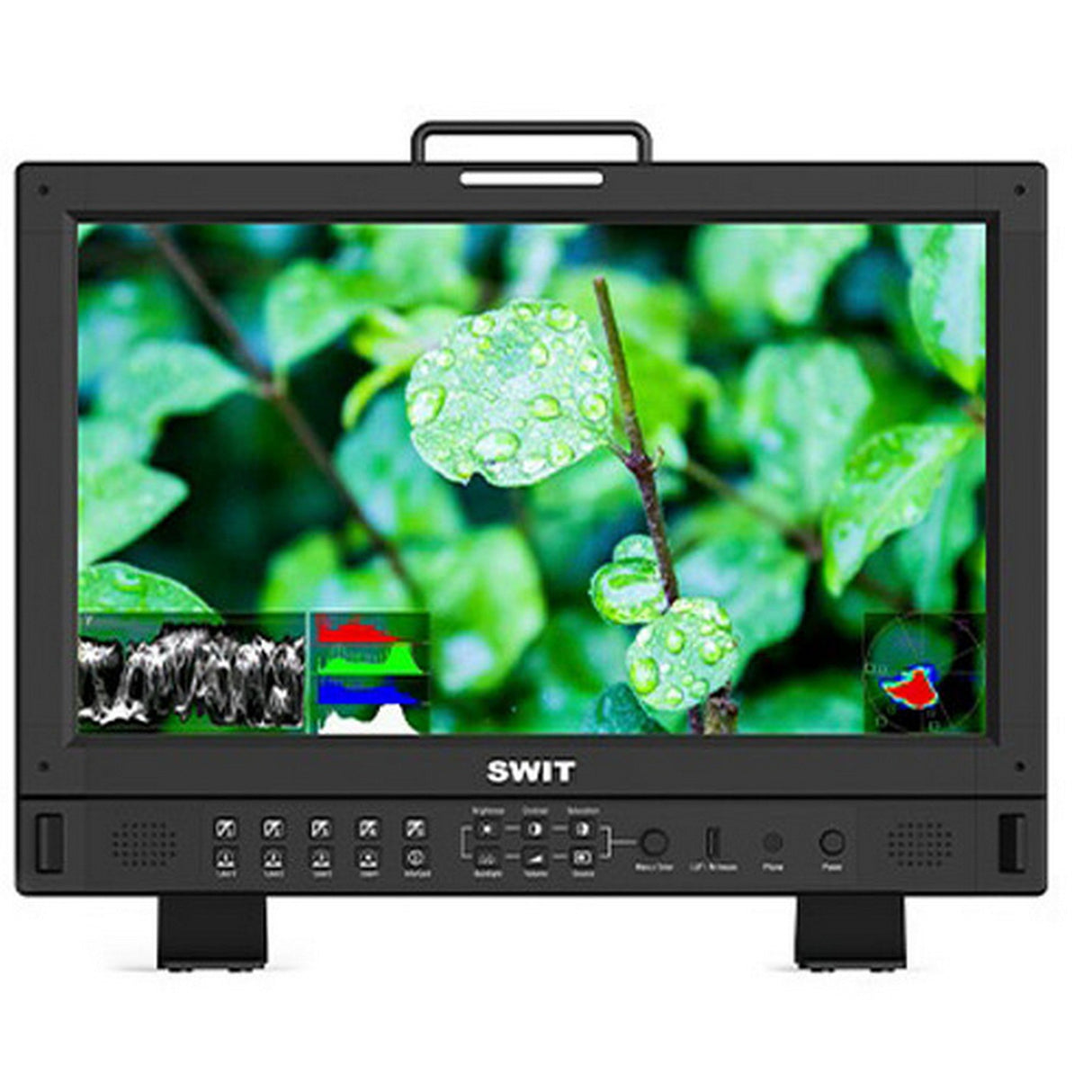

The SWIT BM-U175 / BM-U245 4K/8K 12G-SDI Studio Monitors provide UHD 3840 x 2160 monitoring in 17.3-inch and 23.8-inch sizes for broadcast, post-production, and studio workflows. Both support single-link 4K, quad-link 4K, quad-link 8K, multiview monitoring, HDR/SDR evaluation, and professional 12G-SDI connectivity.

Choose the BM-U175 when rack integration and a more compact 17.3-inch display are priorities, or the BM-U245 when a larger 23.8-inch viewing area and native 10-bit panel are preferred. Both models support four independent 4K sources in multiview, making them practical 4K/8K studio monitors for control rooms, production facilities, DIT environments, and multi-camera monitoring.

Professional image-analysis tools include waveform, vectorscope, histogram, focus assist, false color, zebra, eye pattern, audio meters, and user 3D LUT support. Built-in calibration works with compatible color probes without requiring a computer, while Ethernet web control supports remote operation. Both sizes also provide HLG, PQ, S-Log3, multiple SDR gamma curves, and selectable BT.709, DCI-P3, and BT.2020 color gamuts.

Key Features

• Two Monitor Sizes: Choose the 17.3-inch BM-U175 or 23.8-inch BM-U245 while retaining the same core 4K/8K monitoring platform.
• Native UHD Panels: Both models display 3840 x 2160 resolution, with 300-nit brightness and 178-degree horizontal and vertical viewing angles.

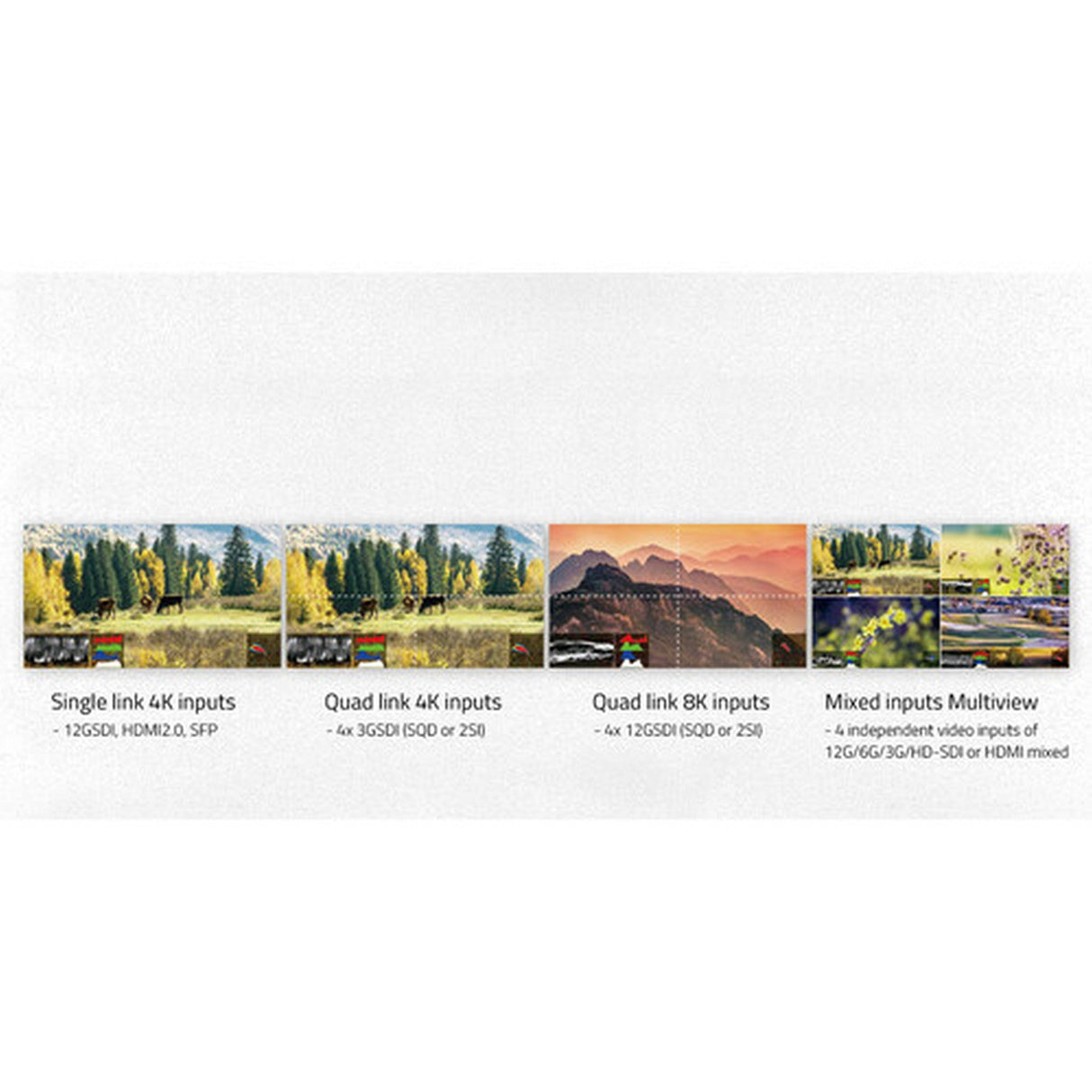

• 4K and 8K Signal Support: Four 12G-SDI inputs support single-link 4K, quad-link 4K, quad-link 8K, and four-source multiview workflows.
• HDR and SDR Monitoring: HLG, PQ, S-Log3, and selectable SDR gamma options support modern production and finishing environments.
• 3D LUT Calibration: Built-in calibration software works with compatible X-Rite and JETI probes and supports user 17 x 17 x 17 LUT files.

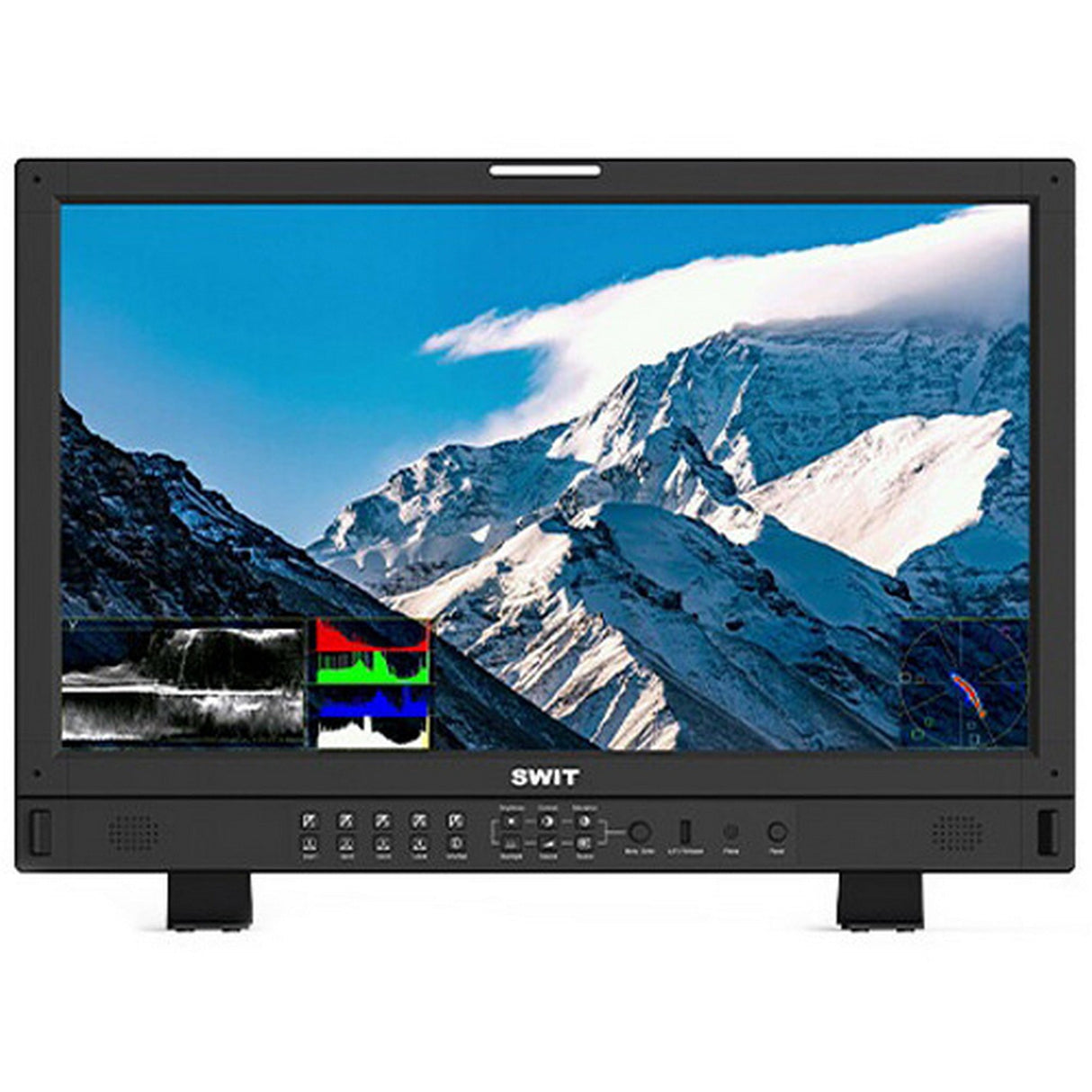

• Professional Scopes: Waveform, vector, histogram, false color, focus assist, zebra, markers, and eye-pattern tools assist exposure and signal evaluation.
• Zero-Latency Mode: A processing mode below 1/100 of a frame supports critical lip-sync monitoring with 4K sources.
• IP Remote Control: Gigabit Ethernet enables browser-based source selection, picture adjustment, monitoring functions, and function-key configuration.

Technical Specifications

Shared Video and Monitoring Features

• Native Resolution: 3840 x 2160
• Aspect Ratio: 16:9
• Brightness: 300 nits
• Viewing Angle: 178 degrees horizontal / 178 degrees vertical
• Signal Processing: 18-bit

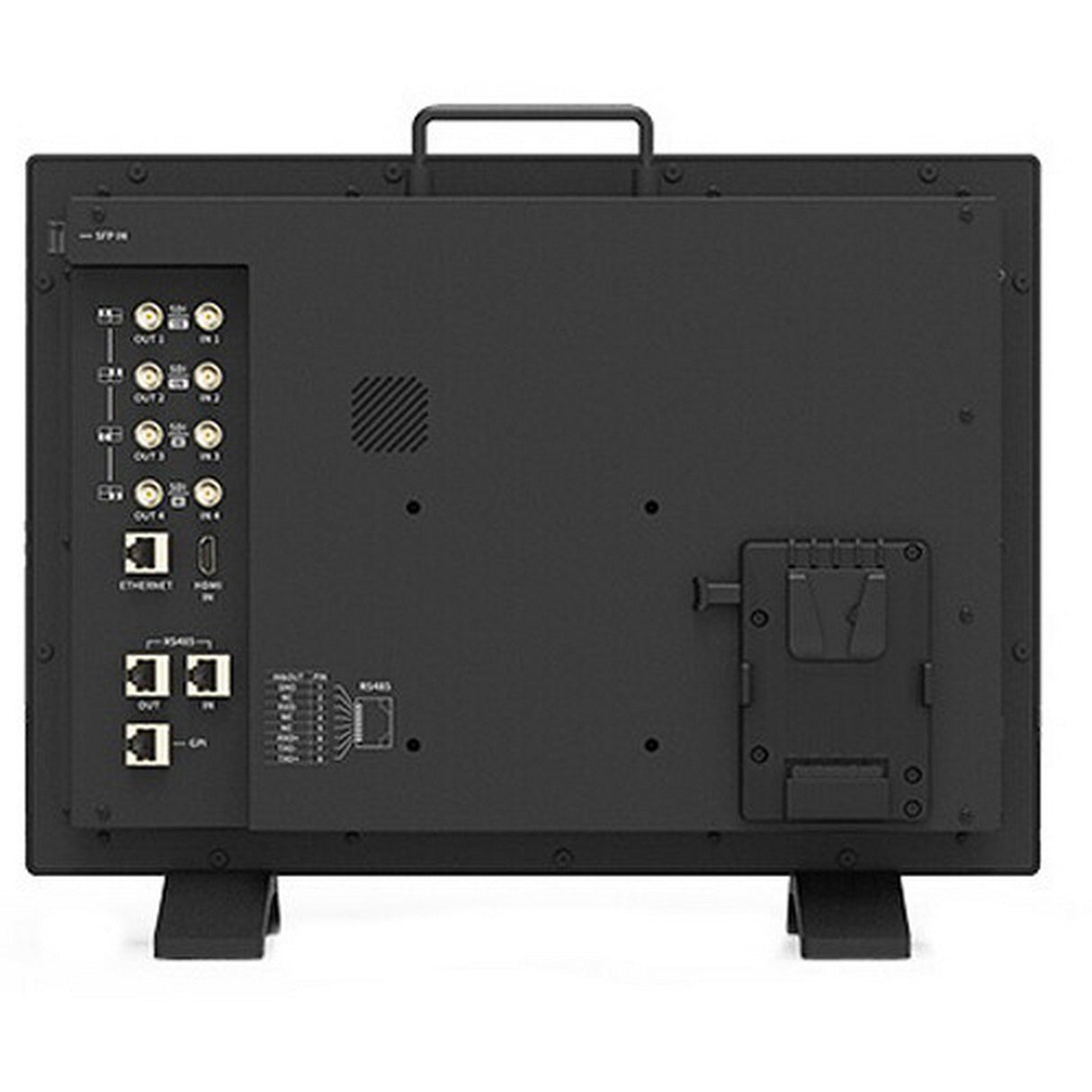

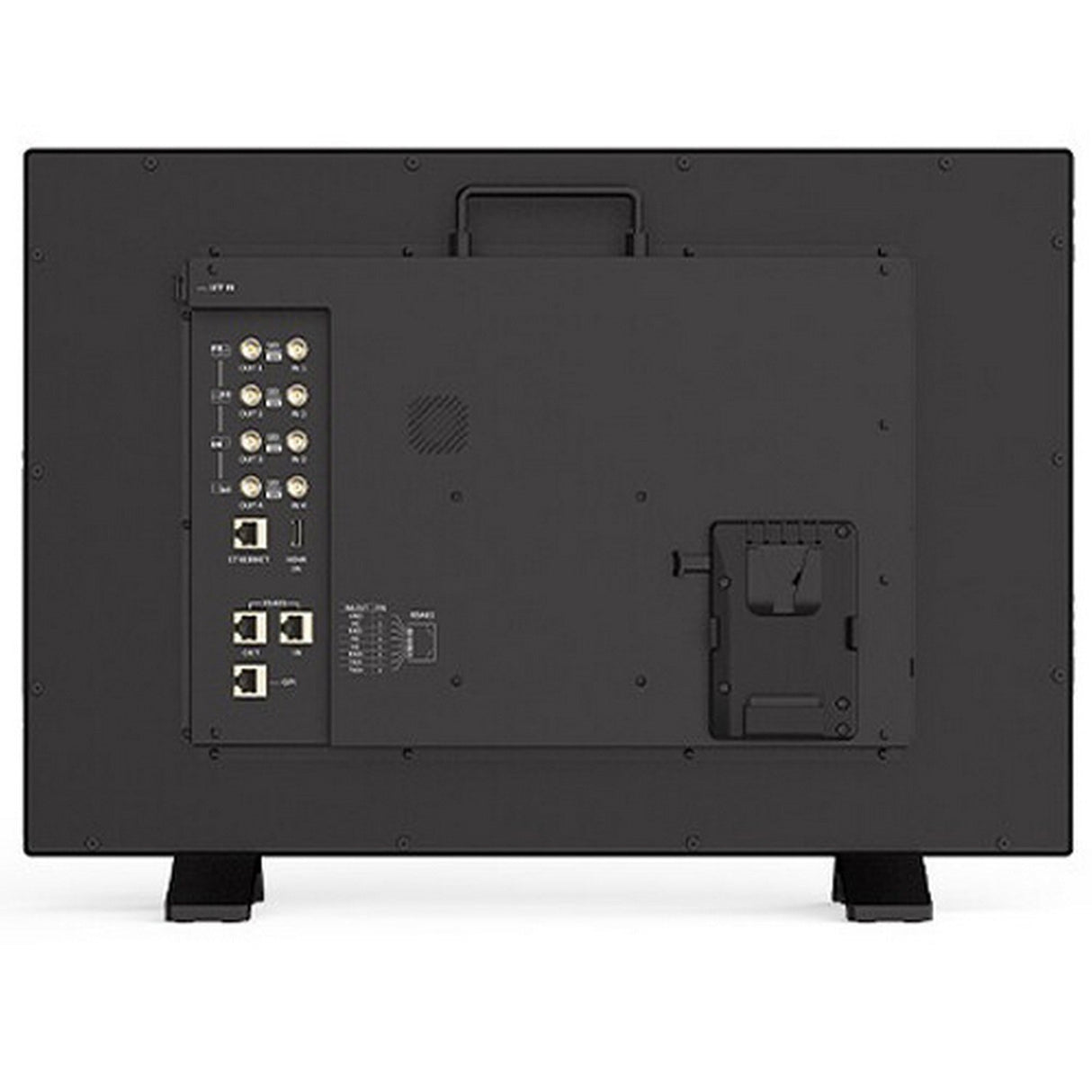

• SDI Inputs: 4 x BNC supporting 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI
• SDI Outputs: 4 x BNC loop outputs supporting 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI
• HDMI Input: 1 x HDMI 2.0, up to 4K60
• SFP: 1 x optical fiber input slot for an optional compatible SFP adapter
• Optional SFP Signal Support: 12G-SDI optical fiber or ST 2110 IP with compatible transceiver
• Quad-Link Modes: Quad mode and 2SI interleave
• Multiview: Up to four independent 4K input sources
• HDR EOTFs: HLG, PQ, S-Log3
• SDR Gamma: 1.0, 1.8, 2.2, 2.4, 2.6
• Selectable Color Gamuts: LCD Native, BT.709, DCI-P3, BT.2020

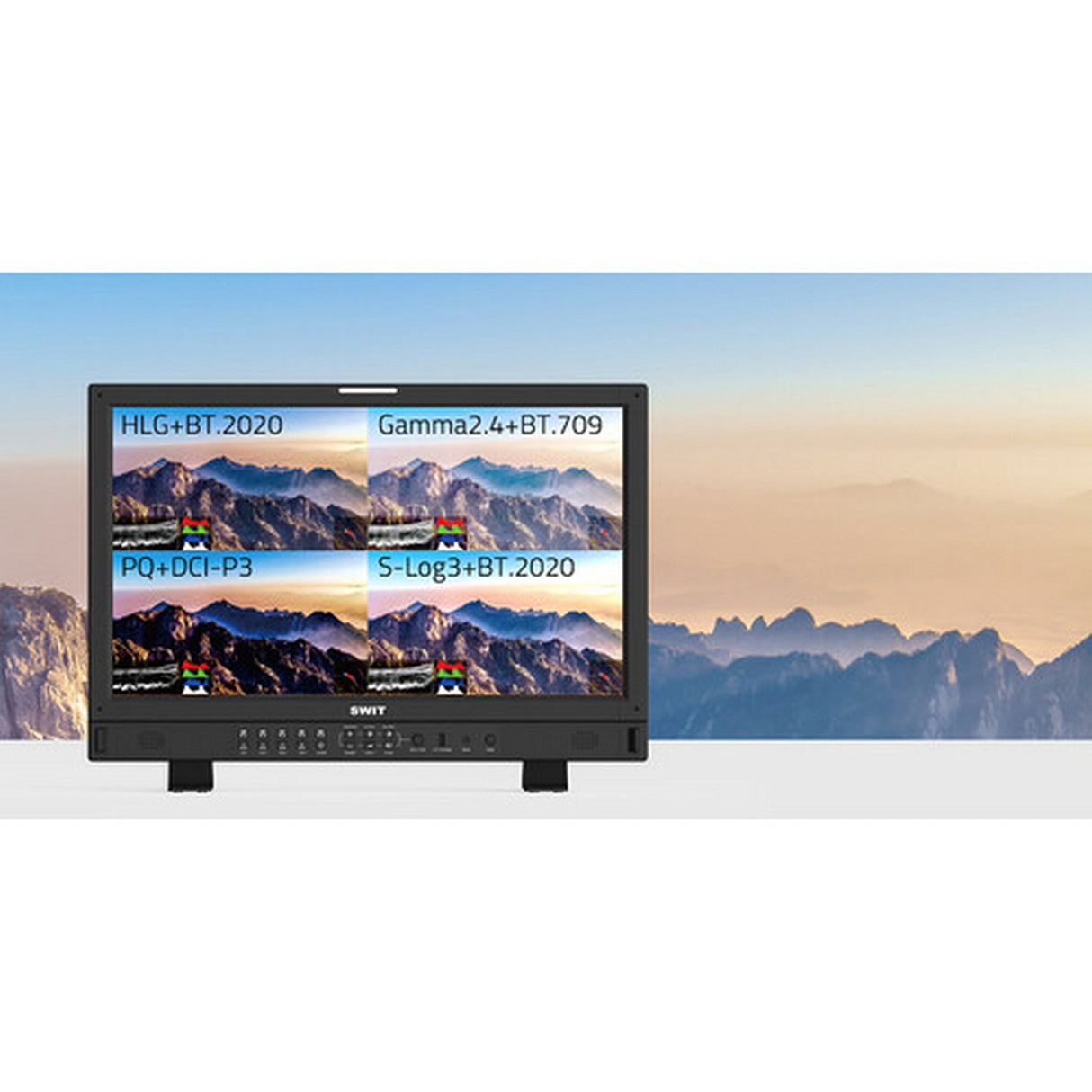

• Multi-Gamut / EOTF Viewing: One source can be copied into four windows with independently selected HDR/SDR and color-gamut settings
• Payload ID: Automatic EOTF, color gamut, input range, color space, and color-depth configuration from supported input metadata
• 3D LUT Auto Calibration: Built-in calibration without a computer
• Compatible Calibration Probes: X-Rite i1 and JETI Specbos 1211
• X-Rite i1 Calibration Time: Approximately 15 minutes
• JETI Specbos 1211 Calibration Time: Approximately 45 minutes
• Calibration Result: Delta E less than or equal to 1.0
• User LUT Support: 17 x 17 x 17 3D LUT cube files via USB
• Built-In De-Log LUTs: Log-C, C-Log, S-Log2, S-Log3, V-Log, J-Log1, RedLogFilm, and additional camera log conversions

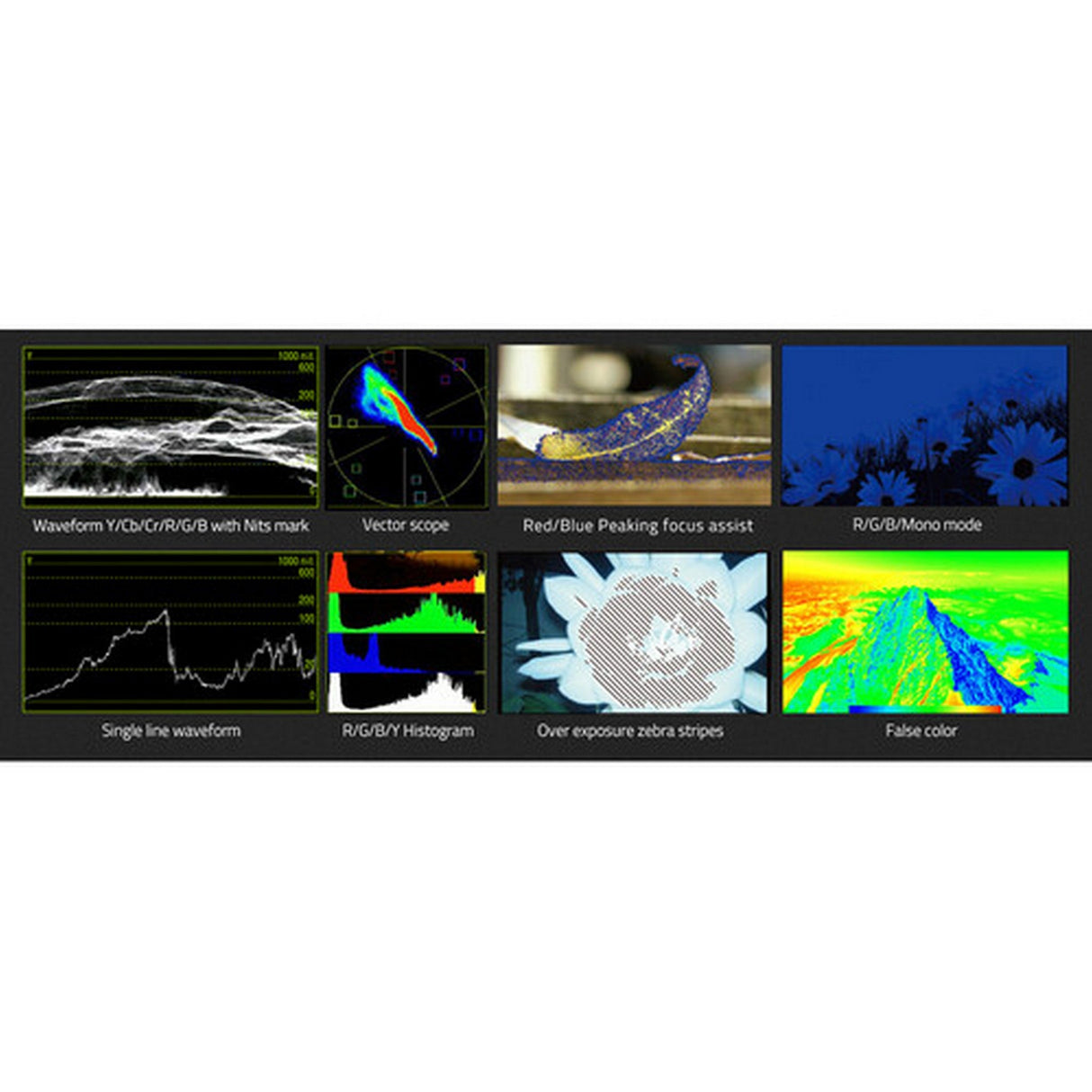

• Monitoring Tools: Waveform, vector, histogram, false color, focus assist, zebra, marker, blue-only, and color checker

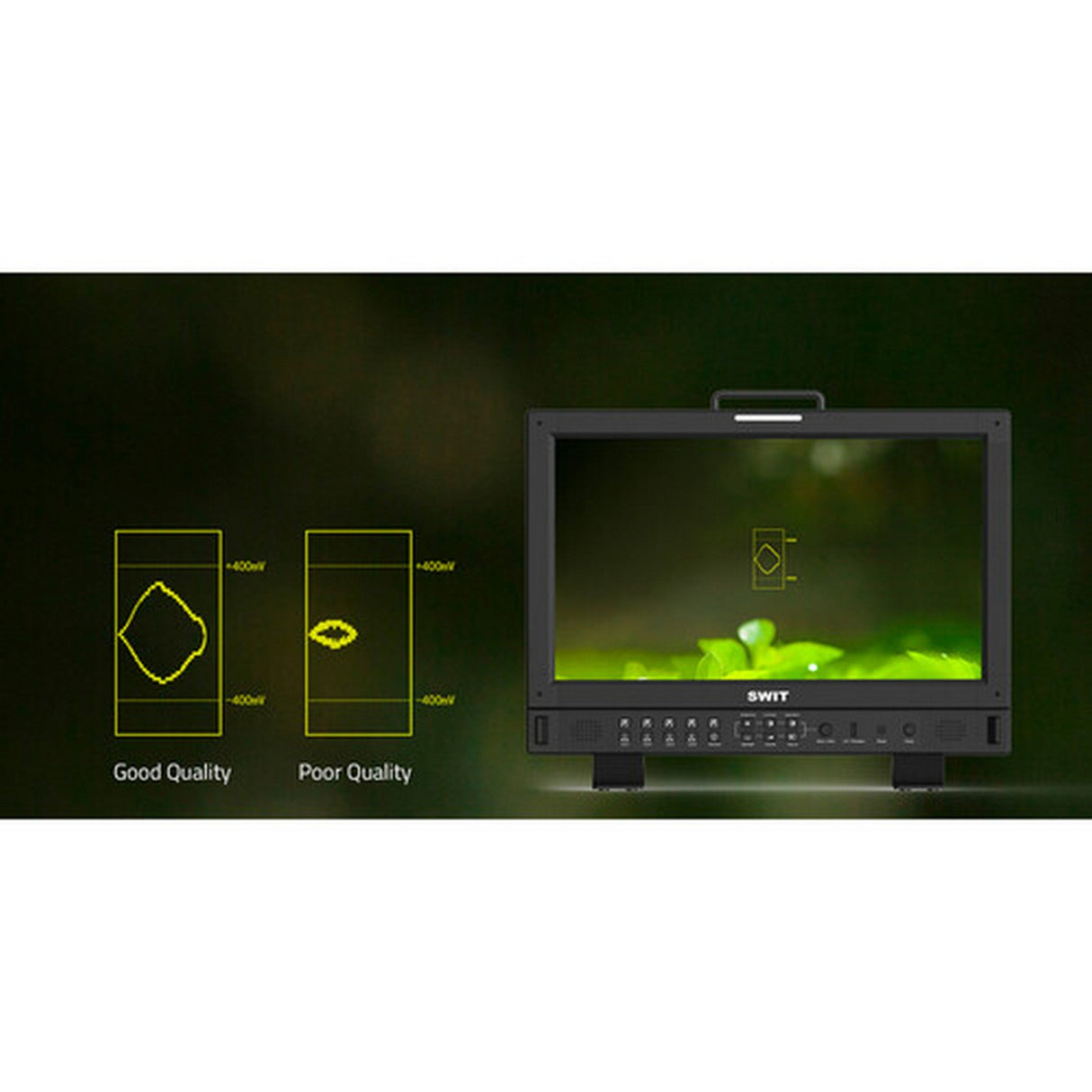

• Eye Pattern: Built-in SDI eye-pattern display for transmission-quality evaluation
• Zero-Latency Mode: Less than 1/100 frame with supported 4K input sources
• Embedded Audio Metering: Up to 16 channels
• Audio Monitoring: Any two embedded channels selectable for speaker or headphone monitoring
• Audio Analysis: Lissajous and 5.1+2 surround-sound patterns
• Headphone Output: 1 x 3.5mm
• Built-In Speaker: Yes
• Ethernet: Gigabit Ethernet for webserver IP control
• TSL UMD: RS-485 input and output with TSL 3.1/4.0 support
• Tally: GPI tally input with text tally display
• USB: Supports user LUT loading and firmware updates
• Touchscreen: No
• Media Card Slot: No
• Wi-Fi: No
• Bluetooth: No
• Input Voltage: 12-17 VDC or 100-240 VAC, 50/60 Hz
• Battery Mount Compatibility: V-mount or Gold mount plate configurations
• Operating Temperature: 32 to 122 degrees F
• Operating Humidity: 10-90%
• Storage Temperature: 5 to 140 degrees F
• Storage Humidity: 10-90%

Supported Video Formats

• SDI 4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 2048 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 2048 x 1080i: 60, 59.94, 50
• SDI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• SDI 1080PsF: 30, 29.97, 25, 24, 23.98 fps
• SDI 1080i: 60, 59.94, 50
• SDI 720p: 60, 59.94, 50 fps
• SDI Standard Definition: 480i59.94 and 576i50
• HDMI 4096 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• HDMI 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• HDMI 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• HDMI 1080i: 60, 59.94, 50
• HDMI 720p: 60, 59.94, 50 fps

BM-U175 17.3-Inch Variant

• Display Size: 17.3 inches
• Display Area: 15 x 8.5 inches
• Panel: LCD, 8-bit + 2FRC
• Color Support: 16.77 million colors
• DCI-P3 Coverage: 91.5%
• Contrast Ratio: 800:1
• Power Consumption: 60W
• Rack Mounting: Standard 19-inch rack, 7U using included rack ears
• Dimensions: 17.2 x 12.2 x 3.5 inches
• Weight: 13 lb

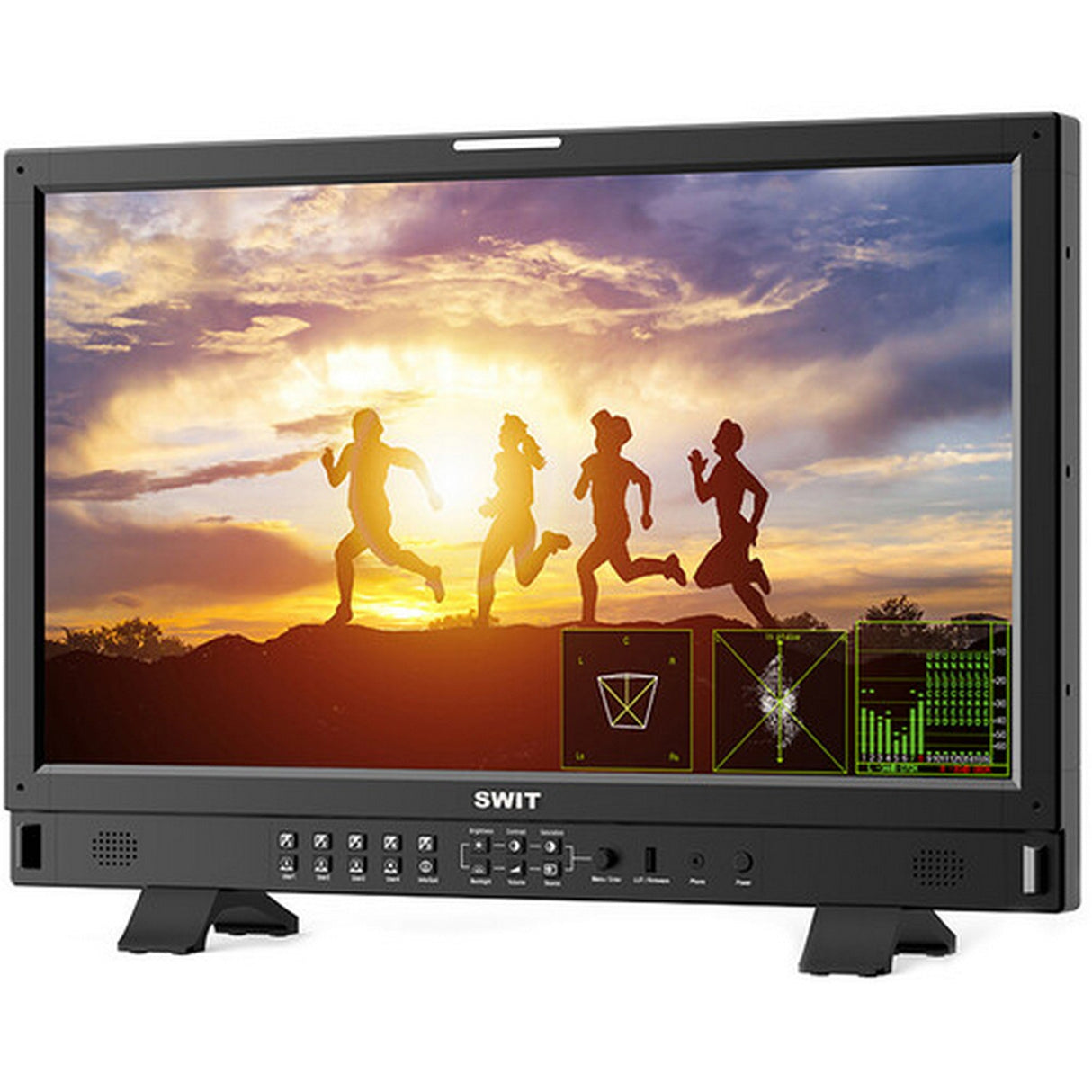

BM-U245 23.8-Inch Variant

• Display Size: 23.8 inches
• Display Area: 20.7 x 11.7 inches
• Panel: 10-bit LCD
• Color Support: 1.073 billion colors
• DCI-P3 Coverage: 94.1%
• Contrast Ratio: 1000:1
• Power Consumption: 70W
• Dimensions: 22.9 x 15.4 x 3.5 inches
• Weight: 19.6 lb

What's In the Box

BM-U175

• BM-U175 Monitor
• Battery Plate, V-Mount or Gold Mount Configuration
• 2 x Tabletop Stand Feet
• Power Cord
• 2 x 19-Inch Rack Ears

BM-U245

• BM-U245 Monitor
• 2 x Desktop Stand Feet
• AC-DC Power Adapter
