SWIT CL-120D 120W 2:1 Bi-Color SMD LED Panel with DMX

SWIT CL-120D 120W 2:1 Bi-Color SMD LED Panel with DMX

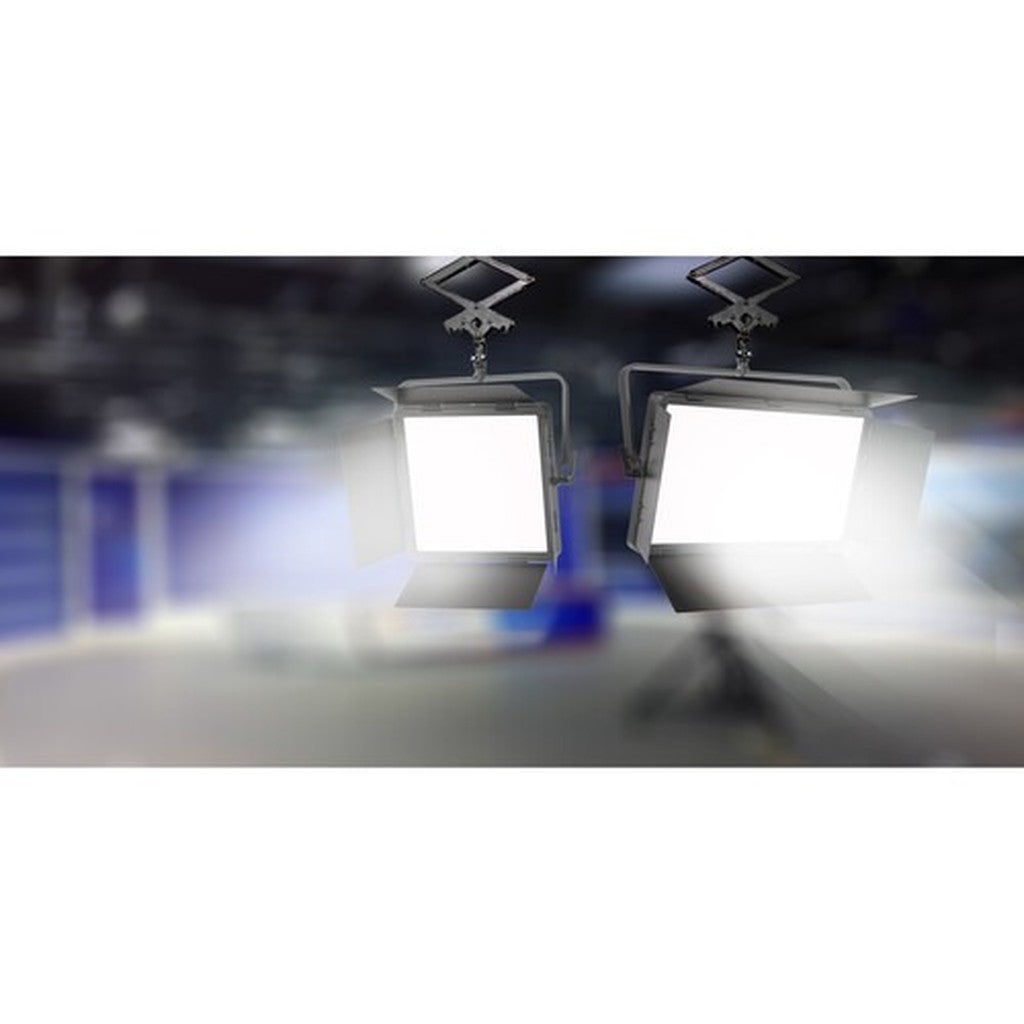

The SWIT CL-120D 120W bi-color SMD LED panel delivers broad, soft illumination for broadcast studios, interviews, livestreaming, and location production. Its 1,800 surface-mounted LEDs produce 3700 lux at 3.3 feet, with adjustable 2700 to 6500K color temperature, 0 to 100% dimming, and accurate CRI 98 and TLCI 99 performance.

Production teams can use this professional bi-color studio light for green-screen work, mobile broadcast setups, corporate video, and multi-camera interviews. The 65° beam spreads light evenly from the center to the edges, while four-way barndoors provide practical control over spill, highlights, and flare. Passive cooling also supports quiet operation around microphones.

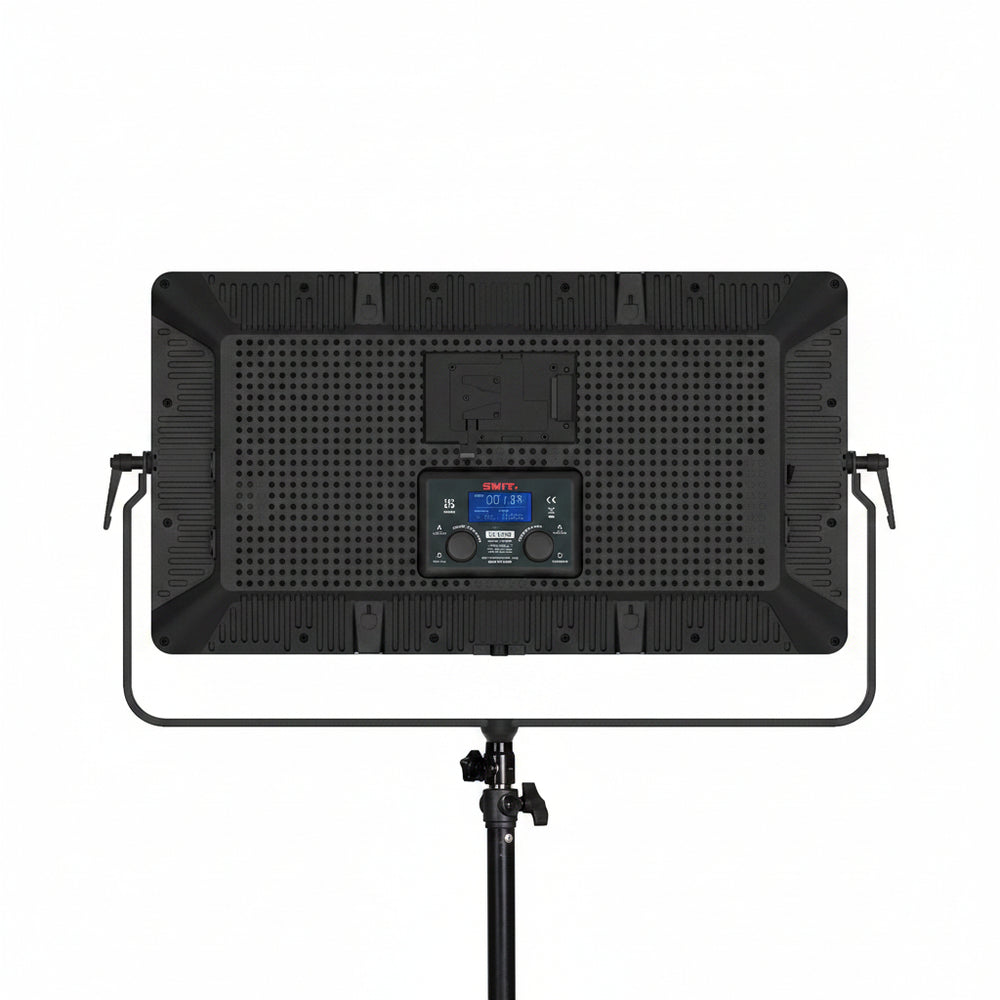

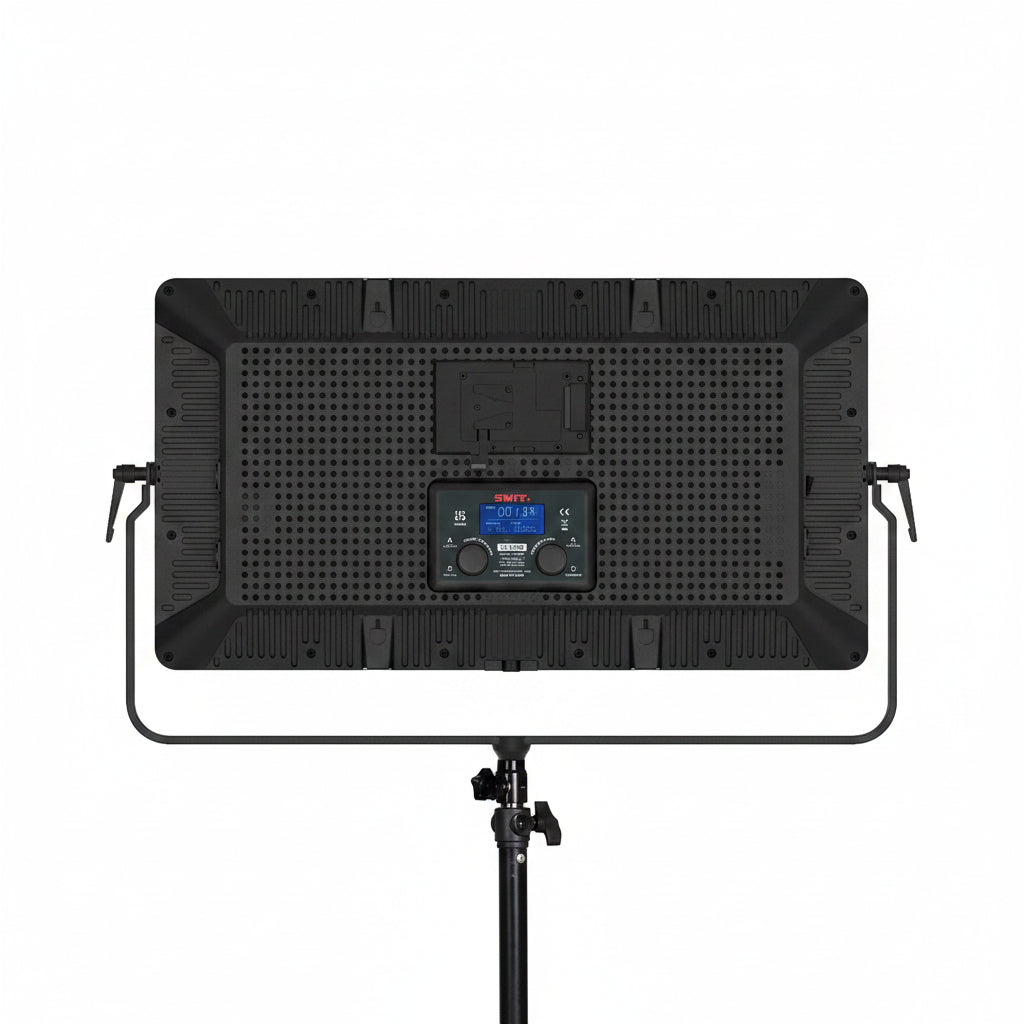

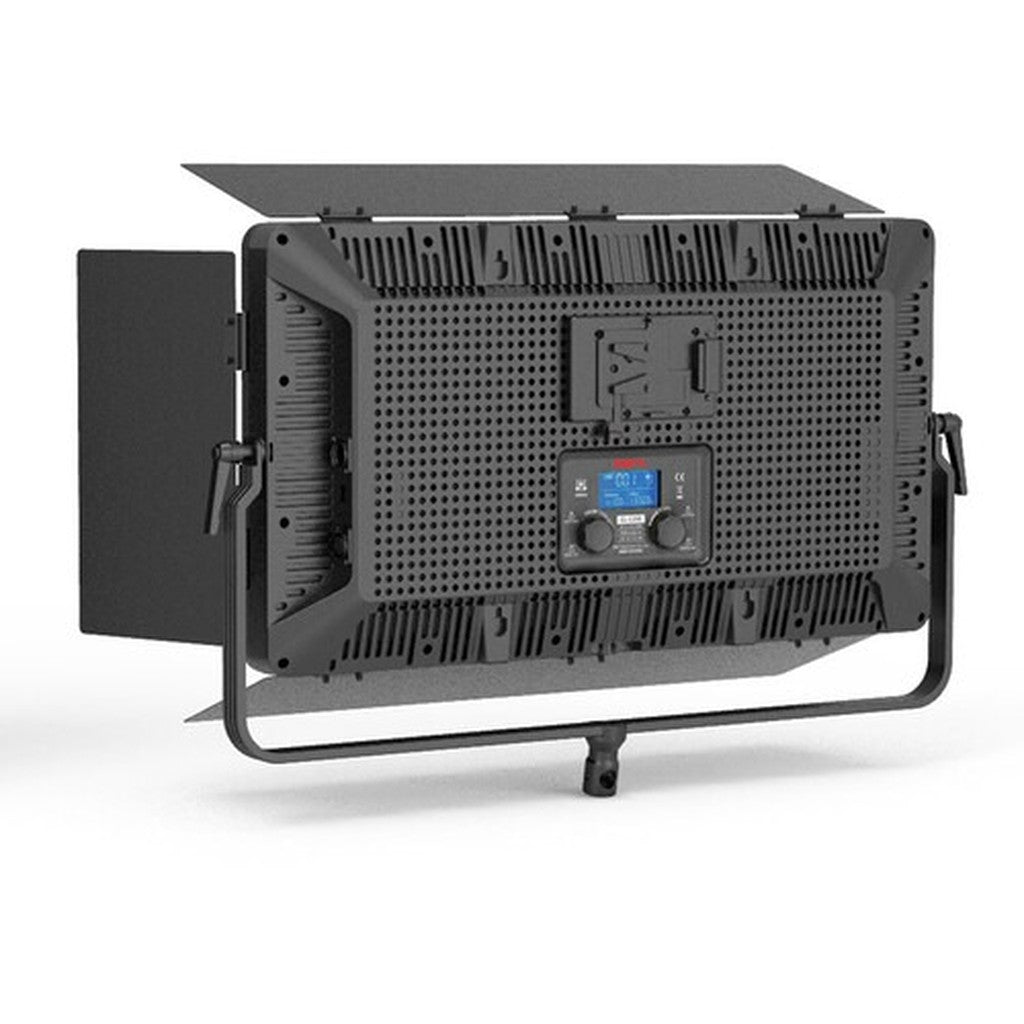

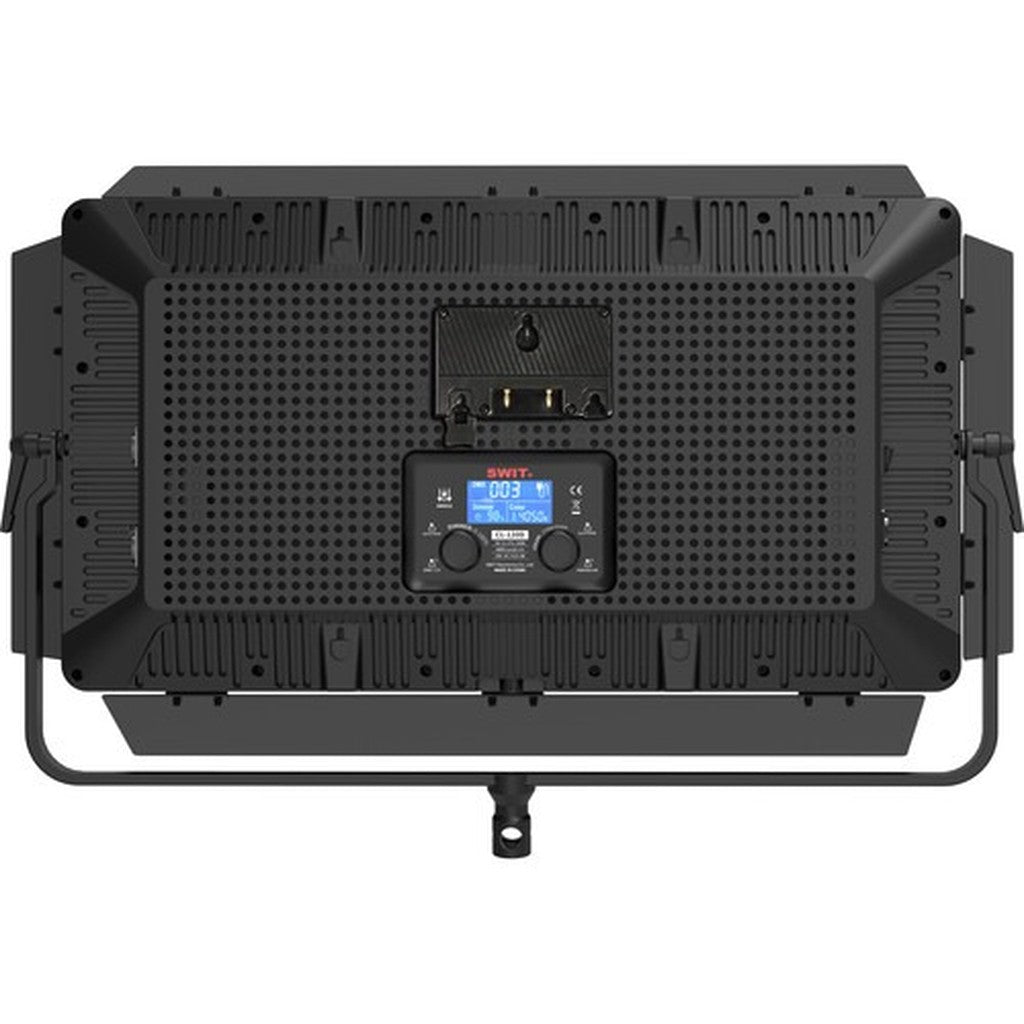

Onboard controls and the rear LCD display show brightness, color temperature, DMX channel, and remaining battery power. Operators can make adjustments directly, through a wired DMX512 console, or wirelessly with an optional transmitter. The included AC adapter supports studio installation, while the integrated V-Mount plate enables battery-powered operation in the field.

Key Features

• 120W Bi-Color Output: Produces powerful, adjustable illumination for professional studio and location production.
• 2700 to 6500K Adjustment: Matches warm tungsten sources, daylight, and mixed-light environments in 50K increments.
• High Color Accuracy: CRI 98 and TLCI 99 ratings support natural skin tones and dependable camera reproduction.
• 1,800 SMD LEDs: Creates soft, uniform illumination with consistent coverage from the center to the panel edges.
• DMX512 Control: Adjusts brightness and color temperature through five-pin DMX input and output connections.
• Integrated V-Mount Plate: Supports compatible rechargeable batteries when AC power is unavailable.
• Passive Cooling: Fanless operation minimizes unwanted noise during interviews, streaming, and audio-sensitive recording.

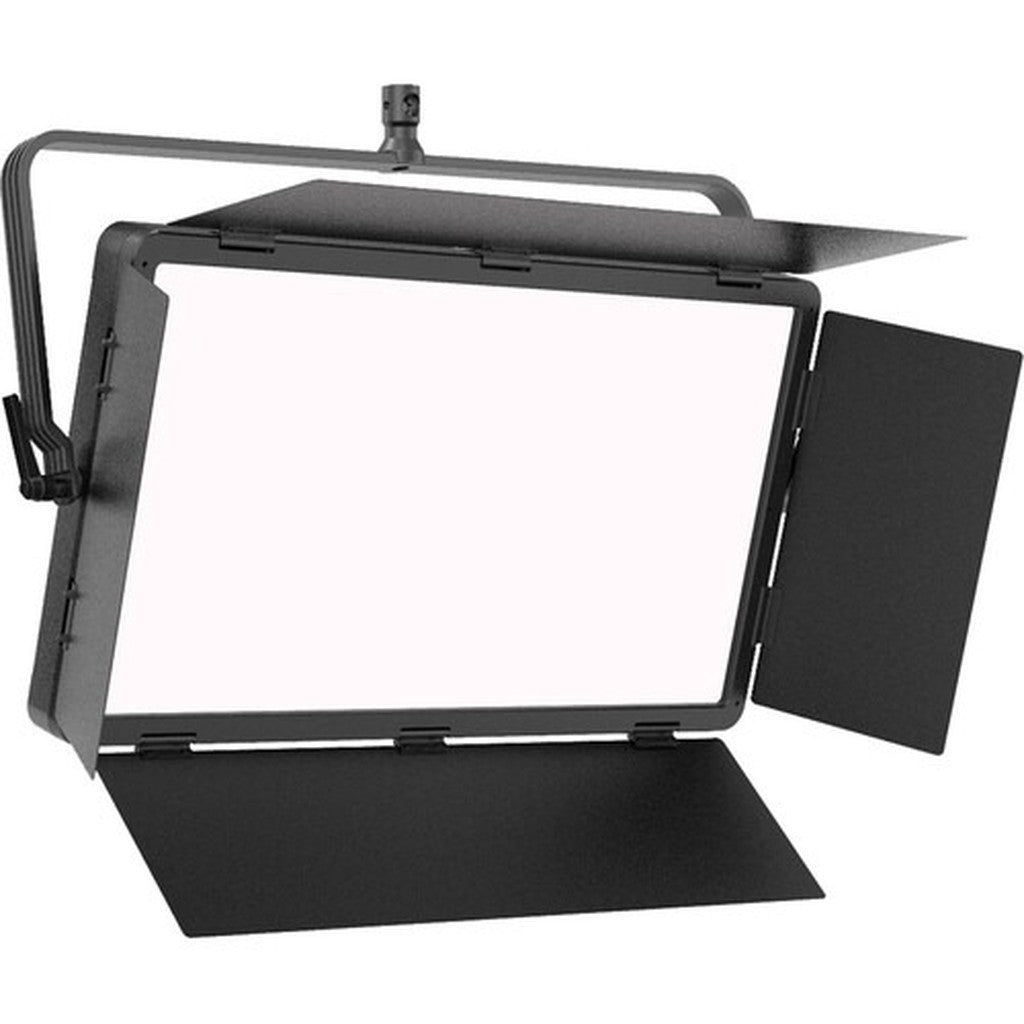

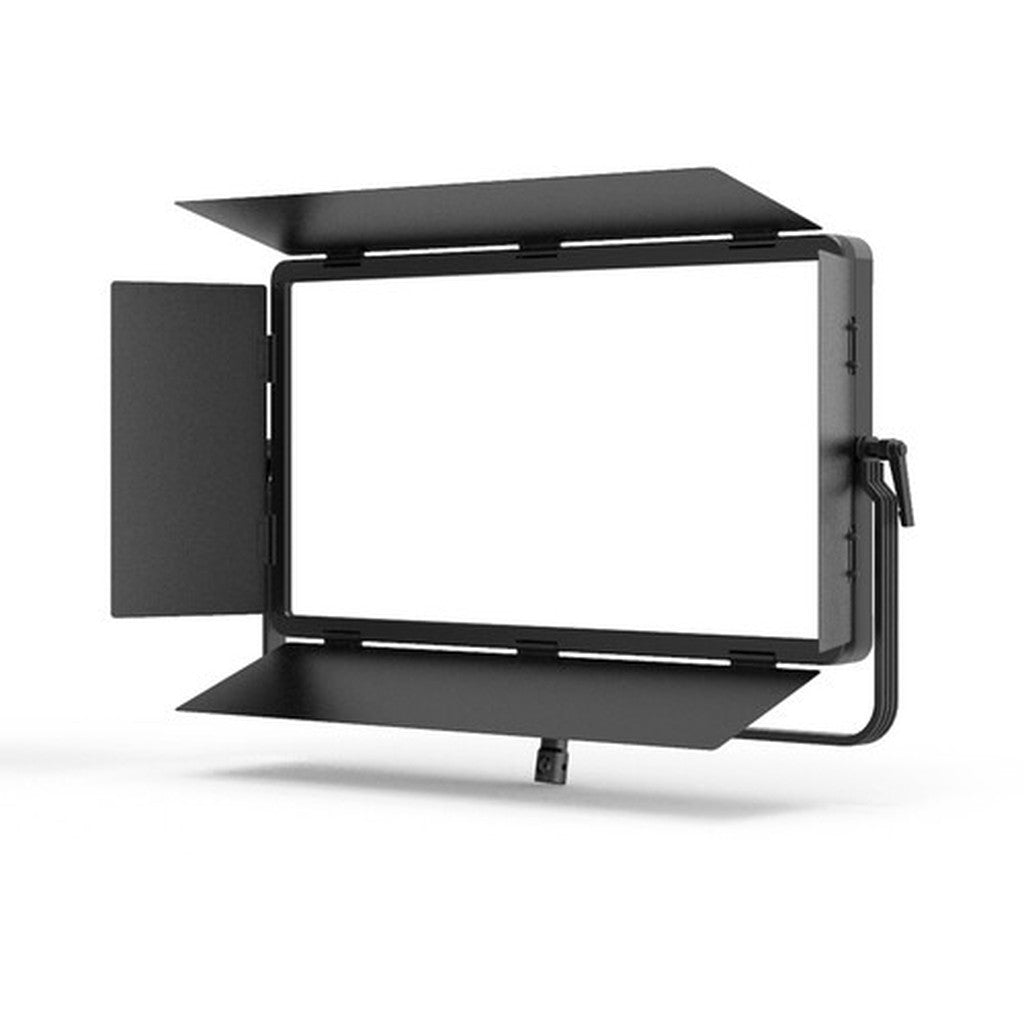

• Four-Way Barndoors: Shapes the 65° beam and helps control spill, flare, and background illumination.

Technical Specifications

• Model: CL-120D
• Item Type: LED light panel
• Panel Format: 2:1
• LED Type: Surface-mounted LEDs
• LED Quantity: 1,800
• Output Power: 120W
• Power Consumption: 120W
• Photometrics: 344 fc / 3700 lux at 3.3 feet
• Color Temperature: 2700 to 6500K
• Color Temperature Adjustment: 50K increments
• Color Modes: Daylight and tungsten
• CRI: 98
• TLCI: 99
• Dimming: Built-in stepped dimmer, 0 to 100%
• Beam Angle: 65°
• Panel Surface Area: 23.6" x 12.2"
• Cooling System: Passive
• Display: Rear LCD
• Included Light Modifier: Four-way barndoors
• Included Filter: Soft diffusion
• Front Accessory Mount: Proprietary

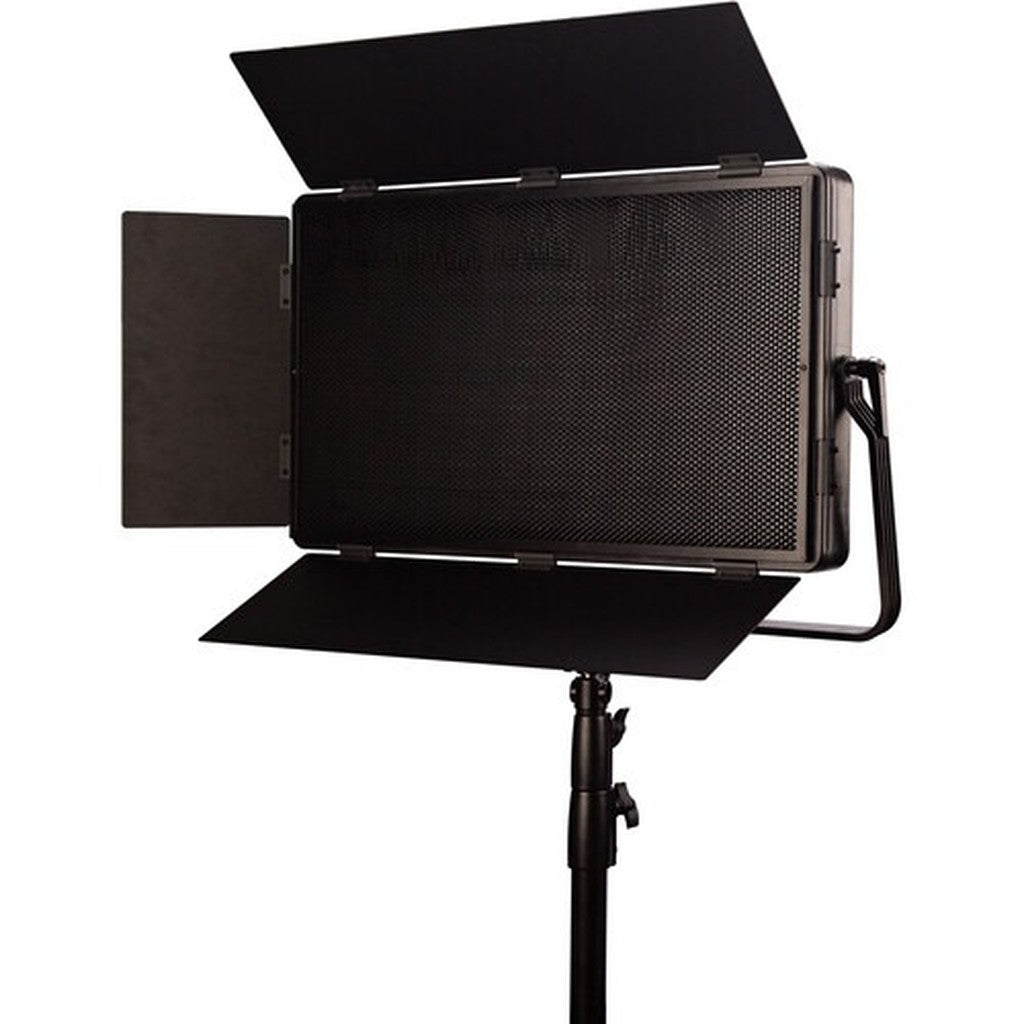

• Optional Modifier: 40° metal honeycomb grid
• Wireless Control: Wireless DMX with optional adapter
• Mobile App Compatibility: No

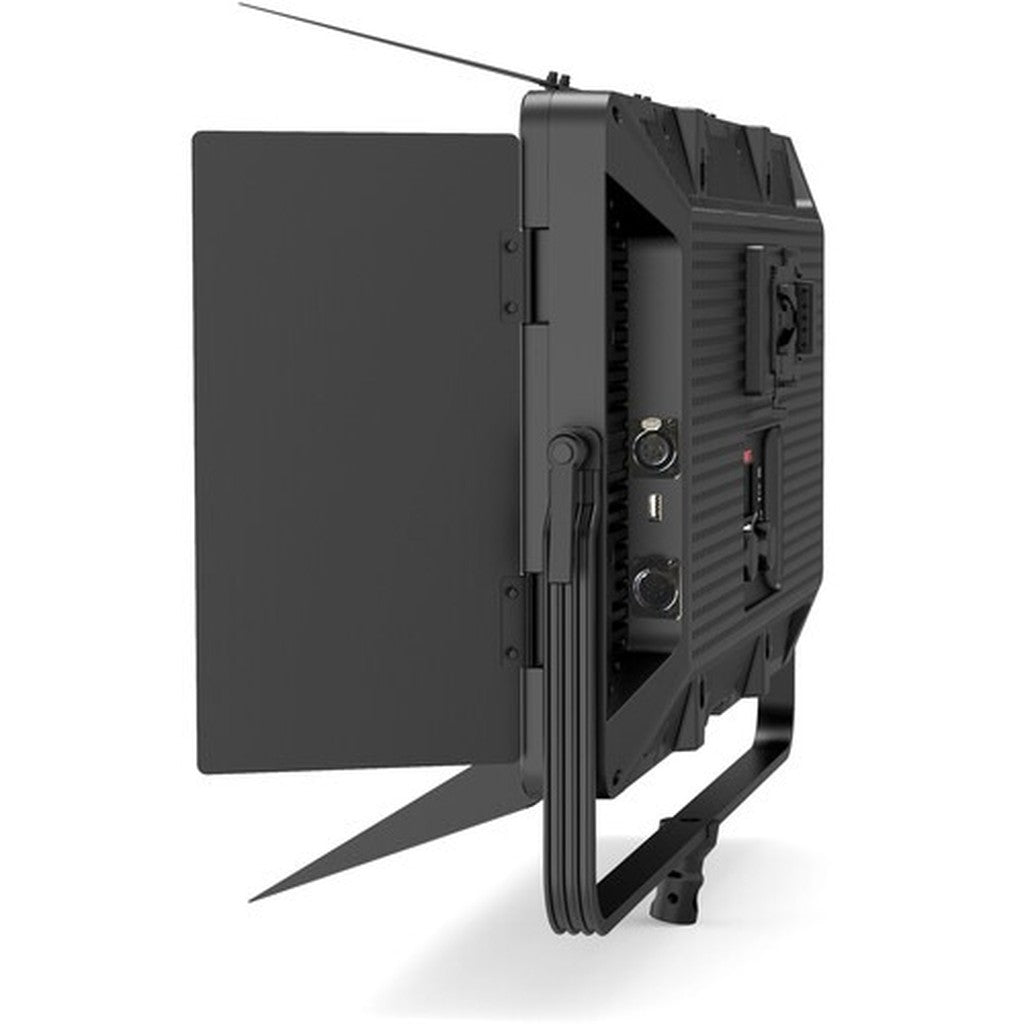

• DMX Input: 1 x 5-pin XLR
• DMX Output: 1 x 5-pin XLR
• DC Power Input: 1 x 4-pin XLR
• USB Connection: 1 x USB-A port
• DC Input Power: 11 to 17V DC
• AC Input Power: 120 to 240V AC, 50/60Hz through the included adapter
• Power Sources: Included AC-to-DC adapter or optional rechargeable battery
• Battery Plate: Integrated V-Mount plate
• Battery Included: No
• Power Pass-Through: No
• Inline Power Switch: No
• Yoke Type: Manually operated yoke
• Fixture Mount: 5/8" receiver through the yoke
• Umbrella Mount: No
• Built-In Flash: No
• Housing Material: Metal
• Environmental Resistance: No
• Storage Case Included: No
• Dimensions: 25.4" x 13.9" x 2.9"
• Weight: 10.4 lbs

What's In the Box

• SWIT CL-120D 120W Bi-Color SMD LED Panel
• Four-way barndoors
• AC power adapter
• Two safety cables
